2003 TOYOTA LAND CRUISER Owners Manual

’03 L/C U (L/O 0301)
125
(n) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver ’s door with
the ignition key in the ”ACC” or ”LOCK”
position.
CHECKING SERVICE REMINDER INDICA-
TORS (except the low fuel level warning
light)1. Apply the parking brake.
2. Open one of the side doors or back door.
The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Place the fourwheel drive control lever in ”N” position and the selector lever
in ”P” position.
5. Turn the ignition key to ”ON”, but do not start the engine.
All the service reminder indicators ex-
cept the open door warning light should
come on. The ”ABS”, ”VSC/TRAC”,
”VSC OFF”, ”TRAC”, and slip indicator
light go off after a few seconds. The
SRS warning light goes off after about
6 seconds. There may be the case that the ”ABS”,
”VSC/TRAC” and ”VSC OFF” stay on
for about 60 seconds after the ignition
key is turned to “ON” position. It is
normal if they go out after a while.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.
Trip information display
The following information is shown with
the ignition key turned on. Each time
you push the “MODE” button, the dis-
played information is changed.
Average vehicle speed
Driving distance after engine starting
Available driving range
Average fuel consumption after refuel-
ing
Current fuel consumption
The displayed cruise information values
indicate the general driving condition and
may not always reflect precise and actual
conditions.

’03 L/C U (L/O 0301)
126

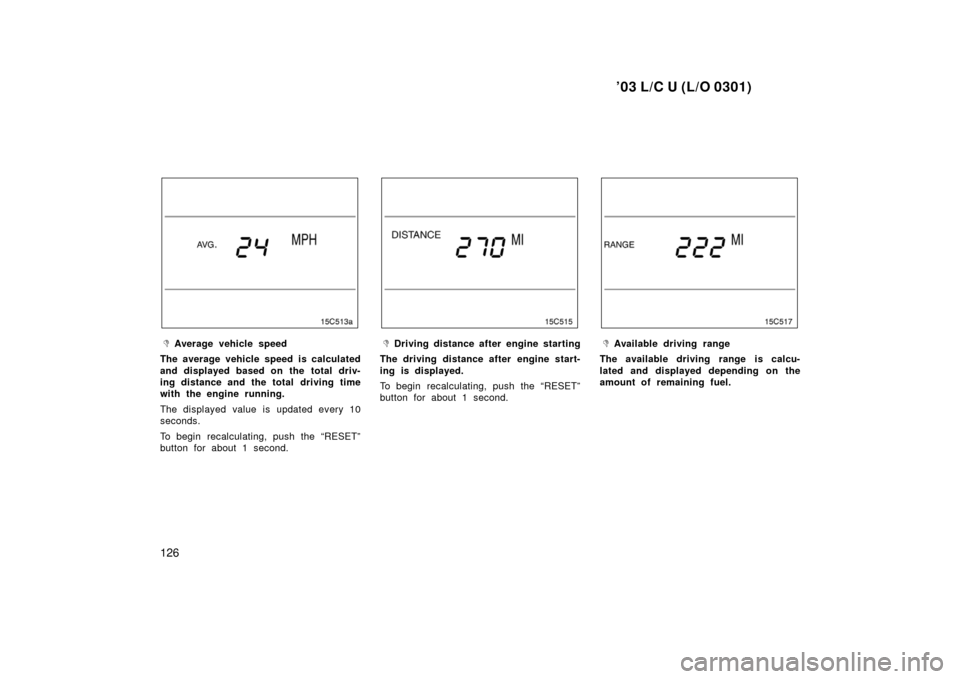

Average vehicle speed
The average vehicle speed is calculated
and displayed based on the total driv-
ing distance and the total driving time
with the engine running.
The displayed value is updated every 10
seconds.
To begin recalculating, push the “RESET”
button for about 1 second.Driving distance after engine starting
The driving distance after engine start-
ing is displayed.
To begin recalculating, push the “RESET”
button for about 1 second.Available driving range
The available driving range is calcu-
lated and displayed depending on the
amount of remaining fuel.

’03 L/C U (L/O 0301)
127

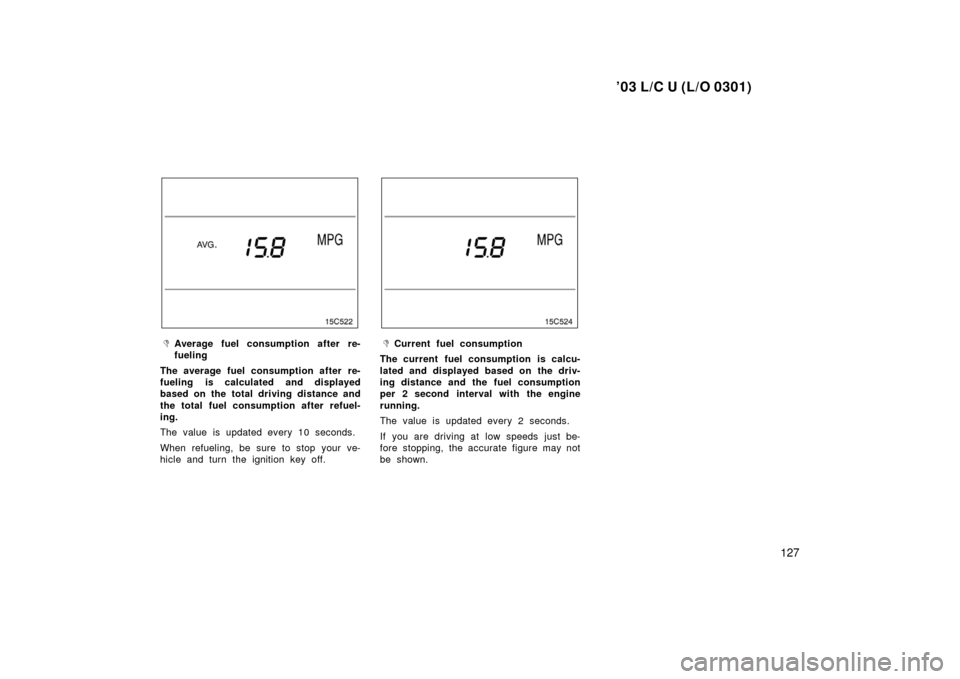

Average fuel consumption after re-
fueling
The average fuel consumption after re-
fueling is calculated and displayed
based on the total driving distance and
the total fuel consumption after refuel-
ing.
The value is updated every 10 seconds.
When refueling, be sure to stop your ve-
hicle and turn the ignition key off.Current fuel consumption
The current fuel consumption is calcu-
lated and displayed based on the driv-
ing distance and the fuel consumption
per 2 second interval with the engine
running.
The value is updated every 2 seconds.
If you are driving at low speeds just be-
fore stopping, the accurate figure may not
be shown.

’03 L/C U (L/O 0301)
128

’03 L/C U (L/O 0301)
129
OPERATION OF INSTRUMENTS AND
CONTROLS
Ignition switch, Transmission and Parking brake
Ignition switch with steering lock130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 131
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Four–wheel drive system 135
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Parking brake 137
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Cruise control 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Active traction control system 140
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle skid control system 142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 6

’03 L/C U (L/O 0301)
130

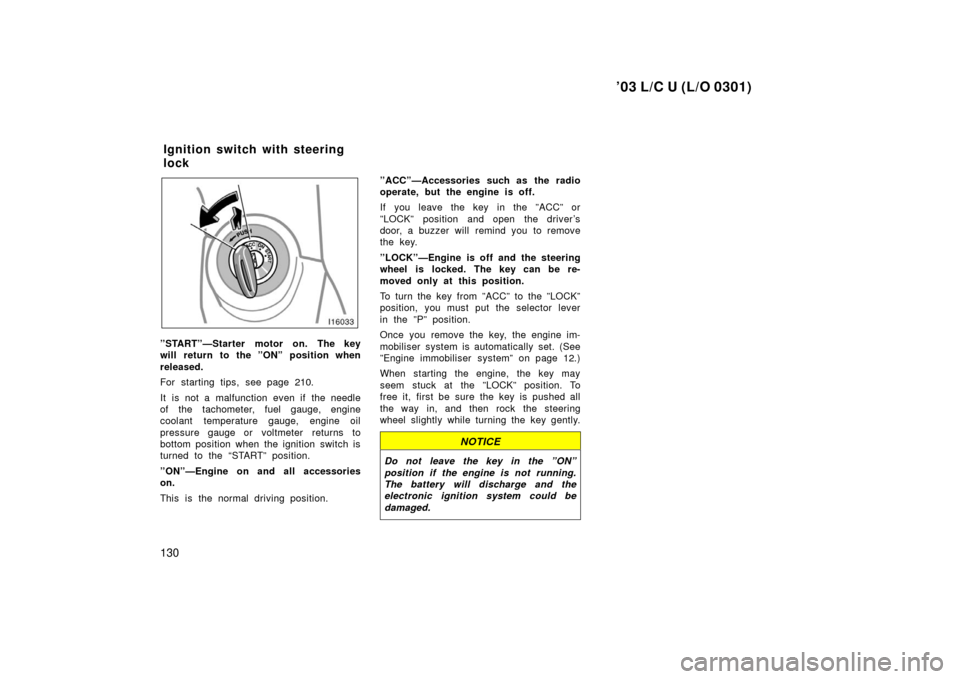

”START”—Starter motor on. The key
will return to the ”ON” position when
released.
For starting tips, see page 210.
It is not a malfunction even if the needle
of the tachometer, fuel gauge, engine
coolant temperature gauge, engine oil
pressure gauge or voltmeter returns to
bottom position when the ignition switch is
turned to the “START” position.
”ON”—Engine on and all accessories
on.
This is the normal driving position.”ACC”—Accessories such as the radio
operate, but the engine is off.
If you leave the key in the ”ACC” or
”LOCK” position and open the driver’s
door, a buzzer will remind you to remove
the key.
”LOCK”—Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position.
To turn the key from ”ACC” to the ”LOCK”
position, you must put the selector lever
in the ”P” position.
Once you remove the key, the engine im-
mobiliser system is automatically set. (See
”Engine immobiliser system” on page 12.)
When starting the engine, the key may
seem stuck at the ”LOCK” position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
NOTICE
Do not leave the key in the ”ON”
position if the engine is not running.
The battery will discharge and the
electronic ignition system could be
damaged.
Ignition switch with steering
lock

’03 L/C U (L/O 0301)
131

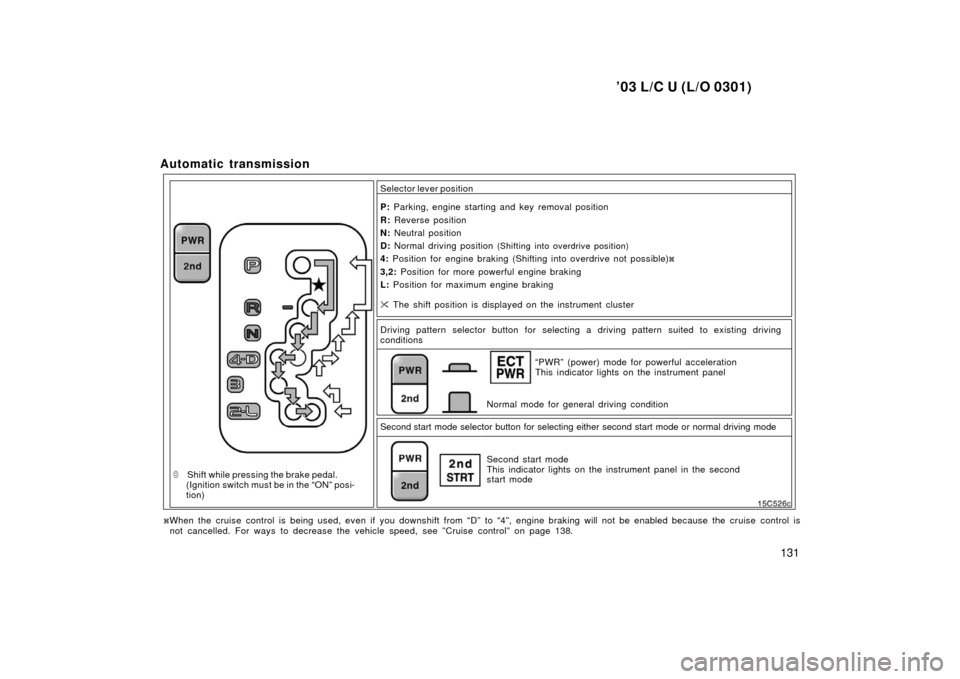

Automatic transmission
 The shift position is displayed on the instrument cluster
P:
Parking, engine starting and key removal position
R: Reverse position
N: Neutral position
D: Normal driving position
(Shifting into overdrive position)
4: Position for engine braking (Shifting into overdrive not possible)
3,2: Position for more powerful engine braking
Driving pattern selector button for selecting a driving pattern suited to existing driving
conditions
Normal mode for general driving condition“PWR” (power) mode for powerful acceleration
This indicator lights on the instrument panel
Second start mode selector button for selecting either second start mode or no\
rmal driving mode Second start mode
This indicator lights on the instrument panel in the second
start mode
L:
Position for maximum engine braking
 Shift while pressing the brake pedal.
(Ignition switch must be in the “ON” posi-
tion) Selector lever position
When the cruise control is being used, even if you downshift from “D” to “4”, engine braking will not be enabled because the cr
uise control is
not cancelled. For ways to decrease the vehicle speed, see ”Cruise control” on page 138.

’03 L/C U (L/O 0301)
132
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of ”P” position when the
brake pedal is depressed with the ignition
switch in ”ON” position.
(a) Normal driving1. Start the engine as instructed in ”How to start the engine” on page 210. The
transmission must be in ”P” or ”N”.
2. With your foot holding down the brake pedal, shift the selector lever to ”D”.
When the lever is in the ”D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always use the “D” position for better fuel
economy and quieter driving. If the engine
coolant temperature is low, the transmis-
sion will not shift into the overdrive gear
even in the “D” position.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting.
(b) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Shift into the “4” position. The trans-
mission will downshift to fourth gear
and engine braking will be enabled.
Shift into the ”3” position. The trans-
mission will downshift to third gear
when the vehicle speed drops down to
or lower than following speed for third
gear, and more powerful engine braking
will be enabled. Four
–wheel drive control lever
in ”H” 124 km/h (77 mph) . . . . . . . . . . .
Four
–wheel drive control lever
in ”L” 49 km/h (31 mph) . . . . . . . . . . .
Shift into the “2” position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than following speed for sec-
ond gear, and more powerful engine
braking will be enabled.
Four
–wheel drive control lever
in ”H” 83 km/h (52 mph) . . . . . . . . . . .
Four
–wheel drive control lever
in ”L” 33 km/h (21 mph) . . . . . . . . . . .
Shift into the ”L” position. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or lower than following speed for ”L”
position and maximum engine braking
will be enabled.
Four
–wheel drive control lever
in ”H” 43 km/h (27 mph) . . . . . . . . . . .
Four
–wheel drive control lever
in ”L” 17 km/h (11 mph) . . . . . . . . . . .
When the cruise control is being used,
even if you downshift from “D” to “4”,
engine braking will not be enabled be-
cause the cruise control is not cancelled.
For ways to decrease the vehicle speed,
see ”Cruise control” on page 138.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
