2003 TOYOTA LAND CRUISER Owners Manual

’03 L/C U (L/O 0301)
61
Move seat fully back
A forwardfacing child restraint sys-
tem should be allowed to be put on
the front passenger seat only when
it is unavoidable. Always move the
seat as far back as possible, be-
cause the force of the deploying
front passenger airbag could cause
death or serious injury to the child.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean against the front
door or around the front door even
if the child is seated in the child
restraint system. It is dangerous if
the side airbags and curtain shield
airbags inflate, because the impact
could cause death or serious injury
to the child.
For instructions concerning the
installation of a child restraint sys-
tem, see ”Child restraint” on page
74.
Do not sit on the edge of the seat
or lean over the dashboard when
the vehicle is in use. The front pas-
senger airbag inflates with consid-
erable speed and force and you
may be killed or seriously injured.
Sit up straight and well back in the
seat, and always use your seat belt
properly.

’03 L/C U (L/O 0301)
62

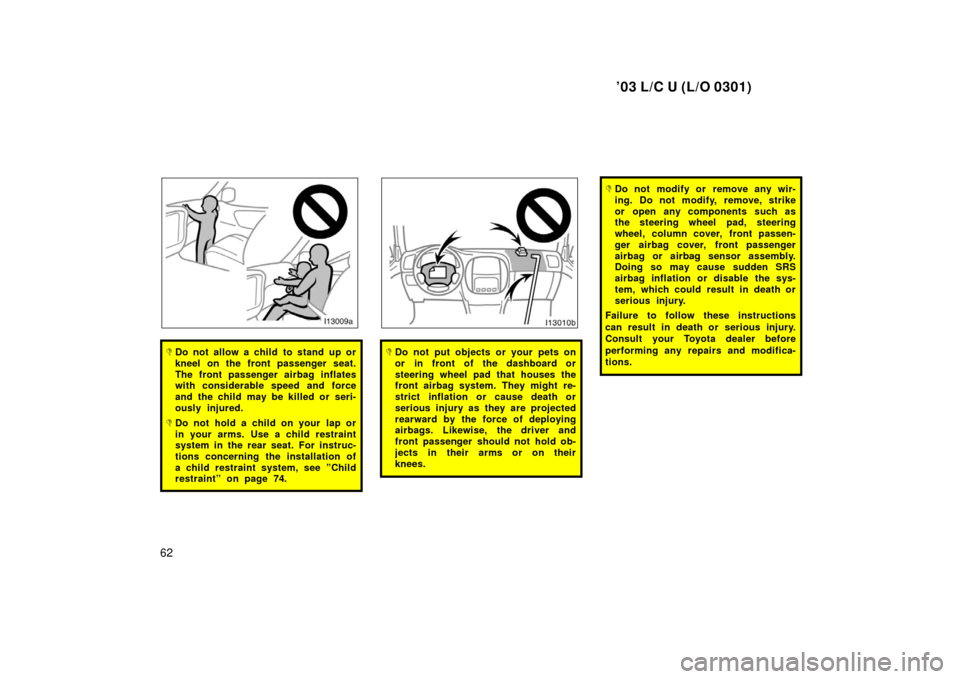

Do not allow a child to stand up or
kneel on the front passenger seat.
The front passenger airbag inflates
with considerable speed and force
and the child may be killed or seri-
ously injured.
Do not hold a child on your lap or
in your arms. Use a child restraint
system in the rear seat. For instruc-
tions concerning the installation of
a child restraint system, see ”Child
restraint” on page 74.
Do not put objects or your pets on
or in front of the dashboard or
steering wheel pad that houses the
front airbag system. They might re-
strict inflation or cause death or
serious injury as they are projected
rearward by the force of deploying
airbags. Likewise, the driver and
front passenger should not hold ob-
jects in their arms or on their
knees.
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, front passen-
ger airbag cover, front passenger
airbag or airbag sensor assembly.
Doing so may cause sudden SRS
airbag inflation or disable the sys-
tem, which could result in death or
serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer before
performing any repairs and modifica-
tions.

’03 L/C U (L/O 0301)
63
NOTICE
Do not perform any of the following
changes without first consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS front airbag system in some
cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
This SRS front airbag system has a
service reminder indicator to inform the
driver of operating problems. If either of
the following conditions occurs, this
indicates a malfunction of the airbag
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
When the ignition switch is turned to
the “ON” position, the light does not
come on, stays on or flashes.
The light comes on or flashes while
driving.
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS airbags have been inflated.
The front of the vehicle (shaded in the
illustration) was involved in an acci dent
that was not severe enough to cause
the SRS airbags to inflate.
The pad section of the steering wheel
or dashboard (shaded in the illustra-
tion) is scratched, cracked, or other-
wise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.

’03 L/C U (L/O 0301)
64
The SRS (Supplemental Restraint Sys-
tem) side and curtain shield airbags are
designed to provide further protection
for the driver, front and second seat
passengers in addition to the primary
safety protection provided by the seat
belts.In response to a severe side impact, the
SRS side and curtain shield airbags on
impacted side inflate. The SRS side airbag
works together with the seat belts to help
to reduce injuries mainly to the driver ’s or
front passenger ’s chest and the SRS cur-
tain shield airbag works together with seat
belts to help to reduce injuries mainly to
the driver ’s, front passenger ’s head and
can help the driver, front passenger and
second seat passengers to retain inside
the vehicle.
Roll sensing function:
In response to a vehicle rollover, the cur-
tain shield airbags on both sides inflate.
The curtain shield airbags work together
with the seat belts to help to reduce inju-
ries mainly to the driver ’s head, front pas-
senger ’s head and second seat passen-
ger ’s heads and can help the driver, front
passenger and second seat passengers to
retain inside the vehicle.
The SRS side and curtain shield airbags
on the passenger side are activated even
with no passenger in the front seat.
Be sure to wear your seat belt properly.
CAUTION
The SRS side and curtain shield air-
bags inflate with considerable force.
To avoid potential death or serious
injury when they inflate, the driver,
front passenger and second seat pas-
sengers must:
Wear their seat belts properly.
Remain properly seated with their
back upright and against the seat at
all times.
Improper sitting and wearing of the
seat belts may not retain you inside
the vehicle.
SRS side and curtain shield
airbags with roll sensing func-
tion

’03 L/C U (L/O 0301)
65
Roll sensing of curtain shield airbags off
switch
The roll sensing of curtain shield air-
bags off switch can turn off the curtain
shield airbags in a vehicle rollover. This
switch should only be used in a situa-
tion where the inflation is not desired
(such as extreme off road driving).When you push the roll sensing of curtain
shield airbags off switch for a few sec-
onds with the ignition switch on, the roll
sensing of curtain shield airbags off indi-
cator light comes on and the roll sensing
function is turned off. When you push the
switch again, the indicator light goes off
and the roll sensing function is turned on.
In a severe side impact, the curtain shield
airbag on impacted side will inflate even
if the roll sensing function is turned off.
If the ignition switch is turned to ”ACC” or
”LOCK” with the roll sensing function off
and then the ignition switch is turned back
to ”ON”, the roll sensing function will be
back on automatically.
CAUTION
Make sure the roll sensing of cur-
tain shield airbags off indicator
light is not on.
When the roll sensing of curtain
shield airbags off switch is turned
on (and the roll sensing of curtain
shield airbags off indicator light is
on), the curtain shield airbags will
not inflate in a vehicle rollover and
turning off the curtain shield air-
bags can reduce the occupant
protection which your vehicle safety
systems can provide to you in cer-
tain accidents and increase the like-
lihood of death or serious injuries.

’03 L/C U (L/O 0301)
66
This indicator comes on when the igni-
tion key is turned to the ”ON” position.
It goes off after about 6 seconds. This
means the SRS side and curtain shield
airbags are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sensor
assemblies, curtain shield airbag sensor
assemblies, driver ’s seat position sensor,
driver ’s seat belt buckle switch, front seat
belt pretensioner assemblies, inflators,
warning light, interconnecting wiring and
power sources. (For details, see ”Service
reminder indicators and warning buzzers”
on page 118.)The SRS side airbags may not inflate if
the vehicle is subjected to a collision
from the side at certain angles, or a
collision to the side of the vehicle body
other than the passenger compartment
as shown in the illustration.
The SRS side airbags are designed to
inflate when the passenger compartment
area suffers a severe impact from the
side.
For the safety of all occupants, always
wear your seat belts properly.
Collision from the rear
Collision from the front Vehicle rollover
The SRS side airbags are not designed
to inflate if the vehicle is involved in a
front or rear collision, if it rolls over,
or if it is involved in a lowspeed side
collision.

’03 L/C U (L/O 0301)
67

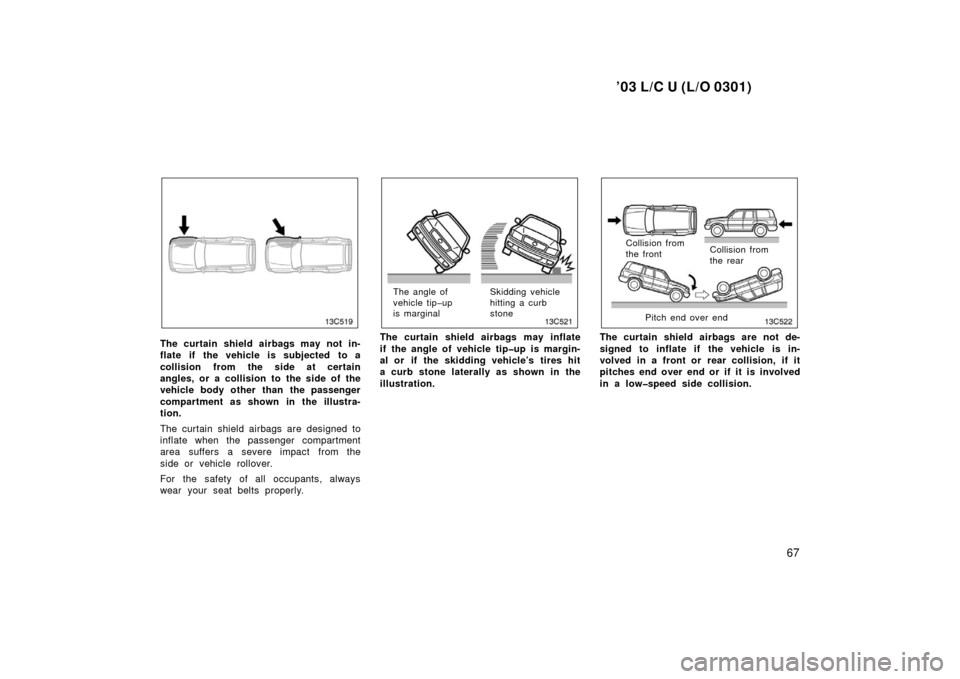

The curtain shield airbags may not in-
flate if the vehicle is subjected to a
collision from the side at certain
angles, or a collision to the side of the
vehicle body other than the passenger
compartment as shown in the illustra-
tion.
The curtain shield airbags are designed to
inflate when the passenger compartment
area suffers a severe impact from the
side or vehicle rollover.
For the safety of all occupants, always
wear your seat belts properly.
The angle of
vehicle tipup
is marginalSkidding vehicle
hitting a curb
stone
The curtain shield airbags may inflate
if the angle of vehicle tipup is margin-
al or if the skidding vehicle’s tires hit
a curb stone laterally as shown in the
illustration.
Collision from
the front
Collision from
the rear
Pitch end over end
The curtain shield airbags are not de-
signed to inflate if the vehicle is in-
volved in a front or rear collision, if it
pitches end over end or if it is involved
in a lowspeed side collision.

’03 L/C U (L/O 0301)
68
Hitting a curb, edge of
pavement or hard sur-
faceFalling into or jump-
ing over a deep hole
Landing hard or vehicle falling

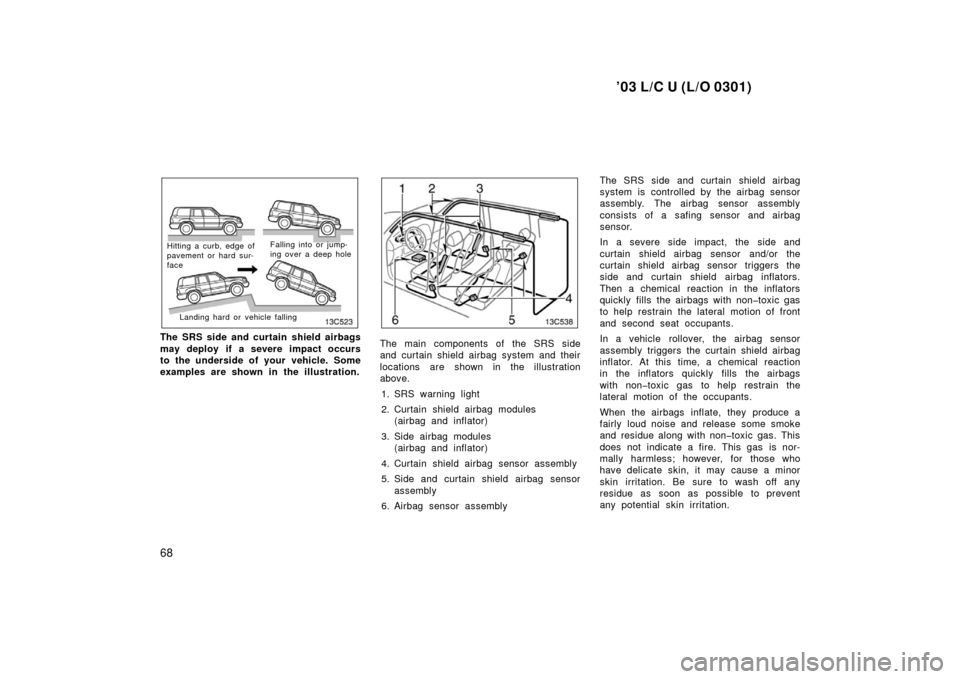

The SRS side and curtain shield airbags
may deploy if a severe impact occurs
to the underside of your vehicle. Some
examples are shown in the illustration.The main components of the SRS side
and curtain shield airbag system and their
locations are shown in the illustration
above.
1. SRS warning light
2. Curtain shield airbag modules (airbag and inflator)
3. Side airbag modules (airbag and inflator)
4. Curtain shield airbag sensor assembly
5. Side and curtain shield airbag sensor assembly
6. Airbag sensor assembly The SRS side and curtain shield airbag
system is controlled by the airbag sensor
assembly. The airbag sensor assembly
consists of a safing sensor and airbag
sensor.
In a severe side impact, the side and
curtain shield airbag sensor and/or the
curtain shield airbag sensor triggers the
side and curtain shield airbag inflators.
Then a chemical reaction in the inflators
quickly fills the air
bags with nontoxic gas
to help restrain the lateral motion of front
and second seat occupants.
In a vehicle rollover, the airbag sensor
assembly triggers the curtain shield airbag
inflator. At this time, a chemical reaction
in the inflators quickly fills the air bags
with nontoxic gas to help restrain the
lateral motion of the occupants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with nontoxic gas. This
does not indicate a fire. This gas is nor-
mally harmless; however, for those who
have delicate skin, it may cause a minor
skin irritation. Be sure to wash off any
residue as soon as possible to prevent
any potential skin irritation.
