2003 TOYOTA CAMRY Owners Manual

’03Camry_U (L/O 0301)
141
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push “TAPE” to switch from radio or com-
pact disc operation to cassette operation.
If the audio system is off, you can turn
on the cassette player by pushing “TAPE”.
In both cases, a cassette must already be
loaded in the player.
TRACK (Track up/down button):
Compact disc player
By using this button, you can skip up or
down to a different track.
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return to the beginning of the current
track, push the down side of the button
one time, quickly.TUNE (Tuning)
Push and release the “
” or “ ” side of
“TUNE” to step up or down the station
band. Do this again to find another fre-
quency.
If you push and hold the “ ” or “ ” side
of “TUNE”, the radio will continue seeking
up or down for frequencies and will stop
at the next frequency that it finds after the
button is released. Press the button again
to resume the search.

’03Camry_U (L/O 0301)
142
2003 CAMRY from Jan. ’03 Prod. (OM33593U)

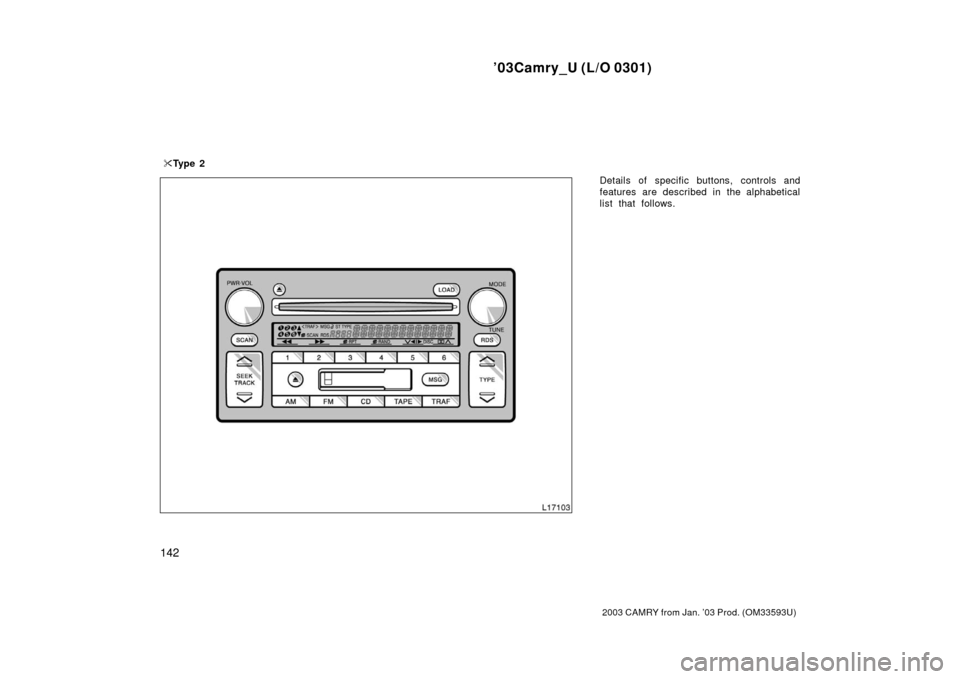

Details of specific buttons, controls and
features are described in the alphabetical
list that follows.

Ty p e 2

’03Camry_U (L/O 0301)
143
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE” knob or
“SEEK” button.) Push and hold down the
button until you hear a beep—this will set
the station to the button. The preset but-
ton number will appear on the display.
RDS stations will be preset to the buttons
when you turn on the RDS. (See “RDS”
button.)
To tune in to a preset station: Push the
button for the station you want. The pre-
set button number and station frequency
will appear on the display.
This radio can store one AM, two FM and
RDS stations for each button. (The display
will show “AM”, “FM1”, “FM2” or “FM
TYPE” when you push “AM” or “FM”.)
(Eject button)
Cassette tape
This button is used to eject a cassette.
While the ignition is in “LOCK”, you can
eject a cassette but you cannot reinsert
it. Compact disc
This button is used to eject one or all
compact discs. To eject the current com-
pact disc, push and release the compact
disc eject button. To eject all specific
discs, push either side of the “DISC” but-
ton until the number of the disc you want
to eject is displayed. Push and release
the eject button. To eject all discs, press
and hold the eject button until you hear
a beep. The last compact disc played be-
fore pushing the button will be ejected
first. If the ejected disc is not removed for
a long time, the eject function will be
cancelled.
While the ignition is in “LOCK”, you can
eject one or all discs but you cannot rein-
sert them.
(Program)
Push “
” to select the other side of a
cassette tape. The display indicates which
side is currently selected (“
” indicates
top side, “
” indicates bottom side).
Autoreverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fastforward button)
Cassette player
Push the fastforward button to fastfor-
ward a cassette tape. “FF” will appear on
the display. Push the reverse button to
rewind a tape. “REW” will appear on the
display.
To stop the tape while it is fastforward-
ing, push the fastforward button or
“TAPE”; to stop the tape while it is re-
winding, push the reverse button or
“TAPE”.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fastforwards completely,
the cassette will play the other side of the
tape using the autoreverse feature.
Compact disc player with changer
If you want to fastforward or reverse a
compact disc track, push and hold the
fastforward or reverse button. When you
release the button, the compact disc play-
er will resume playing.
AM
Push “AM” to turn on the radio and select
the AM band. “AM” will appear on the
display.

’03Camry_U (L/O 0301)
144
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
If the audio system is off, you can turn
on the radio by pushing “AM”. Also, push
“AM” to switch from cassette or compact
disc operation to AM.
MODE (manual tone and sound balance
adjustment function)
Each time you push the MODE knob, the
mode changes. To adjust the tone and
balance, turn the knob.
BASS: Adjusts lowpitched tones. The dis-
play ranges from 5 to 5.
MID: Adjusts midpitched tones. The dis-
play ranges from 5 to 5.
TREBLE: Adjusts highpitched tones. The
display ranges from 5 to 5.
BALANCE: Adjusts the sound balance be-
tween the right and left speakers. The
display ranges from L7 to R7.
FADER: Adjusts the sound balance be-
tween the front and rear speakers. The
display ranges from F7 to R7.
CD (Compact disc)
Push “CD” to switch from radio or cas-
sette operation to compact disc player op-
eration. If the audio system is off, you
can turn on the compact disc player by
pushing “CD”. In both cases, a disc must
already be loaded in the player.When the audio is set into compact disc
operation, the display shows the track or,
track and disc number currently being
played.
If the player or another unit equipped with
the player malfunctions, your audio system
will display one of the six following error
messages.
Error codes
“WAIT”:
The compact disc player unit
may be too hot due to temperature. Allow
the player to cool down.
“Err 1”: The disc may be dirty, damaged
or inserted incorrectly (upside down).
Clean disc and reinsert.
“Err 2”: The compact disc changer is
empty. Insert a disc.
“Err 3”: There is trouble inside the sys-
tem. Eject the disc or magazine. Set the
disc or magazine again.
“Err 4”: Overcurrent. Ask your Toyota
dealer to inspect.
“OPEn”: The compact disc player lid of
another unit is open. Close the compact
disc player lid.
If the malfunction still exists, take your
vehicle to your Toyota dealer. DISC

By using this button, you can select a
disc you wish to listen to.
Push either side of the button until the
number of the disc you want to listen
appears on the display.
Dolby
B NR∗
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push “
”. “” will appear on the
display. Push the button again to turn off
Dolby  B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used for
recording the tape.
∗: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. “DOLBY” and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM
Push “FM” to turn on the radio to FM
band. “FM1”, “FM2” or “FM TYPE” will
appear on the display. This system allows
you to set twelve FM stations, two for
each of the six preset button. If the RDS
is off or RDS stations are not preset to
the preset buttons, “FM TYPE” will not
appear on the display.

’03Camry_U (L/O 0301)
145
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
If the audio system is off, you can turn
on the radio by pushing “FM”. Also, push
“FM” to switch from cassette or compact
disc operation to FM.
LOAD
This button is used to load the compact
discs in the compact disc player which is
integrated with the radio and cassette
player. This compact disc player can store
up to 6 discs.
The key must be in the “ACC” or “ON”
position for the load function.
Loading one compact disc only—
To load one compact disc only, quickly
push and release the button. If you hold
the button too long (if the audio system
is on at this time, you hear a beep), the
mechanism will change to the mode for
loading multiple compact discs. After
pushing the button, insert a compact disc.
After the disc is loaded, the shutter of the
slot will close.
If no compact disc is inserted, the shutter
will close after 15 seconds. Loading multiple compact di
scs—
To load multiple compact discs, push and
hold (until you hear a beep when the au-
dio system is on). After pushing the but-
ton, insert the first compact disc. After the
disc is loaded, the shutter of the slot will
close. After a few seconds, the shutter
will automatically open again so the next
disc can be inserted. The same process
can be applied for loading the rest of the
discs.
If no compact disc is inserted, the shutter
will close after 15 seconds.
MSG (Message)
This button is operational only in RDS
mode.
When an RDS radio station transmits a
text message, “MSG” will be displayed. At
this time, push “MSG” button to view the
text message. The message display will
be canceled if any button that affects the
display is pushed. To view the message
again, push the “MSG” button again. After
the entire message has been displayed,
the message will disappear.
The RDS audio system has memory to
store three 64character messages. To
store a message in memory, push and
hold the “MSG” button until you hear a
beep. If 3 messages are already stored in
memory, the oldest message will be over-
written by the new message.
To recall a radio text message, push the
“MSG” button momentarily. This will dis-
play the most recent message. A second
push of the “MSG” button while the most
stored message(s) are displayed begins
with the newest one.
If no messages have been stored, or if
there are no more messages to be re-
called, “NO MSG STORED” will appear on
the display, and the message display will
be canceled. The display then returns to
show the program service name. The
message display will be canceled if you
activate any function that affects the dis-
play.
Message display can be canceled by
pressing any of the following buttons:
“AM”, “FM”, “CD”, “TAPE”, “SEEK”, any
preset, “SCAN”, any audio control, “RDS”,
or “TYPE”. If the current station is not a
traffic program and traffic announcements
is off, pushing “TRAF” will cancel the dis-
play. The message will be canceled after
the entire message has been displayed.
PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume.

’03Camry_U (L/O 0301)
146
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
RDS (Radio Data System)
Your audio system is equipped with Radio
Data Systems (RDS). RDS station provid-
ing good reception is automatically se-
lected if current reception worsens.
To turn on the RDS, push and hold this
button until you hear a beep, the RDS
turns on and “RDS” will appear on the
display. At this time, the radio starts to
search the RDS stations and “RDS
SEARCH” will flash on the display.
Quickly push and release this button when
the RDS turns on, the radio starts to
search the RDS stations and “RDS
SEARCH” will appear on the display.
When the RDS stations are found,
“FOUND” and the number of the RDS sta-
tions will appear on the display, and you
will hear two beeps. The stations will be
preset to the preset buttons.
If the RDS stations can not be found,
“NOTHING” will appear on the display and
you will hear a beep, and the display
returns to previous mode.
To turn the RDS off, push the button until
you hear a beep again.
If the FM radio, cassette player or com-
pact disc player is on, pushing this button
will turn RDS on or off.RAND (Random)
There are two random features—you can
either listen to the tracks on all the com-
pact discs in the magazine in random or-
der, or only listen to the tracks on a
specific compact disc in random order.
To randomly play the tracks on a disc:
Quickly push and release “RAND”.
“
” will appear on the display. The
disc you are listening to will play in ran-
dom order. If you hear a beep, the player
will play all the tracks in the magazine in
random order. To turn off the random fea-
ture, push this button again.
To randomly play all the tracks in the
magazine:
Push and hold “RAND” until you hear a
beep. “
” will appear on the display
and the player will perform all the tracks
on all the discs in the magazine in ran-
dom order. To turn off the random feature,
push this button again.
RPT (Repeat)
Cassette Player
Push “RPT” while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically rewind
and replay. To turn off the repeat feature,
push this button again. There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly.
Compact disc player with changer
There are two repeat features—You can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “RPT” while the
track is playing. “
” will appear on
the display. If you hear a beep, the player
will repeat the whole disc. When the track
ends, it will automatically replay. To turn
off the repeat feature, push this button
again.
Repeating a disc:
Push and hold “RPT” until you hear a
beep. “
” will appear on the display.
The player will repeat all the tracks on the
disc you are listening to. When the disc
ends, the player will automatically go back
to the top track of the disc and replay. To
turn off the repeat feature, push this but-
ton again.
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.

’03Camry_U (L/O 0301)
147
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
To scan the preset stations:
Push and hold “SCAN” until you hear a
beep. The radio will tune in the next pres-
et station up the band, stay there for 5
seconds, and then move to the next pre-
set station. To select a station, push
“SCAN” again.
To scan all the frequencies:
Quickly push and release “SCAN”. The
radio will find the next station up the sta-
tion band, stay there for 5 seconds, and
then scan again to the next preset. To
select a station, push “SCAN” again. If
you hear a beep, the radio will scan the
preset stations.
Compact disc player with changer
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release “SCAN”. “SCAN”
will appear on the display and the player
will scan all the tracks on the disc you
are listening to. If you hear a beep, the
player will scan the first track of all the
discs in the magazine. To select a track,
push “SCAN” again. If the player scanned
all the tracks on the disc, it will stop
scanning.Scanning the first track of all the discs in
the magazine:
Push “SCAN” until you hear a beep.
“
” will appear on the display and
the player will scan the first track of the
next disc. To select a disc, push the
“SCAN” again. If the player has scanned
all the discs, it will stop sc anning.
SEEK (Seeking)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release the “ ” or “ ” side of “SEEK”.
Do this again to find the station after that.
Cassette Player
By using this button you can skip up or
down to locate a song or recording.
You can select up to 9 recordings (includ-
ing current one).
A blank space of at least 3 seconds is
considered to be a start of a recording.
When a beginning of a tape is reached,
the player automatically resumes play. When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken word, live, or classical
recordings.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push “TAPE” to switch from radio or com-
pact disc operation to cassette operation.
If the audio system is off, you can turn
on the cassette player by pushing “TAPE”.
In both cases, a cassette must already be
loaded in the player.
TRACK (Track up/down button):
compact disc player with changer
By using this button, you can skip up or
down to a different track.

’03Camry_U (L/O 0301)
148
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return to the beginning of the current
track, quickly push the down side of the
button one time.
TRAF (Traffic)
This button turns the traffic announcement
(TA) feature on and off.
By pushing “TRAF” button, “TRAF SEEK”
appears on the display and the radio will
start seeking any traffic program station.
When a traffic program station is found,
“< >” will be displayed () and you
will hear a beep.
After the traffic announcement program is
over, a beep sounds and the display re-
turns to the previous mode.
If no traffic program station is found, “NO
TRAF INFO” appears on the display for a
few seconds and the display returns to
the previous mode. However, if the
“TRAF” button is pushed when the cas-
sette player or compact disc player is on,
the radio will start seeking traffic program
stations.
TA volume memory function—The volume
level when receiving the traffic announce-
ment is memorized.When “TA” is received next time, the sys-
tem compares the volume before “TA” is
received and the memorized TA volume
and automatically selects the louder vol-
ume. However, the range of volume
memory is limited: if the volume received
previously is less than the minimum, this
volume will be used.
You can adjust the volume independently
from the memorized TA volume range
while receiving a TA station.
Traffic announcement can be canceled by
turning RDS off, or pressing the “TRAF”
button again.
TUNE (Tuning)
Turn the knob clockwise to step up the
frequency. Turn the knob counterclockwise
to step down the frequency.
TYPE (Program Types)
When you push the “TYPE” button while
receiving an RDS station, the current pro-
gram type appears on the display.
Each time you push the “TYPE” button,
the program type changes as in the fol-
lowing:
ROCK
EASY LIS (Easy listening)
CLS/JAZZ (Classical music and Jazz)
R&B (Rhythm and Blues)
INFORM (Information)
RELIGION
MISC
ALERT (Emergency message)
ALERT: If an emergency broadcast is re-
ceived during reception of anything other
than AM broadcasting, you will hear a
beep and “ALERT” appears on the display.
