2003 TOYOTA CAMRY Owners Manual

’03Camry_U (L/O 0301)
13
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
2. Sub key (gray)—This key will not work in the glove box
and trunk.
To protect items locked in the trunk or
glove box when using valet parking,
leave the sub key with the attendant.
A transponder chip for engine immobiliser
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
 When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

’03Camry_U (L/O 0301)
14
2003 CAMRY from Jan. ’03 Prod. (OM33593U)

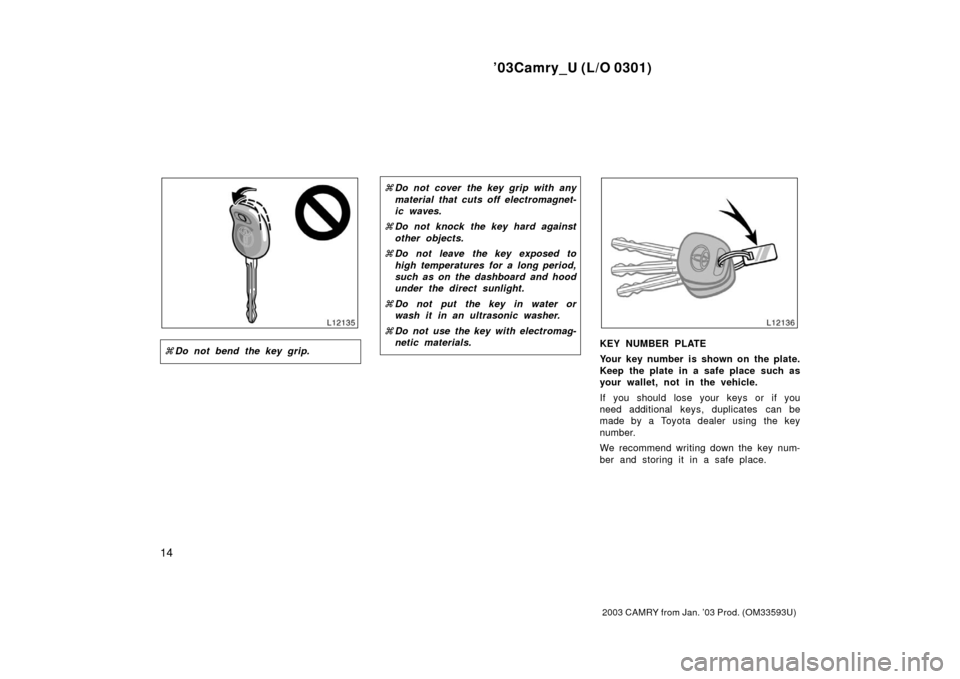

Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.

’03Camry_U (L/O 0301)
15
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.With manual air conditioning controls
With automatic air conditioning controls
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 30 in this section.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with builtin transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
Engine immobiliser system

’03Camry_U (L/O 0301)
16
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobiliser sys-
tem. If any unauthorized changes or
modifications are made, the proper
operation of the system cannot be
guaranteed.
For vehicles sold in U.S.A.
FCC ID: MOZRI19BTY
MADE IN JAPAN
FCC ID: NT8156072FIFXCVR
CANADA: 3043104233 5 2
FCC ID: NT815607YU3FXCVR
MADE IN MEXICO
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

’03Camry_U (L/O 0301)
17
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the doors lock and unlock simulta-
neously with either front door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the doors simulta-
neously.When all the doors are unlocked simulta-
neously using either the key or the wire-
less remote control transmitter, the interior
light and ignition switch light will come on
and remain on for about 15 seconds be-
fore fading out. (For further information,
see “Interior light” on page 97 and “Igni-
tion switch light” on page 97 in Section
14.)LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handle even if the lock knobs
are in the locked position.
Side doors—

’03Camry_U (L/O 0301)
18
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
The door cannot be locked when either
front door is open and the key is in the
ignition.
If the vehicle is subjected to a severe
impact from the front or rear, or from
either side with the ignition switch at the
“ON” position, all the doors will unlock
automatically.
Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Operating the switch simultaneously locks
or unlocks all the side doors.
If you do either of the following, no door
can be unlocked with the power door lock
switch.
Lock all the doors with the key or wire-
less remote control transmitter when all
the doors are closed.
Open the driver ’s door or front passen-
ger’s door and move the inside lock
knobs of both front doors to the lock
position, then close the front doors.
The power door lock switch can be reset
in the following ways.
Turn the ignition key to “ON”.
Unlock all the doors with the key or
wireless remote control transmitter.
Unlock the driver’s door or front pas-
senger ’s door with the inside lock
knob, and then unlock all the doors
with the power door lock switch.

’03Camry_U (L/O 0301)
19
2003 CAMRY from Jan. ’03 Prod. (OM33593U)

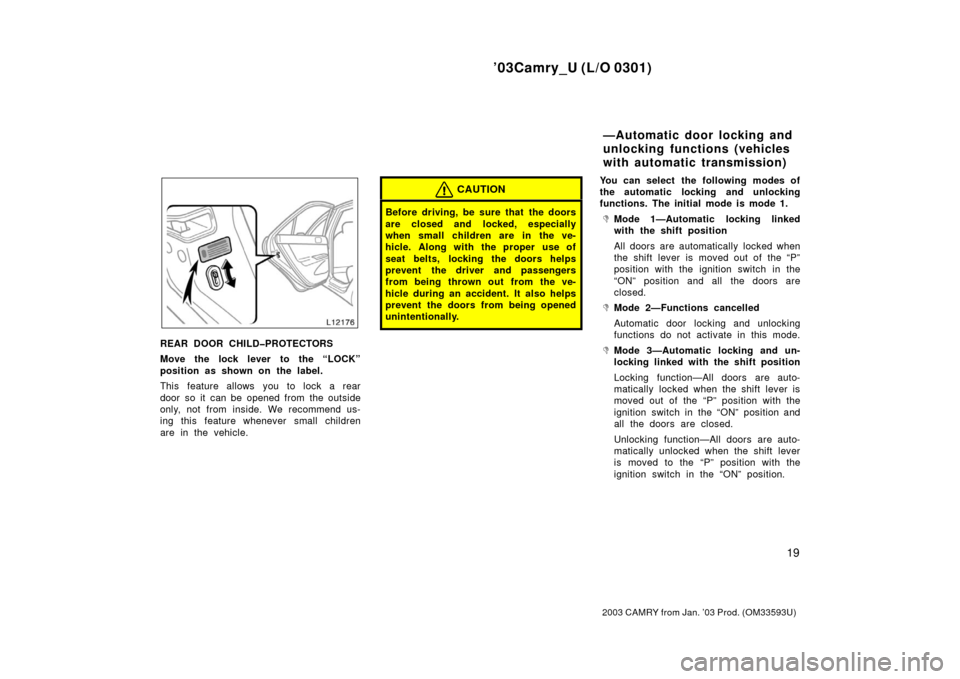

REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
You can select the following modes of
the automatic locking and unlocking
functions. The initial mode is mode 1.
Mode 1—Automatic locking linked
with the shift position
All doors are automatically locked when
the shift lever is moved out of the “P”
position with the ignition switch in the
“ON” position and all the doors are
closed.
Mode 2—Functions cancelled
Automatic door locking and unlocking
functions do not activate in this mode.
Mode 3—Automatic locking and un-
locking linked with the shift position
Locking function—All doors are auto-
matically locked when the shift lever is
moved out of the “P” position with the
ignition switch in the “ON” position and
all the doors are closed.
Unlocking function—All doors are auto-
matically unlocked when the shift lever
is moved to the “P” position with the
ignition switch in the “ON” position.
—Automatic door locking and
unlocking functions (vehicles
with automatic transmission)

’03Camry_U (L/O 0301)
20
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
Mode 4—Automatic locking and un-
locking linked with the shift position
and ignition switch
Locking function—All doors are auto-
matically locked when the shift lever is
moved out of the “P” position with the
ignition switch in the “ON” position and
all the doors are closed.
Unlocking function—All doors are auto-
matically unlocked when the ignition
switch is turned from the “ON” position
to the “ACC” or “LOCK” position.
CHANGING THE MODE
The mode toggles through from mode
1 to mode 4. To change the mode, do
the following:
1. Shift the shift lever into the “P” posi- tion and close all doors.
2. Push the power door lock switch on the rear side to unlock the doors.
3. Turn the ignition switch to the “ON” position. 4. Within 5 seconds after the ignition
switch is turned to the “ON” position,
push and hold the power door lock
switch on the front side for about 5
seconds.
5. Open door warning light will flash to indicate that the mode has been
changed.
The flashing of the open door warning
light indicates the mode which has been
selected.
Flashing once, the function has
changed to mode 1.
Flashing twice, the function has
changed to mode 2.
Flashing three times, the function has
changed to mode 3.
Flashing four times, the function has
changed to mode 4.
Locking operation
Unlocking operation
—Wireless remote control
