2003 TOYOTA CAMRY Owners Manual

’03Camry_U (L/O 0301)
133
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Car audio system
Reference134
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 134
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Car audio system operating hints 149
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For vehicle equipped with Navigation system, please refer to the
separate “Navigation System Owner’s Manual”.
SECTION 1 7

’03Camry_U (L/O 0301)
134
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
Type 1: AM·FM radio/cassette player/com-
pact disc playerType 2: AM·FM radio/cassette player/com-
pact disc player with changer
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR·VOL” to turn the audio system
on and off.
Push “AM”, “FM1·2”, “FM”, “TAPE” or “CD”
to turn on that function without pushing
“PWR·VOL”.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If the another function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM1·2”, “FM”, “TAPE” or “CD”
if the system is already on but you want
to switch from one function to another.
ReferenceUsing your audio system—
—Some basics

’03Camry_U (L/O 0301)
135
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange (type 2 and on some
models of type 1), and bass levels. In
fact, different kinds of music and vocal
programs usually sound better with differ-
ent mixes of treble, midrange, and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.YOUR RADIO ANTENNA
Your vehicle has an antenna printed on
the inside of the rear window.
NOTICE
Attaching the film (especially conduc-
tive or metallic type) on the rear
glass will noticeably reduce the sensi-
tivity of the radio.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should face to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-
sette tapes into the slot, or the tape
player may be damaged.
YOUR COMPACT DISC PLAYER (type 1)
When you insert a disc, gently push it in
with the label side up. (The player will
automatically eject a disc if the label side
is down.) The compact disc player will
play from track 1 through the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
8 cm (3 in.) compact disc singles
Your compact disc player does not need
an adaptor to play compact disc singles.
Compact disc singles are about 8 cm (3
in.) in diametersmaller than standard
discs.
After you eject a compact disc single, do
not insert a standard 12 cm (4.7 in.) disc
until “DISC” disappears from the display.
NOTICE
Do not use an adaptor for compact
disc singles
—it could cause tracking
errors or interfere with the ejection of
compact discs.

’03Camry_U (L/O 0301)
136
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
YOUR COMPACT DISC PLAYER WITH
CHANGER (type 2)
When you insert a disc, push the “LOAD”
button and gently push the disc in with
the label side up. (The player will auto-
matically eject a disc if the label side is
down.) The compact disc player will play
from track 1 through the end of the disc.
Then it will play from track 1 of the next
disc.
The player is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE
Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc player. Insert only
one compact disc into slot at a
time.
 Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.

’03Camry_U (L/O 0301)
137
2003 CAMRY from Jan. ’03 Prod. (OM33593U)

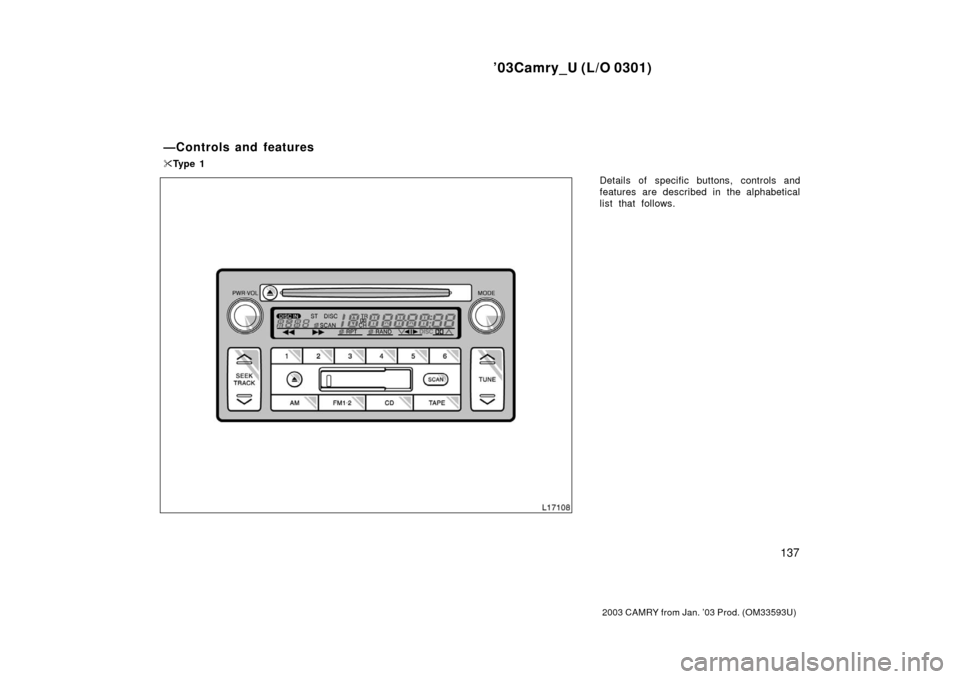

Details of specific buttons, controls and
features are described in the alphabetical
list that follows.
—Controls and features
Ty p e 1

’03Camry_U (L/O 0301)
138
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE” or
“SEEK” button.) Push and hold down the
button until you hear a beep—this will set
the station to the button. The button num-
ber will appear on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button. (The display
will show “AM”, “FM1” or “FM2” when you
push “AM” or “FM1·2”.)
(Eject button)
Push the cassette tape eject button to
eject a cassette. Push the compact disc
eject button to eject a compact disc.
After you turn the ignition to “LOCK”, you
will be able to eject a cassette or disc but
you will not be able to reinsert it.
(Program)
Push “
” to select the other side of a
cassette tape. The display indicates which
side is currently selected (“
” indicates
top side, “
” indicates bottom side).
Autoreverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fast forward buttons)
Cassette player
Push the fast forward button to fast for-
ward a cassette tape. “FF” will appear on
the display. Push the reverse button to
rewind a tape. “REW” will appear on the
display.
To stop the tape while it is fast forward-
ing, push the fast forward button or
“TAPE”; to stop the tape while it is re-
winding, push the reverse button or
“TAPE”.
If a tape side rewinds completely, the cas-
sette player will stop and then play that
same side. If a tape fast forwards com-
pletely, the cassette player will play the
other side of the tape, using the autore-
verse feature. Compact disc player
If you want to fast forward or reverse
through a compact disc track, push and
hold in the fast forward or reverse button.
When you release the button, the compact
disc player will resume playing.
AM
Push “AM” to turn on the radio and select
the AM band. “AM” will appear on the
display.
If the audio system is off, you can turn
on the radio by pushing “AM”. Also, push
“AM” to switch from cassette or compact
disc operation to radio operation.
CD (Compact disc player)
Push “CD” to switch from radio or cas-
sette operation to compact disc player op-
eration. If the audio system is off, you
can turn on the compact disc player by
pushing “CD”. In both cases, a disc must
already be loaded in the player.
When the audio is set into compact disc
operation, the display shows the track cur-
rently being played.
If the player malfunctions, your audio sys-
tem will display one of the four following
error messages.

’03Camry_U (L/O 0301)
139
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
Error codes
“WAIT”: The compact disc player unit
may be too hot due to temperature. Allow
the player to cool down.
“Err 1”: The disc may be dirty, damaged
or inserted incorrectly (upside down).
Clean disc and reinsert.
“Err 3”: There is trouble inside the sys-
tem. Eject the disc. Set the disc again.
“Err 4”: Overcurrent. Ask your Toyota
dealer to inspect.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
Dolby
B NR∗
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push “
”. “” will appear on the
display. Push the button again to turn off
Dolby  B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used for
recording the tape.
∗: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. “DOLBY” and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM1·2
Push “FM1·2” to turn on the radio and
select the FM band. “FM1” or “FM2” will
appear on the display. This system allows
you to set twelve FM stations, two for
each button.
If the audio system is off, you can turn
on the radio by pushing “FM1·2”. Also,
push “FM1·2” to switch from cassette or
compact disc operation to radio operation.
MODE (manual tone and sound balance
adjustment function)
Each time you push the “MODE” knob, the
mode changes. To adjust the tone and
balance, turn the knob.
BASS: Adjusts lowpitched tones. The dis-
play ranges from 5 to 5.
MID (on some models): Adjusts mid
pitched tones. The display ranges from 5
to 5.
TREBLE: Adjusts highpitched tones. The
display ranges from 5 to 5.
BALANCE: Adjusts the sound balance be-
tween the right and left speakers. The
display ranges from L7 to R7.
FADER: Adjusts the sound balance be-
tween the front and rear speakers. The
display ranges from F7 to R7. PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume.
RAND (Random)
Push “RAND” to listen the tracks on the
disc in random order. “
” will ap-
pear on the display. The disc you are
listening to will play in random order. To
turn off the random feature, push this but-
ton again.
RPT (Repeat)
Cassette player
Push “
” while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically be
rewound and replayed. This process will
be continued until you push the button
again to turn off the repeat feature.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly.

’03Camry_U (L/O 0301)
140
2003 CAMRY from Jan. ’03 Prod. (OM33593U)
Compact disc player
Push “RPT” while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically be
replayed. This process will be continued
until you push the button again to turn off
the repeat feature.
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold “SCAN” until you hear a
beep. The radio will tune in the next pres-
et station up the band, stay there for 5
seconds, and then move to the next pre-
set station. To select a station, push
“SCAN” again.
To scan all the frequencies:
Quickly push and release “SCAN”. If you
hear a beep, you held the button too long,
and the radio will scan the preset sta-
tions. The radio will find the next station
up the station band, stay there for 5 se-
conds, and then scan again. To select a
station, push “SCAN” again. Compact disc player
Push “SCAN” to scan the tracks on a
specific disc. “SCAN” will appear on the
display and the player will scan all the
tracks on the disc you are listening to. To
select a track, push “SCAN” again. If the
player scanned all the tracks on the disc,
it will stop scanning.
SEEK (Seeking)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, quickly push and re-
lease the “
” or “ ” under the “SEEK”.
Do this again to find another station.
Cassette player
By using this button, you can skip up or
down to a different track.
You can skip up to nine tracks at a time.
Push the up or down side of the button.
“FF 1” or “REW 1” will appear on the
display.
Next, push either side of the track button
until the number on the display reaches
the number of tracks you want to skip. If
you push the button ten times, the skip
feature will be turned off. When counting the number of tracks you
want to rewind, remember to count the
current track as well. For example, if you
want to rewind to a song that is two be-
fore the song you are listening to, push
on the down side of the button until “REW
3” appears on the display.
If you have pushed the track button more
than you wanted to, push the other side
of the button. The track number will be
reduced.
The track number you select is not valid
if it is higher than the number of tracks
remaining on the current cassette side.
After the beginning of the tape is
reached, the player will automatically
start playing the same side.
After the end of the tape is reached,
the player will automatically reverse
sides and start playing the other side.
There must be at least 3 seconds of blank
space between tracks for the track button
to work correctly. In addition, the feature
may not work well with some spoken
word, live, or classical recordings.
