Maintenance and service

Recommended grade and viscosity
under severe driving conditions
If the vehicle is used in desert areas, in areas with very
high temperatures, or used for heavy-duty applica-
tions such as towing a trailer, use of oil with the follow-
ing grade and viscosities is recommended.
API classification SL or SJ: SAE viscosity No.:
30, 40, 10W-50, 20W-40, 20W-50
Synthetic oil
You can use synthetic engine oil that meets the same
requirements given for conventional engine oil. When
using synthetic oil, you must use oil of the same clas-
sification, viscosity and grade shown in this owner’s
manual, and must follow the oil and filter changing in-
tervals shown in the maintenance schedule.
Cooling system
Never attempt to remove the radiator cap until
the engine has been shut off and has cooled
down completely. Since the coolant is under
pressure, you may suffer serious burns from a
spray of boiling hot coolant when the cap is re-
moved.
The cooling system has been filled at the facto-
ry with a high quality, corrosion-inhibiting,
year-around coolant which provides protection
againstfreezingdownto–33 °F(–36 °C). For
adding, use genuine SUBARU coolant or an
equivalent: a mixture of 50% soft water and 50%
ethylene-glycol basis coolant. Use of improper
coolants may result in corrosion in the cooling
system. It is important to maintain protection
against freezing and corrosion, even if freezing
temperatures are not expected. Never mix dif-
ferent kinds of coolant.

11 -1 5
Maintenance and service
–CONTINUED –
Cooling fan, hose and connections
Your vehicle employs an electric cooling fan which is
thermostatically controlled to operate when the engine
coolant reaches a specific temperature.
If the radiator cooling fan does not operate even when
the engine coolant temperature gauge exceeds the
normal operating range, the cooling fan circuit may be
defective. Check the fuse and replace it if necessary.
If the fuse is not blown, have the cooling system
checked by your SUBARU dealer.
If frequent addition of coolant is necessary, there may
be a leak in the engine cooling system. It is recom-
mended that the cooling system and connections be
checked for leaks, damage, or looseness.
Engine coolant
Checking the coolant level
1) “FULL” level mark
2) “LOW” level mark
Check the coolant level at each fuel stop.
1. Check the coolant level on the outside of the reser-
voir while the engine is cool.
2. If the level is close to or lower than the “LOW” level
mark, add coolant up to the “FULL” level mark. If the
reserve tank is empty, remove the radiator cap and re-
fill as required.
HSB018CB
1
2

11 - 1 6
Maintenance and service
1) Rubber gaskets
3. After refilling the reserve tank and the radiator, re-
install the caps and check that the rubber gaskets in-
side the radiator cap are in the proper position.
Be careful not to spill engine coolant when
adding it. If coolant touches the exhaust pipe, it
may cause a bad smell, smoke, and/or a fire. Do not splash the engine coolant over paint-
ed parts. The alcohol contain ed in the engine
coolant may damage the paint surface.
Changing the coolant
1) Drain plug
Change the engine coolant using the following proce-
dures according to the maintenance schedule.
1. Remove the under cover.
2. Place a proper container under the drain plug and
loosen the drain plug.
3. Loosen the radiator cap to drain the coolant from
the radiator. Then drain the coolant from the reserve
tank. Tighten the drain plug securely.
1
HSB026BB
1HSB027BB

11 -1 7
Maintenance and service
–CONTINUED –
Never attempt to remove the radiator cap until
the engine has been shut off and has cooled
down completely. Since the coolant is under
pressure, you may suffer serious burns from a
spray of boiling hot coolant when the cap is re-
moved.
4. Install the under cover.
1) Filler neck
2) Fill up to this level 5. Slowly pour the coolant and fill to the radiator filler
neck. Do not pour the coolant too quickly, as this may
lead to insufficient air bleeding and trapped air in the system.
Guideline of coolant quantity (including coolant in reservoir tank):
MT. 7.3 US qt (6.9 liters, 6.1 Imp qt)
AT. 7.2 US qt (6.8 liters, 6.0 Imp qt)
1) “FULL” level mark
2) “LOW” level mark
6. Pour the coolant and fill to the reservoir tank’s
“FULL” level mark.
1
2
HSB028BB
HSB018CB
1
2

11 - 1 8
Maintenance and service

Be careful not to spill engine coolant when
adding it. If coolant touches the exhaust pipe, it
may cause a bad smell, smoke, and/or a fire. Do not splash the engine coolant over paint-
ed parts. The alcohol contain ed in the engine
coolant may damage the paint surface.
1) Rubber gaskets
7. Put the radiator cap back on and tighten firmly. At
this time, make sure that the rubber gasket in the radi- ator cap is correctly in place.
8. Start and run the engine for more than five minutes
at 2,000 to 3,000 rpm.
9. Stop the engine and wait until the coolant cools
down (122 to 140
°F[50to60 °C]). If there is any loss
of coolant, add coolant to the radiator’s filler neck and
to the reserve tank’s “FULL” level.
10.Put the radiator cap and reservoir cap back on and
tighten firmly.
1
HSB026BB

11 -1 9
Maintenance and service
–CONTINUED –
Air cleaner element
The air cleaner element functions as a filter screen.
When the element is perforated or removed, engine
wear will be excessive and engine life shortened.
The air cleaner element is a viscous type. It is unnec-
essary to clean or wash the element.
Do not operate the engine with the air cleaner
element removed. The air cleaner element not
only filters intake air but also stops flames if the
engine backfires. If the air cleaner element is
not installed when the engine backfires, you
could be burned.
Replacing the air cleaner element
Replace the air cleaner element according to the
maintenance schedule in the “Warranty and Mainte-
nance Booklet”. Under extremely dusty conditions, re-
place it more frequently. It is recommended that you
always use genuine SUBARU parts.
0
1) Bolt

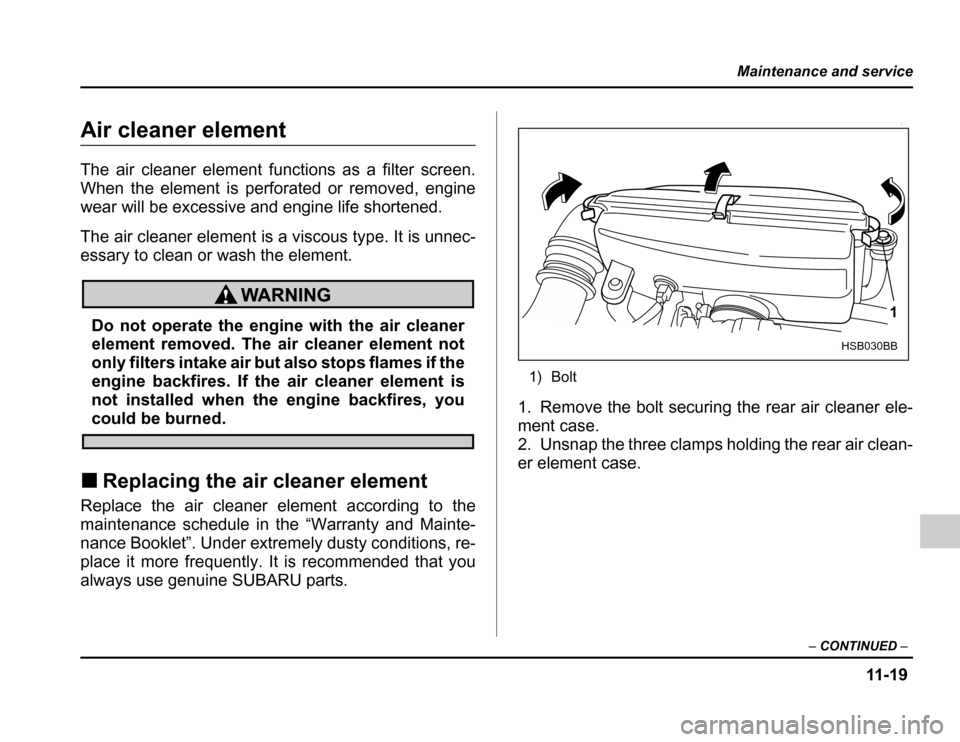

1. Remove the bolt securing the rear air cleaner ele-
ment case.
2. Unsnap the three clamps holding the rear air clean-
er element case.
1
HSB030BB

11 - 2 0
Maintenance and service
1) Air cleaner element

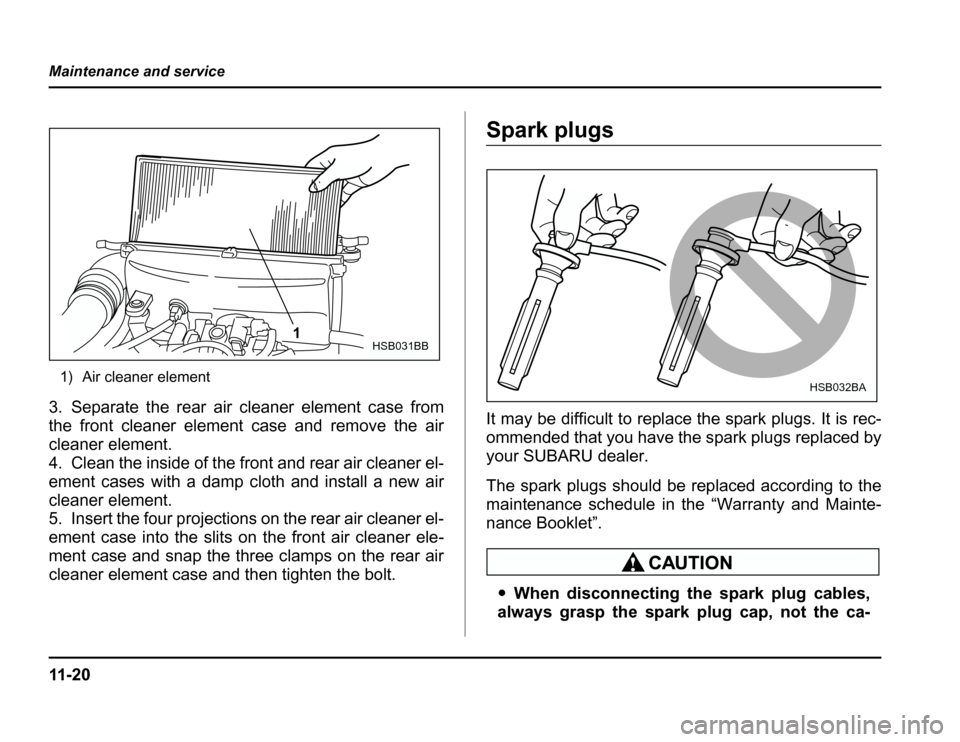

3. Separate the rear air cleaner element case from
the front cleaner element case and remove the air
cleaner element.
4. Clean the inside of the front and rear air cleaner el-
ement cases with a damp cloth and install a new air
cleaner element.
5. Insert the four projections on the rear air cleaner el-
ement case into the slits on the front air cleaner ele-
ment case and snap the three clamps on the rear air
cleaner element case and then tighten the bolt.
Spark plugs
It may be difficult to replace the spark plugs. It is rec-
ommended that you have the spark plugs replaced by
your SUBARU dealer.
The spark plugs should be replaced according to the
maintenance schedule in the “Warranty and Mainte-
nance Booklet”.
When disconnecting the spark plug cables,
always grasp the spark plug cap, not the ca-
1HSB031BB
HSB032BA

11 -2 1
Maintenance and service
–CONTINUED –
bles. Make sure the cables are replaced in the cor-
rect order.
Recommended spark plugs
RC10YC4 (Champion)
BKR6E-11 (NGK)
BKR5E-11 (NGK)
Drive belts
1) Power steering pump pulley
2) Air conditioner compressor pulley
3) Crank pulley
The alternator, power steering pump, and air condi-
tioner compressor depend on drive belts. Satisfactory
performance requires that belt tension be correct.
To check belt tension, place a straightedge (ruler)
across two adjacent pulleys and apply a force of 22 lb
(98 N, 10 kg) midway between the pulleys by using a
spring scale. Belt deflection should be the amount
specified. If a belt is loose, cracked, or worn, contact
2
3 A
B
1
HSB033BB
