Illustrated index Exterior
12 3 4 5
6
7
8
9
10
11

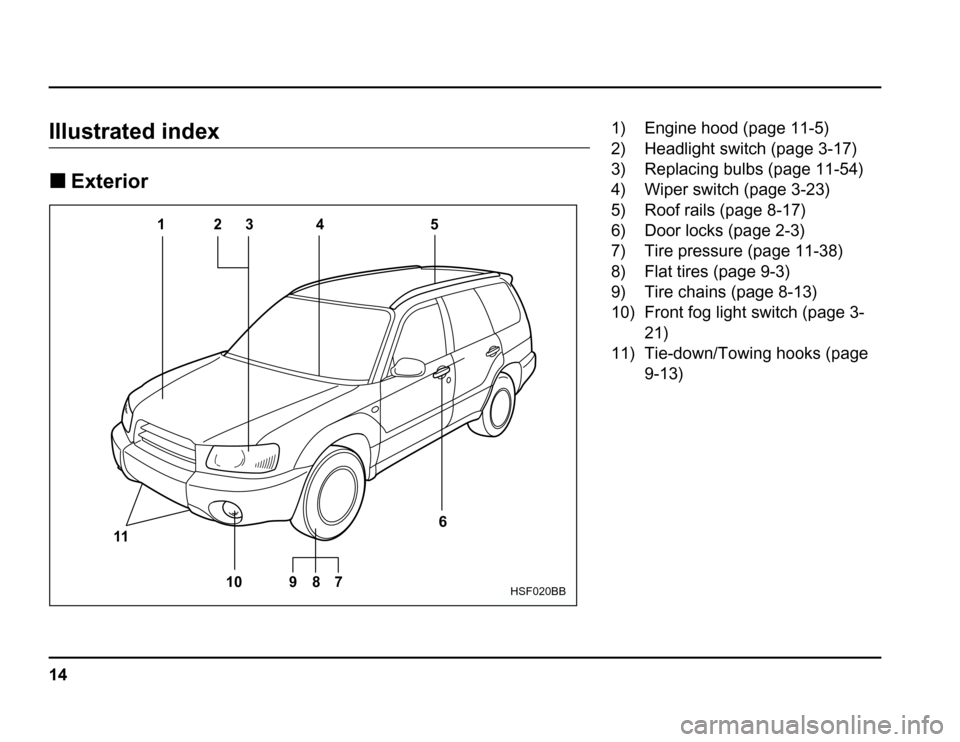

HSF020BB
1) Engine hood (page 11-5)
2) Headlight switch (page 3-17)
3) Replacing bulbs (page 11-54)
4) Wiper switch (page 3-23)
5) Roof rails (page 8-17)
6) Door locks (page 2-3)
7) Tire pressure (page 11-38)
8) Flat tires (page 9-3)
9) Tire chains (page 8-13)
10) Front fog light switch (page 3-
21)
11) Tie-down/Towing hooks (page
9-13)

15
–
CONTINUED –
1
23
4
5

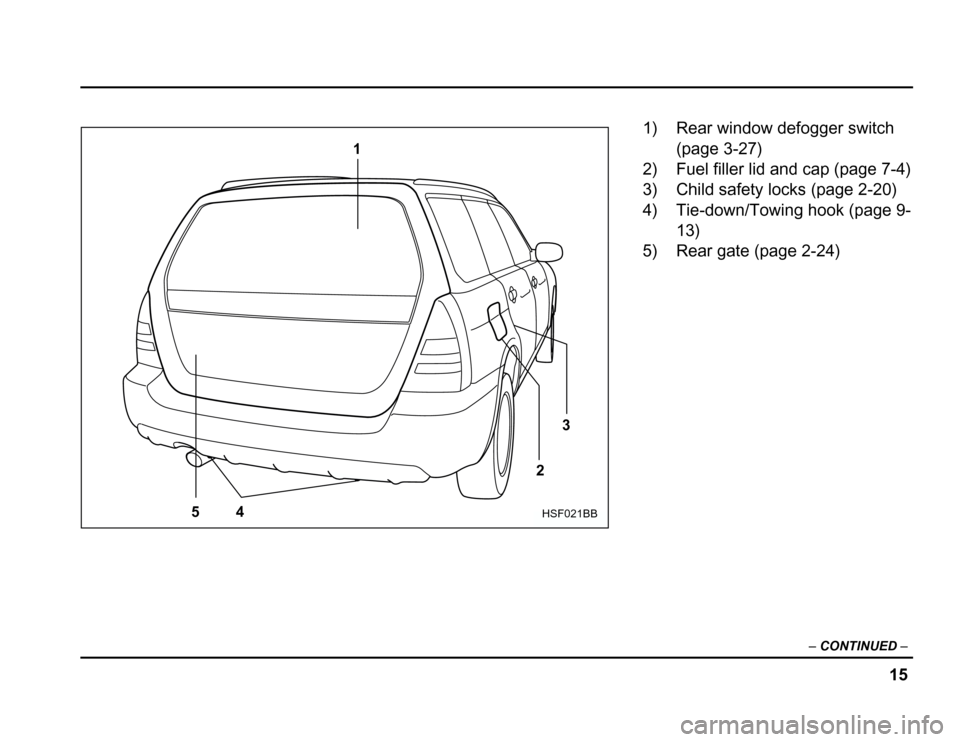

HSF021BB
1) Rear window defogger switch
(page 3-27)
2) Fuel filler lid and cap (page 7-4)
3) Child safety locks (page 2-20)
4) Tie-down/Towing hook (page 9-
13)
5) Rear gate (page 2-24)

16

Interior
Passenger compartment area
12 3
4
5
6

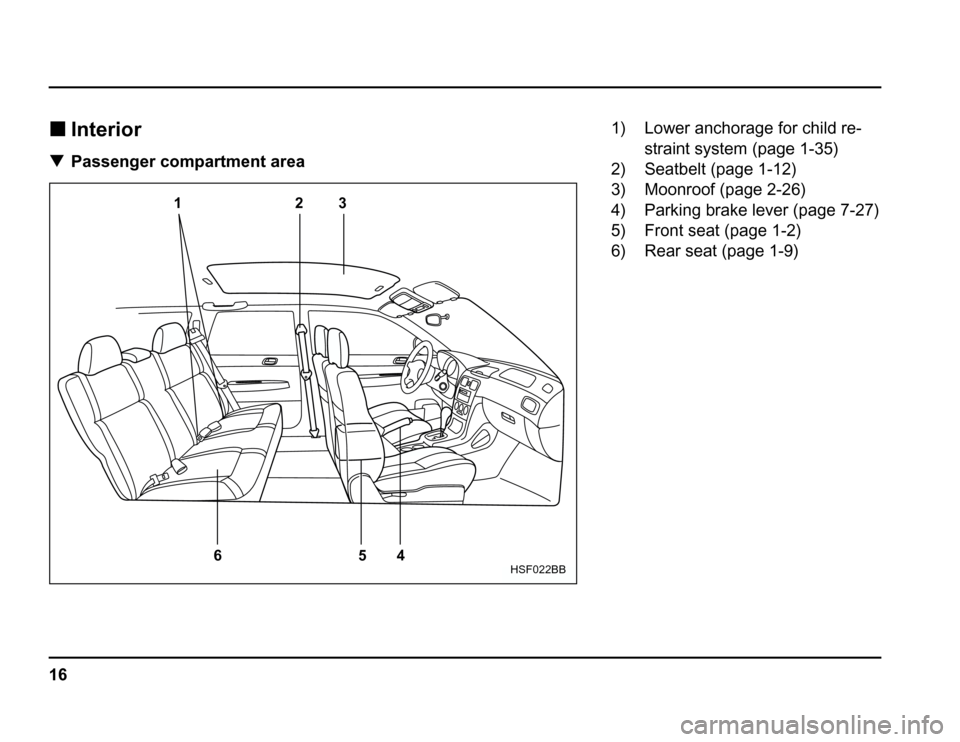

HSF022BB
1) Lower anchorage for child re-
straint system (page 1-35)
2) Seatbelt (page 1-12)
3) Moonroof (page 2-26)
4) Parking brake lever (page 7-27)
5) Front seat (page 1-2)
6) Rear seat (page 1-9)

17
–
CONTINUED –
1
2 3
45

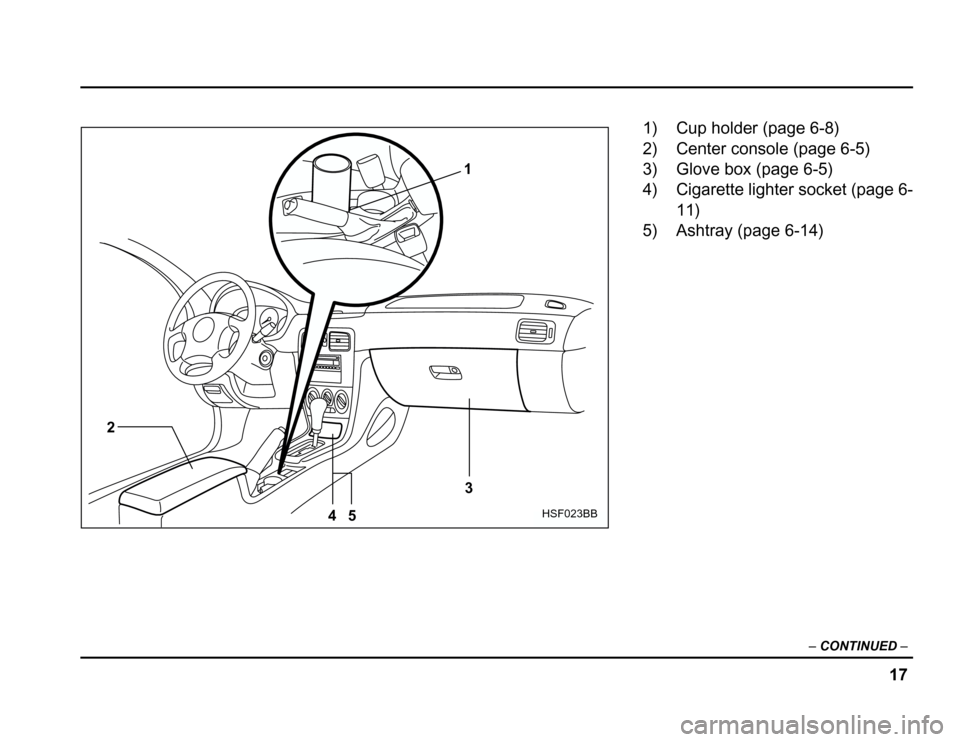

HSF023BB
1) Cup holder (page 6-8)
2) Center console (page 6-5)
3) Glove box (page 6-5)
4) Cigarette lighter socket (page 6- 11)
5) Ashtray (page 6-14)

18

Instrument panel
12 3 4 5 67
8
9
10
11
12
14
15
16 13

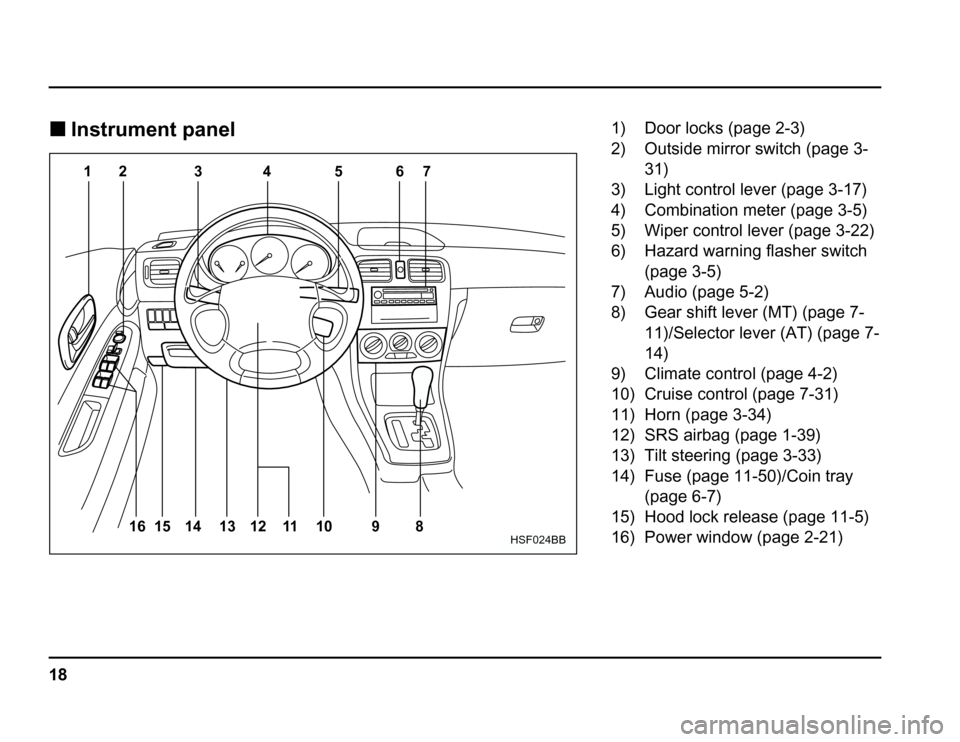

HSF024BB
1) Door locks (page 2-3)
2) Outside mirror switch (page 3-
31)
3) Light control lever (page 3-17)
4) Combination meter (page 3-5)
5) Wiper control lever (page 3-22)
6) Hazard warning flasher switch
(page 3-5)
7) Audio (page 5-2)
8) Gear shift lever (MT) (page 7-
11)/Selector lever (AT) (page 7-
14)
9) Climate control (page 4-2)
10) Cruise control (page 7-31)
11) Horn (page 3-34)
12) SRS airbag (page 1-39)
13) Tilt steering (page 3-33)
14) Fuse (page 11-50)/Coin tray
(page 6-7)
15) Hood lock release (page 11-5)
16) Power window (page 2-21)

19
–
CONTINUED –
Light control and wiper control levers/switches
2
3
4
5
6
7
8
9
10
11
12 1

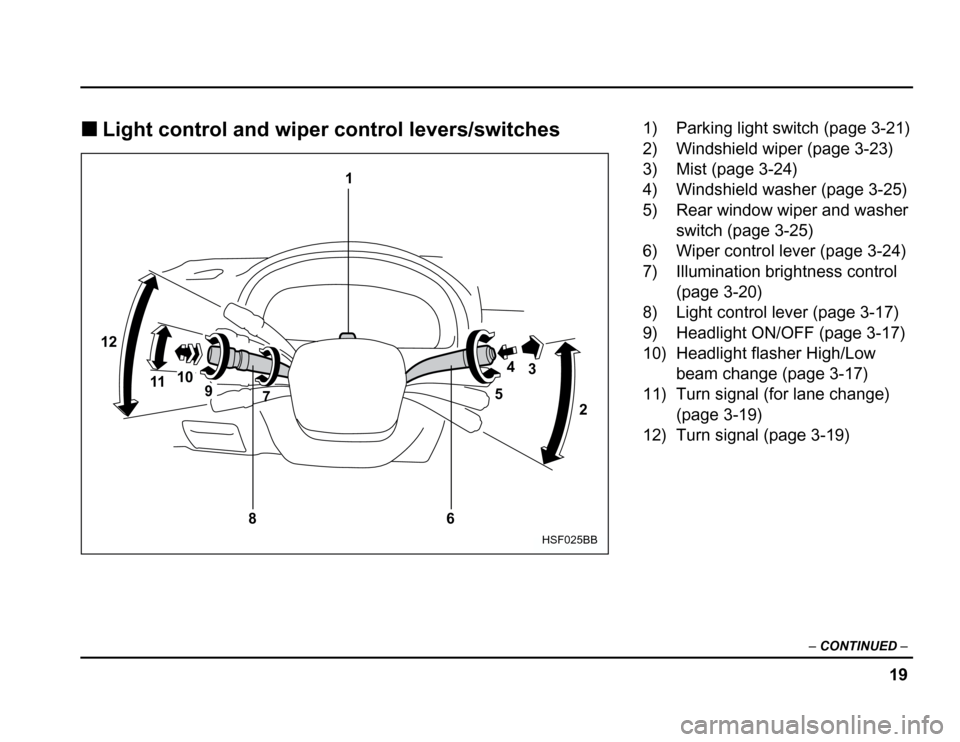

HSF025BB
1) Parking light switch (page 3-21)
2) Windshield wiper (page 3-23)
3) Mist (page 3-24)
4) Windshield washer (page 3-25)
5) Rear window wiper and washer
switch (page 3-25)
6) Wiper control lever (page 3-24)
7) Illumination brightness control (page 3-20)
8) Light control lever (page 3-17)
9) Headlight ON/OFF (page 3-17)
10) Headlight flasher High/Low beam change (page 3-17)
11) Turn signal (for lane change) (page 3-19)
12) Turn signal (page 3-19)

20

Combination meter
Overview
P
R N D3
2
1
FUEL DOORFUEL DOOR
H
MPH
EC
Fx1000r/minx1000r/min
km/hkm/h
23 4
1
5
6
7
HSF026BB
1) Fuel gauge (page 3-7)
2) Temperature gauge (page 3-8)
3) Speedometer (page 3-5)
4) Tachometer (page 3-6)
5) Trip meter A/B selection and trip
meter reset knob (page 3-5)
6) Odometer and trip meter (page
3-5)
7) Outside temperature indicator
(page 3-8)

21
–
CONTINUED –
Warning and indicator light
Mark Name Page
Seatbelt warning light 3-9
SRS airbag system warning light 3-10
CHECK ENGINE warning
light/Malfunction indicatorlamp 3-10
Charge warning light 3-11
Oil pressure warning light 3-11
AT OIL temperature warning
light (if equipped) 3-12
or ABS warning light 3-12
or Brake system warning light 3-13
Door open warning light 3-14
Front-wheel drive warning
light (if equipped) 3-15
Low fuel warning light 3-14
Turn signal indicator lights 3-15
High beam indicator light 3-15
Security system indicator
light (if equipped) 2-14
Cruise control indicator light
(if equipped) 3-15
Mark Name Page
