2003 SUBARU FORESTER Owners Manual

7-24
Starting and operating
If the warning light behaves as follows, the ABS
system may not be working properly.
When the warning light is on, the ABS function
shuts down; however, th
e conventional brake
system continues to operate normally. The warning light does not come on when the
ignition switch is turned to the “ON” position. The warning light comes on when the ignition
switch is turned to the “ON” position, but it
does not go out even when the vehicle speed
exceeds approximately 8 mph (12 km/h). The warning light comes on during driving.
If these occur, have the ABS system repaired at
the first available opportunity by your SUBARU
dealer.
NOTE
If the warning light behavior is as described be-
low, the ABS system may be considered normal. The warning light comes on right after the en-
gine is started but goes out immediately, remain-
ing off. The warning light remains on after the engine
has been started, but it goes out when the vehicle speed reaches about 8 mph (12 km/h).
The warning light comes on during driving, but
it goes out immediately and remains off.

7-25
Starting and operating
–CONTINUED –
Electronic Brake Force Distribution
(EBD) system (if equipped)
The EBD system maximizes the effectiveness of the
brakes by allowing the rear brakes to supply a greater
proportion of the braking force. It functions by adjust-
ing the distribution of braking force to the rear wheels
in accordance with the vehicle’s loading condition and
speed.
The EBD system is an integral part of the ABS system
and uses some of the ABS system’s components to
perform its function of optimizing the distribution of
braking force. If any of the ABS components used by
the EBD function fails, the EBD system also stops
working.
When the EBD system is operating, you may hear a
chattering noise or feel a slight vibration in the brake
pedal. This is normal and does not indicate a malfunc- tion.
Steps to take if EBD system fails
If a malfunction occurs in the EBD system, the system
stops working and the brake system warning light and
ABS warning light come on simultaneously.
The EBD system may be faulty if the brake system
warning light and ABS warning light illuminate simulta-
neously during driving.
Even if the EBD system fails, the conventional braking
system will still function. However, the rear wheels will
be more prone to locking when the brakes are applied
harder than usual and the vehicle’s motion may there-
fore become somewhat harder to control.
If the brake system warning light and ABS warning
HS1103DA

7-26
Starting and operating
light illuminate simultaneously, take the following steps:
1. Stop the vehicle in the nearest safe, flat place. If
you cannot avoid parking the vehicle on a slope, use
chocks to prevent the vehicle from moving.
2. Shut down the engine, then restart it.
3. Release the parking brake. If both warning lights go
out, the system is normal and no further action is nec-essary.
4. If both warning lights come on again and stay illu-
minated after the engine has been restarted, shut
down the engine again, apply the parking brake, and
check the brake fluid level.
5. If the brake fluid level is not below the “MIN” mark,
the EBD system may be faulty. Drive carefully to the
nearest SUBARU dealer and have the system inspect-
ed.
6. If the brake fluid level is below the “MIN” mark, DO
NOT drive the vehicle. Instead, have the vehicle towed
to the nearest SUBARU dealer for repair.

Driving with the brake system warning light
on is dangerous. This indicates your brake sys-
tem may not be working properly. If the light re-
mains on, have the brakes inspected by a
SUBARU dealer immediately.
If at all in doubt about whether the brakes are
operating properly, do not drive the vehicle.
Have your vehicle towed to the nearest
SUBARU dealer for repair.

7-27
Starting and operating
–CONTINUED –
Parking your vehicle Parking brake
To set the parking brake, press the brake pedal firmly
and hold it down while fully pulling up the parking
brake lever.
To release the parking brake, pull the lever up slightly,
press the release button, then lower the lever while
keeping the button pressed.
When the parking brake is set while the engine is run-
ning, the parking brake warning light comes on. After
starting the vehicle, be sure that the warning light has
gone out before the vehicle is driven. Refer to the “Warning and indicator lights” section (chapter 3).
Never drive while the parking brake is set be-
cause this will cause unnecessary wear on the
brake linings. Before starting to drive, always
make sure that the parking brake has been fully
released.
Parking tips
When parking your vehicle, always set the parking
brake firmly and put the shift lever in the “1” (1st) for an
upgrade or “R” (Reverse) for a downgrade for manual
transmission vehicles, or in the “P” (Park) position for
automatic transmission vehicles. Always set the park-
ing brake firmly when parking your vehicle. Never rely
on the transmission alone to hold the vehicle.
HS7014BA

7-28
Starting and operating
When parking on a hill, always turn the steering wheel.
When the vehicle is headed up the hill, the front
wheels should be turned away from the curb.
When facing downhill, the front wheels should be
turned into the curb.

Never leave unattended children or pets in
the vehicle. They could accidentally injure
themselves or others through inadvertent oper-
ation of the vehicle. Also, on hot or sunny days,
the temperature in a closed vehicle could
quickly become high enough to cause severe
or possibly fatal injuries to people. Do not park the vehicle over flammable mate-
rials such as dry grass, waste paper or rags, as
HS7015AAHS7016AA

7-29
Starting and operating
–CONTINUED –
they may burn easily if they come near hot en-
gine or exhaust system parts.Be sure to stop the engine if you take a nap in
the vehicle. If engine exhaust gas enters the
passenger compartment, occupants in the ve-
hicle could die from carbon monoxide (CO)
contained in the exhaust gas. Hill holder (for manual transmission
— if equipped)
The Hill holder is a device to make starting on an uphill
grade easier.
On an uphill grade, when the clutch pedal is de-
pressed while the brake pedal is also depressed, brak-
ing power is maintained temporarily by the Hill holder
when the brake pedal is released. The driver is there-
fore able to start the vehicle the same way as on a lev-
el grade, just using the clutch and accelerator pedal.
HS7021BA

7-30
Starting and operating
The Hill holder does not operate when the vehicle is
facing downhill. And the Hill holder may not operate on
slight grades.
When starting in reverse and using the Hill holder, a
braking effect may be felt even after the brake pedal
has been released. However, this braking effect
should disappear once the clutch pedal is released.
A slight jolt may be felt when the vehicle begins to
move forward after being reversed.
If the braking power of the Hill holder is insufficient af-
ter the brake pedal is released, apply more braking
power by pressing the brake pedal again.
The Hill Holder is a device only for helping the
driver to START the vehicle on an uphill grade.
To prevent accidents when the vehicle is
parked on a slope, be sure to firmly set the
parking brake. When setting the parking brake,
make sure that the vehicle remains stationary
when the clutch pedal is released.
HS7022BA

7-31
Starting and operating
–CONTINUED –
Cruise control (if equipped)
Cruise control enables you to maintain a constant ve-
hicle speed without holding your foot on the accelera-
tor pedal and it is operative when the vehicle speed is
25 mph (40 km/h) or more. Make sure the main switch
is turned “OFF” when the cruise control is not in use to
avoid unintentionally by setting the cruise control.
Do not use the cruise control under any of the
following conditions. This may cause loss of
vehicle control:
driving up or down a steep grade
driving on slippery or winding roads
driving in heavy traffic
To set cruise control
0

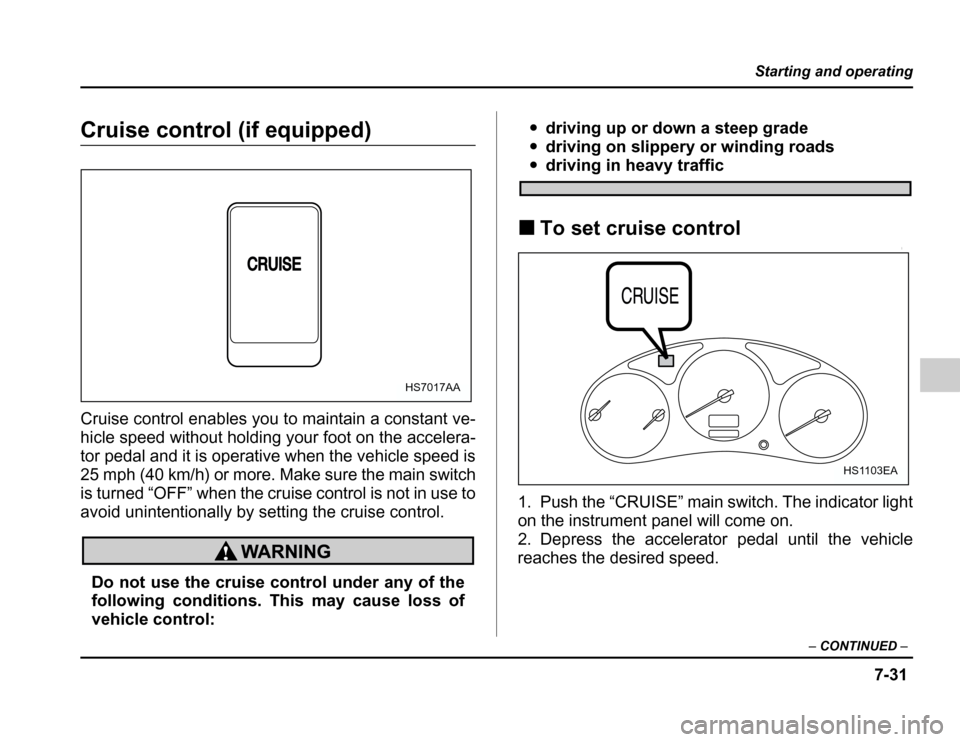

1. Push the “CRUISE” main switch. The indicator light
on the instrument panel will come on.
2. Depress the accelerator pedal until the vehicle
reaches the desired speed.
HS7017AA
HS1103EA
