Combination meter
Overview
P
R N D3
2
1
FUEL DOORFUEL DOOR
H
MPH
EC
Fx1000r/minx1000r/min
km/hkm/h
23 4
1
5
6
7
HSF026BB

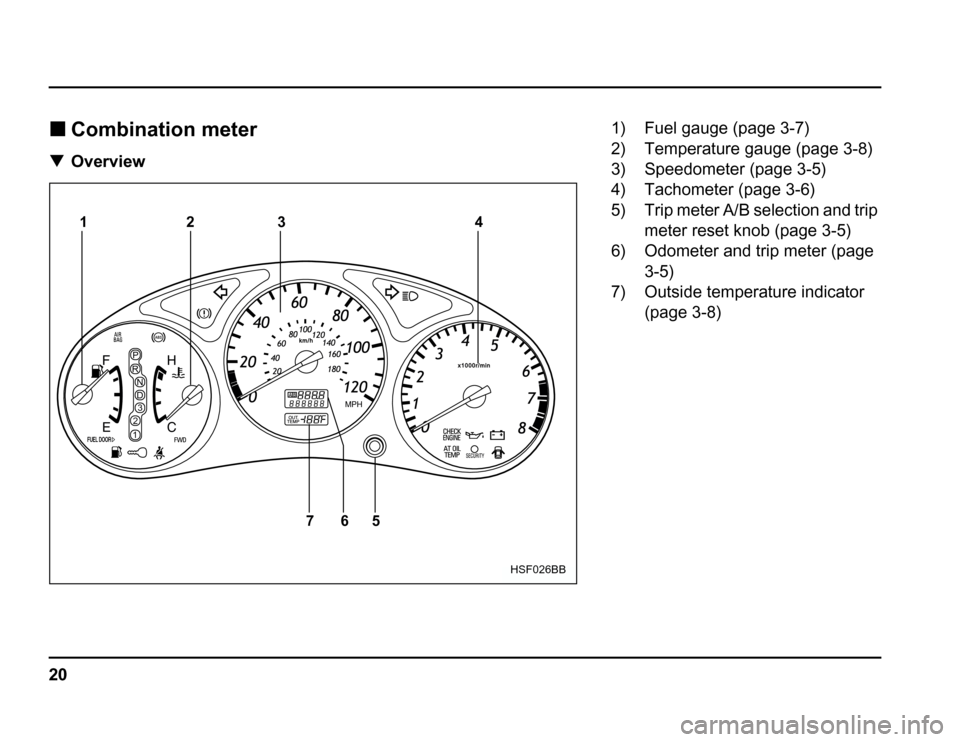

1) Fuel gauge (page 3-7)
2) Temperature gauge (page 3-8)
3) Speedometer (page 3-5)
4) Tachometer (page 3-6)
5) Trip meter A/B selection and trip
meter reset knob (page 3-5)
6) Odometer and trip meter (page
3-5)
7) Outside temperature indicator
(page 3-8)

2-14
Keys and doors
Security system (if equipped)
The security system helps to protect your vehicle and
valuables from theft. The horn sounds and the turn
signal lights flash if someone attempts to break into
your vehicle. The starter motor is also interrupted to
prevent starting the vehicle without a key.
The system can be armed and disarmed with the re-
mote transmitter.
The system does not operate when the key is inserted
into the ignition switch.
System operation
The security system will give the following alarm indi-
cations when triggered: The turn signal lights will flash and the horn will
sound intermittently. In addition, the starter motor will
not operate. The alarm automatically resets after 30 seconds;
however, the alarm will reactivate if the vehicle is tam-
pered with again. The alarm will continue for six times
if any sensor continues to be activated.
The alarm is triggered by: Opening a door or the rear gate.
Application of physical shock to the vehicle (e.g. breaking glass or forced entry). Note that there are two
alarm levels for shock: warning and alarm. In warning
mode, the alarm detects lower level vibrations and
triggers 2 warning chirps on the horn and two flashes
on the lights as a deterrent to would be vandals. In
alarm mode, higher levels of shock are detected and
the system will go into full alarm.
Ignition switch being turned on while in armed state.
NOTE
With the valet mode selected, the security system
does not operate when the remote transmitter is
used for locking and unlocking. The security sys-
tem indicator light in the combination meter flash-
es twice per second to show that the valet mode is
selected. For details, refer to “Valet mode” in this section. Arming the system
To arm the system using remote transmitter
1. Close all windows.
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Make sure that the engine hood is locked.
5. Close all doors and the rear gate.

3-16
Instruments and controls
Clock
To adjust the clock, open the small article storage
compartment in the dashboard with the vehicle parked
inasafeplace.
To set the hour, press the “H” button. To set the min-
utes, press the “M” button. To reset the minutes to “00”
with a radio time signal, push the “Reset” button.
To ensure safety, do not attempt to set the time
while driving, as an accident from inadequate
attention to the road could result.
HS3025BA
HS3018BA

3-31
Instruments and controls
–CONTINUED –

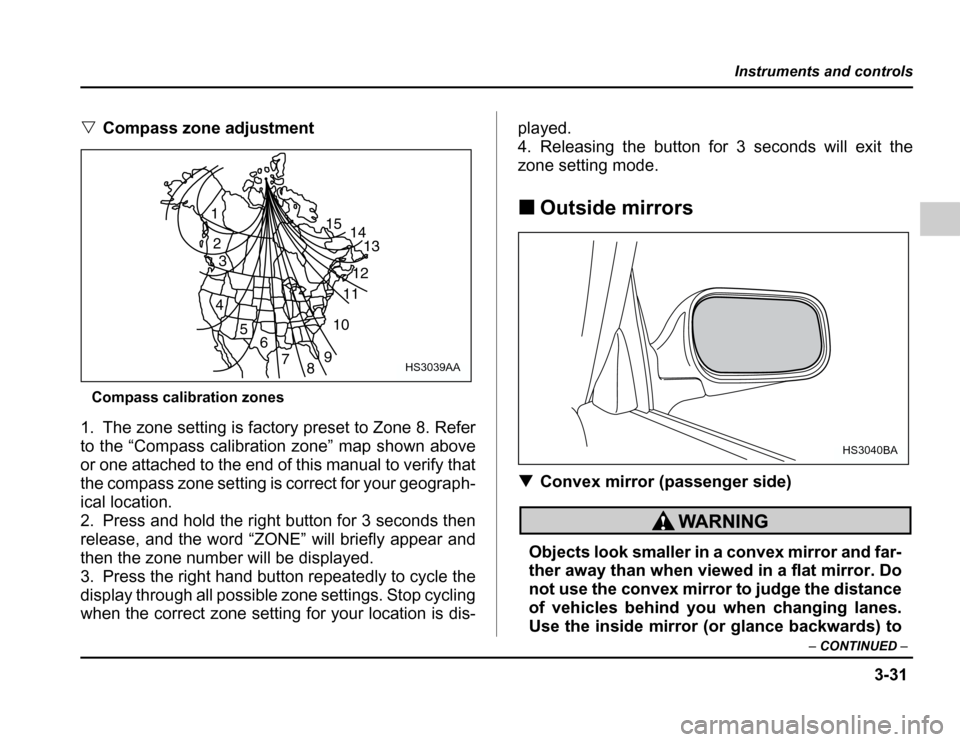

Compass zone adjustment
Compass calibration zones
1. The zone setting is factory preset to Zone 8. Refer
to the “Compass calibration zone” map shown above
or one attached to the end of this manual to verify that
the compass zone setting is correct for your geograph-
ical location.
2. Press and hold the right button for 3 seconds then
release, and the word “ZONE” will briefly appear and
then the zone number will be displayed.
3. Press the right hand button repeatedly to cycle the
display through all possible zone settings. Stop cycling
when the correct zone setting for your location is dis- played.
4. Releasing the button for 3 seconds will exit the
zone setting mode.
Outside mirrors
Convex mirror (passenger side)
Objects look smaller in a convex mirror and far-
ther away than when viewed in a flat mirror. Do
not use the convex mirror to judge the distance
of vehicles behind you when changing lanes.
Use the inside mirror (or glance backwards) to
1
2 3
4 56
7 8910
11
12 13
14
15
HS3039AA
HS3040BA

5-5
Audio
– CONTINUED –
Type A audio set (if equipped)
The radio will operate only when the ignition switch is in the “ACC” or “ON” position. Radio operation
(1) (2)
(3)
(4)
(5)
(6)
HS5012BB
(1) Power switch, Volume control,
Tone/Fader/Balance control dial
(2) BAND button
(3) Tuning buttons
(4) Preset buttons
(5) AUDIO button
(6) SCAN button

5-8
Audio

FM/AM/Weather band selection button (BAND)
Push the “BAND” button when the radio is on to select
FM1, FM2, AM or Weather band (WB) reception. Each
time this button is pressed, the band will change in the
following order:
The display indicates which one is currently selected. Stereo indicator
The stereo indicator “ST” will come on when an FM
stereo broadcast is received. Tuning (TUNE)
Manual tuning (TUNE)
Push the tuning button (3) marked “ ” to increase
the tuning frequency and press the tuning button
marked “ ” to decrease it.
Each time the button is pressed, the frequency chang-
es 10 KHz in the AM waveband and 0.2 MHz in the FM
waveband.
Constant pressure on the button causes a continuous
change in the frequency.
Manual tuning for weather band
When weather band mode is selected, press the tun-
ing button (3) marked “ ” to change the WB chan-
nel up and press the tuning button marked “ ” to
change the WB channel down. Each time the button is
pressed, the WB channel changes to the next chan-
nel. Constant pressure on the button causes a contin-
uous change in the frequency. Automatic tuning (SCAN)
Press the “SCAN” button (6) to change the radio to the
SCAN mode. In this mode, the radio scans through the
radio band until a station is found. The radio will stop
at the station for five seconds while displaying the fre-
quency, after which scanning will continue until the en-
tire band has been scanned from the low end to the
high end.
Press the “SCAN” button again to cancel the SCAN
mode and to stop on any displayed frequency.
When the “SCAN” button is pressed for automatic tun-
ing, stations are scanned in the direction of low fre-
quencies to high frequencies only.
Automatic tuning may not function properly if the sta-
tion reception is weakened by distance from the sta-
tion or proximity to tall buildings and hills. Selecting preset stations
Presetting a station with a preset button (4) allows you
FM1 FM2 AM
WB

5-9
Audio
– CONTINUED –
to select that station in a single operation. Up to six
WB, AM, FM1 and FM2 stations each may be preset. How to preset stations
1. Press the “BAND” selection button to select AM,
FM1, FM2 or WB reception.
2. Press the “SCAN” button (6) or tune the radio man-
ually until the desired station frequency is displayed.
3. Press one of the preset buttons (4) for at least 2
seconds to store the frequency. At this time, there will
momentarily be no sound from the radio. If the button
is pressed for less than 2 seconds, the preceding se-
lection will remain in memory.
NOTE
If the connection between the radio and battery is
broken for any reason such as vehicle mainte-
nance or radio removal, all stations stored in the
preset buttons are cleared. If this occurs, it is nec-
essary to reset the preset buttons.

5-16
Audio
Type B audio set (if equipped)
The radio will operate only when the ignition switch is in the “ACC” or “ON”
position.
Radio operation
(4)
(5)
(6)
(7)
(8)
(1) (2)
(3)HS5013BB

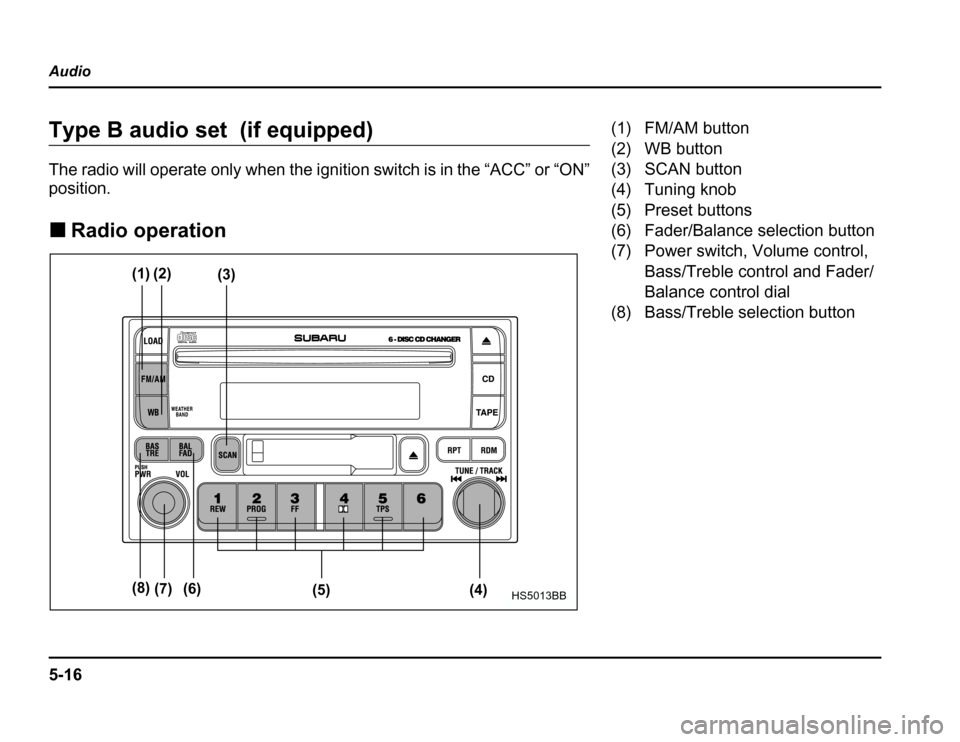

(1) FM/AM button
(2) WB button
(3) SCAN button
(4) Tuning knob
(5) Preset buttons
(6) Fader/Balance selection button
(7) Power switch, Volume control,
Bass/Treble control and Fader/
Balance control dial
(8) Bass/Treble selection button
