2003 PONTIAC VIBE Owners Manual

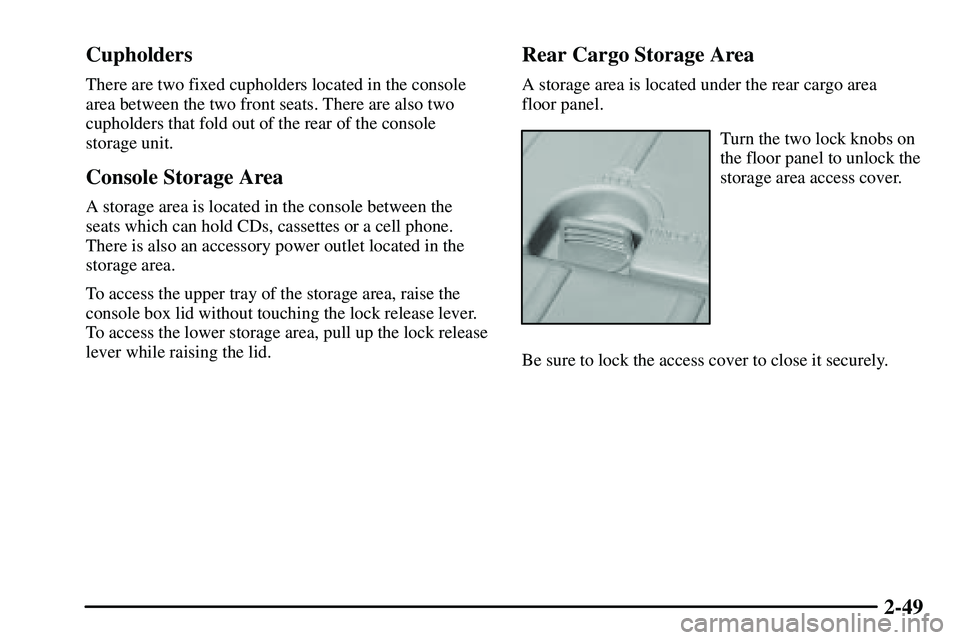

2-49 Cupholders
There are two fixed cupholders located in the console
area between the two front seats. There are also two
cupholders that fold out of the rear of the console
storage unit.
Console Storage Area
A storage area is located in the console between the
seats which can hold CDs, cassettes or a cell phone.
There is also an accessory power outlet located in the
storage area.
To access the upper tray of the storage area, raise the
console box lid without touching the lock release lever.
To access the lower storage area, pull up the lock release
lever while raising the lid.
Rear Cargo Storage Area
A storage area is located under the rear cargo area
floor panel.
Turn the two lock knobs on
the floor panel to unlock the
storage area access cover.
Be sure to lock the access cover to close it securely.

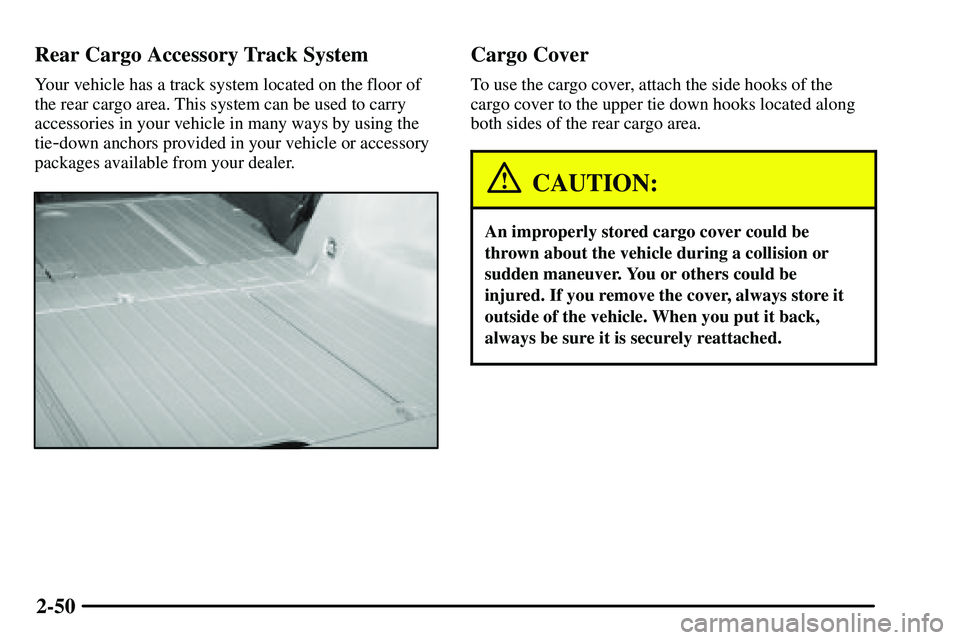

2-50 Rear Cargo Accessory Track System
Your vehicle has a track system located on the floor of
the rear cargo area. This system can be used to carry
accessories in your vehicle in many ways by using the
tie
-down anchors provided in your vehicle or accessory
packages available from your dealer.
Cargo Cover
To use the cargo cover, attach the side hooks of the
cargo cover to the upper tie down hooks located along
both sides of the rear cargo area.
CAUTION:
An improperly stored cargo cover could be
thrown about the vehicle during a collision or
sudden maneuver. You or others could be
injured. If you remove the cover, always store it
outside of the vehicle. When you put it back,
always be sure it is securely reattached.

2-51 Tie-Down Hooks and Tire Tie-Down Belts
The tire tie-down belts are designed to secure the flat
tire. You can also use the belts and hooks to secure
your luggage.
There are eight tie
-down hooks located in the rear of
the vehicle. The belts are located under the cargo area
floor panel. To use the belts, hook the ends to the
lower tie
-down hooks in a criss-cross pattern across
the cargo. Pull on the belts at the buckle to tighten the
belt as needed.
Luggage Carrier
CAUTION:
If you try to carry something on top of your
vehicle that is longer or wider than the luggage
carrier
-- like paneling, plywood, a mattress, and
so forth
-- the wind can catch it as you drive
along. This can cause you to lose control. What
you are carrying could be violently torn off, and
this could cause you or other drivers to have a
collision, and of course damage your vehicle. You
may be able to carry something like this inside.
But, never carry something longer or wider than
the luggage carrier on top of your vehicle.
The luggage carrier has sliding crossrails and side rails
that are attached to the roof to secure cargo.
Use GM accessory racks that are compatible with your
luggage carrier for transporting sports equipment. These
are available through your GM dealer.

2-52

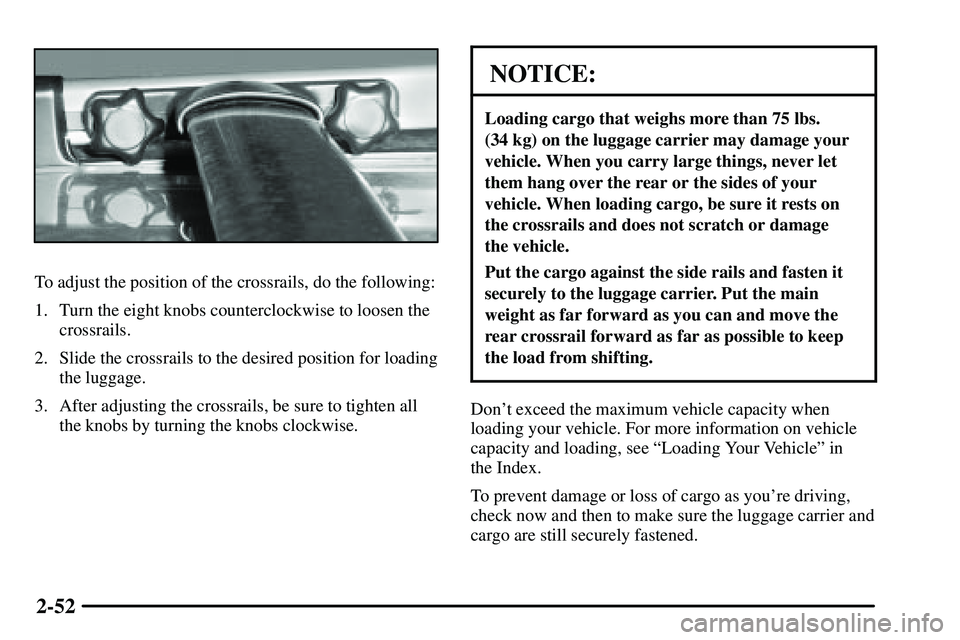

To adjust the position of the crossrails, do the following:
1. Turn the eight knobs counterclockwise to loosen the
crossrails.
2. Slide the crossrails to the desired position for loading
the luggage.
3. After adjusting the crossrails, be sure to tighten all
the knobs by turning the knobs clockwise.
NOTICE:
Loading cargo that weighs more than 75 lbs.
(34 kg) on the luggage carrier may damage your
vehicle. When you carry large things, never let
them hang over the rear or the sides of your
vehicle. When loading cargo, be sure it rests on
the crossrails and does not scratch or damage
the vehicle.
Put the cargo against the side rails and fasten it
securely to the luggage carrier. Put the main
weight as far forward as you can and move the
rear crossrail forward as far as possible to keep
the load from shifting.
Don't exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, see ªLoading Your Vehicleº in
the Index.
To prevent damage or loss of cargo as you're driving,
check now and then to make sure the luggage carrier and
cargo are still securely fastened.

2-53
Ashtrays and Cigarette Lighter
NOTICE:
Don't put papers and other things that burn into
your ashtray. If you do, cigarettes or other
smoking materials could set them on fire, causing
damage.
To use the lighter, push the lighter in all the way and let go.
When it's ready, it will pop back out by itself. If the engine
is not running, the key must be in ACC to use the lighter.
NOTICE:
Don't hold a cigarette lighter in with your hand
while it is heating. If you do, it won't be able to
back away from the heating element when it's
ready. That can make it overheat, damaging the
lighter and the heating element.
Your vehicle has a removeable ashtray that sits in your
front cupholder in the center console storage area.
Sun Visors
To block out glare, you can swing down the visors.
You can also swing them to the side.
Visor Vanity Mirror
Swing down the driver's sun visor and lift the cover to
expose the vanity mirror.

2-54
Accessory Power Outlet
With the accessory power outlet, you can plug in
auxiliary electrical equipment.
The accessory power outlet is located in the center
console storage area.
To use the outlet, the ignition must be in ON or ACC.
Pull down the cover the small cover to access the outlet.
NOTICE:
When using the accessory power outlet,
maximum electrical loads must not exceed
15 amps. Always turn off any electrical
equipment when not in use. Leaving electrical
equipment on for extended periods will drain
your battery.
These circuits are protected by a fuse and have
maximum current levels.
Certain power accessory plugs may not be compatible to
the power accessory outlet and could result in blown
vehicle or adapter fuses. If you experience a problem see
your dealer for additional information on the power
accessory plugs.
NOTICE:
Adding some electrical equipment to your vehicle
can damage it or keep other things from working
as they should. This wouldn't be covered by your
warranty. Check with your dealer before adding
electrical equipment, and never use anything that
exceeds the amperage rating.
When adding electrical equipment, be sure to follow the
proper installation instructions included with the
equipment.
NOTICE:
Power outlets are designed for accessory plugs
only. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of
the power outlet can cause damage not covered
by your warranty.

2-55
Power Outlet 115 Volts Alternating
Current (VAC)
With this power outlet, you can plug in auxiliary
electrical equipment with a maximum limit of 115 VAC.
If you try to use equipment that requires more than the
limit, a protection circuit will cut the power supply. The
power will automatically restart when equipment that
operates within the limit is plugged in.
The power outlet is located near the center of the
instrument panel. Before using the outlet, turn on the
ignition and press the button next to the outlet. An
indicator light in the button will come on. After using
the outlet, press the button again to turn it off.
The power outlet is not designed for the following
electrical equipment and they may not work properly:

Equipment with high initial peak wattage:
cathode
-ray tube type televisions, compressor-driven
refrigerators, electric power tools.

Other equipment requiring an extremely stable
power supply: microcomputer
-controlled electric
blankets, touch sensor lamps, etc.

2-56

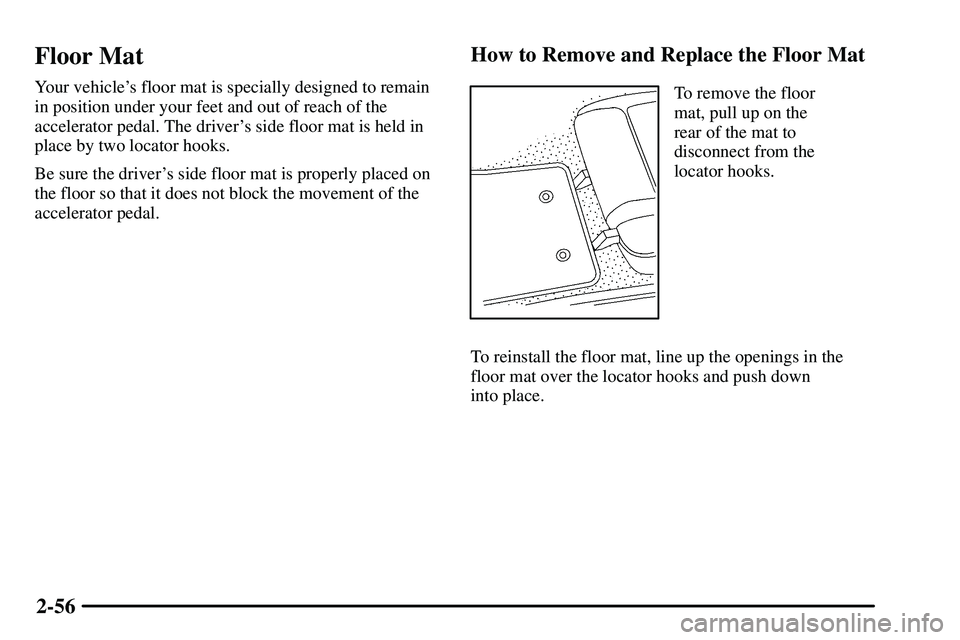

Floor Mat
Your vehicle's floor mat is specially designed to remain
in position under your feet and out of reach of the
accelerator pedal. The driver's side floor mat is held in
place by two locator hooks.
Be sure the driver's side floor mat is properly placed on
the floor so that it does not block the movement of the
accelerator pedal.
How to Remove and Replace the Floor Mat
To remove the floor
mat, pull up on the
rear of the mat to
disconnect from the
locator hooks.
To reinstall the floor mat, line up the openings in the
floor mat over the locator hooks and push down
into place.
