2003 PONTIAC VIBE Owners Manual

6-76
Replacement Bulbs
Lamps Bulb Number
Headlamp High
-/Low-Beam 9003. . . . . . . . . . . . . . .
Front Turn Signal 1157NA. . . . . . . . . . . . . . . . . . . . . .
Stoplamps/Taillamps 7443. . . . . . . . . . . . . . . . . . . . .
Back
-Up Lamps 7440. . . . . . . . . . . . . . . . . . . . . . . . .
Rear Turn Signal 7440. . . . . . . . . . . . . . . . . . . . . . . .
CHMSL 921. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Capacities and Specifications
The following approximate capacities are given in
English and metric conversions.
Cooling System
1.8L Engine (Code 8) 6.9 quarts (6.5 L). . . . . . . . .
1.8L H.O. Engine (Code L) 7.1 quarts (6.7 L). . . . Engine Oil with Filter
1.8L Engine (Code 8) 3.9 quarts (3.7 L). . . . . . . . .
1.8L Engine (Code L) 4.8 quarts (4.4 L). . . . . . . . .
Fuel Tank
With AWD 12.0 gallons (45.0 L). . . . . . . . . . . . . . . .
Without AWD 13.0 gallons (49.0 L). . . . . . . . . . . . .
Automatic Transaxle
1.8L Engine (Code 8) 3.3 quarts (3.1 L). . . . . . . . .
1.8L Engine (Code 8)
with AWD 3.1 quarts (2.9 L). . . . . . . . . . . . . . . . . .
Manual Transaxle
Five-Speed 2.0 quarts (1.9 L). . . . . . . . . . . . . . . . .
Six
-Speed 2.4 quarts (2.3 L). . . . . . . . . . . . . . . . . .
Rear Differential0.5 quarts (0.5 L) . . . . . . . . . . . . .
Transfer Case0.8 quarts (0.8 L) . . . . . . . . . . . . . . . .
All capacities are approximate. When adding, be sure to
fill to the approximate level, as recommended in this
manual. See ªRecommended Fluids and Lubricantsº
in the Index.

6-77 Engine Specifications
Type L4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VIN Engine Code
1.8L Engine 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.8L H.O. DOHC Engine L. . . . . . . . . . . . . . . . . . .
Wheels and Tires
Wheel Nut Torque 76 lb-ft (103 N´m) . . . . . . . . . . . .
Tire Pressure See the Tire
-Loading . . . . . . . . . . . . . .
Information label. See ªLoading
Your Vehicleº in the Index.
Air Conditioning Refrigerant
Capacity
If you do your own service work, you'll need the proper
service manual. See ªDoing Your Own Service Workº in
the Index for additional information. It is recommended
that service work on your air conditioning system be
performed by a qualified technician.
Air Conditioning
Refrigerant R134a 1.4 lbs. (0.6 kg). . . . . . . . . . . . . .
Use Refrigerant Oil, R134a Systems

6-78
Normal Maintenance
Replacement Parts
Engine Air
Cleaner/Filter GM Part No. 88969107. . . . . . . . . . .
Engine Oil
Filter (Code 8) GM Part No. 88971573. . . . . . . . . . .
Engine Oil
Filter (Code L) GM Part No. 88969580. . . . . . . . . .
Passenger Compartment
Air Filter GM Part No. 88970273. . . . . . . . . . . . . . .
PCV Valve
(Code 8 base model) GM Part No. 94859406. . . . . .
PCV Valve
(Code 8 AWD Model) GM Part No. 94859404. . . . .
PCV Valve (Code L) GM Part No. 88969512. . . . . . . Spark Plugs
1.8L Engine (Code 8) DENSO SK16R11,. . . . . . . .
NGK IFR5A11 or
GM Part No. 94859448
Gap: 0.043 inch (1.1 mm)
1.8L Engine (Code L) DENSO SK20R11,. . . . . . . .
NGK IFR6A11 or
GM Part No. 88969637
Gap: 0.043 inch (1.1 mm)
*Your engine is fitted with iridium
-tipped spark plugs.
Use only iridium
-tipped spark plugs for better engine
performance.

7-

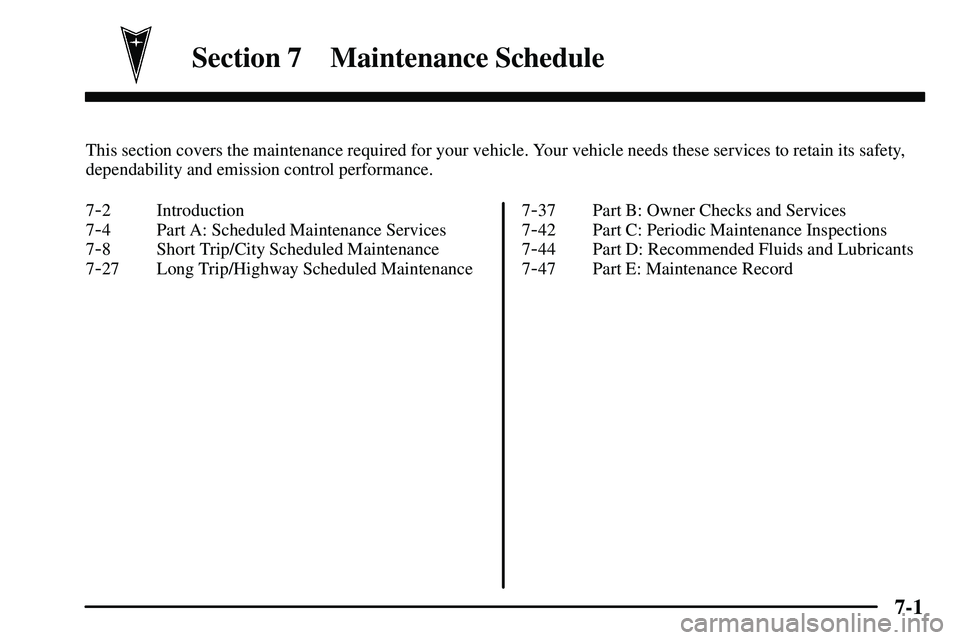

7-1
Section 7 Maintenance Schedule
This section covers the maintenance required for your vehicle. Your vehicle needs these services to retain its safety,
dependability and emission control performance.
7
-2 Introduction
7
-4 Part A: Scheduled Maintenance Services
7
-8 Short Trip/City Scheduled Maintenance
7
-27 Long Trip/Highway Scheduled Maintenance7
-37 Part B: Owner Checks and Services
7
-42 Part C: Periodic Maintenance Inspections
7
-44 Part D: Recommended Fluids and Lubricants
7
-47 Part E: Maintenance Record

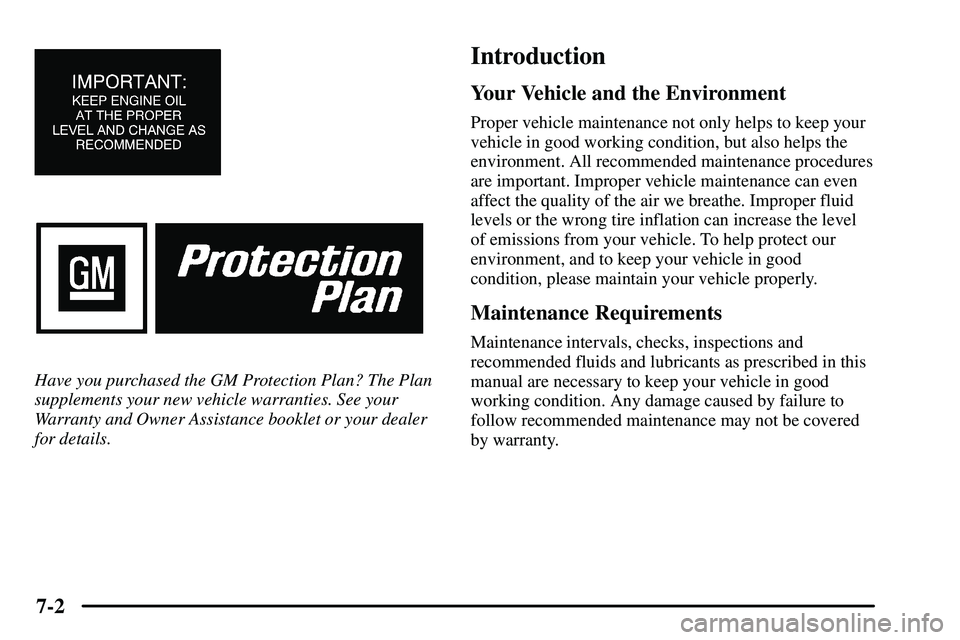

7-2
Have you purchased the GM Protection Plan? The Plan
supplements your new vehicle warranties. See your
Warranty and Owner Assistance booklet or your dealer
for details.
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance can even
affect the quality of the air we breathe. Improper fluid
levels or the wrong tire inflation can increase the level
of emissions from your vehicle. To help protect our
environment, and to keep your vehicle in good
condition, please maintain your vehicle properly.
Maintenance Requirements
Maintenance intervals, checks, inspections and
recommended fluids and lubricants as prescribed in this
manual are necessary to keep your vehicle in good
working condition. Any damage caused by failure to
follow recommended maintenance may not be covered
by warranty.

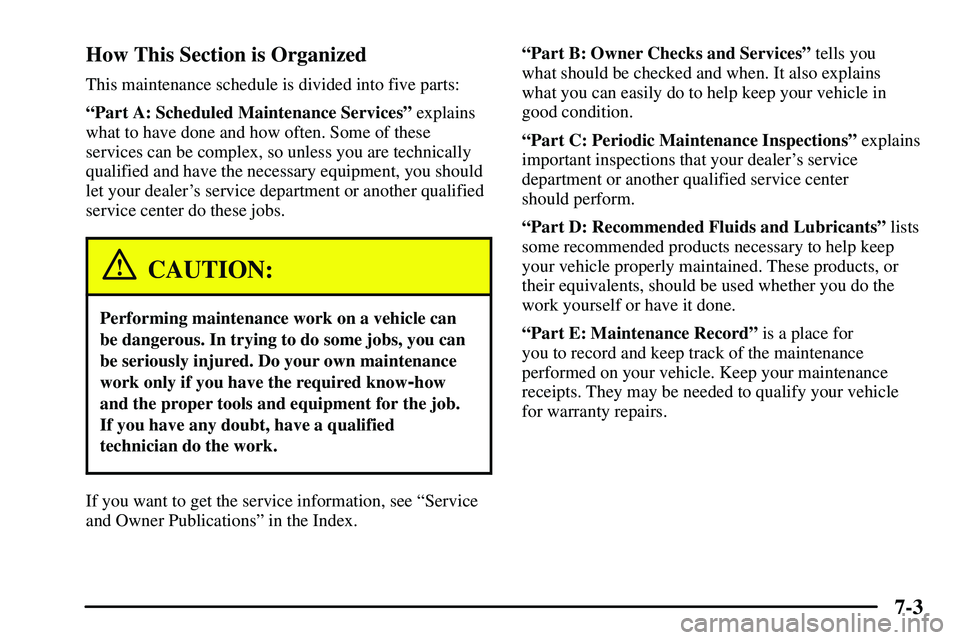

7-3 How This Section is Organized
This maintenance schedule is divided into five parts:
ªPart A: Scheduled Maintenance Servicesº explains
what to have done and how often. Some of these
services can be complex, so unless you are technically
qualified and have the necessary equipment, you should
let your dealer's service department or another qualified
service center do these jobs.
CAUTION:
Performing maintenance work on a vehicle can
be dangerous. In trying to do some jobs, you can
be seriously injured. Do your own maintenance
work only if you have the required know
-how
and the proper tools and equipment for the job.
If you have any doubt, have a qualified
technician do the work.
If you want to get the service information, see ªService
and Owner Publicationsº in the Index.ªPart B: Owner Checks and Servicesº tells you
what should be checked and when. It also explains
what you can easily do to help keep your vehicle in
good condition.
ªPart C: Periodic Maintenance Inspectionsº explains
important inspections that your dealer's service
department or another qualified service center
should perform.
ªPart D: Recommended Fluids and Lubricantsº lists
some recommended products necessary to help keep
your vehicle properly maintained. These products, or
their equivalents, should be used whether you do the
work yourself or have it done.
ªPart E: Maintenance Recordº is a place for
you to record and keep track of the maintenance
performed on your vehicle. Keep your maintenance
receipts. They may be needed to qualify your vehicle
for warranty repairs.

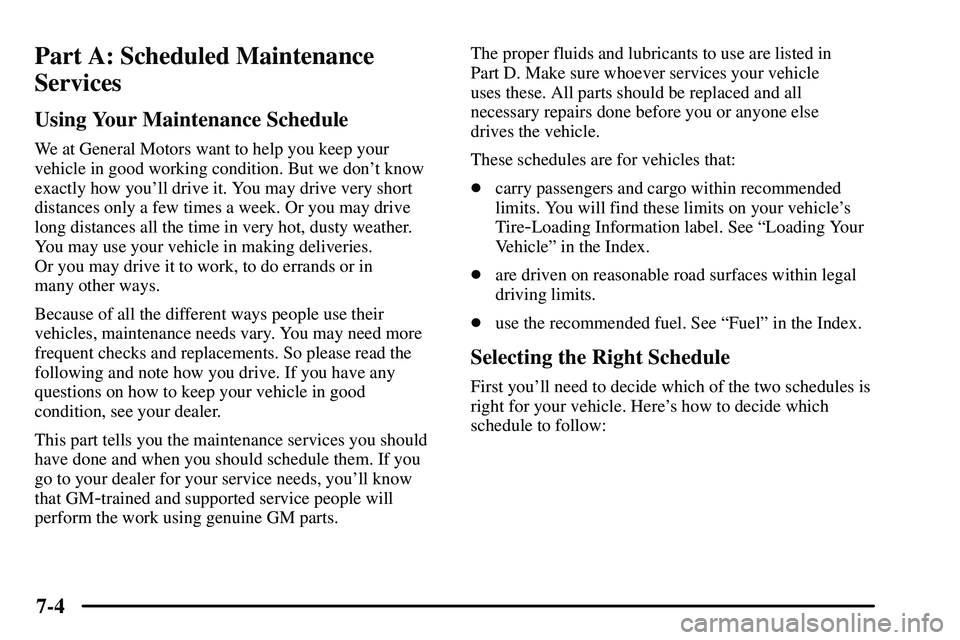

7-4
Part A: Scheduled Maintenance
Services
Using Your Maintenance Schedule
We at General Motors want to help you keep your
vehicle in good working condition. But we don't know
exactly how you'll drive it. You may drive very short
distances only a few times a week. Or you may drive
long distances all the time in very hot, dusty weather.
You may use your vehicle in making deliveries.
Or you may drive it to work, to do errands or in
many other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You may need more
frequent checks and replacements. So please read the
following and note how you drive. If you have any
questions on how to keep your vehicle in good
condition, see your dealer.
This part tells you the maintenance services you should
have done and when you should schedule them. If you
go to your dealer for your service needs, you'll know
that GM
-trained and supported service people will
perform the work using genuine GM parts.The proper fluids and lubricants to use are listed in
Part D. Make sure whoever services your vehicle
uses these. All parts should be replaced and all
necessary repairs done before you or anyone else
drives the vehicle.
These schedules are for vehicles that:

carry passengers and cargo within recommended
limits. You will find these limits on your vehicle's
Tire
-Loading Information label. See ªLoading Your
Vehicleº in the Index.

are driven on reasonable road surfaces within legal
driving limits.

use the recommended fuel. See ªFuelº in the Index.
Selecting the Right Schedule
First you'll need to decide which of the two schedules is
right for your vehicle. Here's how to decide which
schedule to follow:

Scheduled Maintenance
7-5
Short Trip/City Definition
Follow the Short Trip/City Scheduled Maintenance if
any one of these conditions is true for your vehicle:

Most trips are less than 5 miles (8 km). This is
particularly important when outside temperatures are
below freezing.

Most trips include extensive idling (such as frequent
driving in stop
-and-go traffic).

You frequently tow a trailer or use a carrier on top of
your vehicle.

If the vehicle is used for delivery service, police, taxi
or other commercial application.
One of the reasons you should follow this schedule
if you operate your vehicle under any of these conditions
is that these conditions cause engine oil to break
down sooner.
Short Trip/City Intervals
Every 3,000 Miles (5 000 km): Engine Oil and Filter
Change (or 3 months, whichever occurs first).
Every 6,000 Miles (10 000 km): Chassis Lubrication
(or 6 months, whichever occurs first). Tire Rotation.
Engine Air Cleaner Filter Inspection, if driving in
dusty conditions.
Every 15,000 Miles (25 000 km): Passenger
Compartment Air Filter Replacement. Transfer Case
Fluid Change (when trailer towing). Rear Differential
Fluid Change (when trailer towing).
Every 30,000 Miles (50 000 km): Engine Air Cleaner
Filter Replacement. Fuel Tank, Cap, Cap Gasket and
Lines Inspection (or every 24 months, whichever
occurs first). Automatic Transaxle Check. Manual
Transaxle Fluid Change (severe conditions only)
(or every 24 months, whichever occurs first).
Cooling System Service (or every 24 months,
whichever occurs first).
