2003 PONTIAC GRAND PRIX audio

Disabling the Theft-Deterrent Feature
Enter your secret code as follows; pause no more than
15 seconds between steps:
1. Turn the ignition on.
2. Turn the radio off.
3. Press the 1 and 4 pushbuttons at the same time.
Hold them down until
SEC shows on the display.
4. Press MIN and 000 will appear on the display.
5. Press MIN again to make the last two digits agree
with your code.
6. Press HR to make the first one or two digits agree
with your code.
7. Press AM/FM after you have confirmed that the
code matches the secret code you have written
down. The display will show
---, indicating that the
radio is no longer secured.
If the code entered is incorrect,
SEC will appear on the
display. The radio will remain secured until the correct
code is entered.
When battery power is removed and later applied to
a
secured radio, the radio won’t turn on and LOC will
appear on the display.
To unlock a secured radio, see “Unlocking the
Theft-Deterrent Feature After a Power
Loss” earlier in
this section.
Audio Steering Wheel Controls
If your vehicle has this feature, you can control certain
radio functions using the buttons on your steering
wheel.
PRESET: Press this button to play the stations you
have programmed on the radio preset pushbuttons.
The radio will go to a preset station, play for a few
seconds, then go to the next station. When a cassette
tape is playing, press this button to change tape
sides. Press this button again to stop scanning the
preset stations.
3-56

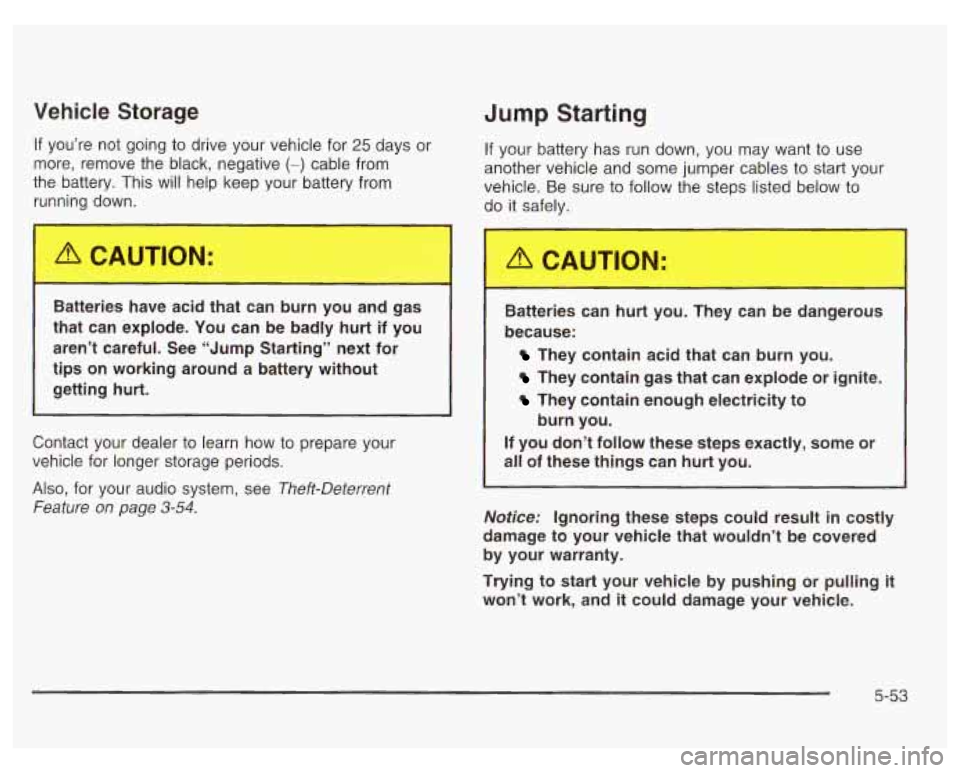

Vehicle Storage Jump Starting
If you’re not going to drive your vehicle for 25 days or
more, remove the black, negative (-) cable from
the battery. This will help keep your battery from
running down.
If your battery has run down, you may want to use
another vehicle and some jumper cables to start your
vehicle. Be sure
to follow the steps listed below to
do it safely.
Batteries have acid that can burn you and gas
that can explode. You can be badly
hurt if you
aren’t careful. See “Jump Starting” next for
tips on working around a battery without getting hurt.
Contact your dealer to learn how to prepare your
vehicle for longer storage periods.
Also, for your audio system, see Theft-Deterrent
Feature
on page 3-54.
Batteries can hurt you. They can be dangerous
because:
They contain acid that can burn you.
They contain gas that can explode or ignite.
They contain enough electricity to
burn you.
If you don’t follow these steps exactly, some or
all of these things can hurt you.
Notice: Ignoring these steps could result in costly
damage to your vehicle that wouldn’t be covered
by your warranty.
Trying to start your vehicle by pushing or pulling
it
won’t work, and it could damage your vehicle.
5-53

Part B: Owner Checks and Services
Listed in this part are owner checks and services
which should be performed at the intervals specified to
help ensure the safety, dependability and emission
control performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as
shown in Part D.
At Each Fuel Fill
It is important for you or a service station attendant to
perform these underhood checks at each fuel fill.
Engine Oil bevel Check
Check the engine oil level and add the proper oil if
necessary. See Engine Oil on page 5-18 for further
details.
Engine Coolant Level Check
Check the engine coolant level and add DEX-COOL@
coolant mixture
if necessary. See Engine Coolant
on page 5-30 for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the windshield
washer tank and add the proper fluid
if necessary.
See Windshield Washer Fluid on page 5-48 for
further details.
At Least Once a Month
Tire Inflation Check
Make sure tries are inflated to the correct pressures.
Don’t forget to check your spare tire. See Tires
on
page 5-68 for further details.
Cassette Tape Player Service
Clean cassette tape player. Cleaning should be done
every
50 hours of tape play. See Audio System(s)
on page 3-44 for further details.
6-9

A
Accessory Power Outlets ................................. 3-1 8
Activating the Theft-Deterrent Feature
................ 3-54
Adding Washer Fluid
....................................... 5-48
Additional Program Information
........................... 7-8
Additives, Fuel
................................................. 5-6
Add-on Electrical Equipment
............................ 5-97
Adjusting the Speakers
(Balance/Fade)
............................ 3-46, 3-49, 3-52
Air Bag Readiness Light
.................................... ~ ~ ~ ~ ~ ~ ~ 3-26
Air Bag System, Supplemental Restraint
System (SRS)
............................................. 1-51
Air Cleaner/Filter, Engine
................................. 5-25
All Overseas Locations ...................................... 7-4
Aluminum or Chrome Plated Wheels
............. 5-93
Antenna, Backglass
......................................... 3-59
Anti-lock Brake System (ABS)
............................ 4-7
Anti-Lock Brake, System Warning Light
.............. 3-29
Appearance Care
............................................ 5-88
Care of Safety Belts
.................................... 5-91
Cleaning the Inside of Your Vehicle
................ 5-88
Cleaning the Outside of Your Vehicle
.............. 5-91
Finish Damage
............................................ 5-93
GM Vehicle Care/Appearance Materials
.......... 5-94
Underbody Maintenance
............................... 5-93
AM
........................................................... 3-57
Chemical Paint Spotting
............................... 5-94
Sheet Metal Damage
................................... 5-93 Appearance
Care (cont.)
Weatherstrips
.......................................... 5-91
Arming and Disarming the Content
Theft-Deterrent System
................................. 2-52
Arming Confirmation
........................................ 2-16
Arming with the Power Lock Switch
................... 2-15
Arming with the Remote Keyless Entry
Transmitter
................................................. 2-16
Ashtrays
............. ............................... 3-19
Assist Handles
.... ................................... 2-41
Audio System(s)
......................................... 3-44
Audio Systems Audio Steering Wheel Controls
...... ........ 3-56
Backglass Antenna
...................................... 3-59
Care of Your Cassette Tape Player
................ 3-58
Care of Your CD Player
............................... 3-59
Care of Your CDs
........................................ 3-59
Radio with Cassette
..................................... 3-45
Radio with CD .................................... 3-48, 3-51
Setting the Time
.......................................... 3-44
Theft-Deterrent Feature
................................ 3-54
Understanding Radio Reception
..................... 3-57
Automatic Door Locks
..................................... 2-45
Automatic Transaxle
Fluid
.......................................................... 5-27
Operation
................................................... 2-24
Automatic Transaxle Check
.............................. 6-10
Automatic Transaxle Shift Lock Control
System Check
............................................. 6-11
Auxiliary Power Connection (Power Drop)
........... 3-19
1

Steering ........................................................ 4-1 3
Steering in Emergencies
.................................. 4-14
Steering, Suspension and Front Drive Axle Boot
and Seal Inspection
..................................... 6-13
Steering
Tips .................................................. 4-13
Steering Wheel Controls, Audio
......................... 3-56
Storage Areas Center Console Storage Area
........................ 2-40
Convenience Net
......................................... 2-41
Glove Box
.................................................. 2-40
Overhead Console
....................................... 2-40
Purse or Litter Bag Holder
............................ 2-41
Rear Storage Area
....................................... 2-41
Trunk Access Panel
..................................... 2-41
Storing the Flat Tire and Tools
.......................... 5-85
Storing the Spare Tire and Tools
....................... 5-86
Stuck in Sand, Mud, Ice or Snow
...................... 4-32
Sun Visors
................................... ........... 2-14
Sunglasses Storage Compartment
.................. 2-40
Sunroof
......................................................... 2-42
Supplemental Restraint System
(SRS) ............... 1-51
How Does an Air Bag Restrain?
.................... 1-55
Servicing Your Air Bag-Equipped Vehicle
......... 1-57
What Makes an Air Bag Inflate?
.................... 1-55
What Will You See After an Air Bag
Inflates?
.................................................. 1-56
When Should an Air Bag Inflate?
................... 1-55
Where Are the Air Bags?
.............................. 1-53
T
Tachometer .................................................... 3-25
Taillamps Sidemarker
and Back-up Lamps .................... 5-64
TCS Warning Light
.......................................... 3-29
Temperature Display
................................ 2.34. 2-35
Theft.Deterrent. Radio
..................................... 3-54
Theft-Deterrent Systems
................................... 2-15
Content Theft-Deterrent
................................ 2-15
PASS-Key@
Ill ............................................. 2-16
Throttle System Inspection
............................... 6-14
Tilt Wheel
........................................................ 3-4
Tire Inflation Check
........................................... 6-9
Tires
..................................................... 5-68, 5-93
Buying New Tires
........................................ 5-71
Chains ....................................................... 5-75
Changing a Flat Tire
.................................... 5-76
Compact Spare Tire
..................................... 5-87
If a Tire Goes Flat
....................................... 5-76
Inflation
-- Tire Pressure ............................... 5-68
Inspection and Rotation
................................ 5-69
Uniform Tire Quality Grading
......................... 5-72
Wheel Alignment and Tire Balance
................. 5-73
Wheel Replacement
..................................... 5-73
When It
Is Time for New Tires ...................... 5-70
PASS-Key@
Ill Operation .............................. 2-17
13
