Page 105 of 131
30-06-2003
PRACTICAL INFORMATION
102
Refitting the wheel
After positioning the wheel, pre-tighten the bolts using the wheelbrace 1.
Compress the jack 3and release it.
Fully tighten the bolts using the wheelbrace 1.
Replace the wheel trim, starting at the valve passage hole, and press on it using the palm of the hand.
Replace the shim and the jack in their bag, then store the tools in the boot.For your safety, always change the wheel:
- on level, stable and non-slippery ground,
- with the handbrake applied and the ignition switched off,
- with the first or reverse gear engaged (position Pfor the auto-
matic gearbox),
- with the vehicle chocked using a shim.
Never go underneath a vehiclewhich is supported only by a
jack (use an axle stand) .
After changing the wheel:
- As soon as possible contact a PEUGEOT dealer to check that the wheel bolts are tight.
Page 106 of 131

30-06-2003
PRACTICAL INFORMATION103
SPECIAL FEATURES OF
ALLOY WHEELS Bolt covers The bolts on the alloy wheels are covered with chrome-plated trimcaps. Remove them using the yellow tool 4
before slackening the bolts. Refitting the spare wheel* If your vehicle is fitted with a steel spare wheel, when fitting the wheelit is
normal to notice that the bolt
washers do not come into contact
with the wheel. The spare wheel isheld in place by the conical supportof each bolt. Fitting snow tyres If you fit snow tyres mounted on steel rims onto your vehicle, it isessential to use special bolts avail-
able from a PEUGEOT dealer. Wheel anti-theft bolts* If your wheels are fitted with anti- theft bolts (one per wheel), thechrome-plated trim cap and then theplastic cover on the wheel must beremoved, using tool
4, before slack-
ening the bolt using one of the anti-theft sockets (handed to you alongwith the duplicate keys and the con-fidential card on delivery of yourvehicle) and the wheelbrace 1.
Note: take a careful note of the code
number engraved on the head of the
anti-theft socket. This will enableyou to obtain a duplicate anti-theft
socket from a PEUGEOT dealer.
* According to model and destination.
Page 107 of 131
30-06-2003
PRACTICAL INFORMATION
104
- Pull the tab
Aupwards and remove the protective cover.
- Disconnect the connector.
- Press the end of the securing clip to remove it. Change the faulty bulb.
- On fitting, ensure that the direction notches are in the correct position and that the clip is secured correctly.
- Reconnect the connector.
- Replace the protective cover.
CHANGING A BULB Dipped/main headlamps H7 55W Side lights W5W
Turn the pin connector
Ba quarter turn and remove it.
Change the bulb.
Remarks
- Only touch the bulbs with a dry cloth.
- To replace the bulbs on the right side, remove the wash-wipe reservoir filler pipe first.
- Condensation may form inside the headlamps. It will disappear when the lights are used.
Page 108 of 131
30-06-2003
PRACTICAL INFORMATION105

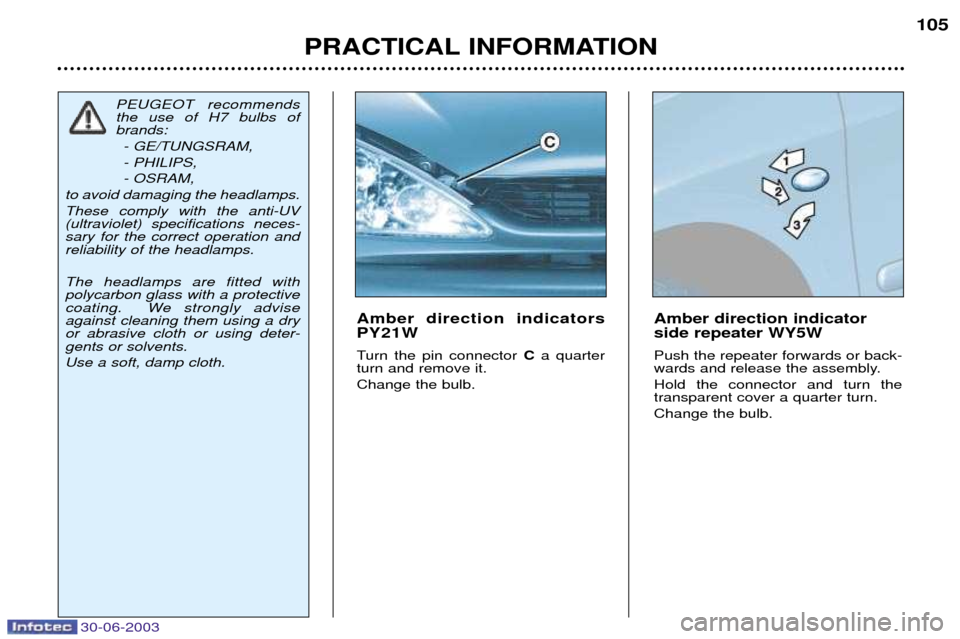

Amber direction indicators PY21W
Turn the pin connector
Ca quarter
turn and remove it. Change the bulb. Amber direction indicator side repeater WY5W Push the repeater forwards or back-
wards and release the assembly. Hold the connector and turn the transparent cover a quarter turn. Change the bulb.
PEUGEOT recommends the use of H7 bulbs ofbrands:
- GE/TUNGSRAM, - PHILIPS,- OSRAM,
to avoid damaging the headlamps.These comply with the anti-UV (ultraviolet) specifications neces-sary for the correct operation andreliability of the headlamps. The headlamps are fitted with polycarbon glass with a protective
coating. We strongly adviseagainst cleaning them using a dryor abrasive cloth or using deter-gents or solvents. Use a soft, damp cloth.
Page 109 of 131
30-06-2003
PRACTICAL INFORMATION
106

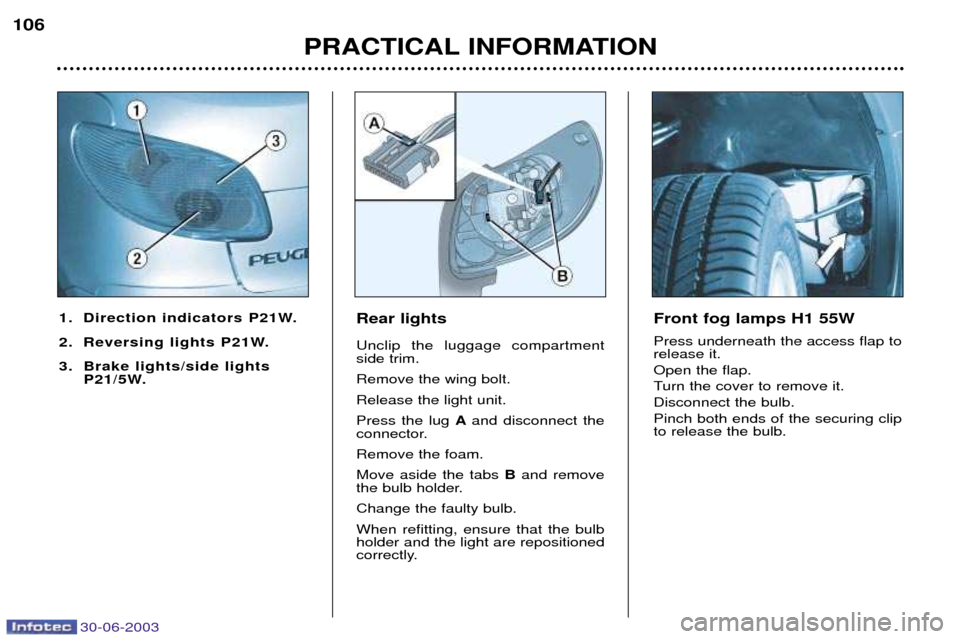

Rear lights Unclip the luggage compartment side trim. Remove the wing bolt.Release the light unit.Press the lug
Aand disconnect the
connector.Remove the foam.Move aside the tabs Band remove
the bulb holder.Change the faulty bulb.When refitting, ensure that the bulb holder and the light are repositioned
correctly.
1. Direction indicators P21W.
2. Reversing lights P21W.
3. Brake lights/side lights
P21/5W.Front fog lamps H1 55W Press underneath the access flap to release it. Open the flap.
Turn the cover to remove it.Disconnect the bulb.Pinch both ends of the securing clip to release the bulb.
Page 110 of 131
30-06-2003
PRACTICAL INFORMATION107

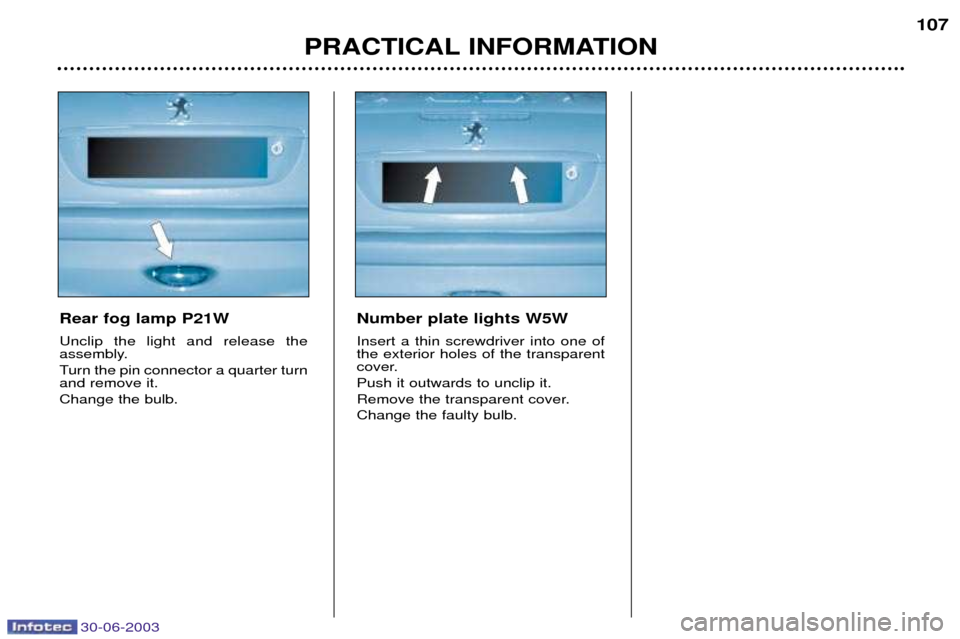

Rear fog lamp P21W Unclip the light and release the
assembly.
Turn the pin connector a quarter turn and remove it. Change the bulb.Number plate lights W5W Insert a thin screwdriver into one of the exterior holes of the transparent
cover. Push it outwards to unclip it.
Remove the transparent cover.Change the faulty bulb.
Page 111 of 131
30-06-2003
PRACTICAL INFORMATION
108
Fascia fuse box Unscrew the catch a quarter turn using a coin, then remove the coverto gain access to the fuses. The spare fuses and the pliers
Aare
secured on the inside of the fascia
fuse box cover. Removing and refitting a fuse
Before changing a fuse, the cause of the fault must be found and remedied. The fuse numbers are indicated on the fuse box. Use the pliers
A.
Always replace a faulty fuse (fault registered depending on fuse) with a fuse of the same rating.
Correct Incorrect
CHANGING A FUSE The fuse boxes are located under the instrument panel and in theengine compartment.
Pliers A
Page 112 of 131
30-06-2003
PRACTICAL INFORMATION
108
Fascia fuse box Unscrew the catch a quarter turn using a coin, then remove the coverto gain access to the fuses. The spare fuses and the pliers
Aare
secured on the inside of the fascia
fuse box cover. Removing and refitting a fuse
Before changing a fuse, the cause of the fault must be found and remedied. The fuse numbers are indicated on the fuse box. Use the pliers
A.
Always replace a faulty fuse (fault registered depending on fuse) with a fuse of the same rating.
Correct Incorrect
CHANGING A FUSE The fuse boxes are located under the instrument panel and in theengine compartment.
Pliers A
