2003 Peugeot 206 CC Dag Owner's Manual

30-06-2003
YOUR 206 CC IN DETAIL
88

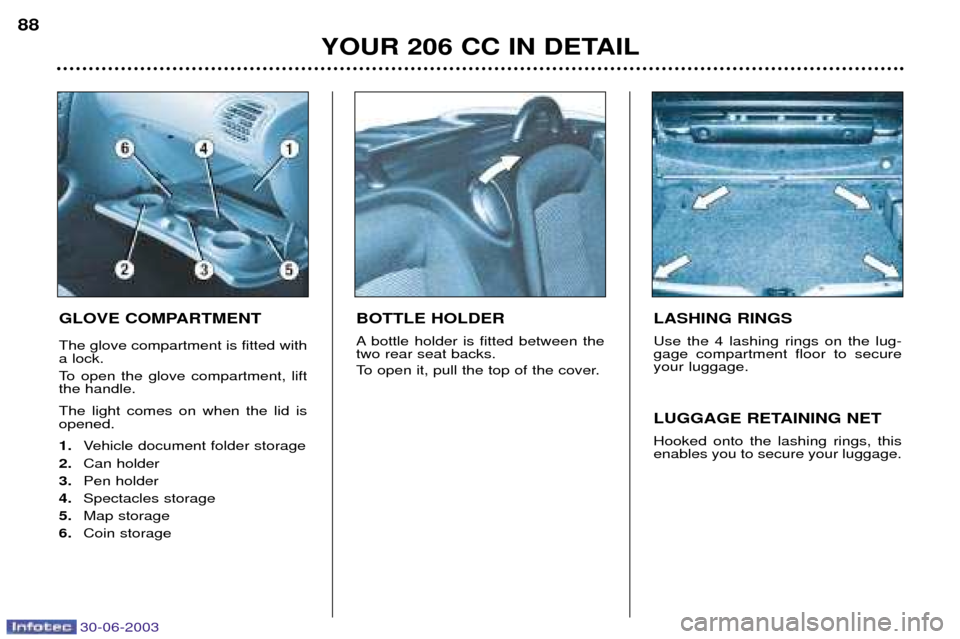

GLOVE COMPARTMENT The glove compartment is fitted with a lock.
To open the glove compartment, lift the handle. The light comes on when the lid is opened. 1.
Vehicle document folder storage
2. Can holder
3. Pen holder
4. Spectacles storage
5. Map storage
6. Coin storage BOTTLE HOLDER
A bottle holder is fitted between the two rear seat backs.
To open it, pull the top of the cover.
LASHING RINGS Use the 4 lashing rings on the lug- gage compartment floor to secureyour luggage.
LUGGAGE RETAINING NET Hooked onto the lashing rings, this enables you to secure your luggage.

30-06-2003
YOUR 206 CC IN DETAIL89
AUTOMATIC AUTOADAPTIVE GEARBOX Moving Off
To move off, move the selector lever to position
N or P. Press the brake to exit
position P. Stopped or parked Always leave the lever in position Pwhen you get out of your vehicle.
If not, a buzzer will sound when you open the driver's door. Positions of the selector lever These positions are displayed on the instrument panel. P. Park: use with the handbrake.
R. Reverse: this must only be engaged when the vehicle is stationary, engine at idle.
N. Neutral: if N is engaged by mistake while the car is moving, allow the engine
to return to idle before engaging a new forward gear.
D. Drive: in this position, the four gears change automatically. The gear changepoints vary depending on the programme selected.
3. Automatic changing of the first three gears only. Select this position when you notice frequent changes between third and fourth gear (town driving or on winding roads).
2. Automatic changing of the first two gears only. This position is particularly suitable for mountain roads, when going uphill (to make the best use of the engine's power) or downhill (engine braking).

30-06-2003
YOUR 206 CC IN DETAIL
90
Operating programmes
You have a choice of three operating programmes:
- Autoadaptive (normal).
- Sport.
- Snow.One press on button
Aor Bwill
select Sport or Snow respectively. The selection is displayed on theinstrument panel. Pressing the but-ton a second time will return to theautoadaptive (normal) programme. Autoadaptive programme (normal) Gear changes are carried out on the basis of various parameters, suchas:
- driving style,
- road characteristics,
- vehicle load.The gearbox selects the most suit- able programme from those in thememory for the current driving con-ditions. Sport programme The Sport programme automatically favours more dynamic driving. Snow Programme In position
D, the Snow programme
provides smooth driving suited to slippery roads in order to improve
traction and stability. Starting is in2nd gear and changing down is at
low engine speeds. Special operating features
- During prolonged braking, the gearbox changes down automati-
cally, so as to provide efficientengine braking.
- If you take your foot off the accel- erator suddenly (when you aretaken by surprise, for example),the gearbox will not change up,
so as to improve safety.
- When the engine is cold, the gearbox automatically selects aspecial programme that enablesthe engine to reach its ideal tem-perature more quickly in order todecrease pollution.
Kickdown For immediate maximum accelera-
tion without touching the gear lever,press the accelerator pedal down as
far as it will go. The gearbox willchange down automatically or stayin the gear selected, up to maximumengine speed.Any disruption of the system is signalled by the simultane-ous flashing of the Sport andSnow lights on the instrument
panel. In such a case, the gearbox
will operate in downgrade mode. Youmay feel a substantial knock whenreverse is selected from Pto R or N
to R(without any risk of damage to
the gearbox). Do not exceed 60 mph (100km/h).Contact a PEUGEOT dealer without
delay. When the engine is idling with the car
in gear, the car will move even with-out you accelerating. Do not accelerate while a gear is being selected, when the vehicle is
stationary.
When stationary, have your foot on the brake pedal when selecting a
gear. Do not accelerate in gear with the brakes on. If work needs to be done with the engine running, apply the handbrakeand select position P.
Do not change down to brake on slip-pery roads. Never select position Nwhen the
vehicle is moving.Never engage Por Runless the vehi-
cle is stationary.Do not leave children inside the vehi- cle unsupervised when the engine isrunning.

YOUR 206 CC IN DETAIL91
Normal operation of the ABS may make itself felt by slight vibrationsof the brake pedal. In emergency braking, press very firmly without releasingthe pressure. ANTI-LOCK BRAKING
SYSTEM (ABS) AND THEELECTRONIC BRAKE FORCEDISTRIBUTION (EBFD)
The ABS, in conjunction with the electronic brake force distribution,increases the stability and manoe-vrability of your vehicle, particularlyon poor or slippery road surfaces. Note:
when changing wheels (tyres
and rims), make sure that these are approved. The anti-lock braking system comes into operation automatically whenthere is a risk of wheel lock.
When this warning lightcomes on, accompanied bya buzzer and the message"ABS fault" , it indicates
that there is a malfunction of theABS, which can cause a loss ofcontrol of the vehicle when braking.
HANDBRAKE Locking Pull the handbrake to immobilise your vehicle.
Warning:
when parking on a slope,
direct your wheels towards the pavement and pull the handbrake. Unlocking Pull on the handle and press the button to release the handbrake.
Illumination of this warninglight and of the STOPwarning
light, accompanied by an audi-ble signal (while the vehicle is
being driven) and the message "hand-
brake on" on the multi-function display,
indicates that the handbrake is still onor has not been properly released.
EMERGENCY BRAKING
ASSISTANCE SYSTEM
In an emergency, this system enables the optimum braking pres-
sure to be reached more quickly,thus reducing the stopping distance. It is triggered by the speed at which
the brake pedal is activated. The
effect of this is a reduction in theresistance of the pedal and an
increase in braking efficiency. In the event of emergency braking, depending on the force of the decel-eration, the hazard warning lights are
switched on automatically. They are
switched off automatically on accel-eration.
When this warning lightcomes on, connected to the
STOP and ABS warning
lights, accompanied by a
buzzer and the message "Braking
fault" , it indicates that there is a mal-
function of the electronic brake forcedistribution, which can cause a loss ofcontrol of the vehicle when braking.
Stop immediately.In both cases, consult a Peugeot
dealer.
30-06-2003

30-06-2003
YOUR 206 CC IN DETAIL
92
TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP) These systems are linked and com-
plement the ABS.
The ASR system optimises drive to prevent the wheels skidding, by act-ing on the brakes of the drive wheelsand on the engine. It also allows thedirectional stability of the vehicle tobe improved on acceleration. If there is a variation between the tra- jectory followed by the vehicle and
that required by the driver, the ESPsystem automatically acts on theengine and the brake of one or morewheels, in order to put the vehicleback on course. Disarming the ASR/
ESP systems In exceptional conditions (starting a vehicle which is bogged down, stuck
in snow, on soft ground), it may be
advisable to disarm the ASR and
ESP systems, so that the wheels canmove freely and regain grip.
Press the "ESP OFF" switch,
located under the steering wheel to the left.
The switch lights up and thewarning light comes on: the
ASR and ESP systems aredisarmed.
These are triggered again:  automatically if the ignition is
switched off,
 manually by pressing the switchagain.
Operation of the ASR and ESPsystems
The warning light flashes if
the ASR or ESP is activated.Operating checkWhen a malfunction of the systems occurs, the switchlight flashes and the warninglight comes on.
Contact a PEUGEOT dealer to havethe system checked.
The ESP system offers exceptional safety in nor-mal driving, but thisshould not encourage thedriver to take extra risks or
drive at high speed. The correct functioning of this sys- tem depends on observation of themanufacturer's recommendationsregarding wheels (tyres and rims),the braking components and theelectronic components, as well asthe PEUGEOT assembly andoperation procedures. After an impact, have the system
checked by a PEUGEOT dealer.

30-06-2003
YOUR 206 CC IN DETAIL93
FRONT AIR BAGS
These are folded in the centre of the steering wheel for the driver and in the
fascia for the front passenger. They are
deployed simultaneously, except incases where the passenger air bag isdisarmed.
Front air bag fault
If this warning light comeson, accompanied by anaudible signal and the mes-sage "Air bag fault" on the
multifunction display, con-
tact a PEUGEOT dealer to have thesystem checked.
AIR BAGS The air bags have been designed to maximise the safety of the occu-pants in the event of serious colli-
sions. They work in conjunctionwith the force-limiting seat belts. The electronic detectors register and analyse any abrupt decelera-tion of the vehicle: if the triggeringthreshold is reached, the air bagsinflate instantly and protect theoccupants of the vehicle. Immediately after the impact, the air bags deflate rapidly so that they donot hinder the visibility of the occu-pants nor their exit if necessary fromthe vehicle. The air bags are not deployed in the case of collisions which are not seri-
ous, for which the seat belt is suffi-cient to ensure maximum protection.The seriousness of a collisiondepends on the nature of the obsta-cle and the speed of the vehicle atthe moment of the collision. Air bags only operate when the ignition is switched on. Note:
the gas escaping from the air
bags can be a minor irritant. Disarming the passenger air bag*
To ensure the safety of your child, it is essential to disarm the pas-senger air bag when you install arear-facing child seat on the frontpassenger seat.
With the ignition switched off, insert the key into the passengerair bag disarming switch 1, turn it
to the "OFF"position, then
remove the key keeping the slotin this position.
The air bag warning light onthe instrument panel is litthroughout the disarmingprocess.
* According to destination.

30-06-2003
YOUR 206 CC IN DETAIL
94
In the
"OFF" position, the passen-
ger air bag will not be triggered in the event of an impact. As soon as the child seat is removed, turn the air bag slot to the"ON" position to re-activate the air
bag and thus ensure the safety ofyour passenger in the event of animpact. Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the multi-
function display. With the ignition on (2nd notch), illumi- nation of this warning light accompa-nied by an audible signal and the mes-sage "Passenger air bag disarmed"
on the multifunction display, indicatesthat the passenger air bag is disarmed(switch in the "OFF"position SIDE AIRBAGS * These are incorporated into the frame of the front seat back, on thedoor side. They are deployed independently of each other depending on which sidethe collision occurs, in collisionswhich could cause injury to thechest, the abdomen or the head.
Operating check
This is confirmed by an indicatorlight on the instrument panel. It comes on for six seconds, each time the ignition is switched on. If the indicator light:
- does not light up when the ignition is switched on, or
- does not go out after six seconds, or
- flashes for five minutes then stays on,
contact a PEUGEOT dealer.
* According to destination.

YOUR 206 CC IN DETAIL95
For the front and side* air bags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object...). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked. Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently. Side air bags*
¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
* According to destination.
