YOUR 206 CC IN DETAIL
94
In the
"OFF" position, the passen-
ger air bag will not be triggered in the event of an impact. As soon as the child seat is removed, turn the air bag slot to the"ON" position to re-activate the air
bag and thus ensure the safety ofyour passenger in the event of animpact. Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the multi-
function display. With the ignition on (2nd notch), illumi- nation of this warning light accompa-nied by an audible signal and the mes-sage "Passenger air bag disarmed"
on the multifunction display, indicatesthat the passenger air bag is disarmed(switch in the "OFF"position SIDE AIRBAGS * These are incorporated into the frame of the front seat back, on thedoor side. They are deployed independently of each other depending on which sidethe collision occurs, in collisionswhich could cause injury to thechest, the abdomen or the head.
Operating check
This is confirmed by an indicatorlight on the instrument panel. It comes on for six seconds, each time the ignition is switched on. If the indicator light:
- does not light up when the ignition is switched on, or
- does not go out after six seconds, or
- flashes for five minutes then stays on,
contact a PEUGEOT dealer.
* According to destination.

YOUR 206 CC IN DETAIL95

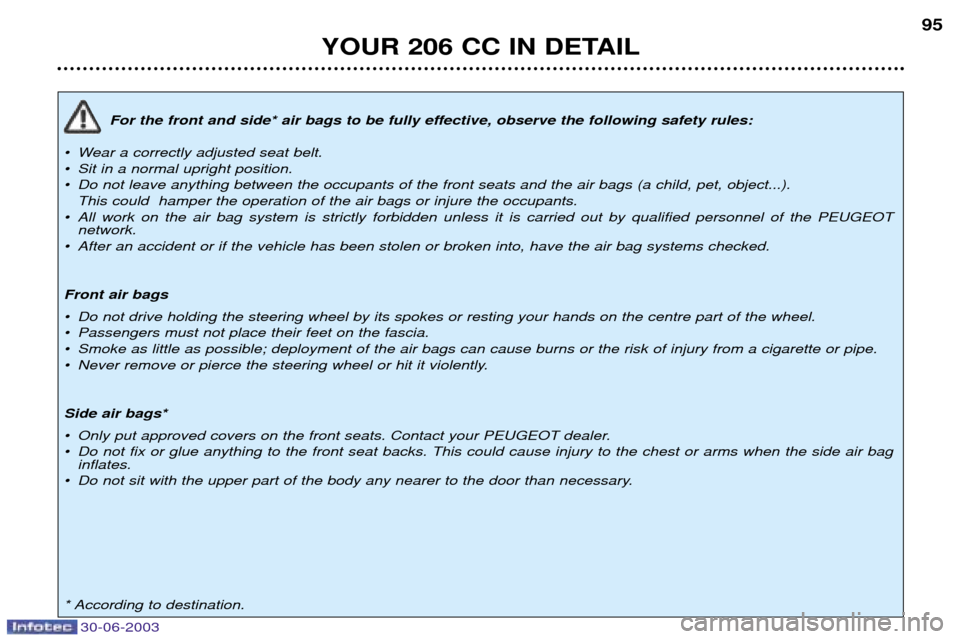

For the front and side* air bags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object...). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked. Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently. Side air bags*
¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
* According to destination.
30-06-2003

30-06-2003
PRACTICAL INFORMATION
96

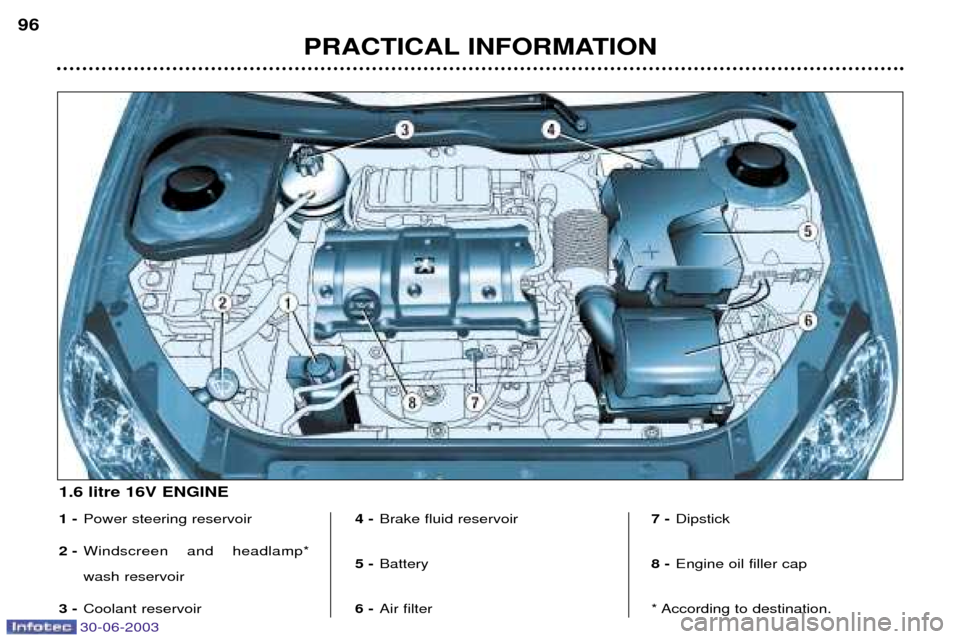

1 -
Power steering reservoir
2 - Windscreen and headlamp* wash reservoir
3 - Coolant reservoir 4 -
Brake fluid reservoir
5 - Battery
6 - Air filter 7 -
Dipstick
8 - Engine oil filler cap
* According to destination.
1.6 litre 16V ENGINE

30-06-2003
PRACTICAL INFORMATION97

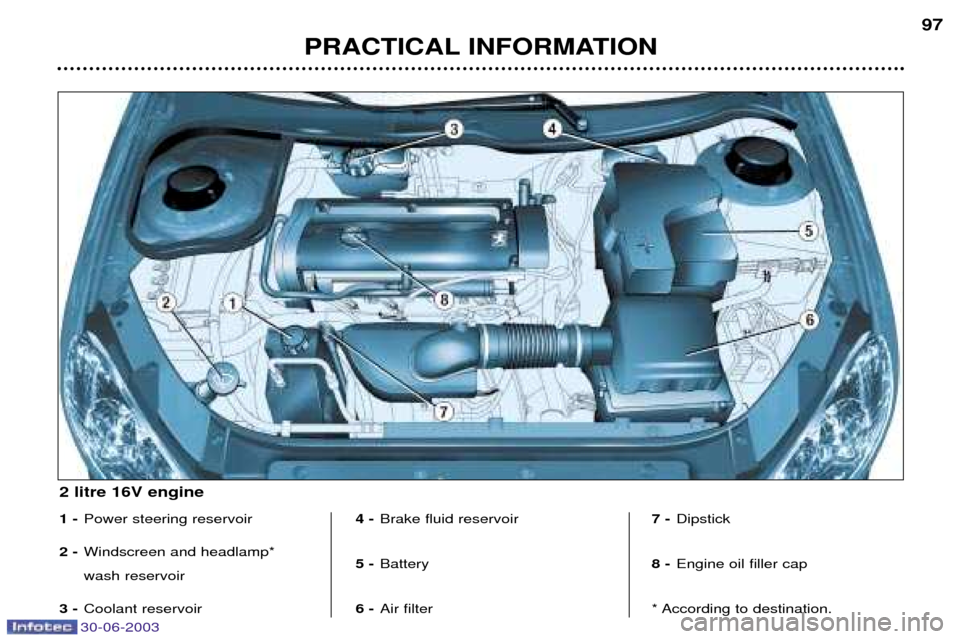

1 -
Power steering reservoir
2 - Windscreen and headlamp* wash reservoir
3 - Coolant reservoir 4 -
Brake fluid reservoir
5 - Battery
6 - Air filter 7 -
Dipstick
8 - Engine oil filler cap
* According to destination.
2 litre 16V engine

30-06-2003
PRACTICAL INFORMATION
98
CHECKING THE LEVELS Oil level
Check the level regularly and top
up between changes. The maxi-mum consumption is 0.5 l per 600miles (1000 km).
Check the level with the vehicle level,engine cold, using the oil level gaugeon the instrument panel or the dips-tick.
Dipstick There are two marks on the dipstick: A= maximum
Never fill past this mark. B = minimum
To maintain the reliabi- lity of engines andemission control sys-tems, the use of addi-tives in engine oil isprohibited.
Oil change According to the information given in
"PEUGEOT SERVICING" .
Note: avoid used oil coming into
prolonged contact with the skin. Viscosity selection In all cases, the oil selected must meet the manufacturer's require-ments. Brake fluid level:
- The level must always be bet-
ween the DANGER and MAXI-
MUM marks in the reservoir.
- If the level drops substantially, contact a PEUGEOT dealer
immediately.
Fluid change:
- must be carried out according to the manufacturer's servicing schedule.
- use fluids recommended by the manufacturer, which fulfil DOT4standards.
Note: brake fluid is harmful to heal-
th and very corrosive. Avoid allcontact with the skin. Cooling systemUse the fluid recommended by the
manufacturer. When the engine is warm, the temperature of the coolant is
controlled by the engine fan. As thisfan can operate with the ignition keyremoved and because the coolingsystem is pressurised, wait for atleast one hour after the engine hasstopped before carrying out anywork. Slacken the cap to the first notch torelease the pressure to prevent anyrisk of scalding. When the pressurehas dropped, remove the cap andtop up the level. Note:
the coolant does not need to
be changed. Used oil Do not dispose of used oil, brake fluid or coolant into drains or into theground. Power steering reservoir  Open the reservoir, with the engi-
ne at ambient temperature. Thelevel should always be above theMIN. mark and close to the MAX.mark.
Windscreen and headlamp* washlevel For best quality cleaning and for
your safety, we would advise thatyou use products recommended by
PEUGEOT.
* According to destination.

30-06-2003
PRACTICAL INFORMATION99
CHECKS Battery
At the start of winter, have your bat-
tery checked by a PEUGEOT dea-
ler. Air filter and passenger compartment filter Have the filter elements replaced
regularly.
If you drive in dusty
conditions, change them twice asoften. Brake pads Brake pad wear depends on the style of driving, in particular forvehicles which are used in town,over short distances. It may be necessary to check the thickness of the pads, even betweenservices. Handbrake Where the handbrake travel is too great or there is a reduction in theperformance of the system, thehandbrake should be adjusted, evenbetween services. Have the system checked by a
PEUGEOT dealer. Manual gearbox This does not need an oil change. Check the level, according to themanufacturer's servicing schedule. Automatic gearbox This does not need an oil change. Have the level checked by a
PEUGEOT dealer, according to themanufacturer's servicing schedule. Oil filter

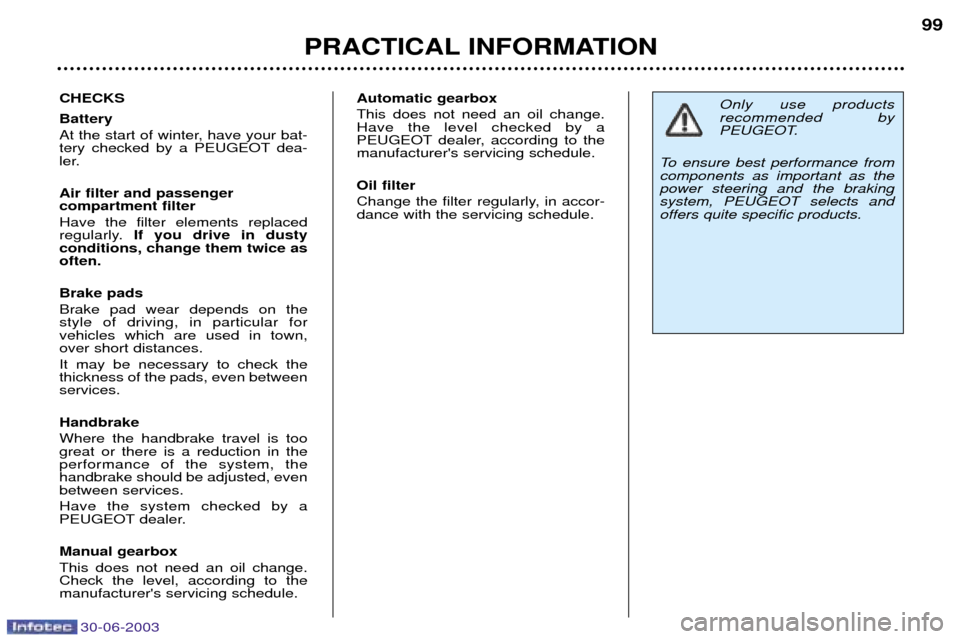

Change the filter regularly, in accor- dance with the servicing schedule.Only use products recommended by
PEUGEOT.
To ensure best performance fromcomponents as important as thepower steering and the brakingsystem, PEUGEOT selects andoffers quite specific products.

30-06-2003
PRACTICAL INFORMATION
100
PUNCTURES Because this version does not pos- sess a spare wheel, you have twoaerosols for temporary tyre repairsstored in an insulated storage box
1
secured by a strap to the right-handside of the boot. Using a repair aerosol (See also the instructions on the aerosols).
If possible remove the foreign body which caused the puncture.
 Position the wheel so that thevalve is at the 2 o'clock or 10o'clock position.
 Shake the aerosol vigorously
before use. (In very cold weather,warm the aerosol for a few min-utes in your hands).
 In one hand hold the valve.
 With the other, firmly push thespray end of the aerosol onto thevalve, keeping it centralised.
 Maintain the pressure firmly forone minute, then immediatelydrive at moderate speed to the
nearest garage. Aersosols enable a tem-porary repair to be car-ried out (maximum speed50 mph (80 km/h)).
After use, it is necessary to repairthe tyre. Because the aerosols are pres- surised, they must not be exposedto a temperature higher than
50 ¡C. Keep them away from heat in their insulated storage box.

30-06-2003
PRACTICAL INFORMATION101
CHANGING A WHEEL
Park the vehicle on level, stable
ground which is not slippery.
 Apply the handbrake, engage first
gear or reverse (position Pon the
automatic gearbox) and switch offthe ignition.
 Chock the rear of the wheel withshim 2diagonally opposite the
wheel to be changed.

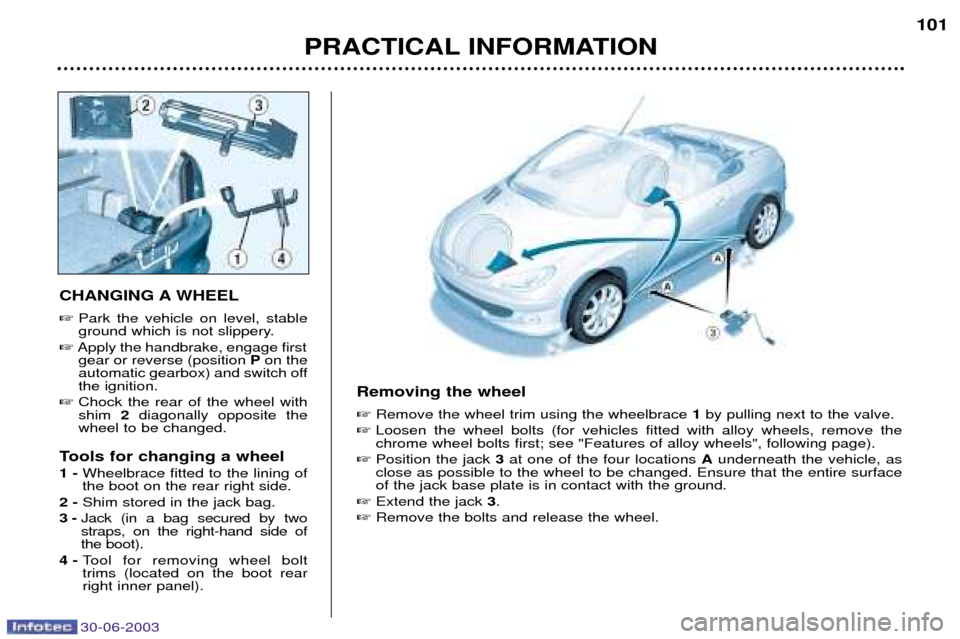

Tools for changing a wheel 1 - Wheelbrace fitted to the lining of the boot on the rear right side.
2 - Shim stored in the jack bag.
3 - Jack (in a bag secured by twostraps, on the right-hand side ofthe boot).
4 - Tool for removing wheel bolttrims (located on the boot rearright inner panel). Removing the wheel
Remove the wheel trim using the wheelbrace 1by pulling next to the valve.
 Loosen the wheel bolts (for vehicles fitted with alloy wheels, remove the chrome wheel bolts first; see "Features of alloy wheels", following page).
 Position the jack 3at one of the four locations Aunderneath the vehicle, as
close as possible to the wheel to be changed. Ensure that the entire surfaceof the jack base plate is in contact with the ground.
 Extend the jack 3.
 Remove the bolts and release the wheel.
