2003 Peugeot 206 CC Dag steering wheel

30-06-2003
3YOUR AT A GLANCE
1Driver's air bag Horn
2 Lights and direction indica- tors stalk
3 Passenger air bag disarmingswitch*
4 Heated seats control
5 Dynamic stability control(ESP/ASR) button
6 Instrument panel lightingrheostat
7 Windscreen wipers/wind-screen wash/trip computerstalk
8 Audio equipment steeringcolumn stalk
9 Hazard warning lights switch
10 Multifunction display
11 Windscreen demisting vents 12
Side windows demisting vents
13 Adjustable central vent
14 Passenger air bag
15 Adjustable central vents
16 Glove box
17 RD3 audio equipment
18 Heating/ventilation/airconditioning controls
Rear screen and mirrorsdemisting
19 Front ashtray
20 Gear lever
21 Lighter
22 Electric mirror controls
23 Electric retractable roof control 24
Electric window switches
25 Handbrake
26 Bonnet release control
27 Steering lock
28 Fuse box
29 Storage compartment
30 Steering wheel height adjustment control
31 Headlamp height adjustment
* According to destination.

7YOUR AT A GLANCE
72
Starting the engine
Do not press the accelerator.
Operate the starter, without
releasing the key, until theengine turns. THE KEYS The keys operate independently the locks for the doors, the boot(opening), the fuel filler flap, thesteering lock, the glove box andthe passenger air bag disarmingswitch.Never race a coldengine.
Never run the engine in anenclosed space. Do not make any modications to the steering lock. Central locking
From the driverÕs door, the keys allow you to:
- simultaneously lock the doors
and the boot,
- simultaneously unlock just the doors.
You can only unlock the boot by using the lock. The remote control Pressing button A
allows you to lock the doors and boot. This is displayed by the continuouslighting of the direc-
tion indicators forapproximately twoseconds. Pressing button B
allows you to unlock the doors
only. This is indicated by rapid flashing of the direction indicators forapproximately two seconds.
STARTING The four positions of the key in the ignition:
STOP position:
the ignition is off.
1st notch, Accessories position:
the ignition is off but the acces-sories can be used. 2nd notch, Running position: the ignition is on. Starting position
:
operates the starter. Steering lock Before starting, unlock the steer-
ing if necessary, by gently tur-ning the steering wheel at the
same time as you turn the key. It is advisable to press the clutch pedal while operating the starter
to make starting easier.
30-06-2003

30-06-2003
8YOUR AT A GLANCE
7880

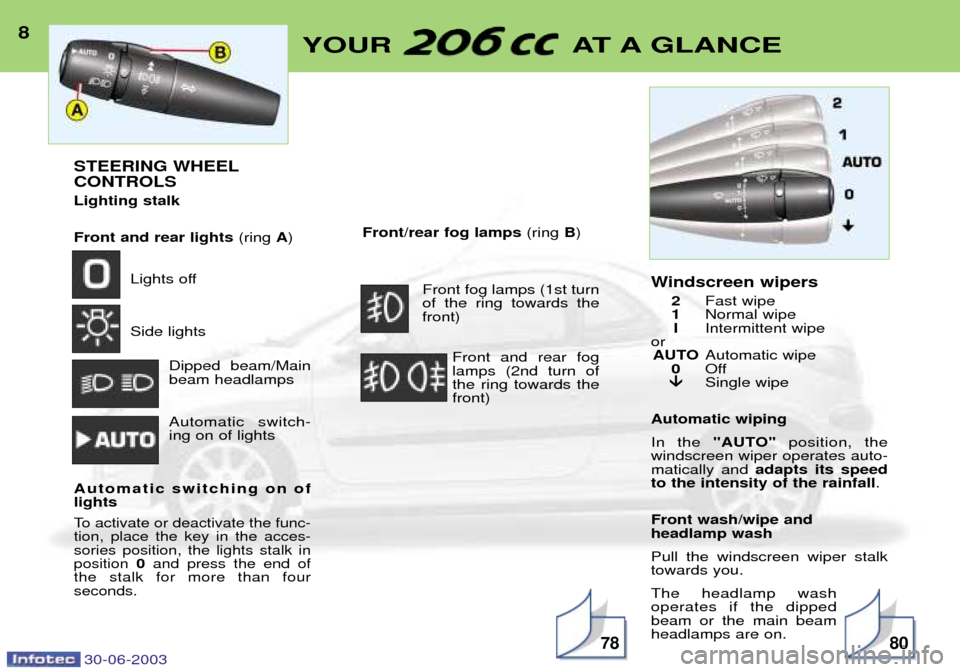

STEERING WHEEL CONTROLS Lighting stalk Front and rear lights(ring A)
Lights off Side lights Dipped beam/Main beam headlamps Automatic switch- ing on of lights
Automatic switching on oflights
To activate or deactivate the func-tion, place the key in the acces-sories position, the lights stalk inposition 0and press the end of
the stalk for more than four seconds.
Windscreen wipers
2 Fast wipe
1 Normal wipe
I Intermittent wipe
or AUTO Automatic wipe
0 Off


Single wipe
Automatic wiping In the "AUTO" position, the
windscreen wiper operates auto- matically and adapts its speed
to the intensity of the rainfall .
Front wash/wipe andheadlamp wash Pull the windscreen wiper stalk towards you. The headlamp wash operates if the dippedbeam or the main beamheadlamps are on.
Front/rear fog lamps
(ring B)
Front fog lamps (1st turnof the ring towards thefront) Front and rear foglamps (2nd turn ofthe ring towards thefront)

30-06-2003
9YOUR AT A GLANCE
8675
STEERING WHEEL HEIGHT ADJUSTMENT
When stationary, lower the lever to release the steering wheel. Adjust to the required height and raise the lever to lock the steer-ing wheel. OPENING THE BONNET Inside the vehicle:
pull the handle.
Outside the vehicle: lift the
catch and lift the bonnet. Secure the strut to hold the bon- net open.

30-06-2003
YOUR 206 CC IN DETAIL
86
HEADLAMP ADJUSTMENT
Depending on the load in your vehi- cle, adjusting the beam of the head-lamps is recommended as follows.
0 -
1 or 2 people in the front seats.
Ð - 3 people.
1 - 4 people.
2 - 4 people + maximum authorisedload.
3 - Driver + maximum authorisedload.
Initial setting is position 0. STEERING WHEEL HEIGHT ADJUSTMENT
When stationary, lower the handle to unlock the steering wheel. Adjust to the desired height and lift the handle to lock the steeringwheel.
HORN
Press one of the spokes orthe centre of the steeringwheel.

30-06-2003
YOUR 206 CC IN DETAIL
92
TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP) These systems are linked and com-
plement the ABS.
The ASR system optimises drive to prevent the wheels skidding, by act-ing on the brakes of the drive wheelsand on the engine. It also allows thedirectional stability of the vehicle tobe improved on acceleration. If there is a variation between the tra- jectory followed by the vehicle and
that required by the driver, the ESPsystem automatically acts on theengine and the brake of one or morewheels, in order to put the vehicleback on course. Disarming the ASR/
ESP systems In exceptional conditions (starting a vehicle which is bogged down, stuck
in snow, on soft ground), it may be
advisable to disarm the ASR and
ESP systems, so that the wheels canmove freely and regain grip.
Press the "ESP OFF" switch,
located under the steering wheel to the left.
The switch lights up and thewarning light comes on: the
ASR and ESP systems aredisarmed.
These are triggered again:  automatically if the ignition is
switched off,
 manually by pressing the switchagain.
Operation of the ASR and ESPsystems
The warning light flashes if
the ASR or ESP is activated.Operating checkWhen a malfunction of the systems occurs, the switchlight flashes and the warninglight comes on.
Contact a PEUGEOT dealer to havethe system checked.
The ESP system offers exceptional safety in nor-mal driving, but thisshould not encourage thedriver to take extra risks or
drive at high speed. The correct functioning of this sys- tem depends on observation of themanufacturer's recommendationsregarding wheels (tyres and rims),the braking components and theelectronic components, as well asthe PEUGEOT assembly andoperation procedures. After an impact, have the system
checked by a PEUGEOT dealer.

30-06-2003
YOUR 206 CC IN DETAIL93
FRONT AIR BAGS
These are folded in the centre of the steering wheel for the driver and in the
fascia for the front passenger. They are
deployed simultaneously, except incases where the passenger air bag isdisarmed.
Front air bag fault
If this warning light comeson, accompanied by anaudible signal and the mes-sage "Air bag fault" on the
multifunction display, con-
tact a PEUGEOT dealer to have thesystem checked.
AIR BAGS The air bags have been designed to maximise the safety of the occu-pants in the event of serious colli-
sions. They work in conjunctionwith the force-limiting seat belts. The electronic detectors register and analyse any abrupt decelera-tion of the vehicle: if the triggeringthreshold is reached, the air bagsinflate instantly and protect theoccupants of the vehicle. Immediately after the impact, the air bags deflate rapidly so that they donot hinder the visibility of the occu-pants nor their exit if necessary fromthe vehicle. The air bags are not deployed in the case of collisions which are not seri-
ous, for which the seat belt is suffi-cient to ensure maximum protection.The seriousness of a collisiondepends on the nature of the obsta-cle and the speed of the vehicle atthe moment of the collision. Air bags only operate when the ignition is switched on. Note:
the gas escaping from the air
bags can be a minor irritant. Disarming the passenger air bag*
To ensure the safety of your child, it is essential to disarm the pas-senger air bag when you install arear-facing child seat on the frontpassenger seat.
With the ignition switched off, insert the key into the passengerair bag disarming switch 1, turn it
to the "OFF"position, then
remove the key keeping the slotin this position.
The air bag warning light onthe instrument panel is litthroughout the disarmingprocess.
* According to destination.

YOUR 206 CC IN DETAIL95
For the front and side* air bags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object...). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked. Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently. Side air bags*
¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
* According to destination.
