3YOUR AT A GLANCE
1Driver's air bag Horn
2 Lights and direction indica- tors stalk
3 Passenger air bag disarmingswitch*
4 Heated seats control
5 Dynamic stability control(ESP/ASR) button
6 Instrument panel lightingrheostat
7 Windscreen wipers/wind-screen wash/trip computerstalk
8 Audio equipment steeringcolumn stalk
9 Hazard warning lights switch
10 Multifunction display
11 Windscreen demisting vents 12
Side windows demisting vents
13 Adjustable central vent
14 Passenger air bag
15 Adjustable central vents
16 Glove box
17 RD3 audio equipment
18 Heating/ventilation/airconditioning controls
Rear screen and mirrorsdemisting
19 Front ashtray
20 Gear lever
21 Lighter
22 Electric mirror controls
23 Electric retractable roof control 24
Electric window switches
25 Handbrake
26 Bonnet release control
27 Steering lock
28 Fuse box
29 Storage compartment
30 Steering wheel height adjustment control
31 Headlamp height adjustment
* According to destination.

30-06-2003
11YOUR AT A GLANCE
9367

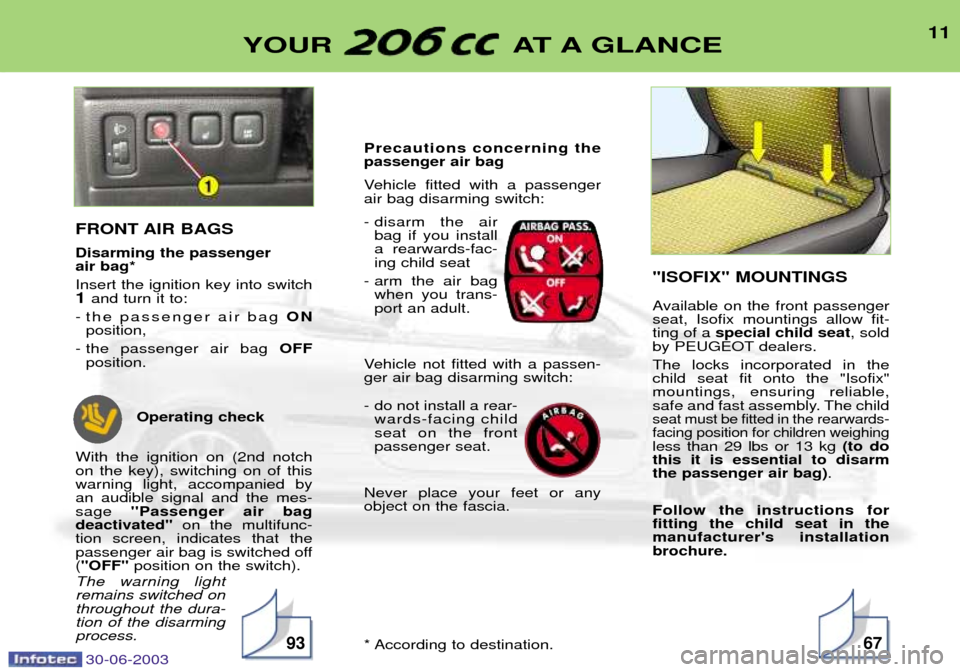

FRONT AIR BAGS Disarming the passenger air bag* Insert the ignition key into switch 1 and turn it to:
- the passenger air bag ON
position,
- the passenger air bag OFF
position.
Operating check
With the ignition on (2nd notchon the key), switching on of thiswarning light, accompanied byan audible signal and the mes-sage ''Passenger air bag
deactivated'' on the multifunc-
tion screen, indicates that the
passenger air bag is switched off( ''OFF'' position on the switch).
The warning lightremains switched onthroughout the dura-tion of the disarmingprocess. "ISOFIX" MOUNTINGS
Available on the front passenger seat, Isofix mountings allow fit-ting of a
special child seat , sold
by PEUGEOT dealers. The locks incorporated in the child seat fit onto the "Isofix"mountings, ensuring reliable,
safe and fast assembly. The child
seat must be fitted in the rearwards-facing position for children weighingless than 29 lbs or 13 kg (to do
this it is essential to disarmthe passenger air bag) .
Follow the instructions for fitting the child seat in themanufacturer's installationbrochure.
Precautions concerning thepassenger air bag
Vehicle fitted with a passenger air bag disarming switch:
- disarm the air
bag if you install a rearwards-fac-ing child seat
- arm the air bag when you trans-port an adult.
Vehicle not fitted with a passen-ger air bag disarming switch:
- do not install a rear- wards-facing child seat on the frontpassenger seat.
Never place your feet or anyobject on the fascia.
* According to destination.

30-06-2003
1.Seat belt not fastened warning light*
2. Passenger air bag disarmingindicator light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, serviceindicator and engine oil level indicator 9.
Right-hand direction indicator
10. Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level and electronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure and temperature warning light
16. Coolant temperature and lowlevel warning light 17.
Engine oil temperature indicator
18. Total distance recorder button
19. Central (STOP) warning light
20. Speedometer
21. Coolant temperature indicator
22. Rev counter
23. Lighting rheostat button
24. Fuel gauge
25. Low fuel level warning light
26. Dynamic stability control (ESP/ASR) warning light
* According to destination.
INSTRUMENTS AND CONTROLS
26

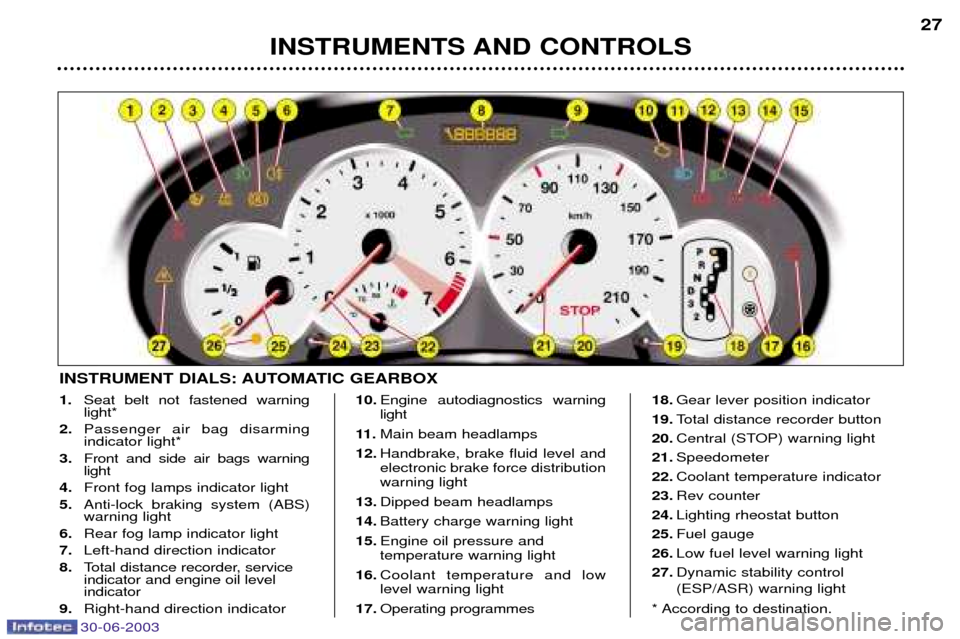

INSTRUMENT DIALS: MANUAL GEARBOX

30-06-2003
INSTRUMENTS AND CONTROLS27
1. Seat belt not fastened warning light*
2. Passenger air bag disarmingindicator light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, serviceindicator and engine oil level indicator
9. Right-hand direction indicator 10.
Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level andelectronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure and temperature warning light
16. Coolant temperature and lowlevel warning light
17. Operating programmes 18.
Gear lever position indicator
19. Total distance recorder button
20. Central (STOP) warning light
21. Speedometer
22. Coolant temperature indicator
23. Rev counter
24. Lighting rheostat button
25. Fuel gauge
26. Low fuel level warning light
27. Dynamic stability control (ESP/ASR) warning light
* According to destination.

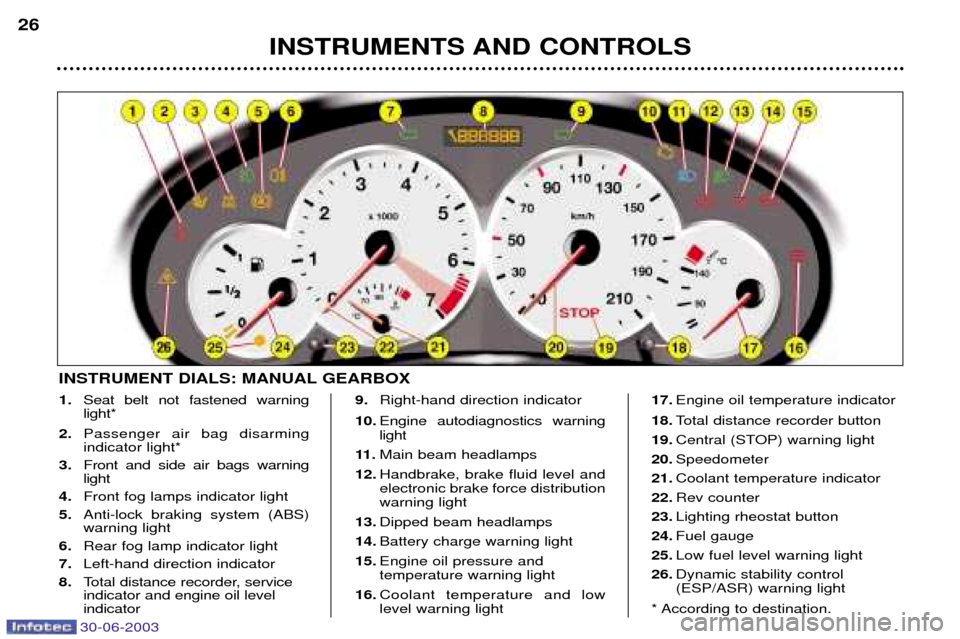

INSTRUMENT DIALS: AUTOMATIC GEARBOX

30-06-2003
INSTRUMENTS AND CONTROLS
28

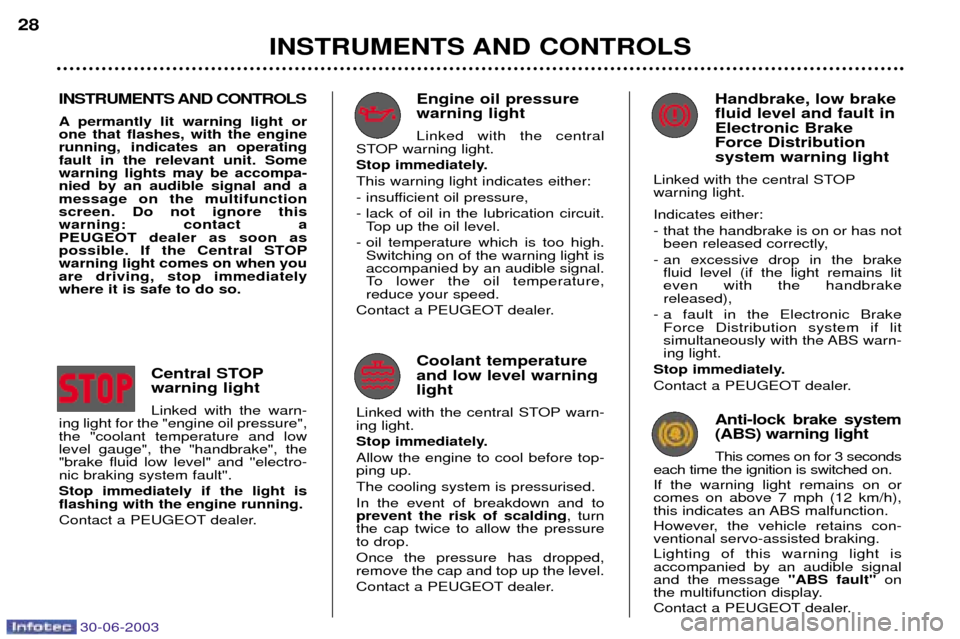

Handbrake, low brake fluid level and fault inElectronic BrakeForce Distributionsystem warning light
Linked with the central STOP warning light. Indicates either:
- that the handbrake is on or has not been released correctly,
- an excessive drop in the brake fluid level (if the light remains lit even with the handbrakereleased),
- a fault in the Electronic Brake Force Distribution system if lit
simultaneously with the ABS warn-ing light.
Stop immediately.
Contact a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS
A permantly lit warning light or one that flashes, with the enginerunning, indicates an operatingfault in the relevant unit. Somewarning lights may be accompa-nied by an audible signal and amessage on the multifunctionscreen. Do not ignore this warning: contact a PEUGEOT dealer as soon as
possible. If the Central STOPwarning light comes on when youare driving, stop immediatelywhere it is safe to do so.
Anti-lock brake system (ABS) warning light This comes on for 3 seconds
each time the ignition is switched on. If the warning light remains on or comes on above 7 mph (12 km/h),
this indicates an ABS malfunction.
However, the vehicle retains con- ventional servo-assisted braking. Lighting of this warning light is accompanied by an audible signaland the message "ABS fault"on
the multifunction display.
Contact a PEUGEOT dealer.
Engine oil pressure warning light Linked with the central
STOP warning light.
Stop immediately.This warning light indicates either:
- insufficient oil pressure,
- lack of oil in the lubrication circuit. Top up the oil level.
- oil temperature which is too high. Switching on of the warning light is accompanied by an audible signal.
To lower the oil temperature,reduce your speed.
Contact a PEUGEOT dealer.
Coolant temperature and low level warninglight
Linked with the central STOP warn- ing light.
Stop immediately.Allow the engine to cool before top- ping up. The cooling system is pressurised.In the event of breakdown and to prevent the risk of scalding , turn
the cap twice to allow the pressureto drop. Once the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Central STOP warning light Linked with the warn-
ing light for the "engine oil pressure", the "coolant temperature and lowlevel gauge", the "handbrake", the"brake fluid low level" and ''electro-nic braking system fault''. Stop immediately if the light is flashing with the engine running.
Contact a PEUGEOT dealer.

30-06-2003
INSTRUMENTS AND CONTROLS29

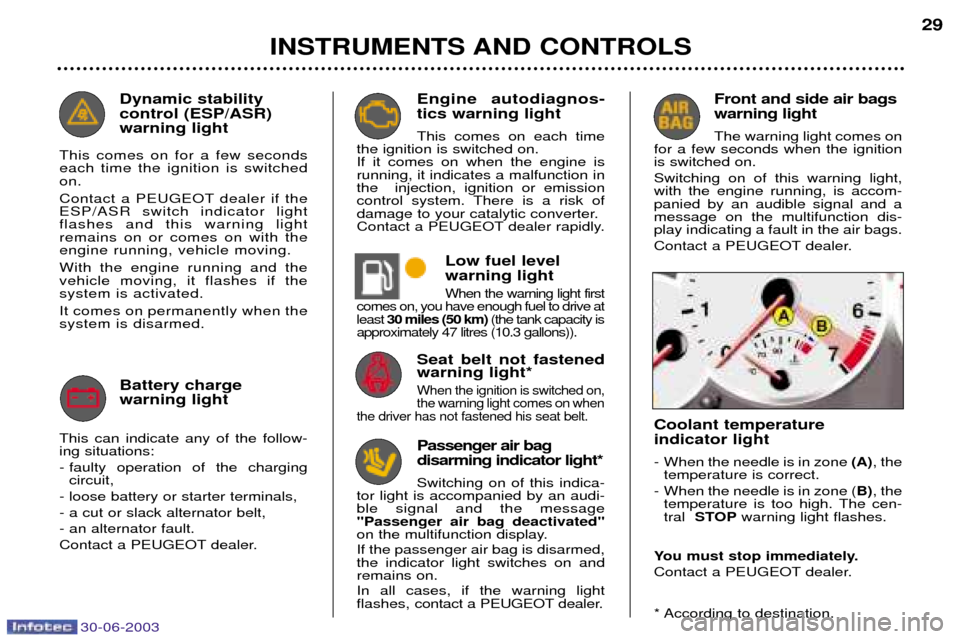

Front and side air bags warning light The warning light comes on
for a few seconds when the ignition is switched on. Switching on of this warning light, with the engine running, is accom-panied by an audible signal and amessage on the multifunction dis-play indicating a fault in the air bags.
Contact a PEUGEOT dealer.
Seat belt not fastened warning light*
When the ignition is switched on,the warning light comes on when
the driver has not fastened his seat belt.
Engine autodiagnos- tics warning light This comes on each time
the ignition is switched on. If it comes on when the engine isrunning, it indicates a malfunction inthe injection, ignition or emission
control system. There is a risk of
damage to your catalytic converter.
Contact a PEUGEOT dealer rapidly.
Low fuel level warning light
When the warning light first
comes on, you have enough fuel to drive at least 30 miles (50 km) (the tank capacity is
approximately 47 litres (10.3 gallons)).
Coolant temperature indicator light
- When the needle is in zone (A), the
temperature is correct.
- When the needle is in zone ( B), the
temperature is too high. The cen- tral STOP warning light flashes.
You must stop immediately.
Contact a PEUGEOT dealer.
* According to destination.
Dynamic stability control (ESP/ASR)warning light
This comes on for a few seconds each time the ignition is switchedon.
Contact a PEUGEOT dealer if the ESP/ASR switch indicator lightflashes and this warning lightremains on or comes on with theengine running, vehicle moving. With the engine running and the vehicle moving, it flashes if thesystem is activated. It comes on permanently when the system is disarmed.
Passenger air bag disarming indicator light* Switching on of this indica-
tor light is accompanied by an audi- ble signal and the message''Passenger air bag deactivated''
on the multifunction display. If the passenger air bag is disarmed, the indicator light switches on andremains on. In all cases, if the warning light flashes, contact a PEUGEOT dealer.
Battery charge warning light
This can indicate any of the follow- ing situations:
- faulty operation of the charging circuit,
- loose battery or starter terminals,- a cut or slack alternator belt,- an alternator fault.
Contact a PEUGEOT dealer.

30-06-2003
INSTRUMENTS AND CONTROLS29
Front and side air bags warning light The warning light comes on
for a few seconds when the ignition is switched on. Switching on of this warning light, with the engine running, is accom-panied by an audible signal and amessage on the multifunction dis-play indicating a fault in the air bags.
Contact a PEUGEOT dealer.
Seat belt not fastened warning light*
When the ignition is switched on,the warning light comes on when
the driver has not fastened his seat belt.
Engine autodiagnos- tics warning light This comes on each time
the ignition is switched on. If it comes on when the engine isrunning, it indicates a malfunction inthe injection, ignition or emission
control system. There is a risk of
damage to your catalytic converter.
Contact a PEUGEOT dealer rapidly.
Low fuel level warning light
When the warning light first
comes on, you have enough fuel to drive at least 30 miles (50 km) (the tank capacity is
approximately 47 litres (10.3 gallons)).
Coolant temperature indicator light
- When the needle is in zone (A), the
temperature is correct.
- When the needle is in zone ( B), the
temperature is too high. The cen- tral STOP warning light flashes.
You must stop immediately.
Contact a PEUGEOT dealer.
* According to destination.
Dynamic stability control (ESP/ASR)warning light
This comes on for a few seconds each time the ignition is switchedon.
Contact a PEUGEOT dealer if the ESP/ASR switch indicator lightflashes and this warning lightremains on or comes on with theengine running, vehicle moving. With the engine running and the vehicle moving, it flashes if thesystem is activated. It comes on permanently when the system is disarmed.
Passenger air bag disarming indicator light* Switching on of this indica-
tor light is accompanied by an audi- ble signal and the message''Passenger air bag deactivated''
on the multifunction display. If the passenger air bag is disarmed, the indicator light switches on andremains on. In all cases, if the warning light flashes, contact a PEUGEOT dealer.
Battery charge warning light
This can indicate any of the follow- ing situations:
- faulty operation of the charging circuit,
- loose battery or starter terminals,- a cut or slack alternator belt,- an alternator fault.
Contact a PEUGEOT dealer.

30-06-2003
INSTRUMENTS AND CONTROLS31
HAZARD WARNING LIGHTS
Press the button, the direction indi- cators flash. They can operate with the ignition
off. Automatic lighting of hazard warning lights*
When braking in an emergency, depending on the force of decelera-tion, the hazard warning lights come
on automatically. They switch offautomatically the first time youaccelerate.
It is also possible to switch them off by pressing the button.
* According to destination.

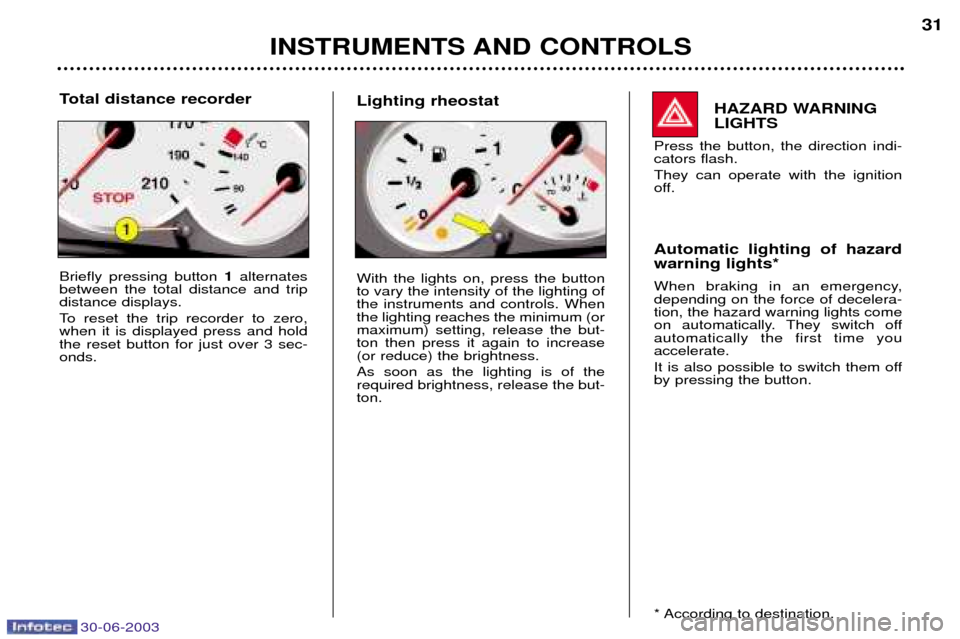

Total distance recorder Briefly pressing button
1alternates
between the total distance and trip distance displays.
To reset the trip recorder to zero, when it is displayed press and holdthe reset button for just over 3 sec-onds. Lighting rheostat With the lights on, press the button to vary the intensity of the lighting ofthe instruments and controls. Whenthe lighting reaches the minimum (ormaximum) setting, release the but-ton then press it again to increase(or reduce) the brightness. As soon as the lighting is of the required brightness, release the but-ton.
