EC-438
[QR (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
DATA MONITOR MODE
Monitored Item
´: Applicable
Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSCAN
DIAG
SUP-
PORT
MNTRDescription Remarks
ENG SPEED [rpm]´´
lIndicates the engine speed computed
from the signal of the crankshaft position
sensor (POS).
lAccuracy becomes poor if engine
speed drops below the idle rpm.
lIf the signal is interrupted while the
engine is running, an abnormal
value may be indicated.
MAS A/F SE-B1 [V]´´
lThe signal voltage of the mass air flow
sensor is displayed.lWhen the engine is stopped, a
certain value is indicated.
COOLAN TEMP/S
[°C] or [°F]´´
lThe engine coolant temperature (deter-
mined by the signal voltage of the
engine coolant temperature sensor) is
displayed.
lWhen the engine coolant tempera-
ture sensor is open or short-cir-
cuited, ECM enters fail-safe mode.
The engine coolant temperature
determined by the ECM is dis-
played.
HO2S1 (B1) [V]´´
lThe signal voltage of heated oxygen
sensor 1 is displayed.
HO2S2 (B1) [V]´´
lThe signal voltage of heated oxygen
sensor 2 is displayed.
HO2S1 MNTR (B1)
[RICH/LEAN]´´
lDisplay of heated oxygen sensor 1 sig-
nal during air-fuel ratio feedback control:
RICH ... means the mixture became
“rich”, and control is being affected
toward a leaner mixture.
LEAN ... means the mixture became
“lean”, and control is being affected
toward a rich mixture.lAfter turning ON the ignition
switch, “RICH” is displayed until
air-fuel mixture ratio feedback
control begins.
lWhen the air-fuel ratio feedback is
clamped, the value just before the
clamping is displayed continu-
ously.
HO2S2 MNTR (B1)
[RICH/LEAN]´
lDisplay of heated oxygen sensor 2 sig-
nal:
RICH ... means the amount of oxygen
after three way catalyst is relatively
small.
LEAN ... means the amount of oxygen
after three way catalyst is relatively
large.
lWhen the engine is stopped, a
certain value is indicated.
VHCL SPEED SE
[km/h] or [mph]´´
lThe vehicle speed computed from the
vehicle speed signal is displayed.
BATTERY VOLT
[V]´´
lThe power supply voltage of ECM is dis-
played.
ACCEL SEN 1 [V]´´
lThe accelerator pedal position sensor
signal voltage is displayed.
ACCEL SEN 2 [V]´
THRTL SEN 1 [V]´´
lThe throttle position sensor signal volt-
age is displayed.
THRTL SEN 2 [V]´
INT/ATEMPSE
[°C] or [°F]´´
lThe intake air temperature (determined
by the signal voltage of the intake air
temperature sensor) is indicated.
START SIGNAL
[ON/OFF]´´
lIndicates [ON/OFF] condition from the
starter signal.lAfter starting the engine, [OFF] is
displayed regardless of the starter
signal.

TROUBLE DIAGNOSIS
EC-439
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
CLSD THL POS
[ON/OFF]´´lIndicates idle position [ON/OFF] com-
puted by ECM according to the acceler-
ator pedal position sensor signal.
AIR COND SIG
[ON/OFF]´´
lIndicates [ON/OFF] condition of the air
conditioner switch as determined by the
air conditioner signal.
P/N POSI SW
[ON/OFF]´´
lIndicates [ON/OFF] condition from the
park/neutral position (PNP) switch sig-
nal.
PW/ST SIGNAL
[ON/OFF]´´
l[ON/OFF] condition of the power steer-
ing system (determined by the signal
voltage of the power steering pressure
sensor signal) is indicated.
LOAD SIGNAL
[ON/OFF]´´
lIndicates [ON/OFF] condition from the
electrical load signal.
ON ... Rear window defogger switch is
ON and/or lighting switch is in 2nd posi-
tion.
OFF ... Both rear window defogger
switch and lighting switch are OFF.
IGNITION SW
[ON/OFF]´´
lIndicates [ON/OFF] condition from igni-
tion switch.
HEATER FAN SW
[ON/OFF]´
lIndicates [ON/OFF] condition from the
heater fan switch signal.
BRAKE SW
[ON/OFF]´
lIndicates [ON/OFF] condition from the
stop lamp switch signal.
INJ PULSE-B1
[msec]´
lIndicates the actual fuel injection pulse
width compensated by ECM according
to the input signals.lWhen the engine is stopped, a
certain computed value is indi-
cated.
B/FUEL SCHDL
[msec]´
l“Base fuel schedule” indicates the fuel
injection pulse width programmed into
ECM, prior to any learned on board cor-
rection.
IGN TIMING
[BTDC]´
lIndicates the ignition timing computed
by ECM according to the input signals.lWhen the engine is stopped, a
certain value is indicated.
A/F ALPHA-B1 [%]´
lThe mean value of the air-fuel ratio
feedback correction factor per cycle is
indicated.
lWhen the engine is stopped, a
certain value is indicated.
lThis data also includes the data
for the air-fuel ratio learning con-
trol.
CAL/LD VALUE [%]
l“Calculated load value” indicates the
value of the current airflow divided by
peak airflow.
MASS AIRFLOW
[g·m/s]
lIndicates the mass airflow computed by
ECM according to the signal voltage of
the mass air flow sensor. Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSCAN
DIAG
SUP-
PORT
MNTRDescription Remarks

EC-440
[QR (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
PURG VOL C/V
[%]
lIndicates the EVAP canister purge vol-
ume control solenoid valve control value
computed by the ECM according to the
input signals.
lThe opening becomes larger as the
value increases.
INT/V TIM (B1)
[°CA]
lIndicates [°CA] of intake camshaft
advanced angle.
INT/V SOL (B1) [%]
lThe control condition of the intake valve
timing control solenoid valve (deter-
mined by ECM according to the input
signals) is indicated.
ON ... intake valve timing control is oper-
ating.
OFF ... Intake valve timing control is not
operating.
AIRCONDRLY
[ON/OFF]´
lThe air conditioner relay control condi-
tion (determined by ECM according to
the input signals) is indicated.
FUEL PUMP RLY
[ON/OFF]´
lIndicates the fuel pump relay control
condition determined by ECM according
to the input signals.
THRTL RELAY
[ON/OFF]
lIndicates the throttle control motor relay
control condition determined by the
ECM according to the input signals.
COOLING FAN
[HI/LOW/OFF]
lIndicates the condition of the cooling fan
(determined by ECM according to the
input signals).
HI ... High speed operation
LOW ... Low speed operation
OFF ... Stop
HO2S1 HTR (B1)
[ON/OFF]
lIndicates [ON/OFF] condition of heated
oxygen sensor 1 heater determined by
ECM according to the input signals.
HO2S2 HTR (B1)
[ON/OFF]
lIndicates [ON/OFF] condition of heated
oxygen sensor 2 heater determined by
ECM according to the input signals.
IDL A/V LEARN
[YET/CMPLT/
INCMP]
lDisplay the condition of idle air volume
learning
YET ... Idle air volume learning has not
been performed yet.
CMPLT ... Idle air volume learning has
already been performed successfully.
INCMP ... Idle air volume learning has
not been performed successfully.
TRVL AFTER MIL
[km] or [mile]
lDistance traveled while MI is activated.
AC PRESS SEN
[V]
lThe signal voltage from the refrigerant
pressure sensor is displayed. Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSCAN
DIAG
SUP-
PORT
MNTRDescription Remarks

TROUBLE DIAGNOSIS
EC-441
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
NOTE:
lAny monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
DATA MONITOR (SPEC) MODE
Monitored Item
NOTE:
lAny monitored item that does not match the vehicle being diagnosed is deleted from the display automatically. Voltage [V]
lVoltage, frequency, duty cycle or pulse
width measured by the probe.
lOnly “#” is displayed if item is
unable to be measured.
lFigures with “#”s are temporary
ones. They are the same figures
as an actual piece of data which
was just previously measured. Frequency
[msec], [Hz] or [%]
DUTY-HI
DUTY-LOW
PLS WIDTH-HI
PLS WIDTH-LOW
CAN COMM
[OK/NG]´
lIndicates the communication condition
of CAN communication line.lThese items are not displayed in
"SELECTION FROM MENU"
mode. CANCIRC1
[OK/UNKWN]´
CANCIRC2
[OK/UNKWN]´
CANCIRC3
[OK/UNKWN]´
CANCIRC4
[OK/UNKWN]´
CANCIRC5
[OK/UNKWN]´ Monitored item
[Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSCAN
DIAG
SUP-
PORT
MNTRDescription Remarks
Monitored item [Unit]ECM
input
signalsMain
signalsDescription Remarks
ENG SPEED [rpm]´
lIndicates the engine speed computed
from the signal of the crankshaft position
sensor (POS).
MAS A/F SE-B1 [V]´´
lThe signal voltage of the mass air flow
sensor specification is displayed.lWhen engine is running specification
range is indicated.
B/FUEL SCHDL
[msec]
l“Base fuel schedule” indicates the fuel
injection pulse width programmed into
ECM, prior to any learned on board cor-
rection.
lWhen engine is running specification
range is indicated.
A/F ALPHA-B1 [%]´
lThe mean value of the air-fuel ratio feed-
back correction factor per cycle is indi-
cated.lWhen engine is running specification
range is indicated.
lThis data also includes the data for the
air-fuel ratio learning control.

TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT
EC-453
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTPFP:00006
DescriptionEBS00BFQ
Intermittent incidents (I/I) may occur. In many cases, the problem resolves itself (the part or circuit function
returns to normal without intervention). It is important to realize that the symptoms described in the customer's
complaint often do not recur on (1st trip) DTC visits. Realize also that the most frequent cause of I/I occur-
rences is poor electrical connections. Because of this, the conditions under which the incident occurred may
not be clear. Therefore, circuit checks made as part of the standard diagnostic procedure may not indicate the
specific problem area.
Common I/I Report Situations
Diagnostic ProcedureEBS00BFR
1.INSPECTION START
Erase (1st trip) DTCs. Refer toEC-402, "
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMA-
TION".
>> GO TO 2.
2.CHECK GROUND TERMINALS
Check ground terminals for corroding or loose connection.
Refer toGI-24, "
How to Perform Efficient Diagnosis for an Electrical Incident", "CIRCUIT INSPECTION",
"Ground Inspection".
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3.SEARCH FOR ELECTRICAL INCIDENT
PerformGI-24, "
How to Perform Efficient Diagnosis for an Electrical Incident", "INCIDENT SIMULATION
TESTS".
OK or NG
OK >>INSPECTION END
NG >> Repair or replace.
STEP in Work Flow Situation
II The CONSULT-II is used. The SELF-DIAG RESULTS screen shows time data other than “0” or “[1t]”.
III The symptom described by the customer does not recur.
IV (1st trip) DTC does not appear during the DTC Confirmation Procedure.
VI The Diagnostic Procedure for PXXXX does not indicate the problem area.

EC-462
[QR (WITHOUT EURO-OBD)]

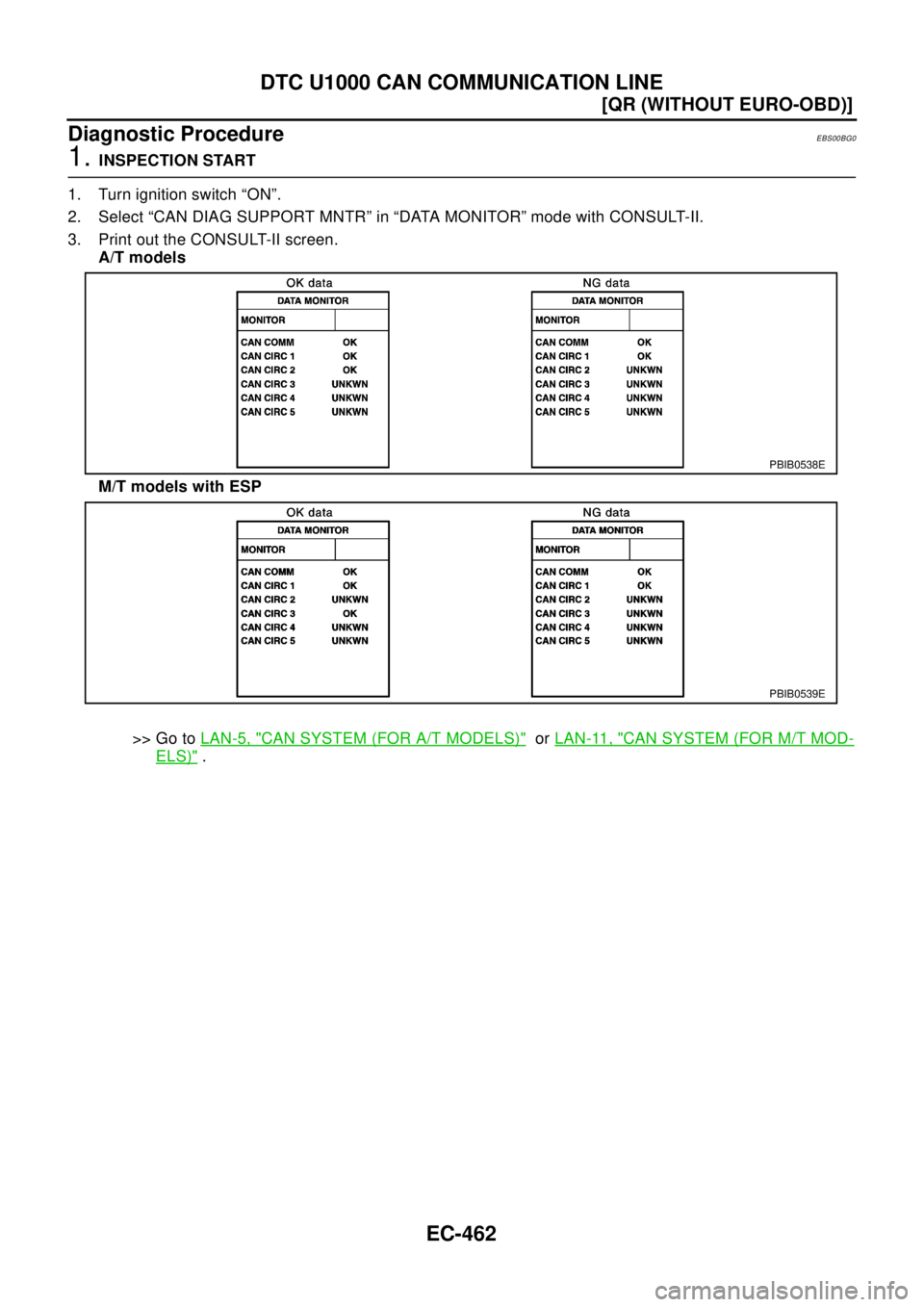

DTC U1000 CAN COMMUNICATION LINE
Diagnostic Procedure
EBS00BG0
1.INSPECTION START
1. Turn ignition switch “ON”.
2. Select “CAN DIAG SUPPORT MNTR” in “DATA MONITOR” mode with CONSULT-II.
3. Print out the CONSULT-II screen.
A/T models
M/TmodelswithESP
>> Go toLAN-5, "
CAN SYSTEM (FOR A/T MODELS)"orLAN-11, "CAN SYSTEM (FOR M/T MOD-
ELS)".
PBIB0538E
PBIB0539E

EVAPORATIVE EMISSION SYSTEM
EC-647
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionEBS00BAD
SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not operating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating and
idling.
PBIB0491E

EVAPORATIVE EMISSION SYSTEM
EC-649
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

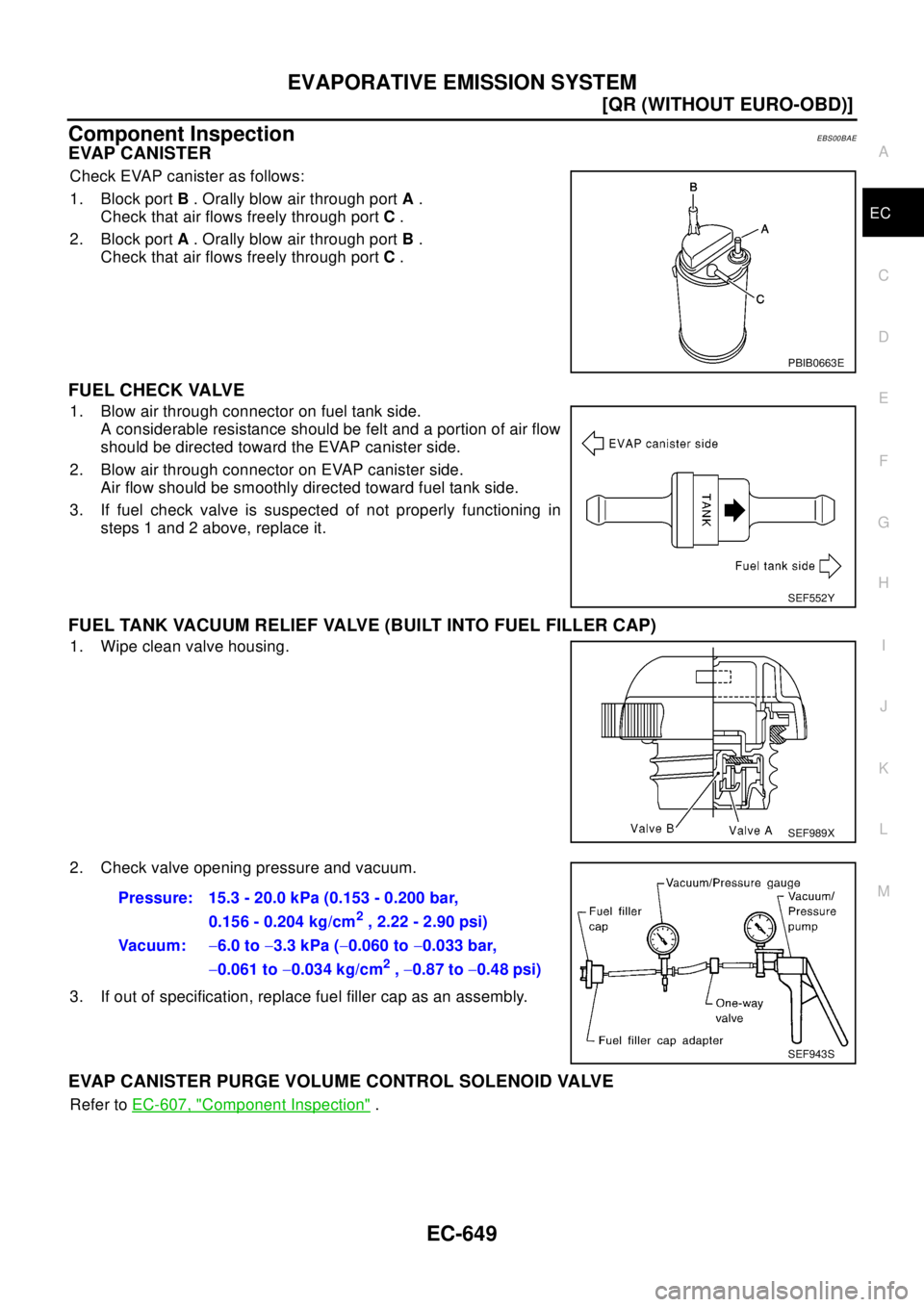

Component InspectionEBS00BAE
EVAP CANISTER
Check EVAP canister as follows:
1. Block portB. Orally blow air through portA.
Check that air flows freely through portC.
2. Block portA. Orally blow air through portB.
Check that air flows freely through portC.
FUEL CHECK VALVE
1. Blow air through connector on fuel tank side.
A considerable resistance should be felt and a portion of air flow
should be directed toward the EVAP canister side.
2. Blow air through connector on EVAP canister side.
Air flow should be smoothly directed toward fuel tank side.
3. If fuel check valve is suspected of not properly functioning in
steps 1 and 2 above, replace it.
FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FILLER CAP)
1. Wipe clean valve housing.
2. Check valve opening pressure and vacuum.
3. If out of specification, replace fuel filler cap as an assembly.
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer toEC-607, "Component Inspection".
PBIB0663E
SEF552Y
SEF989X
Pressure: 15.3 - 20.0 kPa (0.153 - 0.200 bar,
0.156 - 0.204 kg/cm
2, 2.22 - 2.90 psi)
Vac uu m :-6.0 to-3.3 kPa (-0.060 to-0.033 bar,
-0.061 to-0.034 kg/cm
2,-0.87 to-0.48 psi)
SEF943S
