2003 NISSAN X-TRAIL FL fuel system

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-51
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
codes can be identified by using the CONSULT-II or GST. A DTC will be used as an example for how to read a
code.
A particular trouble code can be identified by the number of four-digit numeral flashes. The “zero” is indicated
by the number of ten flashes. The length of time the 1,000th-digit numeral flashes on and off is 1.2 seconds
consisting of an ON (0.6-second) - OFF (0.6-second) cycle.
The 100th-digit numeral and lower digit numerals consist of a 0.3-second ON and 0.3-second OFF cycle.
A change from one digit numeral to another occurs at an interval of 1.0-second OFF. In other words, the later
numeral appears on the display 1.3 seconds after the former numeral has disappeared.
A change from one trouble code to another occurs at an interval of 1.8-second OFF.
In this way, all the detected malfunctions are classified by their DTC numbers. The DTC “0000” refers to no
malfunction. (SeeEC-12, "
INDEX FOR DTC")
How to Erase Diagnostic Test Mode II (Self-diagnostic Results)
The DTC can be erased from the back up memory in the ECM by depressing accelerator pedal. Refer toEC-
49, "HOW TO SWITCH DIAGNOSTIC TEST MODE".
lIf the battery is disconnected, the DTC will be lost from the backup memory after approx 24 hours.
lBe careful not to erase the stored memory before starting trouble diagnoses.
DIAGNOSTIC TEST MODE II — HEATED OXYGEN SENSOR 1 MONITOR
In this mode, the MI displays the condition of the fuel mixture (lean or rich) which is monitored by the heated
oxygen sensor 1.
*: Maintains conditions just before switching to open loop.
To check the heated oxygen sensor 1 function, start engine in the Diagnostic Test Mode II and warm it up until
engine coolant temperature indicator points to the middle of the gauge.
Next run engine at about 2,000 rpm for about 2 minutes under no-load conditions. Then make sure that the MI
comes ON more than 5 times within 10 seconds with engine running at 2,000 rpm under no-load.
OBD System Operation ChartEBS00BMA
RELATIONSHIP BETWEEN MI, 1ST TRIP DTC, DTC, AND DETECTABLE ITEMS
lWhen a malfunction is detected for the first time, the 1st trip DTC and the 1st trip freeze frame data are
stored in the ECM memory.
SEF952W
MI Fuel mixture condition in the exhaust gas Air fuel ratio feedback control condition
ON Lean
Closed loop system
OFF Rich
*Remains ON or OFF Any condition Open loop system

EC-52
[QR (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
lWhen the same malfunction is detected in two consecutive trips, the DTC and the freeze frame data are
stored in the ECM memory, and the MI will come on. For details, refer toEC-36, "
TwoTripDetection
Logic".
lThe MI will go off after the vehicle is driven 3 times with no malfunction. The drive is counted only when
the recorded driving pattern is met (as stored in the ECM). If another malfunction occurs while counting,
the counter will reset.
lThe DTC and the freeze frame data will be stored until the vehicle is driven 40 times (driving pattern A)
without the same malfunction recurring (except for Misfire and Fuel Injection System). For Misfire and
Fuel Injection System, the DTC and freeze frame data will be stored until the vehicle is driven 80 times
(driving pattern C) without the same malfunction recurring. The “TIME” in “SELF-DIAGNOSTIC
RESULTS” mode of CONSULT-II will count the number of times the vehicle is driven.
lThe 1st trip DTC is not displayed when the self-diagnosis results in “OK” for the 2nd trip.
SUMMARY CHART
For details about patterns “B” and “C” under “Fuel Injection System” and “Misfire”, seeEC-54.
For details about patterns “A” and “B” under “Other”, seeEC-56
.
*1: Clear timing is at the moment OK is detected.
*2: Clear timing is when the same malfunction is detected in the 2nd trip.Items Fuel Injection System Misfire Other
MI (goes off) 3 (pattern B) 3 (pattern B) 3 (pattern B)
DTC, Freeze Frame Data (no
display)80 (pattern C) 80 (pattern C) 40 (pattern A)
1st Trip DTC (clear) 1 (pattern C), *1 1 (pattern C), *1 1 (pattern B)
1st Trip Freeze Frame Data
(clear)*1, *2 *1, *2 1 (pattern B)

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-53
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

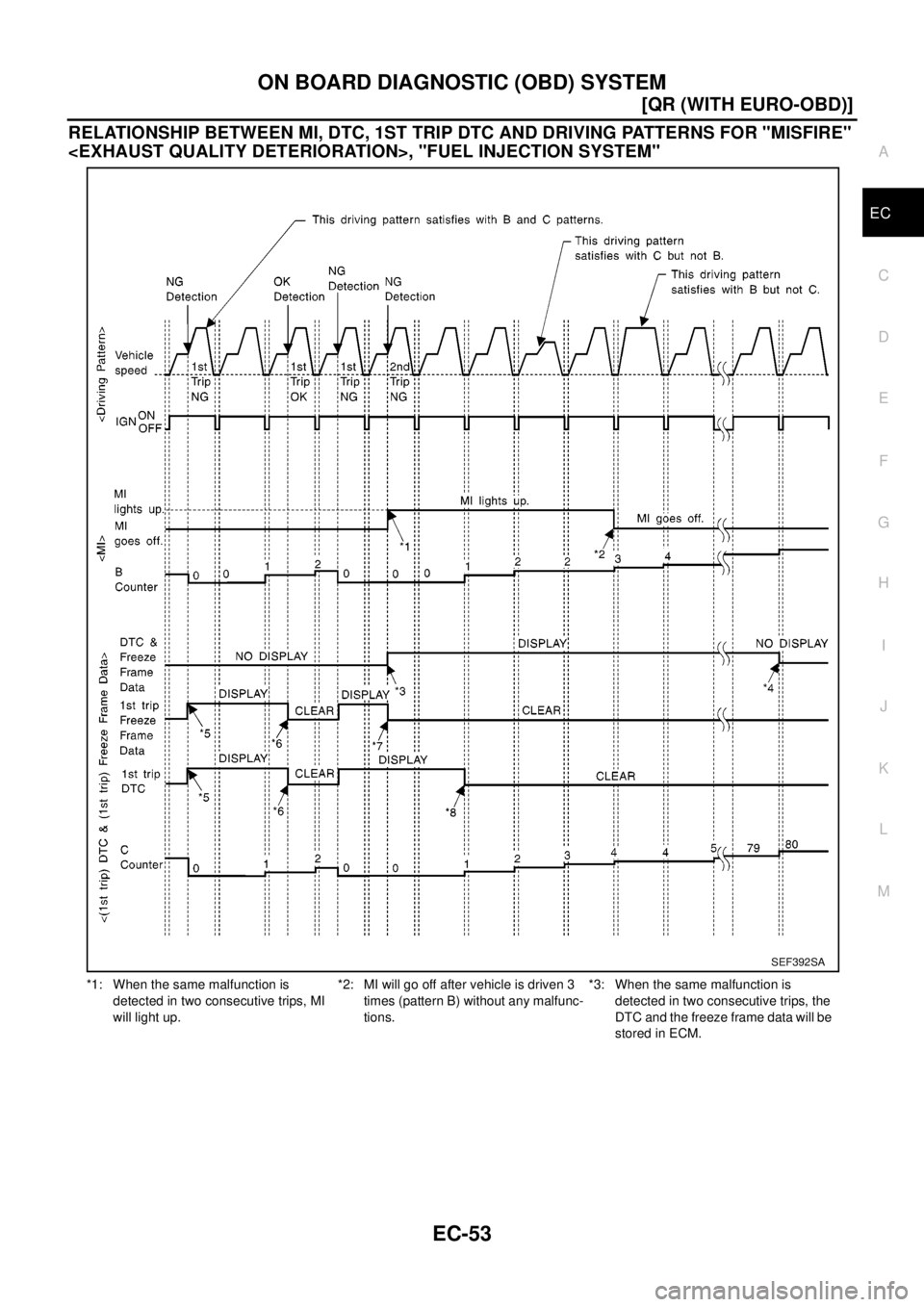

RELATIONSHIP BETWEEN MI, DTC, 1ST TRIP DTC AND DRIVING PATTERNS FOR "MISFIRE"
, "FUEL INJECTION SYSTEM"
*1: When the same malfunction is
detected in two consecutive trips, MI
will light up.*2: MI will go off after vehicle is driven 3
times (pattern B) without any malfunc-
tions.*3: When the same malfunction is
detected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.
SEF392SA

EC-54
[QR (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
EXPLANATION FOR DRIVING PATTERNS FOR "MISFIRE TION>", "FUEL INJECTION SYSTEM"

Driving pattern B means the vehicle operation as follows:
All components and systems should be monitored at least once by the OBD system.
lThe B counter will be cleared when the malfunction is detected once regardless of the driving pattern.
lThe B counter will be counted up when driving pattern B is satisfied without any malfunction.
lThe MI will go off when the B counter reaches 3. (*2 in “OBD SYSTEM OPERATION CHART”)

Driving pattern C means the vehicle operation as follows:
1. The following conditions should be satisfied at the same time:
Engine speed: (Engine speed in the freeze frame data)±375 rpm
Calculated load value: (Calculated load value in the freeze frame data) x (1±0.1) [%]
Engine coolant temperature (T) condition:
lWhen the freeze frame data shows lower than 70°C(158°F), “T” should be lower than 70°C(158°F).
lWhen the freeze frame data shows higher than or equal to 70°C(158°F), “T” should be higher than or
equal to 70°C(158°F).
Example:
If the stored freeze frame data is as follows:
Engine speed: 850 rpm, Calculated load value: 30%, Engine coolant temperature: 80°C(176°F)
To be satisfied with driving pattern C, the vehicle should run under the following conditions:
Engine speed: 475 - 1,225 rpm, Calculated load value: 27 - 33%, Engine coolant temperature: more than 70°C
(158°F)
lThe C counter will be cleared when the malfunction is detected regardless of (1).
lThe C counter will be counted up when (1) is satisfied without the same malfunction.
lThe DTC will not be displayed after C counter reaches 80.
lThe 1st trip DTC will be cleared when C counter is counted once without the same malfunction after DTC
is stored in ECM.
*4: The DTC and the freeze frame data
will not be displayed any longer after
vehicle is driven 80 times (pattern C)
without the same malfunction. (The
DTC and the freeze frame data still
remain in ECM.)*5: When a malfunction is detected for
the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM.*6: The 1st trip DTC and the 1st trip
freeze frame data will be cleared at
the moment OK is detected.
*7: When the same malfunction is
detected in the 2nd trip, the 1st trip
freeze frame data will be cleared.*8: 1st trip DTC will be cleared when
vehicle is driven once (pattern C)
without the same malfunction after
DTC is stored in ECM.

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-55
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
RELATIONSHIP BETWEEN MI, DTC, 1ST TRIP DTC AND DRIVING PATTERNS EXCEPTFOR
"MISFIRE ", "FUEL INJECTION SYSTEM"
*1: When the same malfunction is
detected in two consecutive trips, MI
will light up.*2: MI will go off after vehicle is driven 3
times (pattern B) without any malfunc-
tions.*3: When the same malfunction is
detected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.
*4: The DTC and the freeze frame data
will not be displayed any longer after
vehicleisdriven40times(patternA)
without the same malfunction.
(The DTC and the freeze frame data
still remain in ECM.)*5: When a malfunction is detected for
the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM.*6: 1st trip DTC will be cleared after vehi-
cleisdrivenonce(patternB)without
the same malfunction.
*7: When the same malfunction is
detected in the 2nd trip, the 1st trip
freeze frame data will be cleared.
SEF393SA

EC-56
[QR (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
EXPLANATION FOR DRIVING PATTERNS EXCEPTFOR "MISFIRE DETERIORATION>", "FUEL INJECTION SYSTEM"

lThe A counter will be cleared when the malfunction is detected regardless of (1) - (4).
lThe A counter will be counted up when (1) - (4) are satisfied without the same malfunction.
lThe DTC will not be displayed after the A counter reaches 40.

Driving pattern B means the vehicle operation as follows:
All components and systems should be monitored at least once by the OBD system.
lThe B counter will be cleared when the malfunction is detected once regardless of the driving pattern.
lThe B counter will be counted up when driving pattern B is satisfied without any malfunctions.
lThe MI will go off when the B counter reaches 3 (*2 in “OBD SYSTEM OPERATION CHART”).
AEC574

TROUBLE DIAGNOSIS
EC-57
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
TROUBLE DIAGNOSISPFP:00004
Trouble Diagnosis IntroductionEBS00BMH
INTRODUCTION
The engine has an ECM to control major systems such as fuel con-
trol, ignition control, idle air control system, etc. The ECM accepts
input signals from sensors and instantly drives actuators. It is essen-
tial that both input and output signals are proper and stable. At the
same time, it is important that there are no problems such as vac-
uum leaks, fouled spark plugs, or other problems with the engine.
It is much more difficult to diagnose a problem that occurs intermit-
tently rather than continuously. Most intermittent problems are
caused by poor electric connections or improper wiring. In this case,
careful checking of suspected circuits may help prevent the replace-
ment of good parts.
A visual check only may not find the cause of the problems. A road
test with CONSULT-II (or GST) or a circuit tester connected should
be performed. Follow the “Work Flow” onEC-58
.
Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a driveability complaint. The cus-
tomer can supply good information about such problems, especially
intermittent ones. Find out what symptoms are present and under
what conditions they occur. A “Diagnostic Worksheet” like the exam-
ple onEC-61
should be used.
Start your diagnosis by looking for “conventional” problems first. This
will help troubleshoot driveability problems on an electronically con-
trolled engine vehicle.
MEF036D
SEF233G
SEF234G

EC-62
[QR (WITH EURO-OBD)]
TROUBLE DIAGNOSIS
Fail-safe Chart
EBS00BMJ
The ECM enters fail-safe mode, if any of the following malfunctions is detected due to the open or short circuit.
When the ECM enters the fail-safe mode, the MI illuminates.
Priority Detected items (DTC)
1
lU1000 CAN communication line
lP0102 P0103 P1102 Mass air flow sensor
lP0112 P0113 Intake air temperature sensor
lP0117 P0118 Engine coolant temperature sensor
lP0120 Throttle position sensor
lP0121 Accelerator pedal position sensor
lP0327 P0328 Knock sensor
lP0335 Crankshaft position sensor (POS)
lP0340 Camshaft position sensor (PHASE)
lP0500 Vehicle speed sensor
lP0605 ECM
lP0705 Park/Neutral position (PNP) sensor
lP1706 Park/Neutral position (PNP) switch
2
lP0031 P0032 Heated oxygen sensor 1 heater
lP0037 P0038 Heated oxygen sensor 2 heater
lP0132 P0133 P0134 P1143 P1144 Heated oxygen sensor 1
lP0138 P0139 P1146 P1147 Heated oxygen sensor 2
lP0444 P0445 EVAP canister purge volume control solenoid valve
lP0550 Power steering pressure sensor
lP0650 MI
lP0710-P0725, P0740-P0755, P1705 P1760 A/T related sensors and solenoid valves
lP1065 ECM power supply
lP 1111 I n t a k e v a l v e ti m i n g c o n t r o l s o le n o i d v a l v e
lP1122 Electric throttle control function
lP1123 Throttle control motor relay
lP1212 ESP/TCS/ABS communication line
lP1805 Brake switch
3
lP0011 Intake valve timing control
lP0171 P0172 Fuel injection system function
lP0300 - P0304 Misfire
lP0420 Three way catalyst function
lP0731-P0734 A/T function
lP1121 Electric throttle control actuator
lP1217 Engine over temperature (OVERHEAT)
DTC No. Detected items Engine operating condition in fail-safe mode
P0102
P0103
P1102Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
