2003 NISSAN X-TRAIL sensor

ACCELE RATOR PEDAL POSITION (APP) SENSOR
AT-405
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
3.CHECK INPUT SIGNAL (WITHOUT CONSULT-II)
Wi th ou t C O N S U LT-I I
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminals 41 and 42 while accelerator pedal is depressed slowly.
(Voltage rises gradually in response to throttle position.)
OK or NG
OK >> GO TO 4
NG >> Check harness for short or open between ECM and
TCM regarding throttle position sensor circuit. (Main
harness)
4.CHECK DTC
Perform Self-diagnosis Code confirmation procedure,AT-402, "
SELF-DIAGNOSIS CODE CONFIRMATION
PROCEDURE".
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Vo l ta g e :
Fully-closed throttle valve :Approximately 0.5V
Fully-open throttle valve :Approximately 4V
SCIA0710E

AT-406
[ALL]
SHIFT SOLENOID VALVE A
SHIFT SOLENOID VALVE A
PFP:31940
DescriptionECS004TS
Shift solenoid valves A and B are turned “ON” or “OFF” by the TCM
in response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. Drive vehicle in D
1®D2position.
SCIA0718E
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
11 L / WShift solenoid
valve AWhen shift solenoid valve A oper-
ates.
(When driving in “D
1”or“D4”.)Battery voltage
When shift solenoid valve A does not
operate.
(When driving in “D
2”or“D3”.)0V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
:SHIFTSOLENOID/VA
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.
lHarness or connectors
(The solenoid circuit is open or shorted.)
lShift solenoid valve A
: 4th judgement flicker
SAT014K

SHIFT SOLENOID VALVE B
AT-411
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
SHIFT SOLENOID VALVE BPFP:31940
DescriptionECS004TW
Shift solenoid valves A and B are turned “ON” or “OFF” by the TCM
in response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. DrivevehicleinD
1®D2®D3position.
SCIA0718E
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
12 L/YShift solenoid
valve BWhen shift solenoid valve B oper-
ates.
(When driving in “D
1”or“D2”.)Battery voltage
When shift solenoid valve B does not
operate.
(When driving in “D
3”or“D4”.)0V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: SHIFT SOLENOID/VB
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.
lHarness or connectors
(The solenoid circuit is open or shorted.)
lShift solenoid valve B
: 5th judgement flicker
SAT014K

AT-416
[ALL]
OVERRUNCLUTCHSOLENOIDVALVE
OVERRUN CLUTCH SOLENOID VALVE
PFP:31940
DescriptionECS004U0
The overrun clutch solenoid valve is activated by the TCM in
response to signals sent from the inhibitor switch, overdrive control
switch, vehicle speed and throttle position sensors. The overrun
clutch operation will then be controlled.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. Drive vehicle under the following conditions:
Selector lever in “D” position, overdrive control switch in “OFF”
position and vehicle speed higher than 10 km/h (6 MPH).
SCIA0718E
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
20 L/BOverrun clutch
solenoid valveWhen overrun clutch solenoid valve
operates.Battery voltage
When overrun clutch solenoid valve
does not operate.0V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: OVERRUN CLUTCH S/V
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.
lHarness or connectors
(The solenoid circuit is open or shorted.)
lOverrun clutch solenoid valve
: 6th judgement flicker
SAT014K

TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-421
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
TORQUE CONVERTER CLUTCH SOLENOID VALVEPFP:31940
DescriptionECS0 04 U4
The torque converter clutch solenoid valve is activated, with the gear
in “D
4”, by the TCM in response to signals sent from the vehicle
speed and throttle position sensors. Lock-up piston operation will
then be controlled.
Lock-up operation, however, is prohibited when A/T fluid tempera-
ture is too low.
When the accelerator pedal is depressed (less than 2/8) in lock-up
condition, the engine speed should not change abruptly. If there is a
big jump in engine speed, there is no lock-up.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. DrivevehicleinD
1®D2®D3®D4®D4lock-up position.
SCIA0718E
Monitor item Condition Specification
Torque converter clutch solenoid valve
dutyLock-up “OFF”
¯
Lock-up “ON”Approximately 4%
¯
Approximately 94%
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
3GY/RTorque converter
clutch solenoid
valveWhen A/T performs lock-up. 8 - 15V
When A/T does not perform lock-up. 0V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: T/C CLUTCH SOL/V
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.
lHarness or connectors
(The solenoid circuit is open or shorted.)
lT/C clutch solenoid valve
: 7th judgement flicker
SAT014K

AT-426
[ALL]
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE)
PFP:31940
DescriptionECS004U8
The A/T fluid temperature sensor detects the A/T fluid temperature
and sends a signal to the TCM.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
SCIA0735E
SAT021J
Monitor item Condition Specification (Approximately)
A/T fluid temperature sensorCold [20°C(68°F)]
¯
Hot [80°C(176°F)]1.5V
¯
0.5V2.5 kW
¯
0.3 kW
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
10 BR/W Power source
orWhen turning ignition switch to “ON”. Battery voltage
When turning ignition switch to
“OFF”.0V
19 BR/W Power source Same as No. 10
28 R/BPower source
(Memory back-up)
orWhen turning ignition switch to
“OFF”.Battery voltage
When turning ignition switch to “ON”. Battery voltage
42 BGround
(A/T fluid tempera-
ture sensor)———
47 BRA/T fluid tempera-
ture sensorWhen ATF temperature is 20°C
(68°F).1.5V
When ATF temperature is 80°C
(176°F).0.5V

BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)
AT-427
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
ON BOARD DIAGNOSIS LOGIC
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 10 km/h
(6 MPH), throttle opening greater than 1/8 of the full open posi-
tion, engine speed higher than 450 rpm and driving for more
than 10 minutes.
Without CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 10 km/h
(6 MPH), throttle opening greater than 1/8 of the full open posi-
tion, engine speed higher than 450 rpm and driving for more
than 10 minutes.
3. Perform self-diagnosis.
Refer to “SELF-DIAGNOSTIC PROCEDURE (Without CON-
SULT-II)”,AT- 4 2 7 , "
SELF-DIAGNOSIS CODE CONFIRMATION
PROCEDURE".
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: BATT/FLUID TEMP SEN
TCM receives an excessively low or high
voltage from the sensor.
lHarness or connectors
(The sensor circuit is open or shorted.)
lA/T fluid temperature sensor
: 8th judgement flicker
SAT014K
SCIA0702E

AT-428
[ALL]
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)

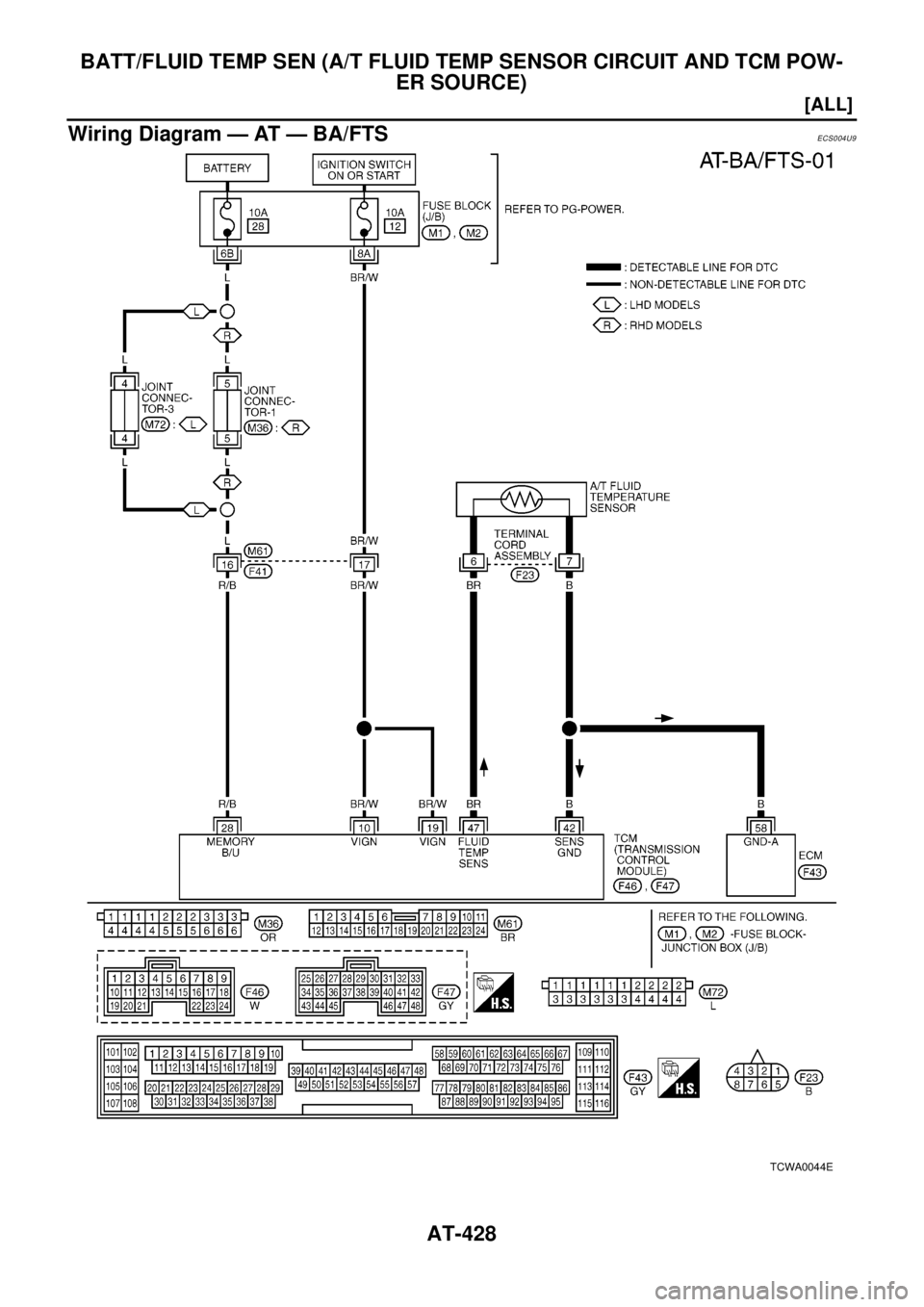

Wiring Diagram — AT — BA/FTS
ECS004U9
TCWA0044E
