2003 NISSAN X-TRAIL sensor

AT-386
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

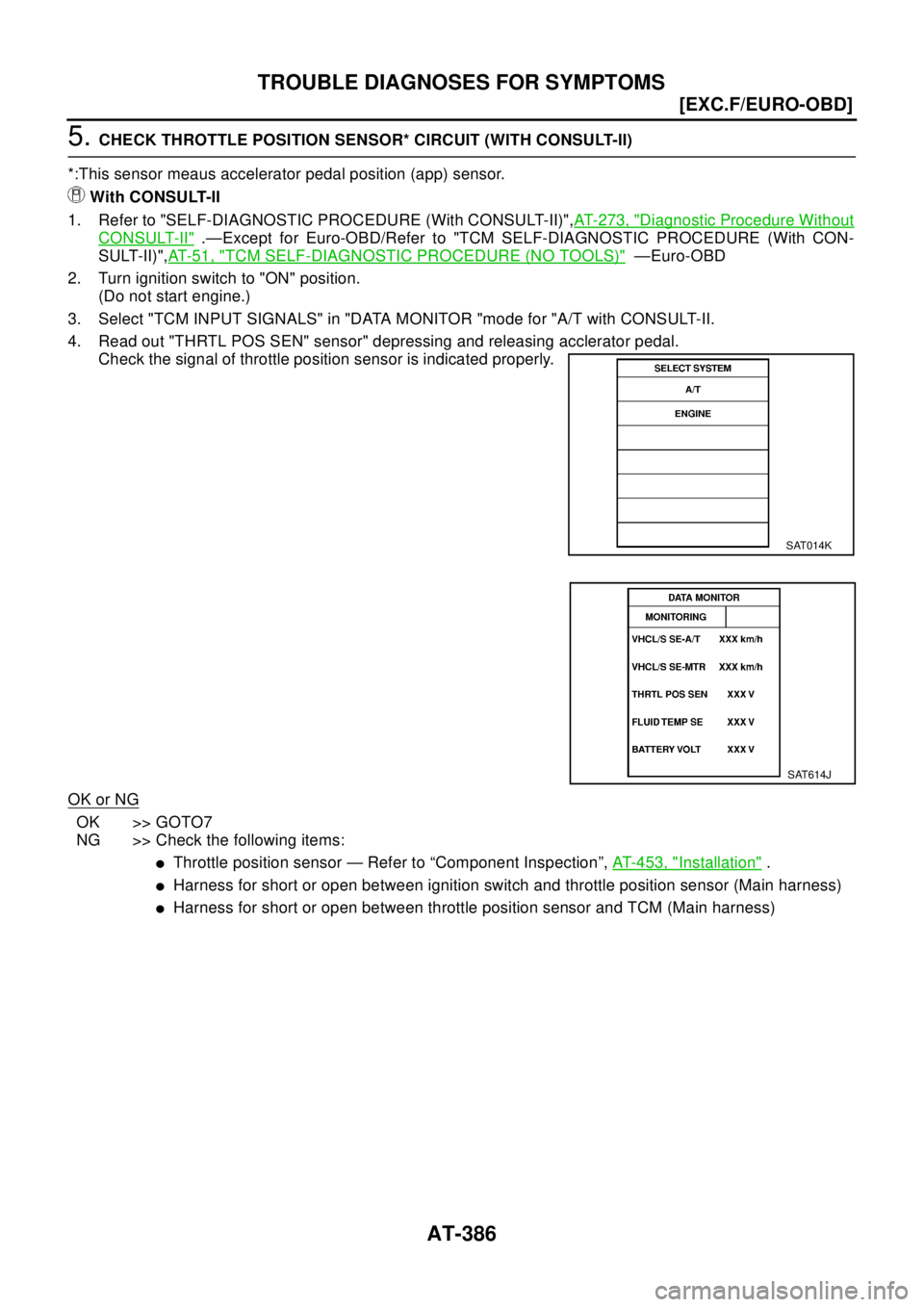

5.CHECK THROTTLE POSITION SENSOR* CIRCUIT (WITH CONSULT-II)
*:This sensor meaus accelerator pedal position (app) sensor.
With CONSULT-II
1. Refer to "SELF-DIAGNOSTIC PROCEDURE (With CONSULT-II)",AT-273, "
Diagnostic Procedure Without
CONSULT-II".—Except for Euro-OBD/Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (With CON-
SULT-II)",AT - 5 1 , "
TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)"—Euro-OBD
2. Turn ignition switch to "ON" position.
(Do not start engine.)
3. Select "TCM INPUT SIGNALS" in "DATA MONITOR "mode for "A/T with CONSULT-II.
4. Read out "THRTL POS SEN" sensor" depressing and releasing acclerator pedal.
Check the signal of throttle position sensor is indicated properly.
OK or NG
OK >> GOTO7
NG >> Check the following items:
lThrottle position sensor — Refer to “Component Inspection”,AT-453, "Installation".
lHarness for short or open between ignition switch and throttle position sensor (Main harness)
lHarness for short or open between throttle position sensor and TCM (Main harness)
SAT014K
SAT614J

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-387
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

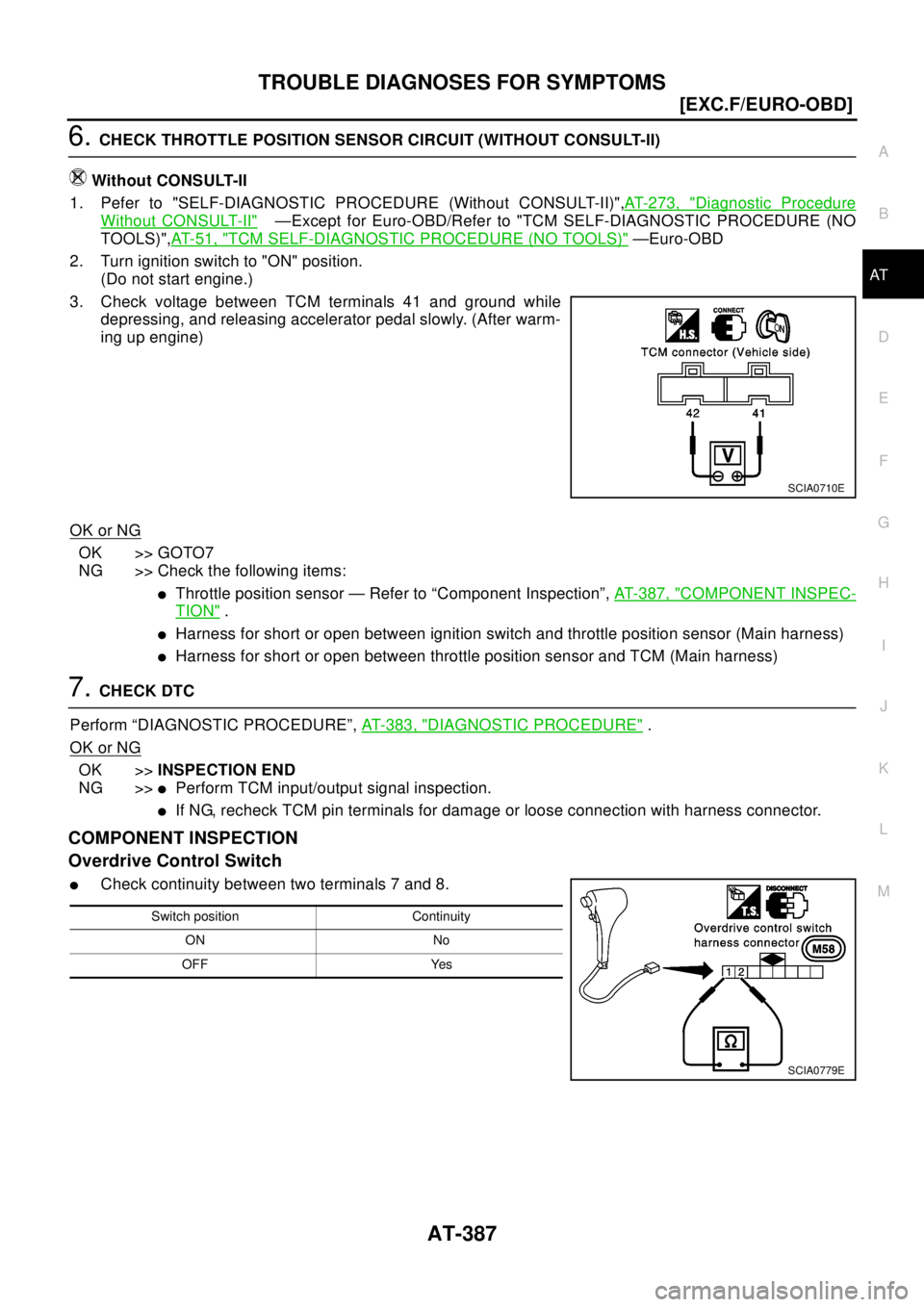

6.CHECK THROTTLE POSITION SENSOR CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Pefer to "SELF-DIAGNOSTIC PROCEDURE (Without CONSULT-II)",AT-273, "
Diagnostic Procedure
Without CONSULT-II"—Except for Euro-OBD/Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO
TOOLS)",AT-51, "
TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)"—Euro-OBD
2. Turn ignition switch to "ON" position.
(Do not start engine.)
3. Check voltage between TCM terminals 41 and ground while
depressing, and releasing accelerator pedal slowly. (After warm-
ingupengine)
OK or NG
OK >> GOTO7
NG >> Check the following items:
lThrottle position sensor — Refer to “Component Inspection”,AT-387, "COMPONENT INSPEC-
TION".
lHarness for short or open between ignition switch and throttle position sensor (Main harness)
lHarness for short or open between throttle position sensor and TCM (Main harness)
7.CHECK DTC
Perform “DIAGNOSTIC PROCEDURE”,AT-383, "
DIAGNOSTIC PROCEDURE".
OK or NG
OK >>INSPECTION END
NG >>
lPerform TCM input/output signal inspection.
lIf NG, recheck TCM pin terminals for damage or loose connection with harness connector.
COMPONENT INSPECTION
Overdrive Control Switch
lCheck continuity between two terminals 7 and 8.
SCIA0710E
Switch position Continuity
ON No
OFF Yes
SCIA0779E

AT-388
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

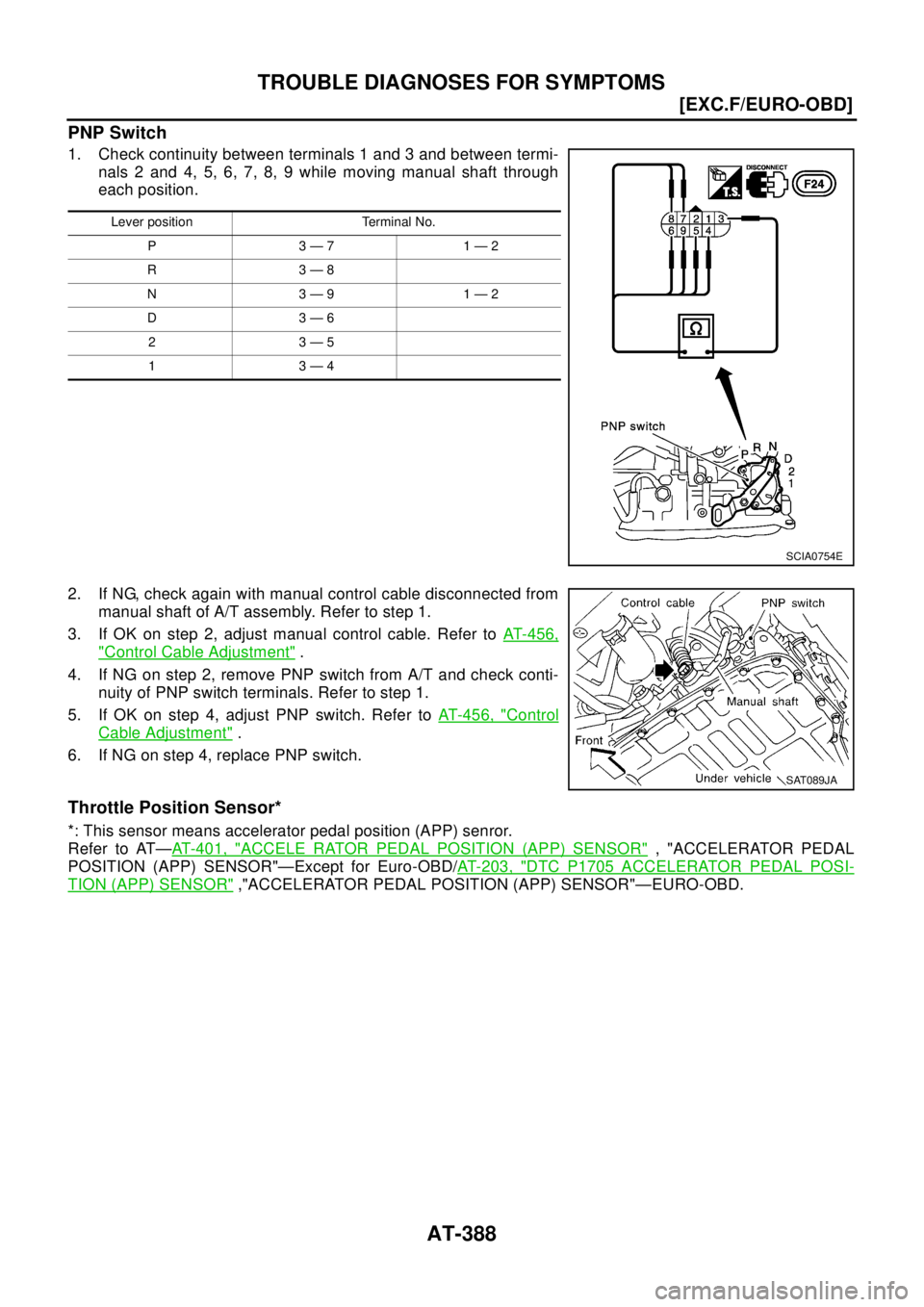

PNP Switch
1. Check continuity between terminals 1 and 3 and between termi-
nals 2 and 4, 5, 6, 7, 8, 9 while moving manual shaft through
each position.
2. If NG, check again with manual control cable disconnected from
manual shaft of A/T assembly. Refer to step 1.
3. If OK on step 2, adjust manual control cable. Refer toAT-456,
"Control Cable Adjustment".
4. If NG on step 2, remove PNP switch from A/T and check conti-
nuity of PNP switch terminals. Refer to step 1.
5. If OK on step 4, adjust PNP switch. Refer toAT- 4 5 6 , "
Control
Cable Adjustment".
6. If NG on step 4, replace PNP switch.
Throttle Position Sensor*
*: This sensor means accelerator pedal position (APP) senror.
Refer to AT—AT - 4 0 1 , "
ACCELE RATOR PEDAL POSITION (APP) SENSOR", "ACCELERATOR PEDAL
POSITION (APP) SENSOR"—Except for Euro-OBD/AT-203, "
DTC P1705 ACCELERATOR PEDAL POSI-
TION (APP) SENSOR","ACCELERATOR PEDAL POSITION (APP) SENSOR"—EURO-OBD.
Lever position Terminal No.
P3—71—2
R3—8
N3—91—2
D3—6
23—5
13—4
SCIA0754E
SAT089JA

AT-392
[ALL]

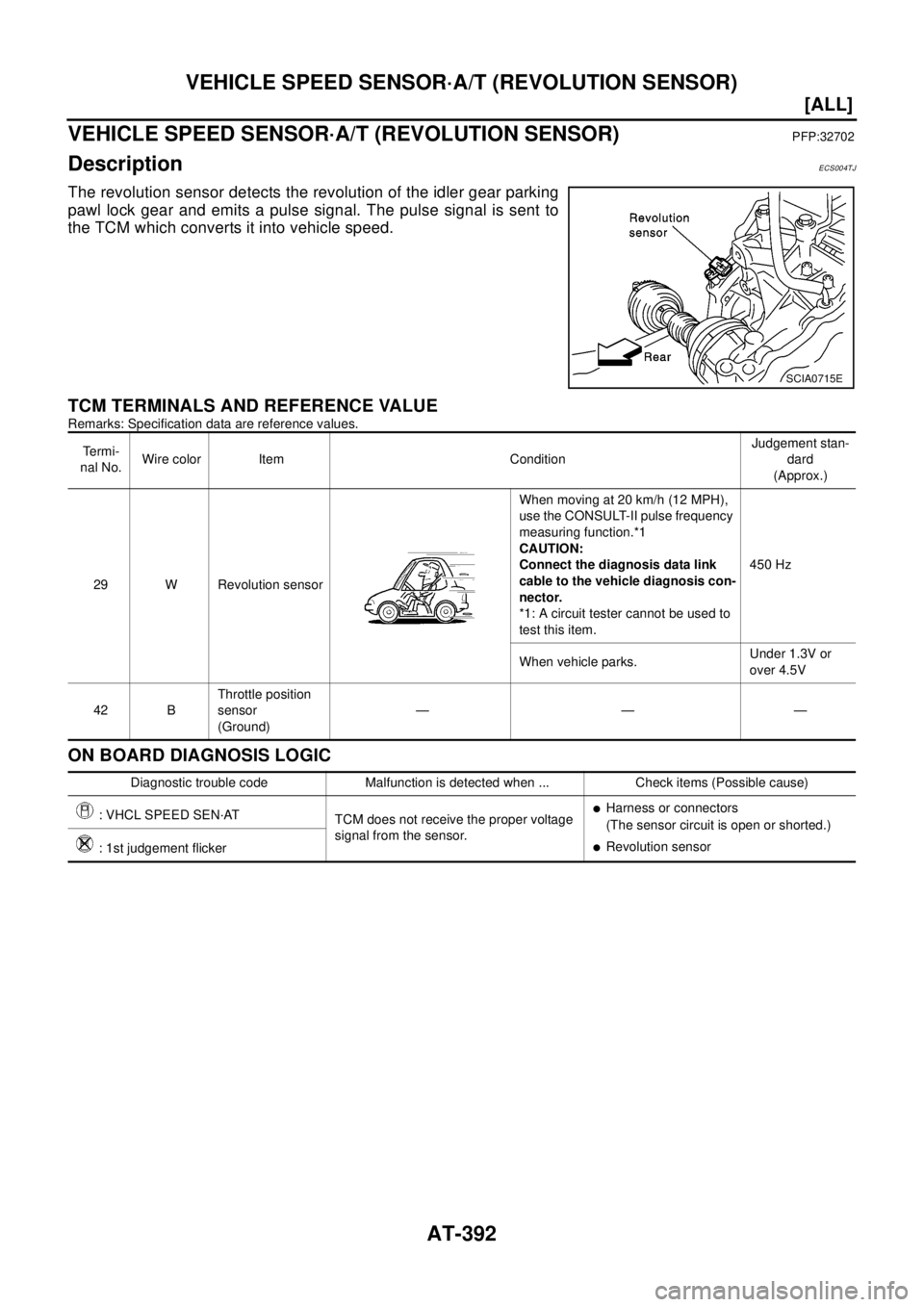

VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)
VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)
PFP:32702
DescriptionECS004TJ
The revolution sensor detects the revolution of the idler gear parking
pawl lock gear and emits a pulse signal. The pulse signal is sent to
the TCM which converts it into vehicle speed.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SCIA0715E
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
29 W Revolution sensorWhen moving at 20 km/h (12 MPH),
use the CONSULT-II pulse frequency
measuring function.*1
CAUTION:
Connect the diagnosis data link
cable to the vehicle diagnosis con-
nector.
*1: A circuit tester cannot be used to
test this item.450 Hz
When vehicle parks.Under 1.3V or
over 4.5V
42 BThrottle position
sensor
(Ground)———
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: VHCL SPEED SEN·AT
TCM does not receive the proper voltage
signal from the sensor.
lHarness or connectors
(The sensor circuit is open or shorted.)
lRevolution sensor
: 1st judgement flicker

VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)
AT-393
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

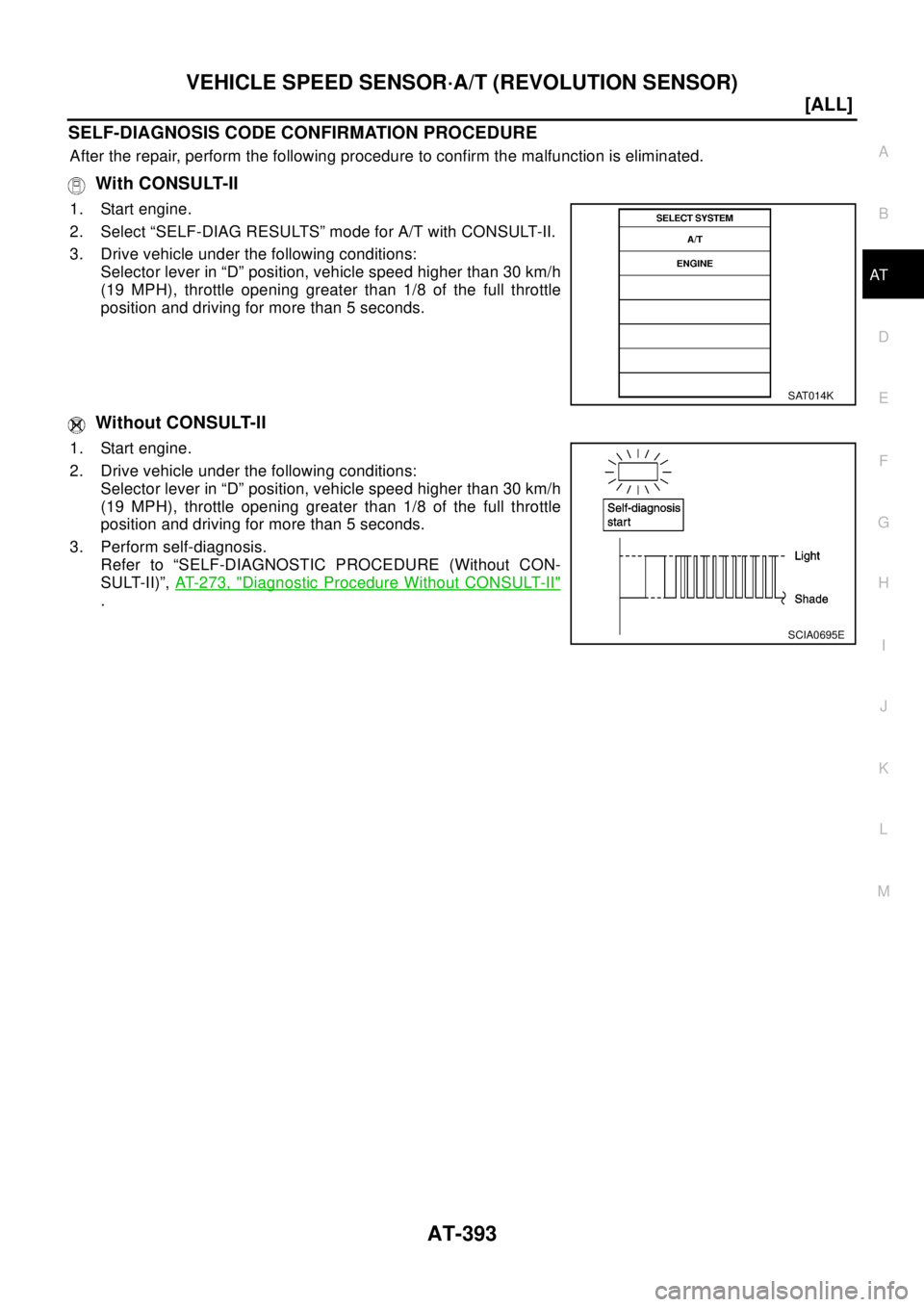

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 30 km/h
(19 MPH), throttle opening greater than 1/8 of the full throttle
position and driving for more than 5 seconds.
Without CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 30 km/h
(19 MPH), throttle opening greater than 1/8 of the full throttle
position and driving for more than 5 seconds.
3. Perform self-diagnosis.
Refer to “SELF-DIAGNOSTIC PROCEDURE (Without CON-
SULT-II)”,AT-273, "
Diagnostic Procedure Without CONSULT-II"
.
SAT014K
SCIA0695E

AT-394
[ALL]
VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)

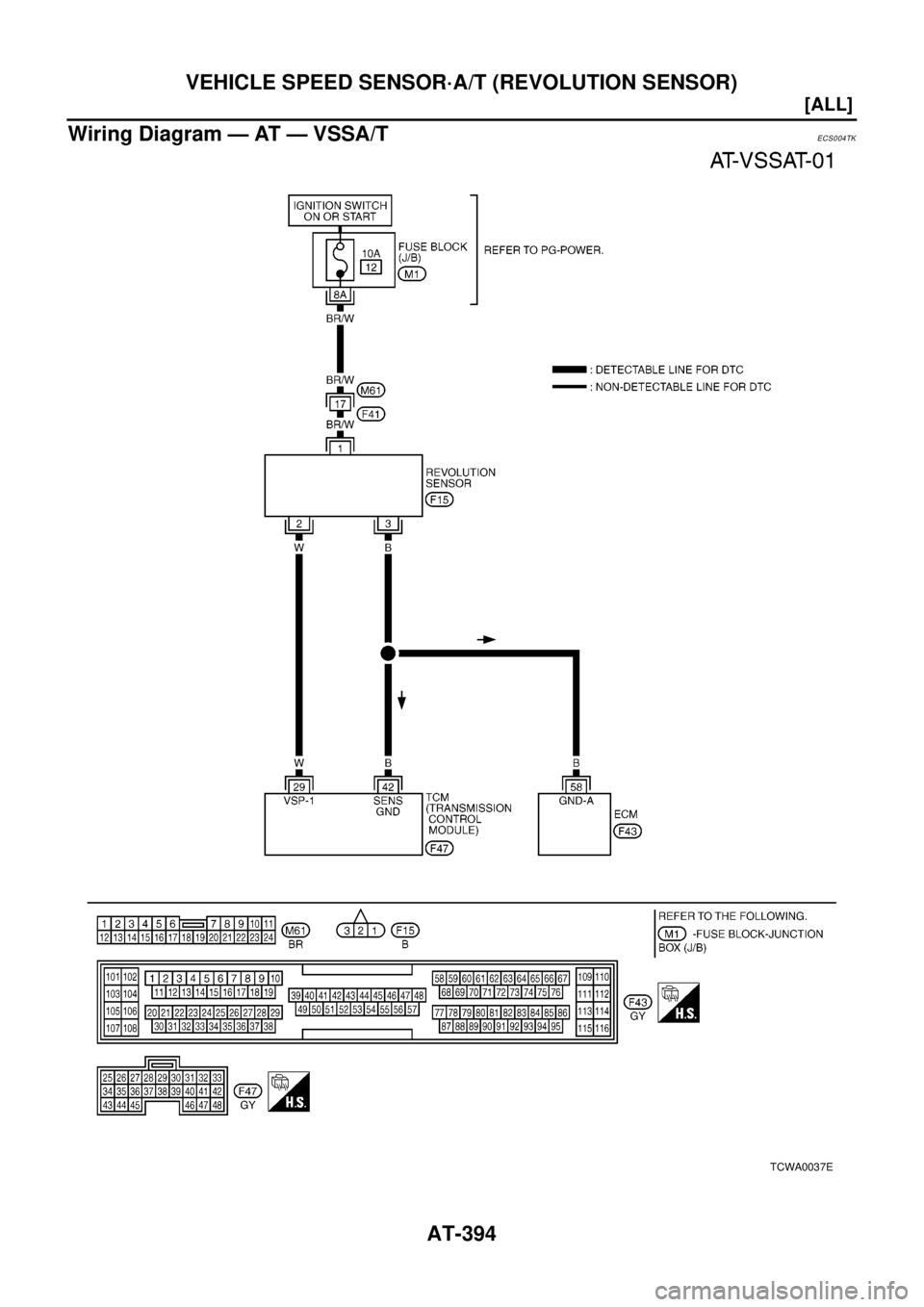

Wiring Diagram — AT — VSSA/T
ECS004TK
TCWA0037E

VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)
AT-395
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

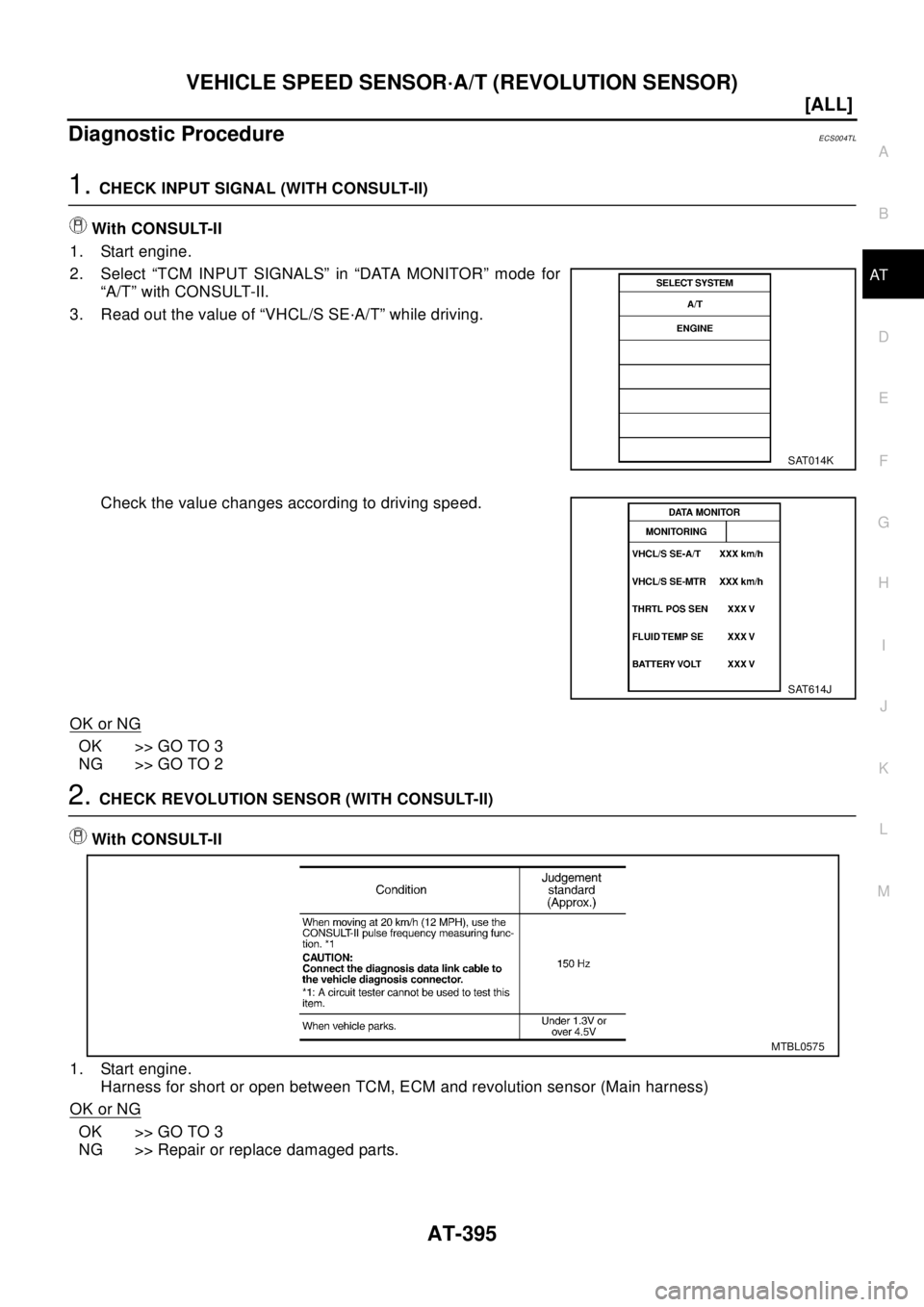

Diagnostic ProcedureECS004TL
1.CHECK INPUT SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “VHCL/S SE·A/T” while driving.
Check the value changes according to driving speed.
OK or NG
OK >> GO TO 3
NG >> GO TO 2
2.CHECK REVOLUTION SENSOR (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
Harness for short or open between TCM, ECM and revolution sensor (Main harness)
OK or NG
OK >> GO TO 3
NG >> Repair or replace damaged parts.
SAT014K
SAT614J
MTBL0575

AT-396
[ALL]
VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)
3.CHECK DTC
Perform Self-diagnosis Code confirmation procedure,AT-393, "
SELF-DIAGNOSIS CODE CONFIRMATION
PROCEDURE".
OK or NG
OK >>INSPECTION END
NG >> GO TO 4
4.CHECK TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
