TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-343
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Torque converter is not locked up. ON vehicle1. Throttle position sensor (Accelerator
pedal position (App) sensor) AdjustmentEC-154, "
DTC P0121 APP
SENSOR"
2. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-392,
"VEHICLE
SPEED
SENSOR·A/
T(REVO-
LUTION
SENSOR)",
AT-397,
"DTC VEHI-
CLE
SPEED
SENSOR
MTR"
AT-142,
"DTC P0720
VEHICLE
SPEED
SENSOR·A/
T(REVO-
LUTION
SENSOR)",
AT-222,
"DTC VEHI-
CLE SPEED
SENSOR
MTR"
3. PNP switch adjustmentAT-456,
"Park/Neu-
tral Position
(PNP)
Switch
Adjustment"
¬
4. Engine speed signalAT-432,
"ENGINE
SPEED
SIGNAL"
AT-147,
"DTC P0725
ENGINE
SPEED
SIGNAL"
5. A/T fluid temp sen circ and TCM pow sourAT-426,
"BATT/
FLUID
TEMP SEN
(A/T FLUID
TEMP SEN-
SOR CIR-
CUIT AND
TCM
POWER
SOURCE)"
AT-216,
"DTC BATT/
FLUID
TEMP SEN
(A/T FLUID
TEMP SEN-
SOR CIR-
CUIT AND
TCM
POWER
SOURCE)"
6. Line pressure testAT-290,"Line Pres-
sure Test"
¬
7. Torque converter clutch solenoid valveAT-421,
"TORQUE
CON-
VERTER
CLUTCH
SOLENOID
VA LV E"
AT-181,
"DTC P0740
TORQUE
CON-
VERTER
CLUTCH
SOLENOID
VA LV E"
8. Control valve assemblyAT-454,
"Control
Va lv e
Assembly
and Accu-
mulators"
¬ Symptom Condition Diagnostic ItemReference Page
Except for
Euro-OBDEURO-OBD

AT-344
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Torque converter is not locked up. OFF vehicle 9. Torque converterAT- 4 6 5 ,
"Locations
of Adjusting
Shims, Nee-
dle Bear-
ings, Thrust
Washers
and Snap
Rings"
¬
Torque converter clutch piston slip.ON vehicle1. Fluid levelAT- 2 8 6 ,
"FLUID
LEVEL
CHECK"
¬
2. Throttle position sensor (Accelerator
pedal position (App) sensor) AdjustmentEC-154, "
DTC P0121 APP
SENSOR"
3. Line pressure testAT- 2 9 0 ,"Line Pres-
sure Test"
¬
4. Torque converter clutch solenoid valveAT- 4 2 1 ,
"TORQUE
CON-
VERTER
CLUTCH
SOLENOID
VA LV E"
AT- 1 8 1 ,
"DTC P0740
TORQUE
CON-
VERTER
CLUTCH
SOLENOID
VA LV E"
5. Line pressure solenoid valveAT- 4 3 6 ,
"LINE
PRES-
SURE
SOLENOID
VA LV E"
AT- 1 8 6 ,
"DTC P0745
LINE PRES-
SURE
SOLENOID
VA LV E"
6. Control valve assemblyAT- 4 5 4 ,
"Control
Va l v e
Assembly
and Accu-
mulators"
¬
OFF vehicle 7. Torque converterAT- 4 6 5 ,
"Locations
of Adjusting
Shims, Nee-
dle Bear-
ings, Thrust
Washers
and Snap
Rings"
¬ Symptom Condition Diagnostic ItemReference Page
Except for
Euro-OBDEURO-OBD

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-345
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Lock-up point is extremely high or
low.
AT- 3 7 4 , "
12. A/T Does Not Perform
Lock-up"
ON vehicle1. Throttle position sensor (Accelerator
pedal position (App) sensor) AdjustmentEC-154, "
DTC P0121 APP
SENSOR"
2. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-392,
"VEHICLE
SPEED
SENSOR·A/
T(REVO-
LUTION
SENSOR)",
AT-397,
"DTC VEHI-
CLE
SPEED
SENSOR
MTR"
AT-142,
"DTC P0720
VEHICLE
SPEED
SENSOR·A/
T(REVO-
LUTION
SENSOR)",
AT-222,
"DTC VEHI-
CLE SPEED
SENSOR
MTR"
3. Torque converter clutch solenoid valveAT-421,
"TORQUE
CON-
VERTER
CLUTCH
SOLENOID
VA LV E"
AT-181,
"DTC P0740
TORQUE
CON-
VERTER
CLUTCH
SOLENOID
VA LV E"
4. Control valve assemblyAT-454,
"Control
Va lv e
Assembly
and Accu-
mulators"
¬ Symptom Condition Diagnostic ItemReference Page
Except for
Euro-OBDEURO-OBD

AT-346
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
A/T does not shift to “D4”whendriv-
ing with overdrive control switch
“ON”.ON vehicle1. Throttle position sensor (Accelerator
pedal position (App) sensor) AdjustmentEC-154, "
DTC P0121 APP
SENSOR"
2. PNP switch adjustmentAT- 4 5 6 ,
"Park/Neu-
tral Position
(PNP)
Switch
Adjustment"
¬
3. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT- 3 9 2 ,
"VEHICLE
SPEED
SENSOR·A/
T(REVO-
LUTION
SENSOR)",
AT- 3 9 7 ,
"DTC VEHI-
CLE
SPEED
SENSOR
MTR"
AT- 1 4 2 ,
"DTC P0720
VEHICLE
SPEED
SENSOR·A/
T(REVO-
LUTION
SENSOR)",
AT- 2 2 2 ,
"DTC VEHI-
CLE SPEED
SENSOR
MTR"
4. Shift solenoid valve AAT- 4 0 6 ,"SHIFT
SOLENOID
VA LV E A"
AT- 1 9 3 ,
"DTC P0750
SHIFT
SOLENOID
VA LV E A"
5. Overrun clutch solenoid valveAT- 4 1 6 ,
"OVER-
RUN
CLUTCH
SOLENOID
VA LV E"
AT- 2 0 8 ,
"DTC P1760
OVERRUN
CLUTCH
SOLENOID
VA LV E"
6. Control valve assemblyAT- 4 5 4 ,
"Control
Va l v e
Assembly
and Accu-
mulators"
¬
7. A/T fluid temp sen circ and TCM pow sourAT- 4 2 6 ,
"BATT/
FLUID
TEMP SEN
(A/T FLUID
TEMP SEN-
SOR CIR-
CUIT AND
TCM
POWER
SOURCE)"
AT- 2 1 6 ,
"DTC BATT/
FLUID
TEMP SEN
(A/T FLUID
TEMP SEN-
SOR CIR-
CUIT AND
TCM
POWER
SOURCE)"
8. Line pressure testAT- 2 9 0 ,"Line Pres-
sure Test"
¬ Symptom Condition Diagnostic ItemReference Page
Except for
Euro-OBDEURO-OBD

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-349
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
20 L/BOverrun clutch
solenoid valveWhen overrun clutch solenoid valve
operates.Battery voltage
When overrun clutch solenoid valve
does not operate.0V
22 L/OROverdrive control
switch
andWhen setting overdrive control
switch in “ON” positionBattery voltage
When setting overdrive control
switch in “OFF” position0V
25 B/W Ground — — 0V
26 BR/YPNP switch “1”
position
andWhen setting selector lever to “1”
position.Battery voltage
When setting selector lever to other
positions.0V
27 LPNP switch “2”
positionWhen setting selector lever to “2”
position.Battery voltage
When setting selector lever to other
positions.0V
28 R/BPower source
(Memory back-up)
orWhen turning ignition switch to
“OFF”.Battery voltage
When turning ignition switch to “ON”. Battery voltage
29 W Revolution sensorWhen moving at 20 km/h (12 MPH),
use the CONSULT-II pulse frequency
measuring function.*1
CAUTION:
Connect the diagnosis data link
cable to the vehicle diagnosis
connector.
*1: A circuit tester cannot be used to
test this item.450 Hz
When vehicle parks.Under 1.3V or
over 4.5V
30 *3 G/B CONSULT- II (RX) — —
31 *3 GY/L CONSULT- II (TX) — —
32 *2 RThrottle position
sensor
(Power source)
orWhenturningignitionswitchto"ON". 4.5-5.5V
When turning ignition switch to
"OFF".0V
34 W/GPNP switch “D”
position
andWhen setting selector lever to “D”
position.Battery voltage
When setting selector lever to other
positions.0V
35 L/WPNP switch “R”
positionWhen setting selector lever to “R”
position.Battery voltage
When setting selector lever to other
positions.0V
36 GPNP switch “N” or
“P” positionWhen setting selector lever to “N” or
“P” position.Battery voltage
When setting selector lever to other
positions.0V
39 *2 L/OREngine speed sig-
nal
andEC-XX, "ECM INSPECTION
TABLE".— Te r m i -
nal No.Wire color Item ConditionJudgementstan-
dard(Approx.)

AT-350
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
*2: These terminals are connected to the ECM.
*3: These terminals are connected to the data link connector.40 L/BVehicle speed
sensorWhen moving vehicle at 2 to 3 km/h
(1 to 2 MPH) for 1 m (3 ft) or more.Vo ltag e v a rie s
between less
than 0V and
more than 4.5V
41 W/RThrottle position
sensorWhen depressing accelerator pedal
slowly after warming up engine.
(Voltage rises gradually in response
to throttle position.)Fully-closed
throttle: 0.5V
Fully-open throt-
tle: 4V
42 BThrottle position
sensor
(Ground)———
45 P Stop lamp switchWhen depressing brake pedal. Battery voltage
When releasing brake pedal. 0V
47 BRA/T fluid tempera-
ture sensorWhen ATF temperature is 20°C
(68°F).1.5V
When ATF temperature is 80°C
(176°F).0.5V
48 B/W Ground — — — Te r m i -
nal No.Wire color Item ConditionJudgementstan-
dard(Approx.)

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-355
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

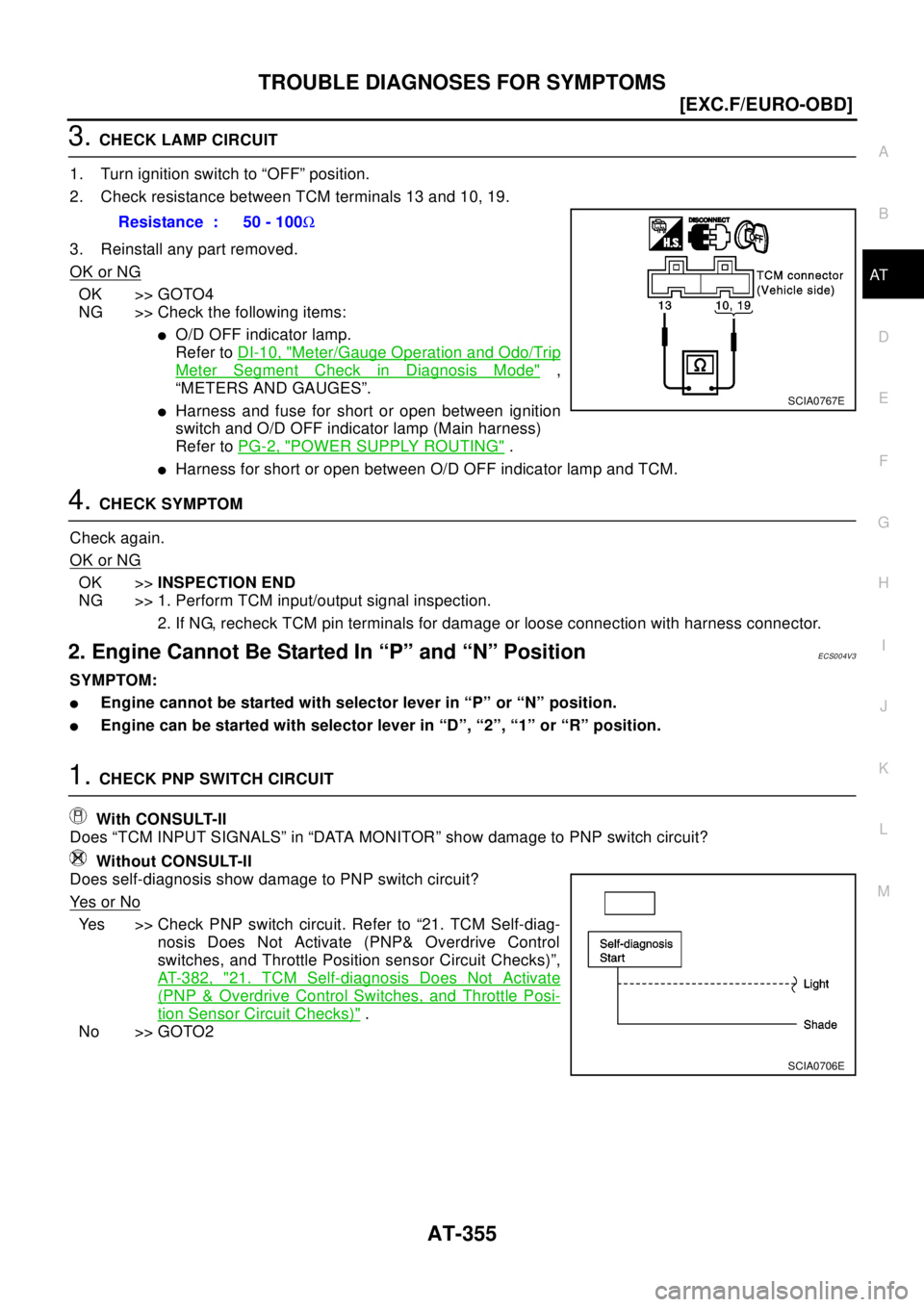

3.CHECK LAMP CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Check resistance between TCM terminals 13 and 10, 19.
3. Reinstall any part removed.
OK or NG
OK >> GOTO4
NG >> Check the following items:
lO/D OFF indicator lamp.
Refer toDI-10, "
Meter/Gauge Operation and Odo/Trip
Meter Segment Check in Diagnosis Mode",
“METERS AND GAUGES”.
lHarness and fuse for short or open between ignition
switch and O/D OFF indicator lamp (Main harness)
Refer toPG-2, "
POWER SUPPLY ROUTING".
lHarness for short or open between O/D OFF indicator lamp and TCM.
4.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
2. Engine Cannot Be Started In “P” and “N” PositionECS004V3
SYMPTOM:
lEngine cannot be started with selector lever in “P” or “N” position.
lEngine can be started with selector lever in “D”, “2”, “1” or “R” position.
1.CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Wi th ou t C O N S U LT-I I
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to “21. TCM Self-diag-
nosis Does Not Activate (PNP& Overdrive Control
switches, and Throttle Position sensor Circuit Checks)”,
AT-382, "
21. TCM Self-diagnosis Does Not Activate
(PNP & Overdrive Control Switches, and Throttle Posi-
tion Sensor Circuit Checks)".
No >> GOTO2Resistance : 50 - 100W
SCIA0767E
SCIA0706E

AT-356
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
2.CHECK PNP SWITCH INSPECTION
Check for short or open of PNP switch harness connector terminals 1 and 2.
Refer to “21. TCM Self-diagnosis Does Not Activate (PNP& Over-
drive Control switches, and Throttle Position sensor Circuit
Checks)”,AT-382, "
21. TCM Self-diagnosis Does Not Activate (PNP
& Overdrive Control Switches, and Throttle Position Sensor Circuit
Checks)".
OK or NG
OK >> GOTO3
NG >> Repair or replace PNP switch.
3.CHECK STARTING SYSTEM
Check starting system. Refer toSC-21, "
STARTING SYSTEM".
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
3. In “P” Position, Vehicle Moves Forward Or Backward When PushedECS004V4
SYMPTOM:
Vehicle moves when it is pushed forward or backward with selector lever in “P” position.
1.CHECK PARKING COMPONENTS
Check parking components. Refer toAT-461, "
OVERHAUL".
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
4. In “N” Position, Vehicle MovesECS004V5
SYMPTOM:
SCIA0768E
SAT282F
