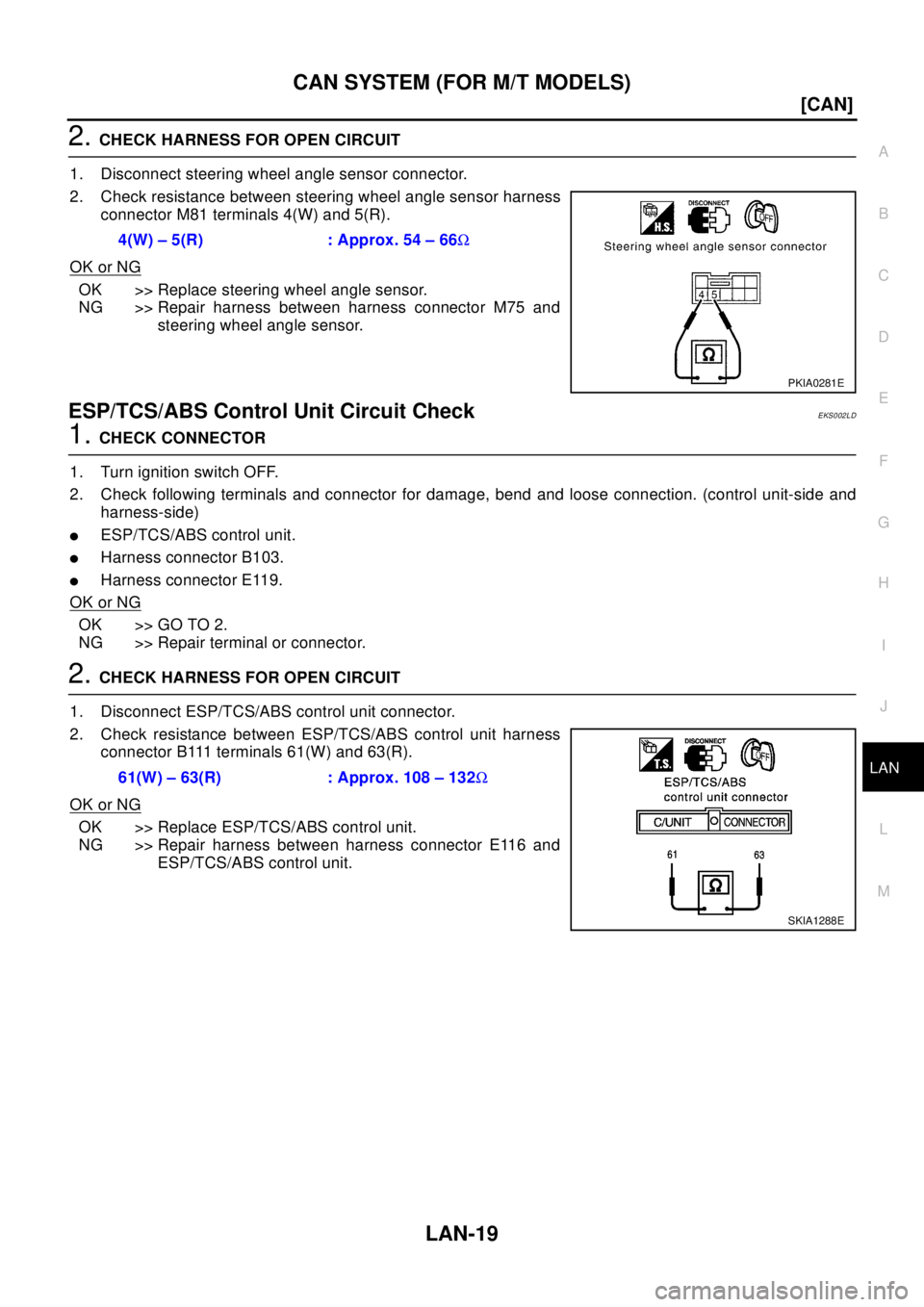

CAN SYSTEM (FOR M/T MODELS)
LAN-19
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering wheel angle sensor connector.
2. Check resistance between steering wheel angle sensor harness
connector M81 terminals 4(W) and 5(R).
OK or NG
OK >> Replace steering wheel angle sensor.
NG >> Repair harness between harness connector M75 and
steering wheel angle sensor.
ESP/TCS/ABS Control Unit Circuit CheckEKS002LD
1.CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Check following terminals and connector for damage, bend and loose connection. (control unit-side and
harness-side)
lESP/TCS/ABS control unit.
lHarness connector B103.
lHarness connector E119.
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ESP/TCS/ABS control unit connector.
2. Check resistance between ESP/TCS/ABS control unit harness
connector B111 terminals 61(W) and 63(R).
OK or NG
OK >> Replace ESP/TCS/ABS control unit.
NG >> Repair harness between harness connector E116 and
ESP/TCS/ABS control unit. 4(W)–5(R) :Approx.54–66W
PKIA0281E
61(W) – 63(R) : Approx. 108 – 132W
SKIA1288E

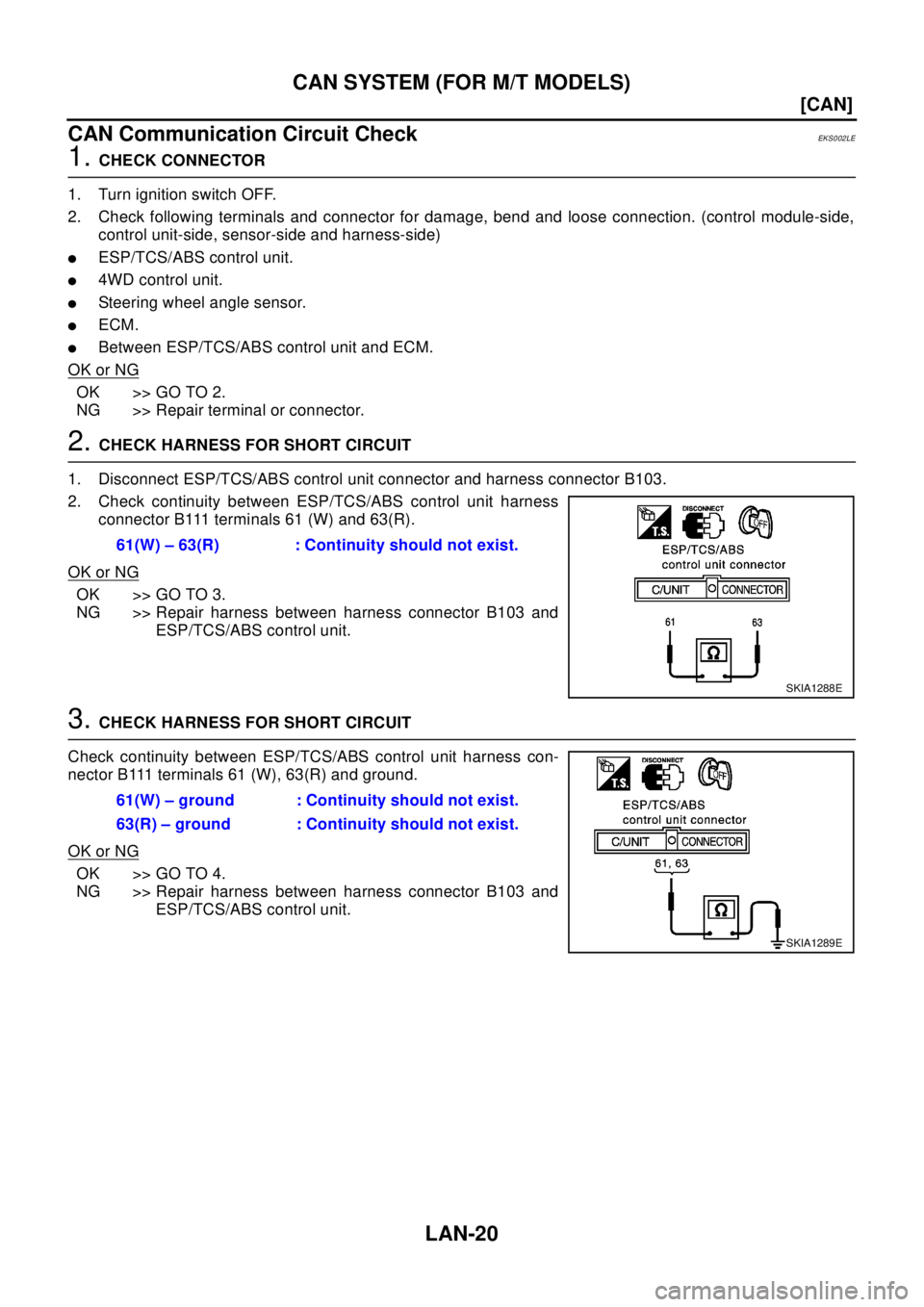

LAN-20
[CAN]
CAN SYSTEM (FOR M/T MODELS)
CAN Communication Circuit Check
EKS002LE
1.CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Check following terminals and connector for damage, bend and loose connection. (control module-side,
control unit-side, sensor-side and harness-side)
lESP/TCS/ABS control unit.
l4WD control unit.
lSteering wheel angle sensor.
lECM.
lBetween ESP/TCS/ABS control unit and ECM.
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2.CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ESP/TCS/ABS control unit connector and harness connector B103.
2. Check continuity between ESP/TCS/ABS control unit harness
connector B111 terminals 61 (W) and 63(R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness between harness connector B103 and
ESP/TCS/ABS control unit.
3.CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ESP/TCS/ABS control unit harness con-
nector B111 terminals 61 (W), 63(R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness between harness connector B103 and
ESP/TCS/ABS control unit. 61(W) – 63(R) : Continuity should not exist.
SKIA1288E
61(W) – ground : Continuity should not exist.
63(R) – ground : Continuity should not exist.
SKIA1289E

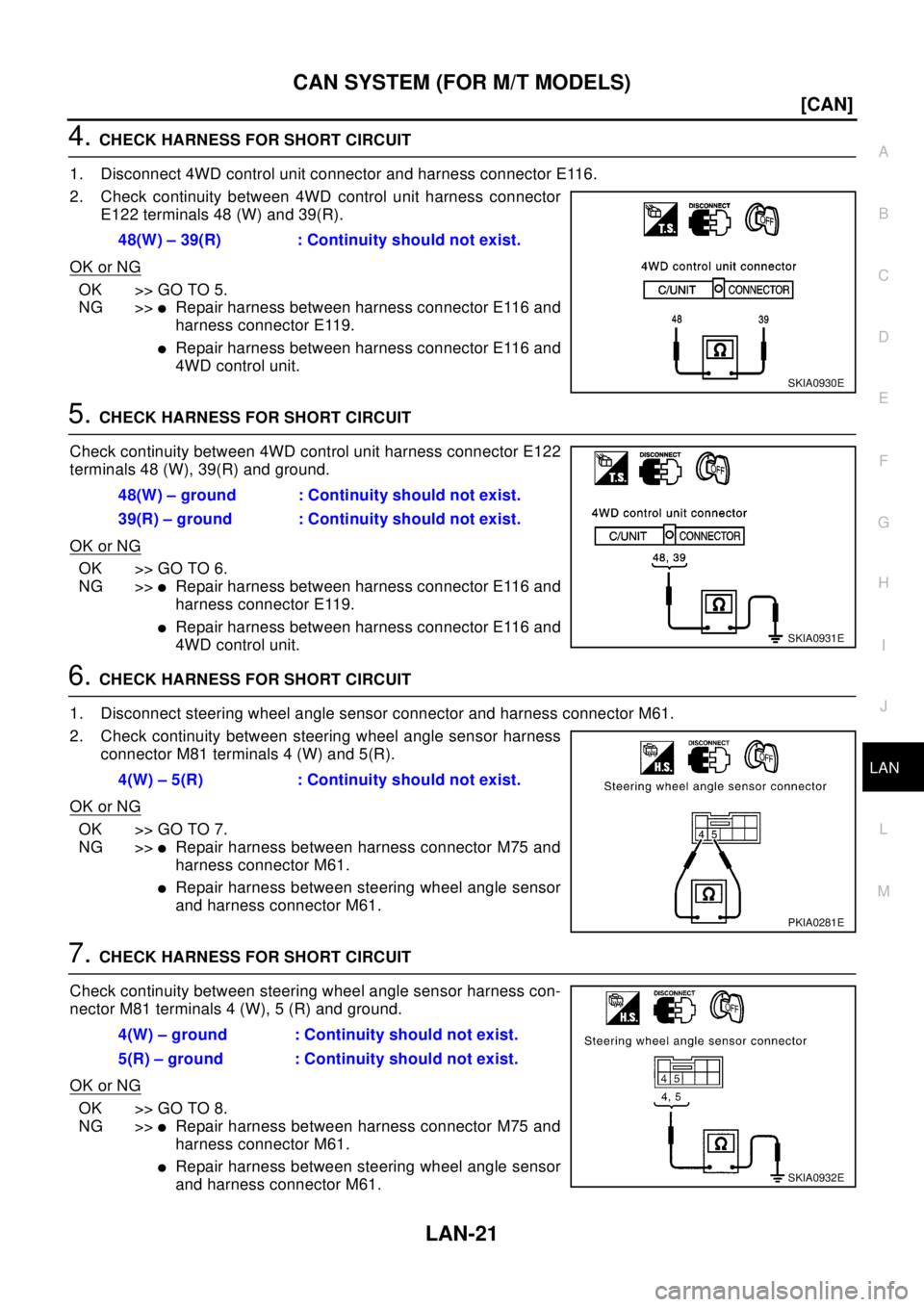

CAN SYSTEM (FOR M/T MODELS)
LAN-21
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
4.CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect 4WD control unit connector and harness connector E116.
2. Check continuity between 4WD control unit harness connector
E122 terminals 48 (W) and 39(R).
OK or NG
OK >> GO TO 5.
NG >>
lRepair harness between harness connector E116 and
harness connector E119.
lRepair harness between harness connector E116 and
4WD control unit.
5.CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between 4WD control unit harness connector E122
terminals 48 (W), 39(R) and ground.
OK or NG
OK >> GO TO 6.
NG >>
lRepair harness between harness connector E116 and
harness connector E119.
lRepair harness between harness connector E116 and
4WD control unit.
6.CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect steering wheel angle sensor connector and harness connector M61.
2. Check continuity between steering wheel angle sensor harness
connector M81 terminals 4 (W) and 5(R).
OK or NG
OK >> GO TO 7.
NG >>
lRepair harness between harness connector M75 and
harness connector M61.
lRepair harness between steering wheel angle sensor
and harness connector M61.
7.CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between steering wheel angle sensor harness con-
nector M81 terminals 4 (W), 5 (R) and ground.
OK or NG
OK >> GO TO 8.
NG >>
lRepair harness between harness connector M75 and
harness connector M61.
lRepair harness between steering wheel angle sensor
and harness connector M61. 48(W) – 39(R) : Continuity should not exist.
SKIA0930E
48(W) – ground : Continuity should not exist.
39(R) – ground : Continuity should not exist.
SKIA0931E
4(W) – 5(R) : Continuity should not exist.
PKIA0281E
4(W) – ground : Continuity should not exist.
5(R) – ground : Continuity should not exist.
SKIA0932E

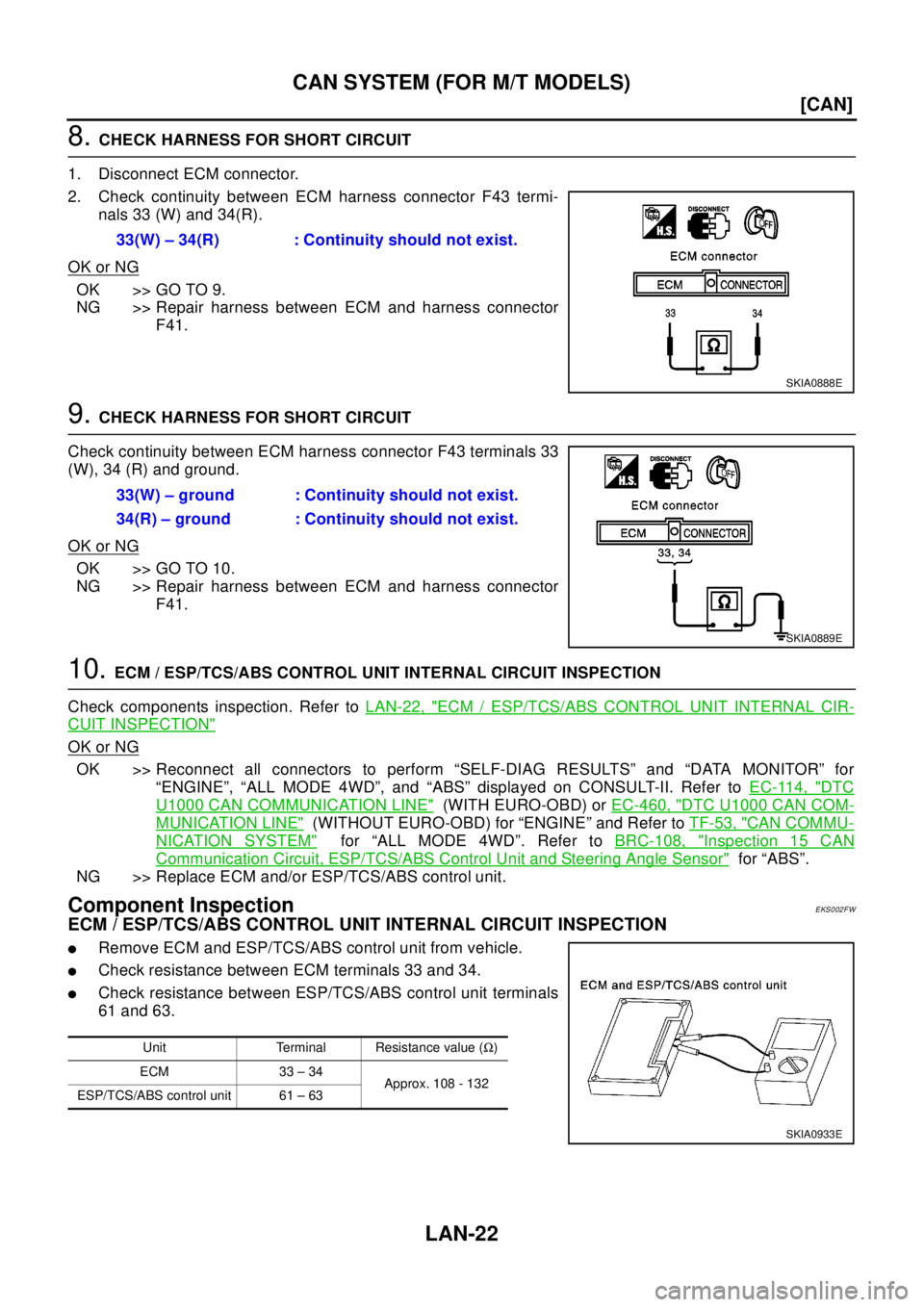

LAN-22
[CAN]
CAN SYSTEM (FOR M/T MODELS)
8.CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ECM connector.
2. Check continuity between ECM harness connector F43 termi-
nals 33 (W) and 34(R).
OK or NG
OK >> GO TO 9.
NG >> Repair harness between ECM and harness connector
F41.
9.CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ECM harness connector F43 terminals 33
(W), 34 (R) and ground.
OK or NG
OK >> GO TO 10.
NG >> Repair harness between ECM and harness connector
F41.
10.ECM / ESP/TCS/ABS CONTROL UNIT INTERNAL CIRCUIT INSPECTION
Check components inspection. Refer toLAN-22, "
ECM / ESP/TCS/ABS CONTROL UNIT INTERNAL CIR-
CUIT INSPECTION"
OK or NG
OK >> Reconnect all connectors to perform “SELF-DIAG RESULTS” and “DATA MONITOR” for
“ENGINE”, “ALL MODE 4WD”, and “ABS” displayed on CONSULT-II. Refer toEC-114, "
DTC
U1000 CAN COMMUNICATION LINE"(WITH EURO-OBD) orEC-460, "DTC U1000 CAN COM-
MUNICATION LINE"(WITHOUT EURO-OBD) for “ENGINE” and Refer toTF-53, "CAN COMMU-
NICATION SYSTEM"for “ALL MODE 4WD”. Refer toBRC-108, "Inspection 15 CAN
Communication Circuit, ESP/TCS/ABS Control Unit and Steering Angle Sensor"for “ABS”.
NG >> Replace ECM and/or ESP/TCS/ABS control unit.
Component InspectionEKS002FW
ECM / ESP/TCS/ABS CONTROL UNIT INTERNAL CIRCUIT INSPECTION
lRemove ECM and ESP/TCS/ABS control unit from vehicle.
lCheck resistance between ECM terminals 33 and 34.
lCheck resistance between ESP/TCS/ABS control unit terminals
61 and 63.33(W) – 34(R) : Continuity should not exist.
SKIA0888E
33(W) – ground : Continuity should not exist.
34(R) – ground : Continuity should not exist.
SKIA0889E
Unit Terminal Resistance value (W)
ECM 33 – 34
Approx. 108 - 132
ESP/TCS/ABS control unit 61 – 63
SKIA0933E

INTERIOR ROOM LAMP
LT-55
C
D
E
F
G
H
I
J
L
MA
B
LT
INTERIOR ROOM LAMPPFP:26410
System DescriptionEKS003BQ
POWER SUPPLY AND GROUND
Power is supplied at all times:
lthrough 10A fuse [No. 28, located in the fuse block (J/B)]
lto key switch terminal 1 and
lto time control unit terminal 1
lthrough 10A fuse [No. 26, located in the fuse block (J/B)]
lto interior room lamp terminal 1.
When the key is removed from ignition key cylinder, power is interrupted:
lthrough key switch terminal 2
lto time control unit terminal 18.
With the ignition key switch in the ON or START position, power is supplied:
lthrough 10A fuse [No. 5, located in the fuse block (J/B)]
lto time control unit terminal 17.
Ground is supplied:
lthrough body grounds terminals M27 and M70
lto time control unit terminal 16
When the driver side door is opened, ground is supplied:
lthrough body grounds B8 and B18
lto door switch driver side terminal 3
lfrom door switch driver side terminal 2
lto time control unit terminal 30.
When any door (except back door) is opened, ground is supplied:
lthroughcasegroundofeachdoorswitch
lto each door switch terminal 1
lto time control unit terminal 31.
When back door is opende, ground is supplied:
lthrough body ground D53
lto back door switch terminal 1
lto time control unit terminal 31.
When the driver side door is unlocked, the time control unit receives a ground signal:
lthrough body grounds terminals M27 and M70
lto door unlock sensor terminal 2
lfrom door unlock sensor terminal 5
lto time control unit terminal 28.
When a signal, or combination of signals is received by the time control unit, ground is supplied:
lthrough time control unit terminal 26
lto interior room lamp terminal 2.
With power and ground supplied, the interior room lamp illuminates.
SWITCH OPERATION
When interior room lamp switch is ON, ground is supplied:
lthrough case grounds of interior room lamp
lto interior room lamp.
INTERIOR ROOM LAMP TIMER OPERATION
When interior room lamp switch is in the “DOOR” position, the time control unit keeps the interior room lamp
illuminated for about 30 seconds when:

LT-56
INTERIOR ROOM LAMP
lunlock signal is supplied from driver's door unlock sensor while all doors are closed and key is out of igni-
tion key cylinder
lkey is removed from ignition key cylinder while all doors are closed
ldriver's door is opened and then closed while key is out of the iginition key cylinder. (However, if the
driver's door is closed with the key inserted in the ignition key cylinder after the driver's door is opened
with the key removed, the timer is operated.)
The timer is canceled when:
ldriver's door is locked,
ldriver's door is opened, or
lignition switch is turned ON.
ON-OFF CONTROL
When the driver side door, front passenger door, rear LH or RH door is opened, the interior room lamp turns
on while the interior room lamp switch is in the “DOOR” position.

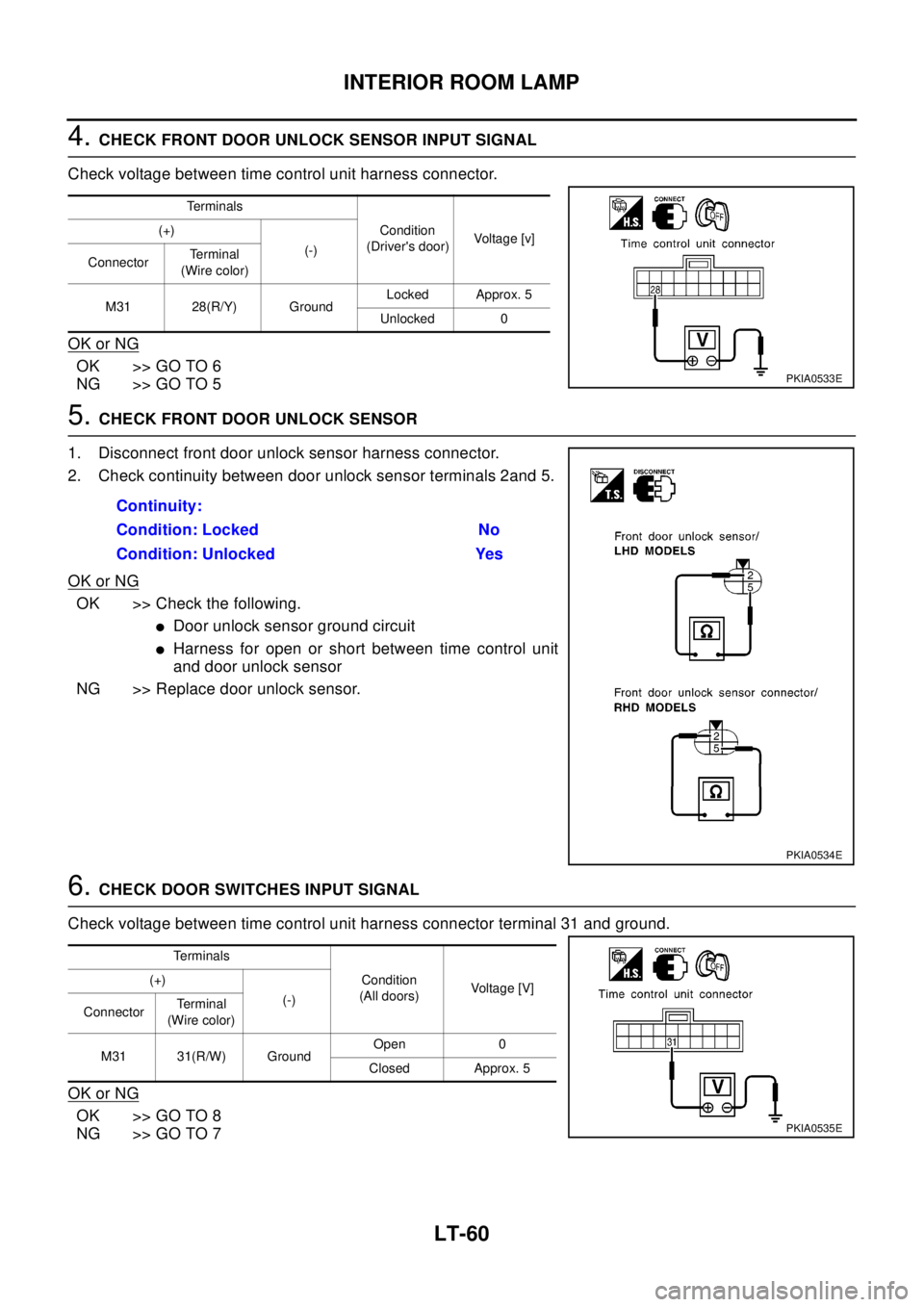

LT-60
INTERIOR ROOM LAMP
4.CHECK FRONT DOOR UNLOCK SENSOR INPUT SIGNAL
Check voltage between time control unit harness connector.
OK or NG
OK >> GO TO 6
NG >> GO TO 5
5.CHECK FRONT DOOR UNLOCK SENSOR
1. Disconnect front door unlock sensor harness connector.
2. Check continuity between door unlock sensor terminals 2and 5.
OK or NG
OK >> Check the following.
lDoor unlock sensor ground circuit
lHarness for open or short between time control unit
and door unlock sensor
NG >> Replace door unlock sensor.
6.CHECK DOOR SWITCHES INPUT SIGNAL
Check voltage between time control unit harness connector terminal 31 and ground.
OK or NG
OK >> GO TO 8
NG >> GO TO 7
Te r m i n a l s
Condition
(Driver's door)Voltage [v] (+)
(-)
ConnectorTe r m i n a l
(Wire color)
M31 28(R/Y) GroundLocked Approx. 5
Unlocked 0
PKIA0533E
Continuity:
Condition: Locked No
Condition: Unlocked Yes
PKIA0534E
Te r m i n a l s
Condition
(All doors)Voltage [V] (+)
(-)
ConnectorTerminal
(Wire color)
M31 31(R/W) GroundOpen 0
Closed Approx. 5
PKIA0535E

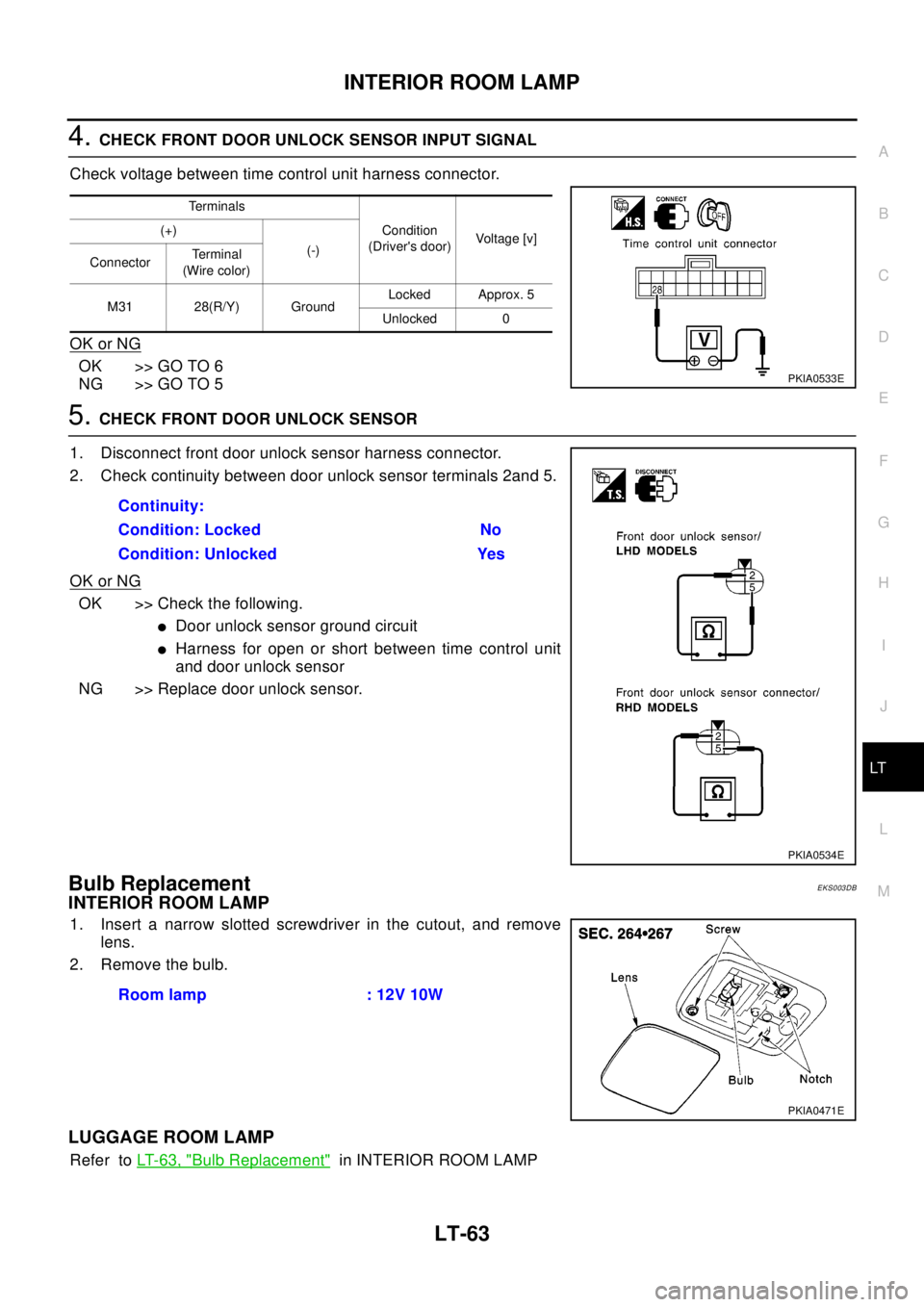

INTERIOR ROOM LAMP
LT-63
C
D
E
F
G
H
I
J
L
MA
B
LT
4.CHECK FRONT DOOR UNLOCK SENSOR INPUT SIGNAL
Check voltage between time control unit harness connector.
OK or NG
OK >> GO TO 6
NG >> GO TO 5
5.CHECK FRONT DOOR UNLOCK SENSOR
1. Disconnect front door unlock sensor harness connector.
2. Check continuity between door unlock sensor terminals 2and 5.
OK or NG
OK >> Check the following.
lDoor unlock sensor ground circuit
lHarness for open or short between time control unit
and door unlock sensor
NG >> Replace door unlock sensor.
Bulb ReplacementEKS003DB
INTERIOR ROOM LAMP
1. Insert a narrow slotted screwdriver in the cutout, and remove
lens.
2. Remove the bulb.
LUGGAGE ROOM LAMP
Refer toLT-63, "Bulb Replacement"in INTERIOR ROOM LAMP
Terminals
Condition
(Driver's door)Voltag e [v ] (+)
(-)
ConnectorTerminal
(Wire color)
M31 28(R/Y) GroundLocked Approx. 5
Unlocked 0
PKIA0533E
Continuity:
Condition: Locked No
Condition: Unlocked Yes
PKIA0534E
Room lamp : 12V 10W
PKIA0471E
