DTC P1229 SENSOR POWER SUPPLY

Diagnostic ProcedureBBS005GS

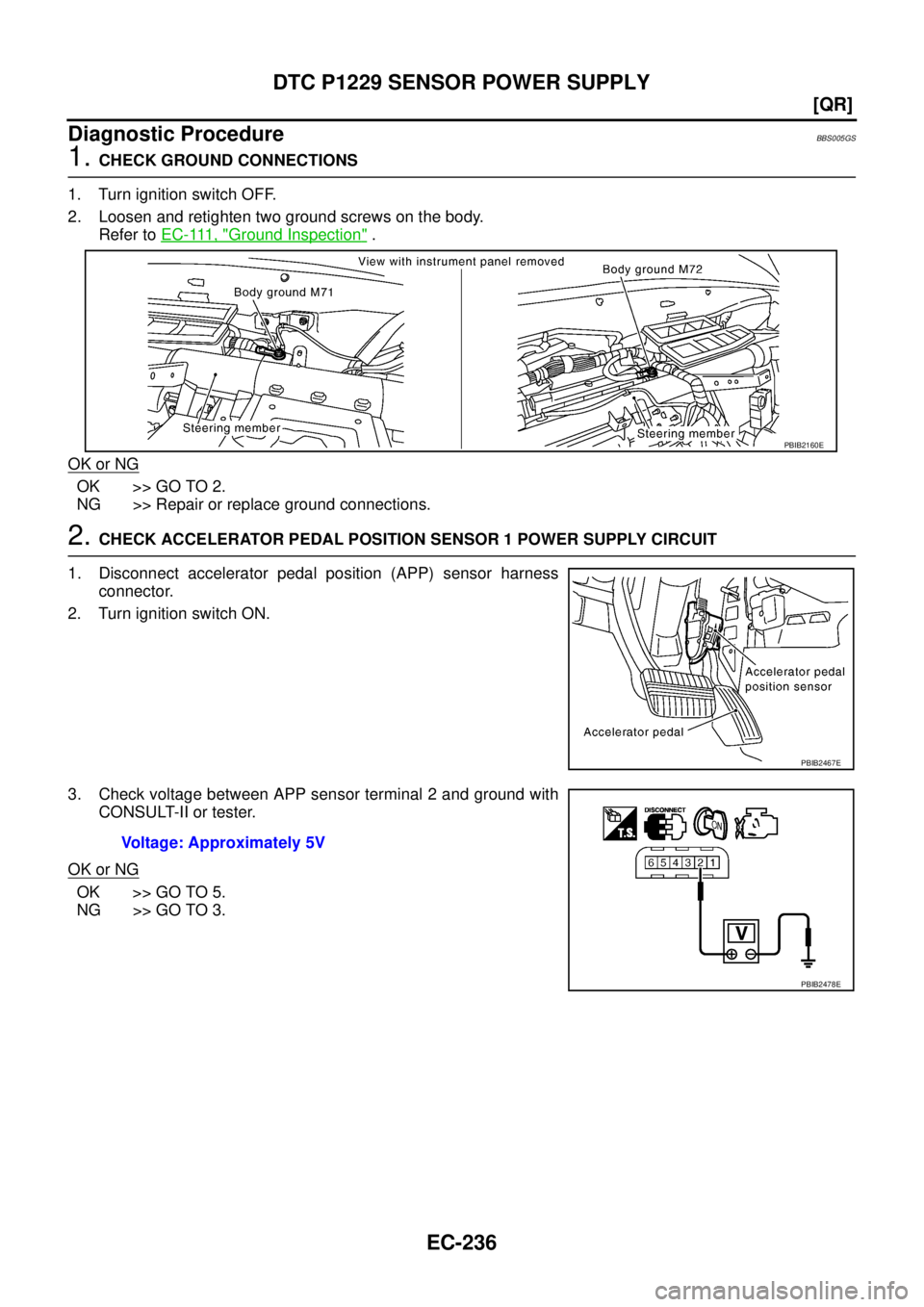

1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to E C - 111 , "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2. CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 2 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
PBIB2160E
PBIB2467E
Voltage: Approximately 5V
PBIB2478E

DTC P1229 SENSOR POWER SUPPLY
EC-237
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

3. CHECK SENSOR POWER SUPPLY CIRCUITS
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 4.
NG >> Repair short to ground or short to power in harness or connectors.
4. CHECK COMPONENTS
Check the following.

Refrigerant pressure sensor (Refer to AT C - 8 3 , "COMPONENT INSPECTION" ).

Power steering pressure sensor (Refer to EC-189, "Component Inspection" .)
OK or NG
OK >> GO TO 7.
NG >> Replace malfunctioning component.
5. CHECK APP SENSOR
Refer to EC-264, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-47, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-47, "
Throttle Valve Closed Position Learning" .
4. Perform EC-47, "
Idle Air Volume Learning" .
>>INSPECTION END
7. CHECK INTERMITTENT INCIDENT
Refer to EC-105, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
ECM terminal Sensor terminal Reference Wiring Diagram
90 APP sensor terminal 2EC-234
46 Refrigerant pressure sensor terminal 1EC-340
65 PSP sensor terminal 3EC-186

DTC P1720 VSS
EC-243
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1720 VSSPFP:31036
DescriptionBBS005GZ
NOTE:
If DTC P1720 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to EC-113, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
ECM receives two vehicle speed sensor signals via CAN communication line. One is sent from “Unified meter
and A/C amp.”, and the other is from TCM (Transmission control module). ECM uses these two signals for
engine control.
CONSULT-II Reference Value in Data Monitor ModeBBS005H0
Specification data are reference values.
On Board Diagnosis LogicBBS005H1
The MI will not light up for this diagnosis.

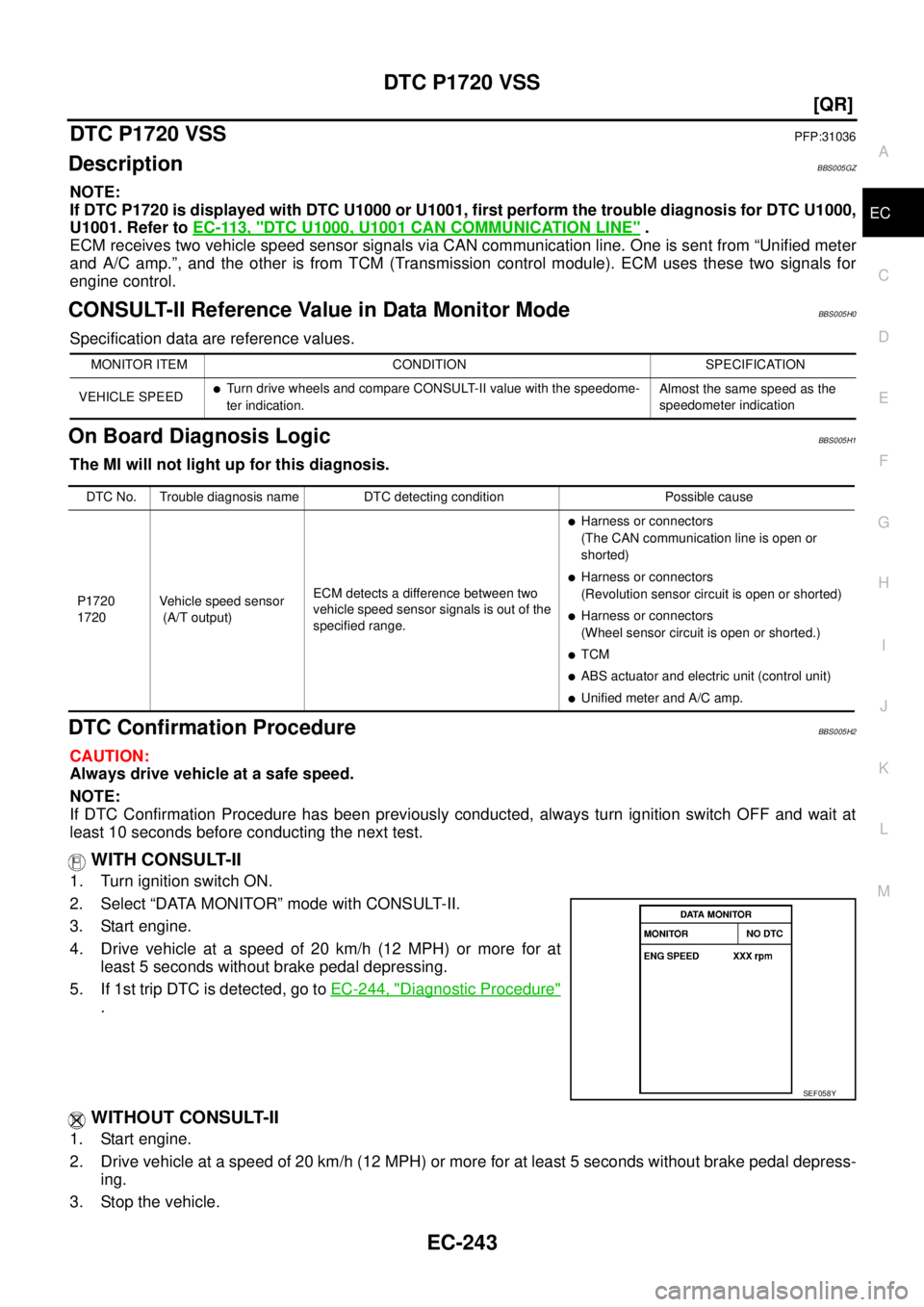

DTC Confirmation ProcedureBBS005H2
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine.
4. Drive vehicle at a speed of 20 km/h (12 MPH) or more for at
least 5 seconds without brake pedal depressing.
5. If 1st trip DTC is detected, go to EC-244, "
Diagnostic Procedure"
.
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle at a speed of 20 km/h (12 MPH) or more for at least 5 seconds without brake pedal depress-
ing.
3. Stop the vehicle.
MONITOR ITEM CONDITION SPECIFICATION
VEHICLE SPEED

Turn drive wheels and compare CONSULT-II value with the speedome-
ter indication.Almost the same speed as the
speedometer indication
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1720
1720Vehicle speed sensor
(A/T output)ECM detects a difference between two
vehicle speed sensor signals is out of the
specified range.

Harness or connectors
(The CAN communication line is open or
shorted)

Harness or connectors
(Revolution sensor circuit is open or shorted)

Harness or connectors
(Wheel sensor circuit is open or shorted.)

TCM

ABS actuator and electric unit (control unit)

Unified meter and A/C amp.
SEF058Y

DTC P2122, P2123 APP SENSOR
EC-251
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P2122, P2123 APP SENSORPFP:18002
Component DescriptionBBS005HB
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-II Reference Value in Data Monitor ModeBBS005HC
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.
On Board Diagnosis LogicBBS005HD
These self-diagnoses have the one trip detection logic.
NOTE:
If DTC P2122 or P2123 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229.
Refer to EC-233
.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MI lights up.
PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN 1

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.65 - 0.87V
Accelerator pedal: Fully depressed More than 4.3V
ACCEL SEN 2*

Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.56 - 0.96V
Accelerator pedal: Fully depressed More than 4.0V
CLSD THL POS

Ignition switch: ONAccelerator pedal: Fully released ON
Accelerator pedal: Slightly
depressedOFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2122
2122Accelerator pedal position
sensor 1 circuit low inputAn excessively low voltage from the APP sensor 1
is sent to ECM.

Harness or connectors
(APP sensor 1 circuit is open or
shorted.)

Accelerator pedal position sensor
(APP sensor 1) P2123
2123Accelerator pedal position
sensor 1 circuit high inputAn excessively high voltage from the APP sensor 1
is sent to ECM.
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

EC-252
[QR]
DTC P2122, P2123 APP SENSOR

DTC Confirmation ProcedureBBS005HE
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-254, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine and let it idle for 1 second.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If DTC is detected, go to EC-254, "
Diagnostic Procedure" .
SEF058Y

DTC P2122, P2123 APP SENSOR
EC-253
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

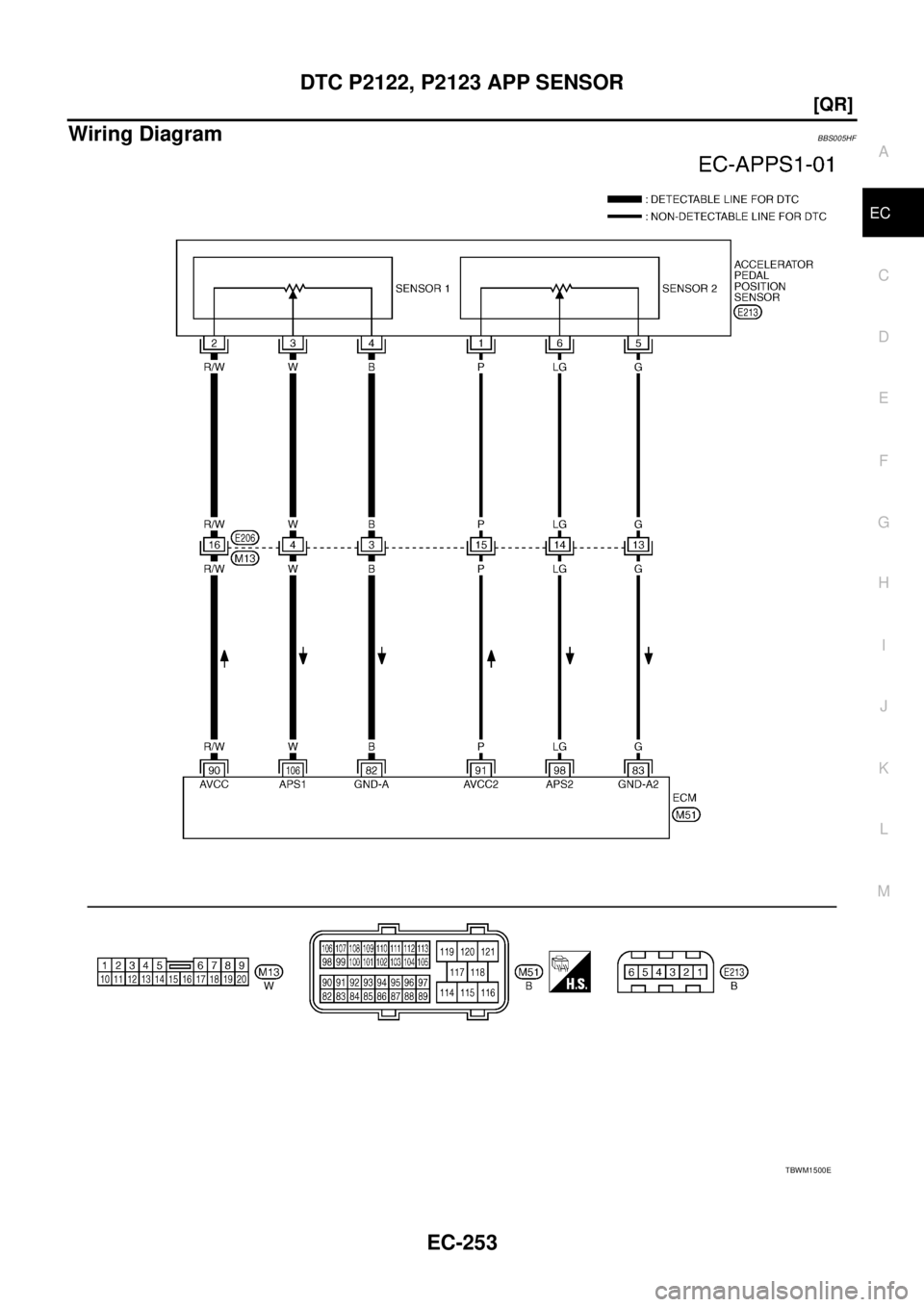

Wiring DiagramBBS005HF
