[VQ]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
BBS004WR
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Liquid GasketBBS004WS
REMOVAL OF LIQUID GASKET SEALING

After removing mounting nuts and bolts, separate the mating
surface using seal cutter (SST) and remove old liquid gasket
sealing.
CAUTION:
Be careful not to damage the mating surfaces.

Tap seal cutter to insert it, and then slide it by tapping on the
side as shown in the figure.

In areas where seal cutter (SST) is difficult to use, use plastic
hammer to lightly tap the parts, to remove it.
CAUTION:
If for some unavoidable reason tool such as screwdriver is
used, be careful not to damage the mating surfaces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using scraper, remove old liquid gasket adhering to the liquid
gasket application surface and the mating surface.

Remove liquid gasket completely from the groove of the liquid
gasket application surface, mounting bolts, and bolt holes.
2. Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.
3. Attach liquid gasket tube to tube presser (SST).
Use Genuine Liquid Gasket or equivalent.
4. Apply liquid gasket without breaks to the specified location with
the specified dimensions.

If there is a groove for the liquid gasket application, apply liq-
uid gasket to the groove.
PBIC0275E
PBIC0003E
PBIC2160E

CVT-188
DIFFERENTIAL SIDE OIL SEAL

INSTALLATION
1. As shown below, use a drift to drive the differential side oil seal
into the case until it is flush. Refer to dimensions A.
Unit: mm (in)
NOTE:
The differential side oil seal pulling direction is used as the refer-
ence.
Drift to be used:
CAUTION:

When installing differential side oil seals, apply NISSAN CVT Fluid NS-2.

Do not reuse differential side oil seals.
2. Reinstall any part removed.
CAUTION:
If lubricant leak has occurred, after finishing work, check fluid level. Refer to CVT-13, "
Checking
CVT Fluid" .
Dimensions A 0±0.5 (0±0.020)
SCIA7918E
Location Tool number: A
Transaxle case side (left)
ST33400001
Converter housing side (right)
SCIA6583E

EM-2 CAMSHAFT ............................................................... 41
Removal and Installation ........................................ 41
REMOVAL ........................................................... 41
INSPECTION AFTER REMOVAL ........................ 44
INSTALLATION .................................................... 47
INSPECTION AFTER INSTALLATION ................ 49
Valve Clearance ...................................................... 50
INSPECTION ....................................................... 50
ADJUSTMENT .................................................... 51
TIMING CHAIN .......................................................... 53
Removal and Installation ........................................ 53
REMOVAL ........................................................... 54
INSPECTION AFTER REMOVAL ........................ 57
INSTALLATION .................................................... 58
OIL SEAL .................................................................. 62
Removal and Installation of Valve Oil Seal ............. 62
REMOVAL ........................................................... 62
INSTALLATION .................................................... 62
Removal and Installation of Front Oil Seal ............. 63
REMOVAL ........................................................... 63
INSTALLATION .................................................... 63
Removal and Installation of Rear Oil Seal .............. 64
REMOVAL ........................................................... 64
INSTALLATION .................................................... 64
CYLINDER HEAD ..................................................... 65
On-Vehicle Service ................................................. 65
CHECKING COMPRESSION PRESSURE ......... 65
Removal and Installation ........................................ 66
REMOVAL ........................................................... 66
INSPECTION AFTER REMOVAL ........................ 67
INSTALLATION .................................................... 68
INSPECTION AFTER INSTALLATION ................ 68
Disassembly and Assembly .................................... 70
DISASSEMBLY ................................................... 70
ASSEMBLY ......................................................... 71
Inspection After Disassembly ................................. 72
VALVE DIMENSIONS .......................................... 72
VALVE GUIDE CLEARANCE .............................. 73
VALVE GUIDE REPLACEMENT ......................... 73
VALVE SEAT CONTACT ..................................... 75
VALVE SEAT REPLACEMENT ........................... 75
VALVE SPRING SQUARENESS ......................... 76
VALVE SPRING DIMENSIONS AND VALVE
SPRING PRESSURE LOAD ............................... 76
ENGINE ASSEMBLY ................................................ 77
Removal and Installation ........................................ 77
REMOVAL ........................................................... 78
INSTALLATION .................................................... 79
INSPECTION AFTER INSTALLATION ................ 80
CYLINDER BLOCK ................................................... 81
Disassembly and Assembly .................................... 81
DISASSEMBLY ................................................... 82
ASSEMBLY ......................................................... 86
How to Select Piston and Bearing .......................... 91
DESCRIPTION .................................................... 91
HOW TO SELECT PISTON ................................. 92
HOW TO SELECT CONNECTING ROD BEAR-ING ....................................................................... 92
HOW TO SELECT MAIN BEARING .................... 95
Inspection After Disassembly .................................. 99
CRANKSHAFT END PLAY .................................. 99
CONNECTING ROD SIDE CLEARANCE ........... 99
PISTON TO PISTON PIN OIL CLEARANCE ....... 99
PISTON RING SIDE CLEARANCE ...................100
PISTON RING END GAP ..................................100
CONNECTING ROD BEND AND TORSION .....101
CONNECTING ROD BIG END DIAMETER ......101
CONNECTING ROD BUSHING OIL CLEAR-
ANCE .................................................................101
CYLINDER BLOCK DISTORTION ....................102
MAIN BEARING HOUSING INNER DIAMETER .103
PISTON TO CYLINDER BORE CLEARANCE ..103
CRANKSHAFT MAIN JOURNAL DIAMETER ...104
CRANKSHAFT PIN JOURNAL DIAMETER ......105
OUT-OF-ROUND AND TAPER OF CRANK-
SHAFT ...............................................................105
CRANKSHAFT RUNOUT ..................................105
CONNECTING ROD BEARING OIL CLEAR-
ANCE .................................................................105
MAIN BEARING OIL CLEARANCE ...................106
MAIN BEARING CRUSH HEIGHT ....................107
CONNECTING ROD BEARING CRUSH
HEIGHT .............................................................107
LOWER CYLINDER BLOCK MOUNTING BOLT
OUTER DIAMETER ...........................................107
CONNECTING ROD BOLT OUTER DIAMETER .107
SERVICE DATA AND SPECIFICATIONS (SDS) ....108
Standard and Limit ................................................108
GENERAL SPECIFICATIONS ...........................108
DRIVE BELT ......................................................108
EXHAUST MANIFOLD ......................................108
SPARK PLUG ....................................................108
CYLINDER HEAD ..............................................108
VALVE ................................................................109
CAMSHAFT AND CAMSHAFT BEARING .........113
CYLINDER BLOCK ............................................113
PISTON, PISTON RING AND PISTON PIN ......114
CONNECTING ROD ..........................................115
CRANKSHAFT ...................................................115
MAIN BEARING .................................................117
CONNECTING ROD BEARING .........................118
VQ
PRECAUTIONS .......................................................119
Precautions Necessary for Steering Wheel Rotation
After Battery Disconnect .......................................119
OPERATION PROCEDURE ..............................119
Precautions for Drain Engine Coolant ...................119
Precautions for Disconnecting Fuel Piping ...........119
Precautions for Removal and Disassembly ..........119
Precautions for Inspection, Repair and Replace-
ment ......................................................................119
Precautions for Assembly and Installation ............119

EM-3
C
D
E
F
G
H
I
J
K
L
M
EMA
Parts Requiring Angle Tightening ......................... 120
Precautions for Liquid Gasket .............................. 120
REMOVAL OF LIQUID GASKET SEALING ...... 120
LIQUID GASKET APPLICATION PROCEDURE . 120
PREPARATION ....................................................... 122
Special Service Tools ........................................... 122
Commercial Service Tools .................................... 124
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ............................................ 126
NVH Troubleshooting — Engine Noise ................ 126
Use the Chart Below to Help You Find the Cause
of the Symptom. ................................................... 127
DRIVE BELTS ......................................................... 128
Checking Drive Belts ............................................ 128
Tension Adjustment .............................................. 128
ALTERNATOR AND A/C COMPRESSOR BELT . 129
POWER STEERING OIL PUMP BELT ............. 129
Removal and Installation ...................................... 129
REMOVAL ......................................................... 129
INSTALLATION ................................................. 129
AIR CLEANER AND AIR DUCT ............................. 131
Removal and Installation ...................................... 131
REMOVAL ......................................................... 131
INSPECTION AFTER REMOVAL ..................... 132
INSTALLATION ................................................. 132
Changing Air Cleaner Filter .................................. 132
REMOVAL ......................................................... 132
INSTALLATION ................................................. 132
INTAKE MANIFOLD COLLECTOR ........................ 133
Removal and Installation ...................................... 133
REMOVAL ......................................................... 134
INSPECTION AFTER REMOVAL ..................... 136
INSTALLATION ................................................. 136
INTAKE MANIFOLD ............................................... 138
Removal and Installation ...................................... 138
REMOVAL ......................................................... 138
INSPECTION AFTER REMOVAL ..................... 139
INSTALLATION ................................................. 139
EXHAUST MANIFOLD AND THREE WAY CATA-
LYST ....................................................................... 140
Removal and Installation ...................................... 140
REMOVAL ......................................................... 140
INSPECTION AFTER REMOVAL ..................... 142
INSTALLATION ................................................. 142
OIL PAN AND OIL STRAINER ............................... 145
Removal and Installation ...................................... 145
REMOVAL ......................................................... 145
INSPECTION AFTER REMOVAL ..................... 148
INSTALLATION ................................................. 148
INSPECTION AFTER INSTALLATION ............. 150
IGNITION COIL ....................................................... 152
Removal and Installation ...................................... 152
REMOVAL ......................................................... 152
INSTALLATION ................................................. 152
SPARK PLUG (PLATINUM-TIPPED TYPE) ........... 153
Removal and Installation ...................................... 153
REMOVAL ......................................................... 153
INSPECTION AFTER REMOVAL ..................... 153
INSTALLATION ................................................. 154FUEL INJECTOR AND FUEL TUBE ......................155
Removal and Installation ......................................155
REMOVAL .........................................................155
INSTALLATION .................................................157
INSPECTION AFTER INSTALLATION ..............159
ROCKER COVER ...................................................160
Removal and Installation ......................................160
REMOVAL .........................................................160
INSTALLATION .................................................161
FRONT TIMING CHAIN CASE ...............................163
Removal and Installation ......................................163
REMOVAL .........................................................163
INSTALLATION .................................................166
INSPECTION AFTER INSTALLATION ..............171
TIMING CHAIN ........................................................173
Removal and Installation ......................................173
REMOVAL .........................................................174
INSPECTION AFTER REMOVAL .....................180
INSTALLATION .................................................181
INSPECTION AFTER INSTALLATION ..............191
CAMSHAFT ............................................................192
Removal and Installation ......................................192
REMOVAL .........................................................192
INSPECTION AFTER REMOVAL .....................194
INSTALLATION .................................................197
INSPECTION AFTER INSTALLATION ..............201
Valve Clearance ...................................................202
INSPECTION ....................................................202
ADJUSTMENT ..................................................205
OIL SEAL ................................................................207
Removal and Installation of Valve Oil Seal ...........207
REMOVAL .........................................................207
INSTALLATION .................................................207
Removal and Installation of Front Oil Seal ...........208
REMOVAL .........................................................208
INSTALLATION .................................................208
Removal and Installation of Rear Oil Seal ............208
REMOVAL .........................................................208
INSTALLATION .................................................209
CYLINDER HEAD ...................................................210
On-Vehicle Service ...............................................210
CHECKING COMPRESSION PRESSURE .......210
Removal and Installation ......................................211
REMOVAL .........................................................211
INSPECTION AFTER REMOVAL .....................212
INSTALLATION .................................................213
INSPECTION AFTER INSTALLATION ..............215
Disassembly and Assembly ..................................215
DISASSEMBLY .................................................216
ASSEMBLY .......................................................216
Inspection After Disassembly ...............................218
VALVE DIMENSIONS ........................................218
VALVE GUIDE CLEARANCE ............................218
VALVE GUIDE REPLACEMENT .......................219
VALVE SEAT CONTACT ...................................220
VALVE SEAT REPLACEMENT .........................220
VALVE SPRING SQUARENESS .......................221
VALVE SPRING DIMENSIONS AND VALVE
SPRING PRESSURE LOAD .............................221

PRECAUTIONS
EM-7
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

3. Attach liquid gasket tube to the tube presser (SST).
Use Genuine Liquid Gasket or equivalent.
4. Apply the liquid gasket without breaks to the specified location
with the specified dimensions.

If there is a groove for the liquid gasket application, apply the
liquid gasket to the groove.

As for the bolt holes, normally apply the liquid gasket inside
the holes. Occasionally, it should be applied outside the
holes. Make sure to read the text of service manual.

Within 5 minutes of liquid gasket application, install the mating
component.

If the liquid gasket protrudes, wipe it off immediately.

Do not retighten mounting bolts or nut after the installation.

Wait 30 minutes or more after installation before refilling
engine oil and engine coolant.
CAUTION:
If there are specific instructions in this manual, observe
them.
PBIC2160E
SEM159F

EM-10
[QR]
PREPARATION

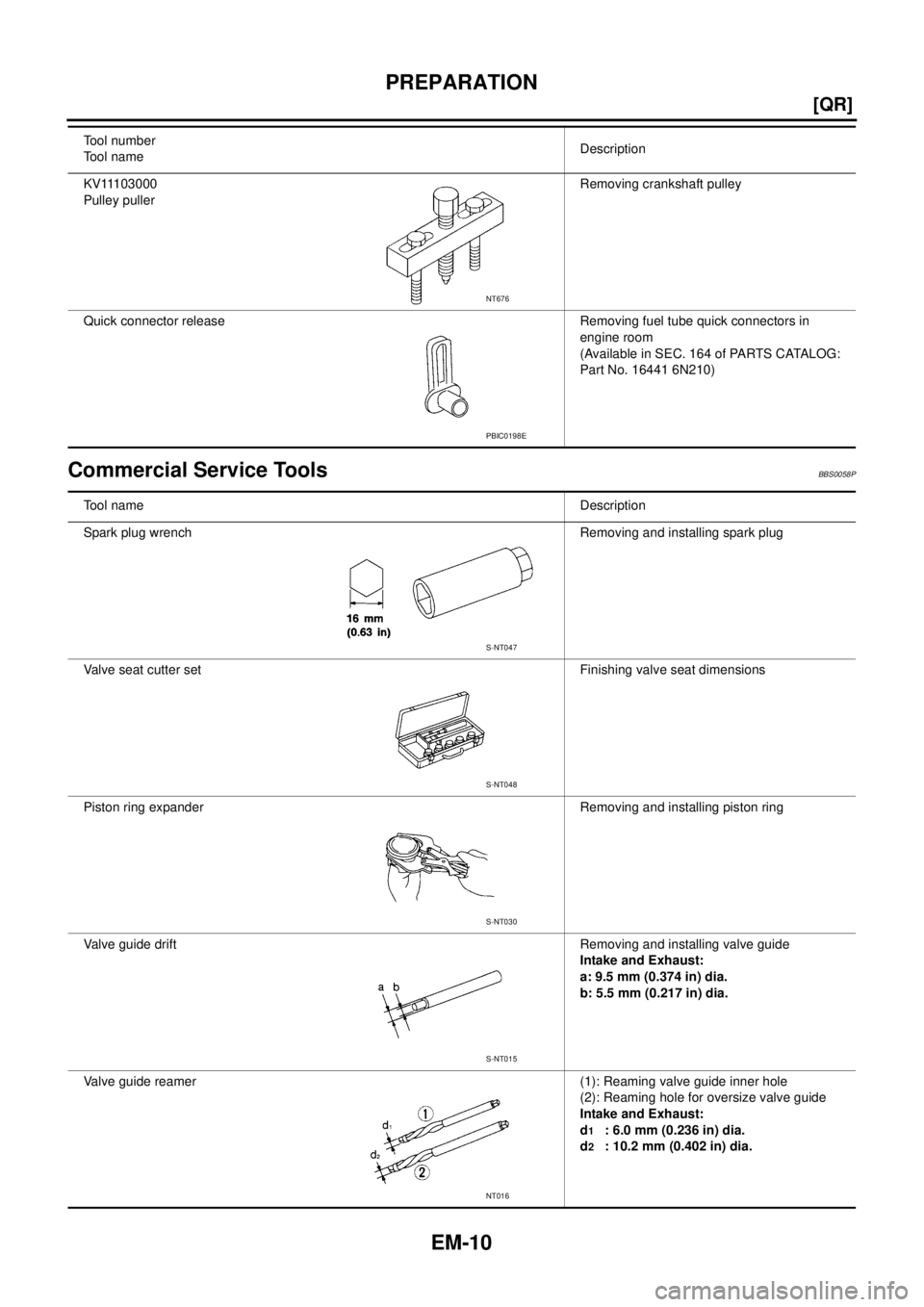

Commercial Service ToolsBBS0058P
KV11103000
Pulley pullerRemoving crankshaft pulley
Quick connector release Removing fuel tube quick connectors in
engine room
(Available in SEC. 164 of PARTS CATALOG:
Part No. 16441 6N210) Tool number
Tool nameDescription
NT676
PBIC0198E
Tool nameDescription
Spark plug wrench Removing and installing spark plug
Valve seat cutter set Finishing valve seat dimensions
Piston ring expander Removing and installing piston ring
Valve guide drift Removing and installing valve guide
Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
Valve guide reamer (1): Reaming valve guide inner hole
(2): Reaming hole for oversize valve guide
Intake and Exhaust:
d
1 : 6.0 mm (0.236 in) dia.
d
2 : 10.2 mm (0.402 in) dia.
S-NT047
S-NT048
S-NT030
S-NT015
NT016

TIMING CHAIN
EM-57
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

19. Remove balancer unit timing chain and crankshaft sprocket.
20. Loosen mounting bolts in reverse order as shown in the figure,
and remove balancer unit.
CAUTION:
Do not disassemble balancer unit.
NOTE:
Use TORX socket (size E14).
INSPECTION AFTER REMOVAL
Timing Chain
Check for cracks and any excessive wear at link plates and roller
links of timing chain. Replace timing chain as necessary.
Balancer Unit Mounting Bolt Outer Diameter

Measure the outer diameters (“d1”, “d2”) at two positions as
shown in the figure.

If reduction appears in “A” range, regard it as “d2”.

If it exceeds the limit (large difference in dimensions), replace
balancer unit mounting bolt with a new one.
KBIA0122E
PBIC0282E
Limit (“d1” – “d2”) : 0.15 mm (0.0059 in)
PBIC1137E

EM-72
[QR]
CYLINDER HEAD


Compress valve spring with valve spring compressor, attach-
ment and adapter (SST). Install valve collet with magnet
hand.
CAUTION:
When working, be careful not to damage valve lifter
holes.

Tap valve stem edge lightly with plastic hammer after installa-
tion to check its installed condition.
8. Install valve lifter.

Install it in the original position.
9. Install spark plug tube if removed.

Press-fit it into cylinder head with the following procedure:
a. Remove old liquid gasket from cylinder head side installation
hole.
b. Apply sealant all round on spark plug tube within approximately
12 mm (0.47 in) width from edge of spark plug tube on the
press-fit side.
Use Thread Locking Sealant or equivalent.
c. Using drift, press-fit spark plug tube so that height is as same as
“H” shown in the figure.
CAUTION:

When press-fitting, be careful not to deform spark plug tube.

After press-fitting, wipe off any protruding thread locking sealant on top surface of cylinder
head.
10. Install spark plug with spark plug wrench (commercial service tool).
Inspection After DisassemblyBBS0059E
VALVE DIMENSIONS

Check dimensions of each valve. For dimensions, refer to EM-
109, "Valve Dimensions" .

If dimensions are out of the standard, replace valve.
PBIC1791E
Standard press-fit height “H”
: 41.2 - 42.2 mm (1.622 - 1.661 in)
PBIC2636E
SEM188A
