2003 NISSAN TEANA Back lamp

BL-108
INTELLIGENT KEY SYSTEM

2. CHECK TRUNK ROOM LAMP SWITCH CIRCUIT
1. Disconnect trunk room lamp switch connector.
2. Check voltage between trunk room lamp switch connector T7
terminal 3 (V/W) and ground. (Check harness for open.)
3. Disconnect BCM connector.
4. Check continuity between trunk room lamp switch connector T7
terminals 3 (V/W) and ground. (Check harness for short.)
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK TRUNK ROOM LAMP SWITCH
Check continuity between trunk room lamp switch terminal 1 and 3.
OK or NG
OK >> GO TO 4.
NG >> Replace trunk room lamp switch.3 (V/W) – Ground : Battery voltage
PIIB8794E
3 (V/W) – Ground : Continuity should not exist.
PIIB8795E
Terminal Back door condition Continuity
1 – 3Closed No
Open Yes
PIIB8796E

INTELLIGENT KEY SYSTEM
BL-117
C
D
E
F
G
H
J
K
L
MA
B
BL

Check Headlamp FunctionBIS000XO
First perform the “SELF-DIAG RESULTS” in “BCM” with CONSULT-II, then perform the trouble diagnosis of
malfunction system indicated “SELF-DIAG RESULTS” of “BCM”. Refer to BCS-14, "
CAN Communication
Inspection Using CONSULT-II (Self-Diagnosis)" .
1. CHECK HEADLAMP OPERATION
Does headlamp come on when turning lighting switch “ON”?
YES or NO
YES >> Headlamp operation circuit is OK.
NO >> Check headlamp system. Refer to LT- 6 , "
HEADLAMP - XENON TYPE -" .
Removal and Installation of Intelligent Key UnitBIS001TH
REMOVAL
1. Remove the instrument driver lower panel. Refer to IP-10, "Component Parts Location" .
2. Disconnect Intelligent Key unit connector, remove screw and
Intelligent Key unit.
INSTALLATION
Install in the reverse order of removal.
Intelligent Key Battery ReplacementBIS001TI
DISASSEMBLY AND ASSEMBLY OF INTELLIGENT KEY
1. Release the lock knob at the back of the Intelligent Key and remove the mechanical key.
2. Insert a flat-blade screwdriver (A) wrapped with a close into the
slit of the corner and twist it to separate the upper part from the
lower part.
CAUTION:

Be careful not to touch the circuit board or battery termi-
nal.

The key fob is water-resistant. However, if it does get wet,
immediately wipe it dry.
3. Replace the battery with new one.
4. Align the tips of the upper and lower parts, and then push them
together until it is securely closed.
CAUTION:

When replacing battery, be sure to keep dirt, grease, and
other foreign materials off the electrode contact area.

After replacing the battery, check to make sure all Intelli-
gent Key functions work normally.
PIIB0276E
PIIB6221E
PIIB6222E

BRC-20
[ABS]
TROUBLE DIAGNOSIS

×: Applicable
−: Not applicable
Note: Brake warning lamp can be used for EBD warning lamp.
Active TestBFS000D2
CAUTION:

Do not perform ACTIVE TEST while driving vehicle.

Make sure to completely bleed air from brake system.

Active test cannot be performed when ABS warning lamp is turned on.

ABS and brake warning lamps turn on during active test.
OPERATION PROCEDURE
1. Perform “CONSULT-II Starting procedure”. Refer to GI-34, "CONSULT-II Start Procedure" .
2. Touch “ACTIVE TEST” in order on the CONSULT-II screen.
3. The “ SELECT TEST ITEM” screen is displayed.
4. Touch necessary test item.
5. Touch “START” with “MAIN SIGNALS” line inverted.
6. ACTIVE TEST screen will be displayed, so perform the following test.

Solenoid valve

ABS motor
NOTE:

When active test is performed while depressing brake pedal, the pedal height will change, but this is
normal.

Approximately 10 seconds after operation has begun, “TEST STOP” will be displayed.

To perform a retest after “TEST STOP” is displayed, touch “BACK” and perform test from step 3.
BATTERY VOLT
(V)×××Condition of voltage supplied to ABS actuator
and electric unit (control unit) is displayed.
EBD SIGNAL
(ON/OFF)——×Condition of EBD operation (ON/OFF) is dis-
played.
ABS SIGNAL
(ON/OFF)——×Condition of ABS operation (ON/OFF) is dis-
played.
EBD FAIL SIG
(ON/OFF)——×Condition of EBD fail-safe signal (ON/OFF) is
displayed.
ABS FAIL SIG
(ON/OFF)——×Condition of ABS fail-safe signal (ON/OFF) is
displayed. Item (Unit)Monitor item selection
Remarks
ECU INPUT
SIGNALSMAIN SIGNALSSELECTION
FROM MENU
SFIA2085E

TROUBLE DIAGNOSIS
BRC-63
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

×: Applicable
−: Not applicable
Note: Brake warning lamp can be used for EBD warning lamp.
Active TestBFS000E5
CAUTION:

Do not perform active test while driving vehicle.

Make sure to completely bleed air from brake system.

Active test cannot be performed while ABS warning lamp is turned on due to the ABS malfunction-
ing.

ABS and brake warning lamps are on during active test.
OPERATION PROCEDURE
1. Preform “CONSULT-II Starting Procedure”. Refer to GI-34, "CONSULT-II Start Procedure" .
2. Touch “ACTIVE TEST” in order on the CONSULT-II screen.
CAUTION:
When “START (NISSAN BASED VHCL)” is touched immediately after starting engine or turning on
ignition switch, “ABS” might not be displayed in the system selection screen. In this case, repeat
the operation from step 1.
3. The “SELECT TEST ITEM” is displayed.
4. Touch necessary test item.
5. While “MAIN SIGNALS” indication is inverted, touch “START”.
6. “ACTIVE TEST” screen will be displayed, so perform the following test.

Solenoid valve

ABS motor
NOTE:

When active test is performed while depressing the pedal, the pedal depression amount will change.
This is normal.

“TEST IS STOPPED” is displayed 10 seconds after operation start.

After “TEST IS STOPPED” is displayed, to perform test again, touch “BACK” and repeat step 3.
CRANKING SIG
(ON/OFF)——×Condition of key switch start position signal input is
displayed.
FLUID LEV SW
(ON/OFF)×—×Condition of brake fluid level sensor (ON/OFF) is dis-
played. Item (Unit)Monitor item selection
Remarks
ECU INPUT
SIGNALSMAIN SIGNALSSELECTION
FROM MENU
PFIA0301E

CVT-4 On Board Diagnosis Logic ....................................143
Possible Cause .....................................................143
DTC Confirmation Procedure ...............................143
WITH CONSULT-II ............................................143
Diagnostic Procedure ...........................................144
DTC P1726 ELECTRIC THROTTLE CONTROL
SYSTEM ..................................................................145
Description ............................................................145
On Board Diagnosis Logic ....................................145
Possible Cause .....................................................145
DTC Confirmation Procedure ...............................145
WITH CONSULT-II ............................................145
Diagnostic Procedure ...........................................146
DTC P1740 LOCK-UP SELECT SOLENOID VALVE
CIRCUIT ..................................................................147
Description ............................................................147
CONSULT-II Reference Value ..............................147
On Board Diagnosis Logic ....................................147
Possible Cause .....................................................147
DTC Confirmation Procedure ...............................147
WITH CONSULT-II ............................................147
Wiring Diagram — CVT — L/USSV ......................148
Diagnostic Procedure ...........................................149
Component Inspection ..........................................151
LOCK-UP SELECT SOLENOID VALVE ............151
DTC P1745 LINE PRESSURE CONTROL .............152
Description ............................................................152
On Board Diagnosis Logic ....................................152
Possible Cause .....................................................152
DTC Confirmation Procedure ...............................152
WITH CONSULT-II ............................................152
Diagnostic Procedure ...........................................152
DTC P1777 STEP MOTOR - CIRCUIT ...................153
Description ............................................................153
CONSULT-II Reference Value ..............................153
On Board Diagnosis Logic ....................................153
Possible Cause .....................................................153
DTC Confirmation Procedure ...............................153
WITH CONSULT-II ............................................153
Wiring Diagram — CVT — STM ...........................154
Diagnostic Procedure ...........................................155
Component Inspection ..........................................156
STEP MOTOR ...................................................156
DTC P1778 STEP MOTOR - FUNCTION ...............157
Description ............................................................157
CONSULT-II Reference Value ..............................157
On Board Diagnosis Logic ....................................157
Possible Cause .....................................................157
DTC Confirmation Procedure ...............................157
WITH CONSULT-II ............................................157
Diagnostic Procedure ...........................................158
CVT INDICATOR CIRCUIT .....................................159
Description ............................................................159
CONSULT-II Reference Value ..............................159
Diagnostic Procedure ...........................................159
CVT INDICATOR SYMPTOM CHART ...............159
TROUBLE DIAGNOSIS FOR SYMPTOMS ............160Wiring Diagram — CVT — NONDTC ...................160
CVT Indicator Lamp Does Not Come On ..............164
SYMPTOM: ........................................................164
DIAGNOSTIC PROCEDURE .............................164
Engine Cannot Be Started in “P” or “N” Position ...165
SYMPTOM: ........................................................165
DIAGNOSTIC PROCEDURE .............................165
In “P” Position, Vehicle Moves Forward or Backward
When Pushed .......................................................166
SYMPTOM: ........................................................166
DIAGNOSTIC PROCEDURE .............................166
In “N” Position, Vehicle Moves ..............................166
SYMPTOM: ........................................................166
DIAGNOSTIC PROCEDURE .............................166
Large Shock “N” → “R” Position ...........................167
SYMPTOM: ........................................................167
DIAGNOSTIC PROCEDURE .............................167
Vehicle Does Not Creep Backward in “R” Position .168
SYMPTOM: ........................................................168
DIAGNOSTIC PROCEDURE .............................168
Vehicle Does Not Creep Forward in “D” Position ..169
SYMPTOM: ........................................................169
DIAGNOSTIC PROCEDURE .............................169
CVT Does Not Shift ...............................................170
SYMPTOM: ........................................................170
DIAGNOSTIC PROCEDURE .............................170
Cannot Be Changed to Manual Mode ...................171
SYMPTOM: ........................................................171
DIAGNOSTIC PROCEDURE .............................171
CVT Does Not Shift in Manual Mode ....................171
SYMPTOM: ........................................................171
DIAGNOSTIC PROCEDURE .............................171
Vehicle Does Not Decelerate by Engine Brake .....172
SYMPTOM: ........................................................172
DIAGNOSTIC PROCEDURE .............................172
TRANSMISSION CONTROL MODULE ..................174
Removal and Installation .......................................174
COMPONENTS .................................................174
REMOVAL ..........................................................174
INSTALLATION ..................................................175
SHIFT CONTROL SYSTEM ....................................176
Removal and Installation .......................................176
CONTROL DEVICE COMPONENTS ................176
CONTROL CABLE COMPONENTS ..................177
REMOVAL ..........................................................177
INSTALLATION ..................................................178
Adjustment of CVT Position ..................................178
Checking of CVT Position .....................................179
CVT SHIFT LOCK SYSTEM ...................................180
Description ............................................................180
Shift Lock System Electrical Parts Location ..........180
Wiring Diagram — CVT — SHIFT ........................181
Shift Lock Control Unit Reference Values .............183
SHIFT LOCK HARNESS CONNECTOR TERMI-
NALS LAYOUT ..................................................183
SHIFT LOCK CONTROL UNIT INSPECTION

CVT-28
TROUBLE DIAGNOSIS

4❏ Perform road testCVT-35
4-1.Check before engine is started CVT-37
❏ CVT-164, "CVT Indicator Lamp Does Not Come On"
❏ Perform self-diagnosis. Enter checks for detected items. CVT-47
❏ CVT-53, "DTC U1000 CAN COMMUNICATION LINE"
❏ CVT-56, "DTC P0615 START SIGNAL CIRCUIT"
❏ CVT-60, "DTC P0703 STOP LAMP SWITCH CIRCUIT"
❏ CVT-62, "DTC P0705 PARK/NEUTRAL POSITION SWITCH"
❏ CVT-69, "DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT"
❏ CVT-74, "DTC P0715 INPUT SPEED SENSOR CIRCUIT (PRI SPEED SENSOR)"
❏ CVT-79, "DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SEN-
SOR)"
❏ CVT-85, "DTC P0725 ENGINE SPEED SIGNAL"
❏ CVT-87, "DTC P0730 BELT DAMAGE"
❏ CVT-89, "DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE"
❏ CVT-94, "DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)"
❏ CVT-97, "DTC P0745 LINE PRESSURE SOLENOID VALVE"
❏ CVT-102, "DTC P0746 PRESSURE CONTROL SOLENOID A PERFORMANCE
(LINE PRESSURE SOLENOID VALVE)"
❏ CVT-105, "DTC P0776 PRESSURE CONTROL SOLENOID B PERFORMANCE
(SEC PRESSURE SOLENOID VALVE)"
❏ CVT-108, "DTC P0778 PRESSURE CONTROL SOLENOID B ELECTRICAL (SEC
PRESSURE SOLENOID VALVE)"
❏ CVT-113, "DTC P0826 MANUAL MODE SWITCH CIRCUIT"
❏ CVT-118, "DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT
(SEC PRESSURE SENSOR)"
❏ CVT-123, "DTC P0841 PRESSURE SENSOR FUNCTION"
❏ CVT-126, "DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT
(PRI PRESSURE SENSOR)"
❏ CVT-131, "DTC P0868 SECONDARY PRESSURE DOWN"
❏ CVT-134, "DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)"
❏ CVT-139, "DTC P1705 THROTTLE POSITION SENSOR"
❏ CVT-141, "DTC P1722 ESTM VEHICLE SPEED SIGNAL"
❏ CVT-143, "DTC P1723 CVT SPEED SENSOR FUNCTION"
❏ CVT-145, "DTC P1726 ELECTRIC THROTTLE CONTROL SYSTEM"
❏ CVT-147, "DTC P1740 LOCK-UP SELECT SOLENOID VALVE CIRCUIT"
❏ CVT-153, "DTC P1777 STEP MOTOR - CIRCUIT"
❏ CVT-157, "DTC P1778 STEP MOTOR - FUNCTION"
4-2.Check at idleCVT-37
❏ CVT-165, "Engine Cannot Be Started in “P” or “N” Position"
❏ CVT-166, "In “P” Position, Vehicle Moves Forward or Backward When Pushed"
❏ CVT-166, "In “N” Position, Vehicle Moves"
❏ CVT-167, "Large Shock “N” → “R” Position"
❏ CVT-168, "Vehicle Does Not Creep Backward in “R” Position"
❏ CVT-169, "Vehicle Does Not Creep Forward in “D” Position"

TROUBLE DIAGNOSIS
CVT-37
D
E
F
G
H
I
J
K
L
MA
B
CVT

Check Before Engine Is StartedBCS001GL
1. CHECK CVT INDICATOR LAMP
1. Park vehicle on flat surface.
2. Move selector lever to “P” position.
3. Turn ignition switch OFF. Wait at least 5 seconds.
4. Turn ignition switch ON. (Do not start engine.)
Does CVT indicator lamp come on for about 2 seconds?
YES >> 1. Turn ignition switch OFF.
2. Perform self-diagnosis and note NG items.
Refer to CVT-47, "
SELF-DIAGNOSTIC RESULT MODE" .
3. Go to CVT-37, "
Check at Idle" .
NO >> Stop “Road Test”. Go to CVT-164, "
CVT Indicator Lamp Does Not Come On" .
Check at IdleBCS001GM
1. CHECK STARTING THE ENGINE
1. Park vehicle on flat surface.
2. Move selector lever to “P” or “N” position.
3. Turn ignition switch OFF.
4. Turn ignition switch to START position.
Is engine started?
YES >> GO TO 2.
NO >> Stop “Road Test”. Mark the box on the CVT-27, "
DIAGNOSTIC WORKSHEET" . Go to CVT-165,
"Engine Cannot Be Started in “P” or “N” Position" .
2. CHECK STARTING THE ENGINE
1. Turn ignition switch ON.
2. Move selector lever to “D”, “M” or “R” position.
3. Turn ignition switch to START position.
Is engine started?
YES >> Stop “Road Test”. Mark the box on the CVT-27, "DIAGNOSTIC WORKSHEET" . Go to CVT-165,
"Engine Cannot Be Started in “P” or “N” Position" .
NO >> GO TO 3.
3. CHECK “P” POSITION FUNCTION
1. Move selector lever to “P” position.
2. Turn ignition switch OFF.
3. Release parking brake.
4. Push vehicle forward or backward.
5. Apply parking brake.
Does vehicle move when it is pushed forward or backward?
YES >> Mark the box CVT-166, "In “P” Position, Vehicle Moves Forward or Backward When Pushed" on
the CVT-27, "
DIAGNOSTIC WORKSHEET" . Continue “Road Test”.
NO >> GO TO 4.

CVT-40
TROUBLE DIAGNOSIS

Vehicle Speed at Which Gear Shifting OccursBCS001GO
Numerical value data are reference values.
CAUTION:
Lock-up clutch is engaged when vehicle speed is approximately 18 km/h (11 MPH) to 90 km/h (56 MPH).
TCM Input/Output Signal Reference ValuesBCS001GP

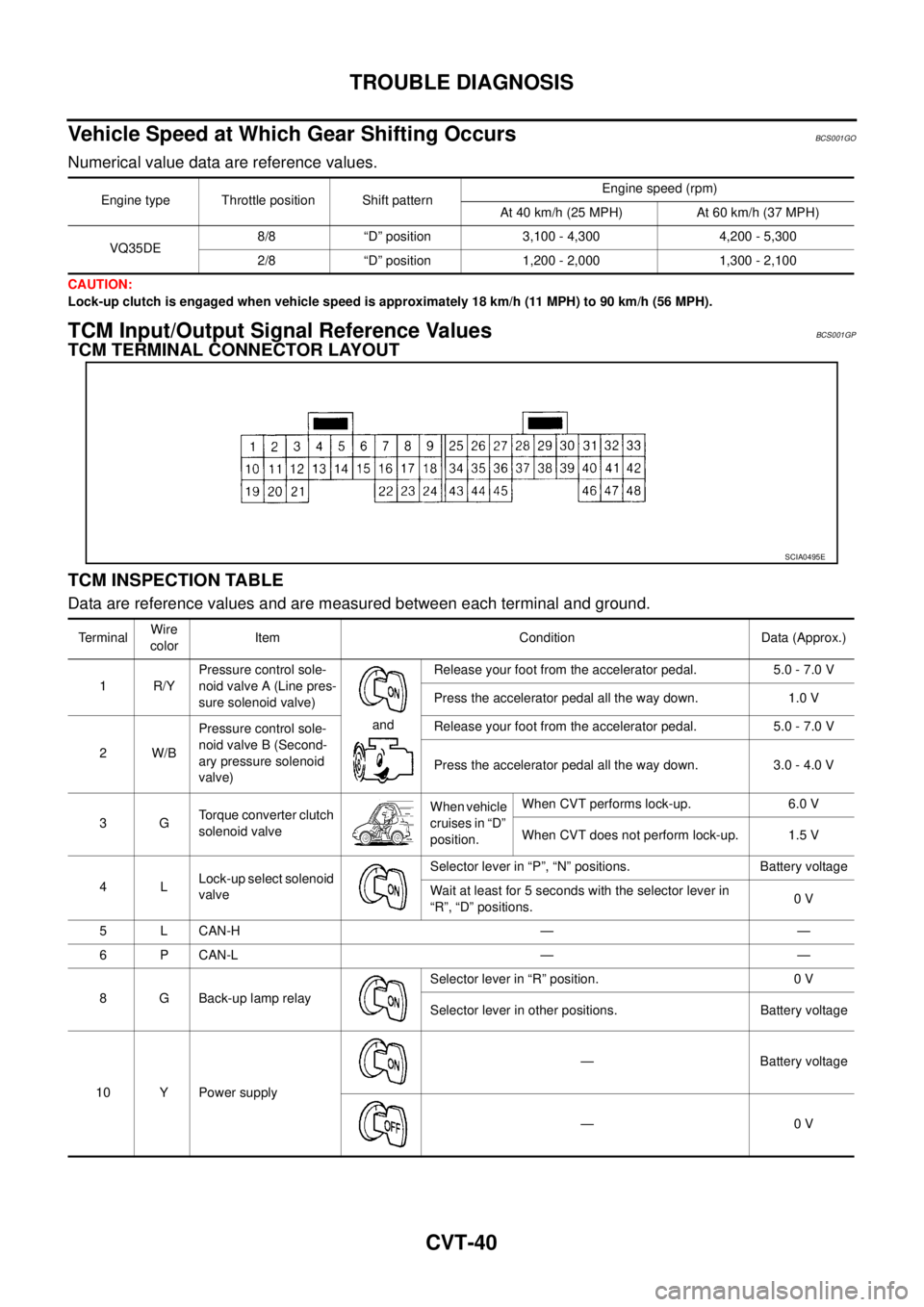

TCM TERMINAL CONNECTOR LAYOUT
TCM INSPECTION TABLE
Data are reference values and are measured between each terminal and ground.
Engine type Throttle position Shift patternEngine speed (rpm)
At 40 km/h (25 MPH) At 60 km/h (37 MPH)
VQ35DE8/8 “D” position 3,100 - 4,300 4,200 - 5,300
2/8 “D” position 1,200 - 2,000 1,300 - 2,100
SCIA0495E
TerminalWire
colorItem Condition Data (Approx.)
1R/YPressure control sole-
noid valve A (Line pres-
sure solenoid valve)
and Release your foot from the accelerator pedal. 5.0 - 7.0 V
Press the accelerator pedal all the way down. 1.0 V
2W/BPressure control sole-
noid valve B (Second-
ary pressure solenoid
valve) Release your foot from the accelerator pedal. 5.0 - 7.0 V
Press the accelerator pedal all the way down. 3.0 - 4.0 V
3GTorque converter clutch
solenoid valveWhen vehicle
cruises in “D”
position.When CVT performs lock-up. 6.0 V
When CVT does not perform lock-up. 1.5 V
4LLock-up select solenoid
valveSelector lever in “P”, “N” positions. Battery voltage
Wait at least for 5 seconds with the selector lever in
“R”, “D” positions.0 V
5 L CAN-H — —
6 P CAN-L — —
8 G Back-up lamp relaySelector lever in “R” position. 0 V
Selector lever in other positions. Battery voltage
10 Y Power supply— Battery voltage
—0 V
