2003 NISSAN ALMERA N16 oil pressure

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

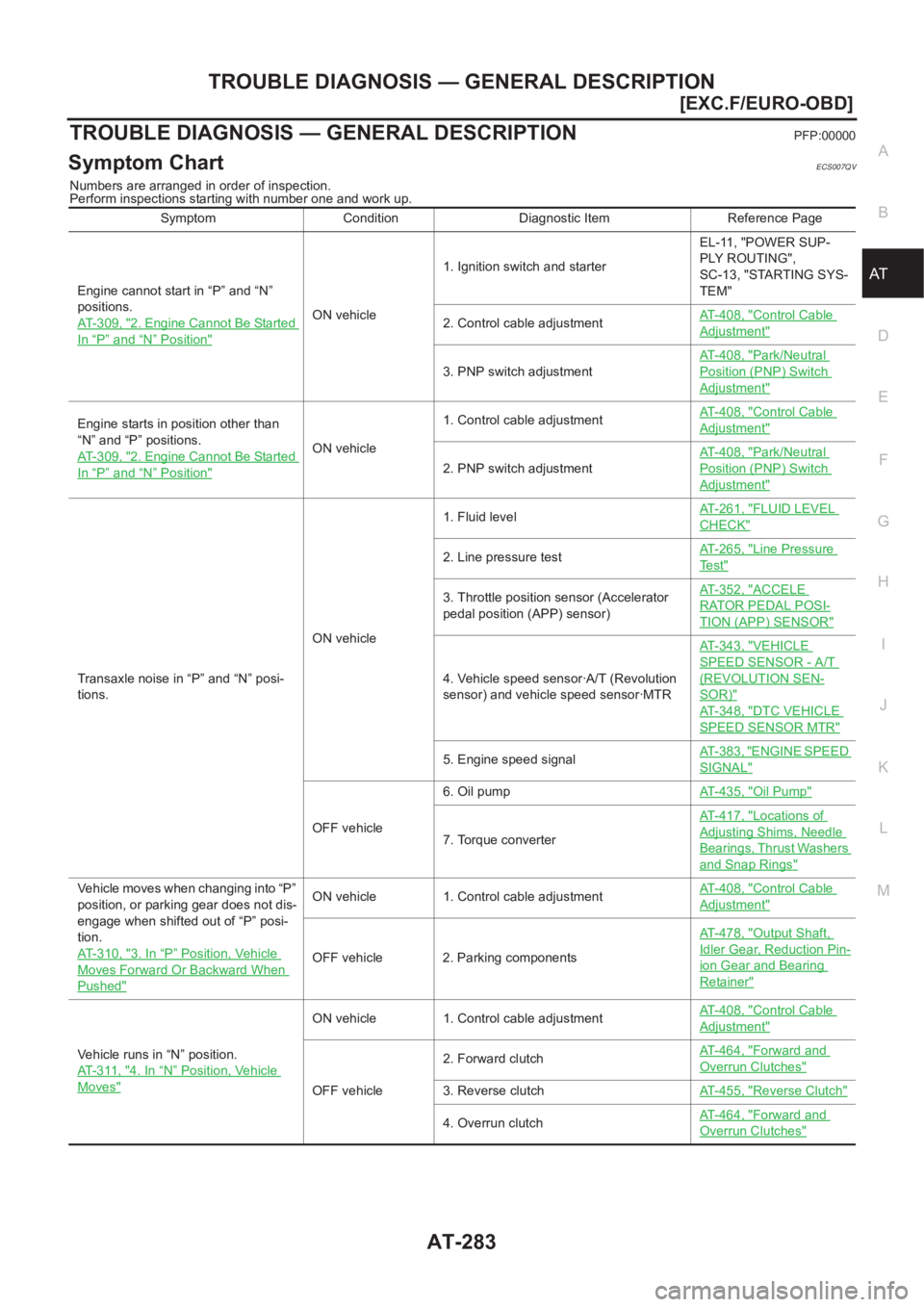

AT-283
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
TROUBLE DIAGNOSIS — GENERAL DESCRIPTIONPFP:00000
Symptom ChartECS007QV
Numbers are arranged in order of inspection.
Perform inspections starting with number one and work up.
Symptom Condition Diagnostic Item Reference Page
Engine cannot start in “P” and “N”
positions.
AT-309, "
2. Engine Cannot Be Started
In “P” and “N” Position"
ON vehicle1. Ignition switch and starterEL-11, "POWER SUP-
PLY ROUTING",
SC-13, "STARTING SYS-
TEM"
2. Control cable adjustmentAT- 4 0 8 , "Control Cable
Adjustment"
3. PNP switch adjustmentAT- 4 0 8 , "
Park/Neutral
Position (PNP) Switch
Adjustment"
Engine starts in position other than
“N” and “P” positions.
AT-309, "
2. Engine Cannot Be Started
In “P” and “N” Position"
ON vehicle1. Control cable adjustmentAT- 4 0 8 , "
Control Cable
Adjustment"
2. PNP switch adjustmentAT- 4 0 8 , "
Park/Neutral
Position (PNP) Switch
Adjustment"
Transaxle noise in “P” and “N” posi-
tions.ON vehicle1. Fluid levelAT- 2 6 1 , "
FLUID LEVEL
CHECK"
2. Line pressure testAT- 2 6 5 , "Line Pressure
Te s t"
3. Throttle position sensor (Accelerator
pedal position (APP) sensor)AT- 3 5 2 , "ACCELE
RATOR PEDAL POSI-
TION (APP) SENSOR"
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT- 3 4 3 , "
VEHICLE
SPEED SENSOR - A/T
(REVOLUTION SEN-
SOR)"
AT- 3 4 8 , "DTC VEHICLE
SPEED SENSOR MTR"
5. Engine speed signalAT- 3 8 3 , "ENGINE SPEED
SIGNAL"
OFF vehicle6. Oil pumpAT- 4 3 5 , "
Oil Pump"
7. Torque converterAT- 4 1 7 , "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Vehicle moves when changing into “P”
position, or parking gear does not dis-
engage when shifted out of “P” posi-
tion.
AT-310, "
3. In “P” Position, Vehicle
Moves Forward Or Backward When
Pushed"
ON vehicle 1. Control cable adjustmentAT- 4 0 8 , "Control Cable
Adjustment"
OFF vehicle 2. Parking componentsAT- 4 7 8 , "
Output Shaft,
Idler Gear, Reduction Pin-
ion Gear and Bearing
Retainer"
Vehicle runs in “N” position.
AT- 3 11 , "
4. In “N” Position, Vehicle
Moves"
ON vehicle 1. Control cable adjustmentAT- 4 0 8 , "Control Cable
Adjustment"
OFF vehicle2. Forward clutchAT- 4 6 4 , "
Forward and
Overrun Clutches"
3. Reverse clutchAT- 4 5 5 , "Reverse Clutch"
4. Overrun clutchAT- 4 6 4 , "Forward and
Overrun Clutches"

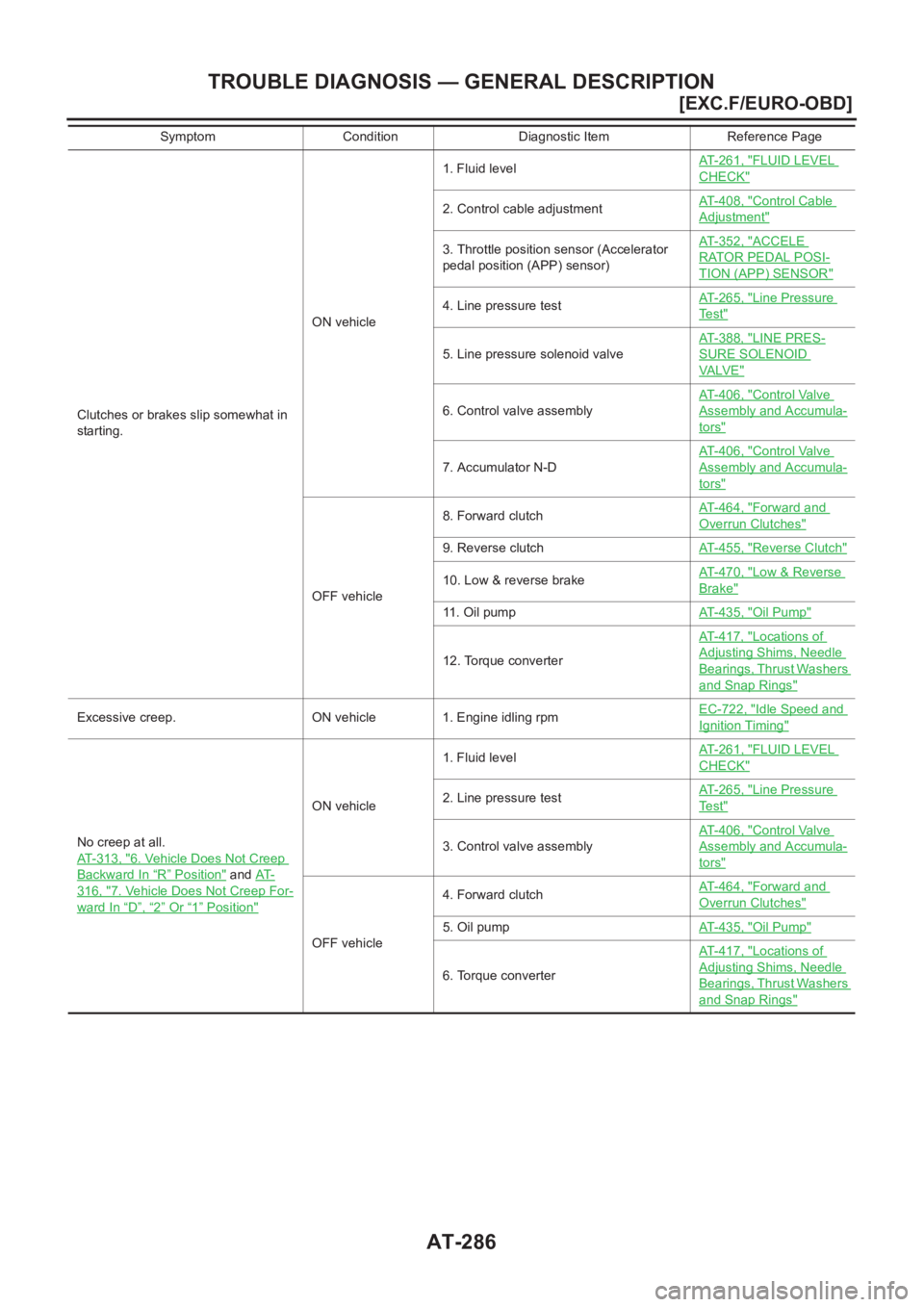

AT-286
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Clutches or brakes slip somewhat in
starting.ON vehicle1. Fluid levelAT-261, "
FLUID LEVEL
CHECK"
2. Control cable adjustmentAT-408, "Control Cable
Adjustment"
3. Throttle position sensor (Accelerator
pedal position (APP) sensor)AT-352, "ACCELE
RATOR PEDAL POSI-
TION (APP) SENSOR"
4. Line pressure testAT-265, "Line Pressure
Te s t"
5. Line pressure solenoid valveAT-388, "
LINE PRES-
SURE SOLENOID
VA LV E"
6. Control valve assemblyAT-406, "
Control Valve
Assembly and Accumula-
tors"
7. Accumulator N-DAT-406, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle8. Forward clutchAT-464, "
Forward and
Overrun Clutches"
9. Reverse clutchAT-455, "Reverse Clutch"
10. Low & reverse brakeAT-470, "Low & Reverse
Brake"
11. Oil pumpAT-435, "Oil Pump"
12. Torque converterAT-417, "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Excessive creep. ON vehicle 1. Engine idling rpmEC-722, "Idle Speed and
Ignition Timing"
No creep at all.
AT- 3 1 3 , "
6. Vehicle Does Not Creep
Backward In “R” Position" and AT-
316, "7. Vehicle Does Not Creep For-
ward In “D”,“2” Or “1” Position"
ON vehicle1. Fluid levelAT-261, "
FLUID LEVEL
CHECK"
2. Line pressure testAT-265, "Line Pressure
Te s t"
3. Control valve assemblyAT-406, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle4. Forward clutchAT-464, "
Forward and
Overrun Clutches"
5. Oil pumpAT-435, "Oil Pump"
6. Torque converterAT-417, "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Symptom Condition Diagnostic Item Reference Page

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

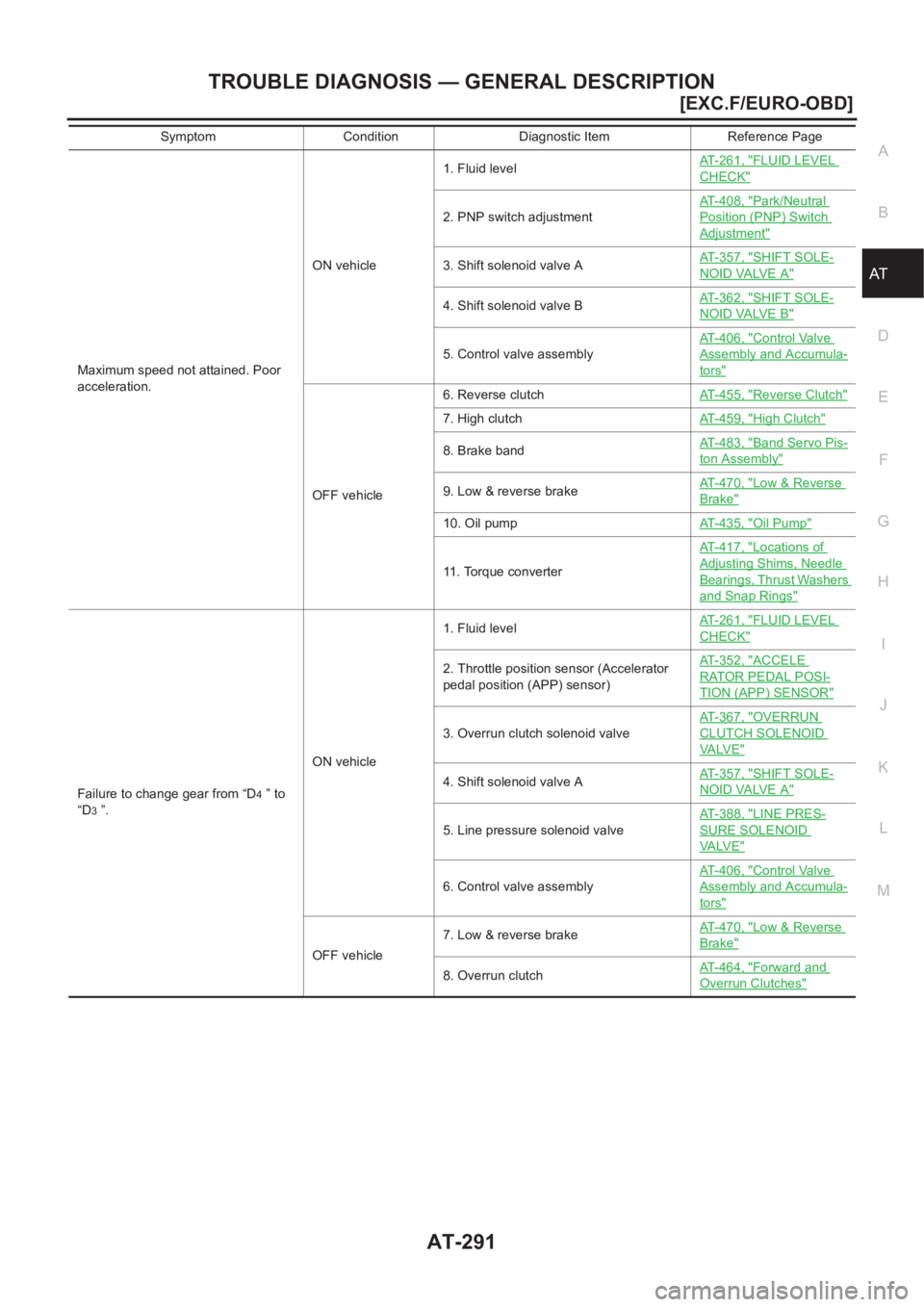

AT-291
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Maximum speed not attained. Poor
acceleration.ON vehicle1. Fluid levelAT- 2 6 1 , "
FLUID LEVEL
CHECK"
2. PNP switch adjustmentAT- 4 0 8 , "
Park/Neutral
Position (PNP) Switch
Adjustment"
3. Shift solenoid valve AAT- 3 5 7 , "SHIFT SOLE-
NOID VALVE A"
4. Shift solenoid valve BAT- 3 6 2 , "SHIFT SOLE-
NOID VALVE B"
5. Control valve assemblyAT- 4 0 6 , "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle6. Reverse clutchAT- 4 5 5 , "
Reverse Clutch"
7. High clutchAT- 4 5 9 , "High Clutch"
8. Brake bandAT- 4 8 3 , "Band Servo Pis-
ton Assembly"
9. Low & reverse brakeAT- 4 7 0 , "Low & Reverse
Brake"
10. Oil pumpAT- 4 3 5 , "Oil Pump"
11. Torque converterAT- 4 1 7 , "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Failure to change gear from “D4 ” to
“D
3 ”.ON vehicle1. Fluid levelAT- 2 6 1 , "
FLUID LEVEL
CHECK"
2. Throttle position sensor (Accelerator
pedal position (APP) sensor)AT- 3 5 2 , "ACCELE
RATOR PEDAL POSI-
TION (APP) SENSOR"
3. Overrun clutch solenoid valveAT- 3 6 7 , "
OVERRUN
CLUTCH SOLENOID
VA LV E"
4. Shift solenoid valve AAT- 3 5 7 , "SHIFT SOLE-
NOID VALVE A"
5. Line pressure solenoid valveAT- 3 8 8 , "
LINE PRES-
SURE SOLENOID
VA LV E"
6. Control valve assemblyAT- 4 0 6 , "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle7. Low & reverse brakeAT- 4 7 0 , "
Low & Reverse
Brake"
8. Overrun clutchAT- 4 6 4 , "Forward and
Overrun Clutches"
Symptom Condition Diagnostic Item Reference Page

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

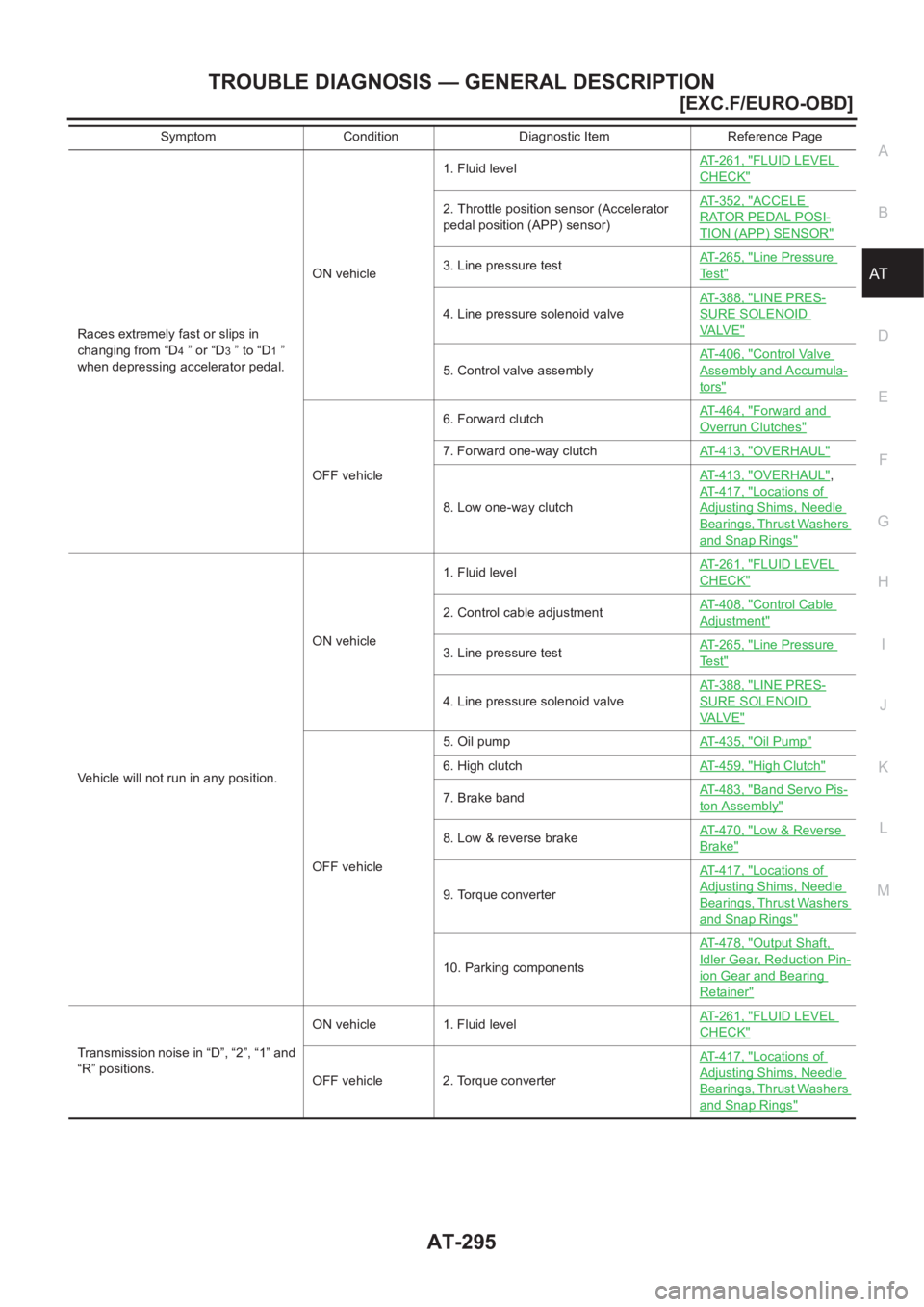

AT-295
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Races extremely fast or slips in
changing from “D
4 ” or “D3 ” to “D1 ”
when depressing accelerator pedal.ON vehicle1. Fluid levelAT- 2 6 1 , "
FLUID LEVEL
CHECK"
2. Throttle position sensor (Accelerator
pedal position (APP) sensor)AT- 3 5 2 , "ACCELE
RATOR PEDAL POSI-
TION (APP) SENSOR"
3. Line pressure testAT- 2 6 5 , "Line Pressure
Te s t"
4. Line pressure solenoid valveAT- 3 8 8 , "
LINE PRES-
SURE SOLENOID
VA LV E"
5. Control valve assemblyAT- 4 0 6 , "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle6. Forward clutchAT- 4 6 4 , "
Forward and
Overrun Clutches"
7. Forward one-way clutchAT- 4 1 3 , "OVERHAUL"
8. Low one-way clutchAT- 4 1 3 , "
OVERHAUL",
AT- 4 1 7 , "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Vehicle will not run in any position.ON vehicle1. Fluid levelAT- 2 6 1 , "
FLUID LEVEL
CHECK"
2. Control cable adjustmentAT- 4 0 8 , "Control Cable
Adjustment"
3. Line pressure testAT- 2 6 5 , "Line Pressure
Te s t"
4. Line pressure solenoid valveAT- 3 8 8 , "
LINE PRES-
SURE SOLENOID
VA LV E"
OFF vehicle5. Oil pumpAT- 4 3 5 , "
Oil Pump"
6. High clutchAT- 4 5 9 , "High Clutch"
7. Brake bandAT- 4 8 3 , "Band Servo Pis-
ton Assembly"
8. Low & reverse brakeAT- 4 7 0 , "Low & Reverse
Brake"
9. Torque converterAT- 4 1 7 , "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
10. Parking componentsAT- 4 7 8 , "
Output Shaft,
Idler Gear, Reduction Pin-
ion Gear and Bearing
Retainer"
Transmission noise in “D”, “2”, “1” and
“R” positions.ON vehicle 1. Fluid levelAT- 2 6 1 , "
FLUID LEVEL
CHECK"
OFF vehicle 2. Torque converterAT- 4 1 7 , "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Symptom Condition Diagnostic Item Reference Page

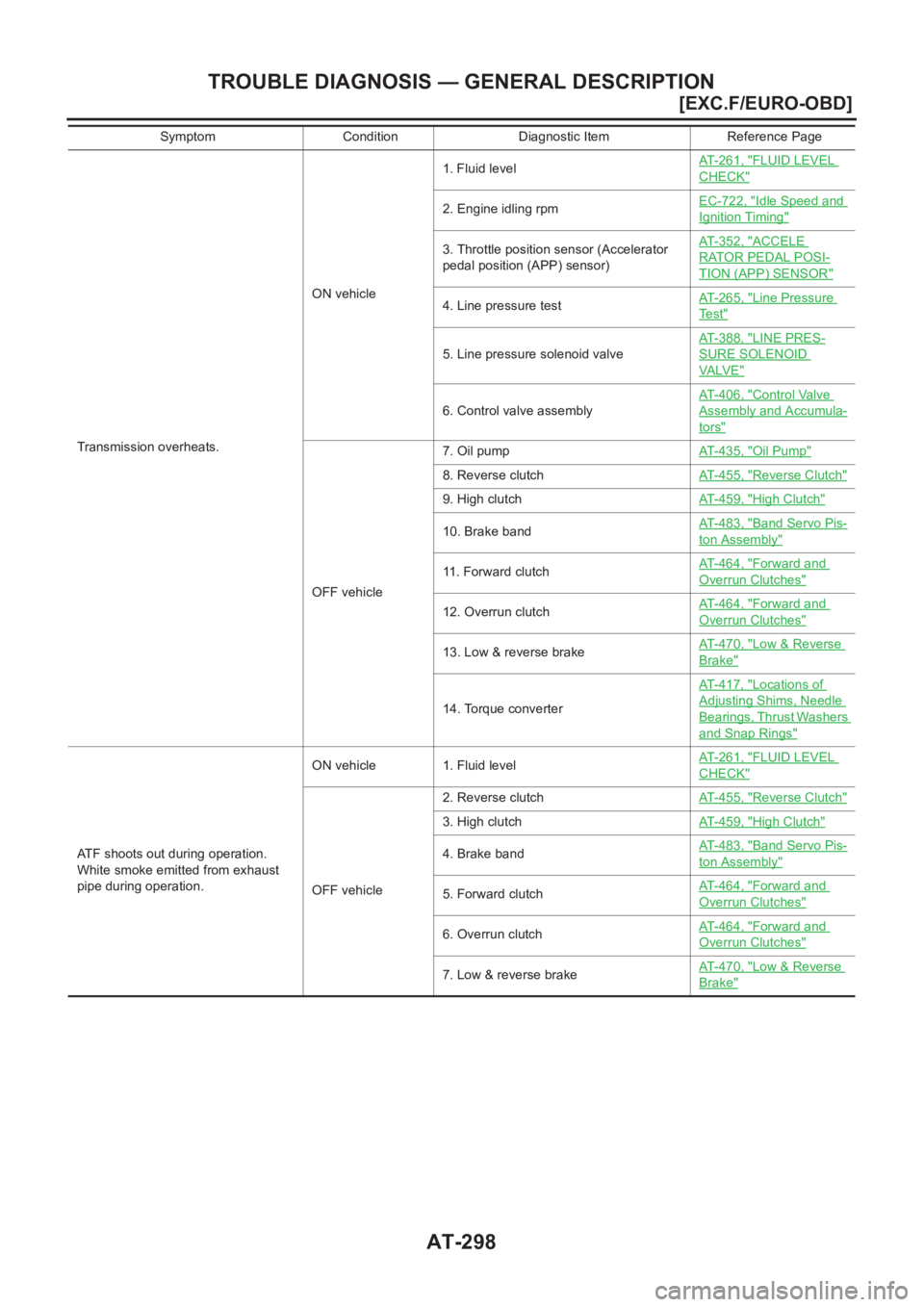

AT-298
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Transmission overheats.ON vehicle1. Fluid levelAT-261, "
FLUID LEVEL
CHECK"
2. Engine idling rpmEC-722, "Idle Speed and
Ignition Timing"
3. Throttle position sensor (Accelerator
pedal position (APP) sensor)AT-352, "ACCELE
RATOR PEDAL POSI-
TION (APP) SENSOR"
4. Line pressure testAT-265, "Line Pressure
Te s t"
5. Line pressure solenoid valveAT-388, "
LINE PRES-
SURE SOLENOID
VA LV E"
6. Control valve assemblyAT-406, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle7. Oil pumpAT-435, "
Oil Pump"
8. Reverse clutchAT-455, "Reverse Clutch"
9. High clutchAT-459, "High Clutch"
10. Brake bandAT-483, "Band Servo Pis-
ton Assembly"
11. Forward clutchAT-464, "Forward and
Overrun Clutches"
12. Overrun clutchAT-464, "Forward and
Overrun Clutches"
13. Low & reverse brakeAT-470, "Low & Reverse
Brake"
14. Torque converterAT-417, "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
ATF shoots out during operation.
White smoke emitted from exhaust
pipe during operation.ON vehicle 1. Fluid levelAT-261, "
FLUID LEVEL
CHECK"
OFF vehicle2. Reverse clutchAT-455, "
Reverse Clutch"
3. High clutchAT-459, "High Clutch"
4. Brake bandAT-483, "Band Servo Pis-
ton Assembly"
5. Forward clutchAT-464, "Forward and
Overrun Clutches"
6. Overrun clutchAT-464, "Forward and
Overrun Clutches"
7. Low & reverse brakeAT-470, "Low & Reverse
Brake"
Symptom Condition Diagnostic Item Reference Page

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

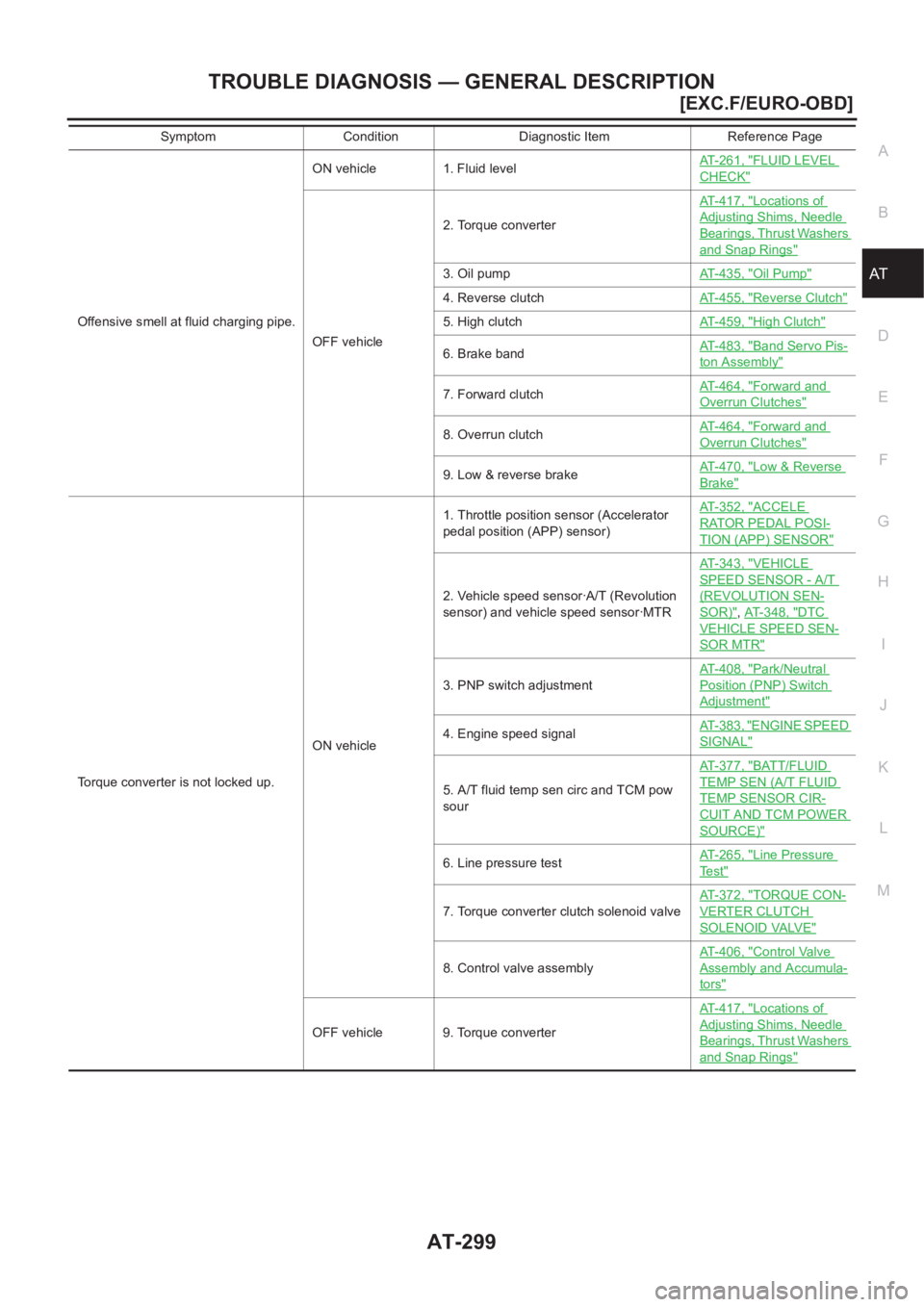

AT-299
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Offensive smell at fluid charging pipe.ON vehicle 1. Fluid levelAT- 2 6 1 , "
FLUID LEVEL
CHECK"
OFF vehicle2. Torque converterAT- 4 1 7 , "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
3. Oil pumpAT- 4 3 5 , "Oil Pump"
4. Reverse clutchAT- 4 5 5 , "Reverse Clutch"
5. High clutchAT- 4 5 9 , "High Clutch"
6. Brake bandAT- 4 8 3 , "Band Servo Pis-
ton Assembly"
7. Forward clutchAT- 4 6 4 , "Forward and
Overrun Clutches"
8. Overrun clutchAT- 4 6 4 , "Forward and
Overrun Clutches"
9. Low & reverse brakeAT- 4 7 0 , "Low & Reverse
Brake"
Torque converter is not locked up.ON vehicle1. Throttle position sensor (Accelerator
pedal position (APP) sensor)AT- 3 5 2 , "
ACCELE
RATOR PEDAL POSI-
TION (APP) SENSOR"
2. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT- 3 4 3 , "
VEHICLE
SPEED SENSOR - A/T
(REVOLUTION SEN-
SOR)",AT-348, "DTC
VEHICLE SPEED SEN-
SOR MTR"
3. PNP switch adjustmentAT- 4 0 8 , "
Park/Neutral
Position (PNP) Switch
Adjustment"
4. Engine speed signalAT- 3 8 3 , "ENGINE SPEED
SIGNAL"
5. A/T fluid temp sen circ and TCM pow
sourAT- 3 7 7 , "
BATT/FLUID
TEMP SEN (A/T FLUID
TEMP SENSOR CIR-
CUIT AND TCM POWER
SOURCE)"
6. Line pressure testAT- 2 6 5 , "Line Pressure
Te s t"
7. Torque converter clutch solenoid valveAT- 3 7 2 , "
TORQUE CON-
VERTER CLUTCH
SOLENOID VALVE"
8. Control valve assemblyAT- 4 0 6 , "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle 9. Torque converterAT- 4 1 7 , "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"

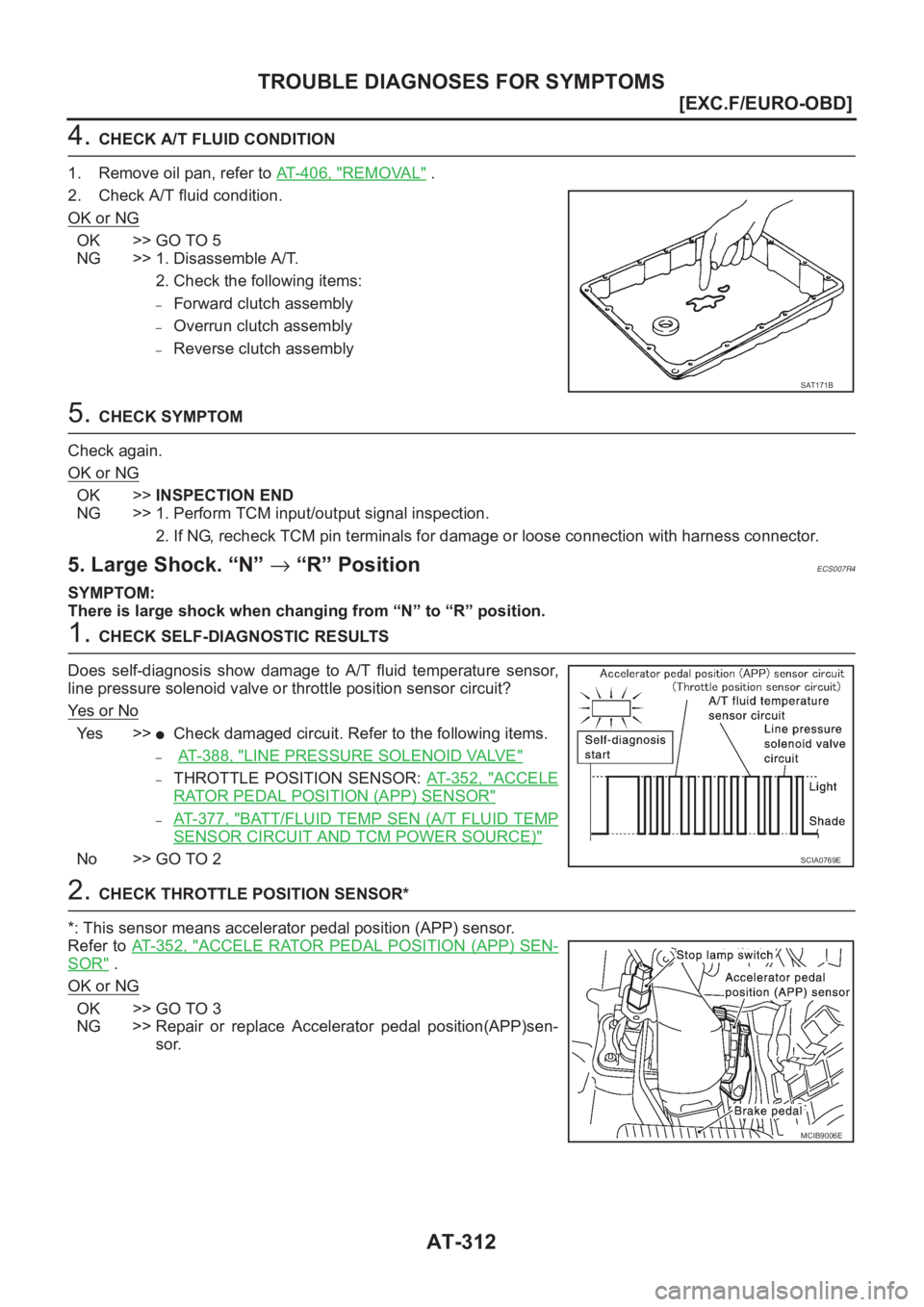

Symptom Condition Diagnostic Item Reference Page

AT-312
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
4. CHECK A/T FLUID CONDITION
1. Remove oil pan, refer to AT- 4 0 6 , "
REMOVAL" .
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 5
NG >> 1. Disassemble A/T.
2. Check the following items:
–Forward clutch assembly
–Overrun clutch assembly
–Reverse clutch assembly
5. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
5. Large Shock. “N” → “R” PositionECS007R4
SYMPTOM:
There is large shock when changing from “N” to “R” position.
1. CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to A/T fluid temperature sensor,
line pressure solenoid valve or throttle position sensor circuit?
Ye s o r N o
Ye s > >●Check damaged circuit. Refer to the following items.
–AT- 3 8 8 , "LINE PRESSURE SOLENOID VALVE"
–THROTTLE POSITION SENSOR: AT- 3 5 2 , "ACCELE
RATOR PEDAL POSITION (APP) SENSOR"
–AT- 3 7 7 , "BATT/FLUID TEMP SEN (A/T FLUID TEMP
SENSOR CIRCUIT AND TCM POWER SOURCE)"
No >> GO TO 2
2. CHECK THROTTLE POSITION SENSOR*
*: This sensor means accelerator pedal position (APP) sensor.
Refer to AT- 3 5 2 , "
ACCELE RATOR PEDAL POSITION (APP) SEN-
SOR" .
OK or NG
OK >> GO TO 3
NG >> Repair or replace Accelerator pedal position(APP)sen-
sor.
SAT171B
SCIA0769E
MCIB9006E

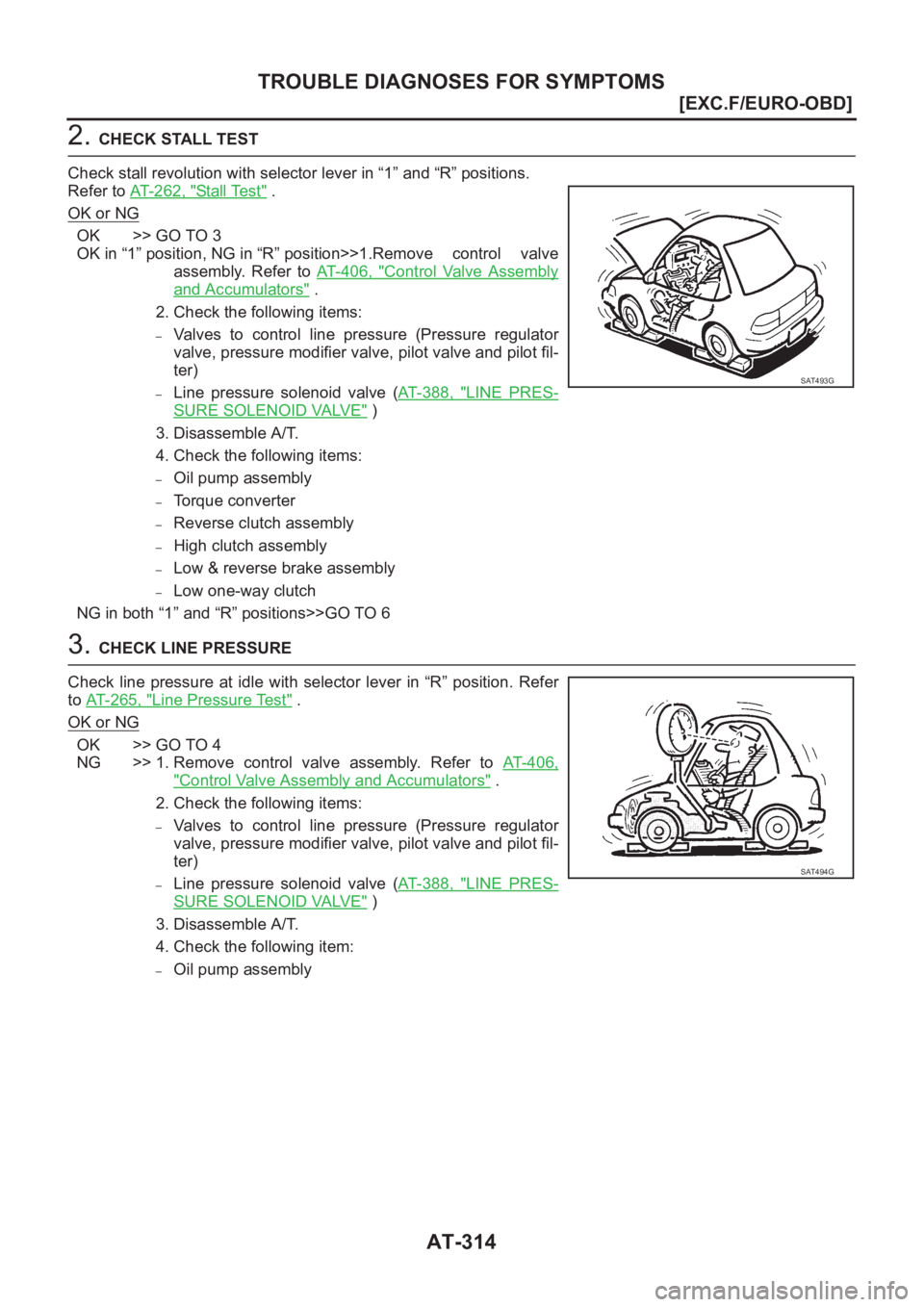

AT-314
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
2. CHECK STALL TEST
Check stall revolution with selector lever in “1” and “R” positions.
Refer to AT-262, "
Stall Test" .
OK or NG
OK >> GO TO 3
OK in “1” position, NG in “R” position>>1.Remove control valve
assembly. Refer to AT- 4 0 6 , "
Control Valve Assembly
and Accumulators" .
2. Check the following items:
–Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)
–Line pressure solenoid valve (AT- 3 8 8 , "LINE PRES-
SURE SOLENOID VALVE" )
3. Disassemble A/T.
4. Check the following items:
–Oil pump assembly
–Torque converter
–Reverse clutch assembly
–High clutch assembly
–Low & reverse brake assembly
–Low one-way clutch
NG in both “1” and “R” positions>>GO TO 6
3. CHECK LINE PRESSURE
Check line pressure at idle with selector lever in “R” position. Refer
to AT- 2 6 5 , "
Line Pressure Test" .
OK or NG
OK >> GO TO 4
NG >> 1. Remove control valve assembly. Refer to AT- 4 0 6 ,
"Control Valve Assembly and Accumulators" .
2. Check the following items:
–Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)
–Line pressure solenoid valve (AT- 3 8 8 , "LINE PRES-
SURE SOLENOID VALVE" )
3. Disassemble A/T.
4. Check the following item:
–Oil pump assembly
SAT493G
SAT494G
