DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY
With GST
Follow the procedure “With CONSULT-II” above.
PROCEDURE FOR DTC P1126
With CONSULT-II
1. Turn ignition switch “ON” and wait at least 2 seconds.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If DTC is detected, go to EC-288, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
SEF058Y

DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY
EC-287
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00KA4
YEC298A

EC-288
[QG (WITH EURO-OBD)]
DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

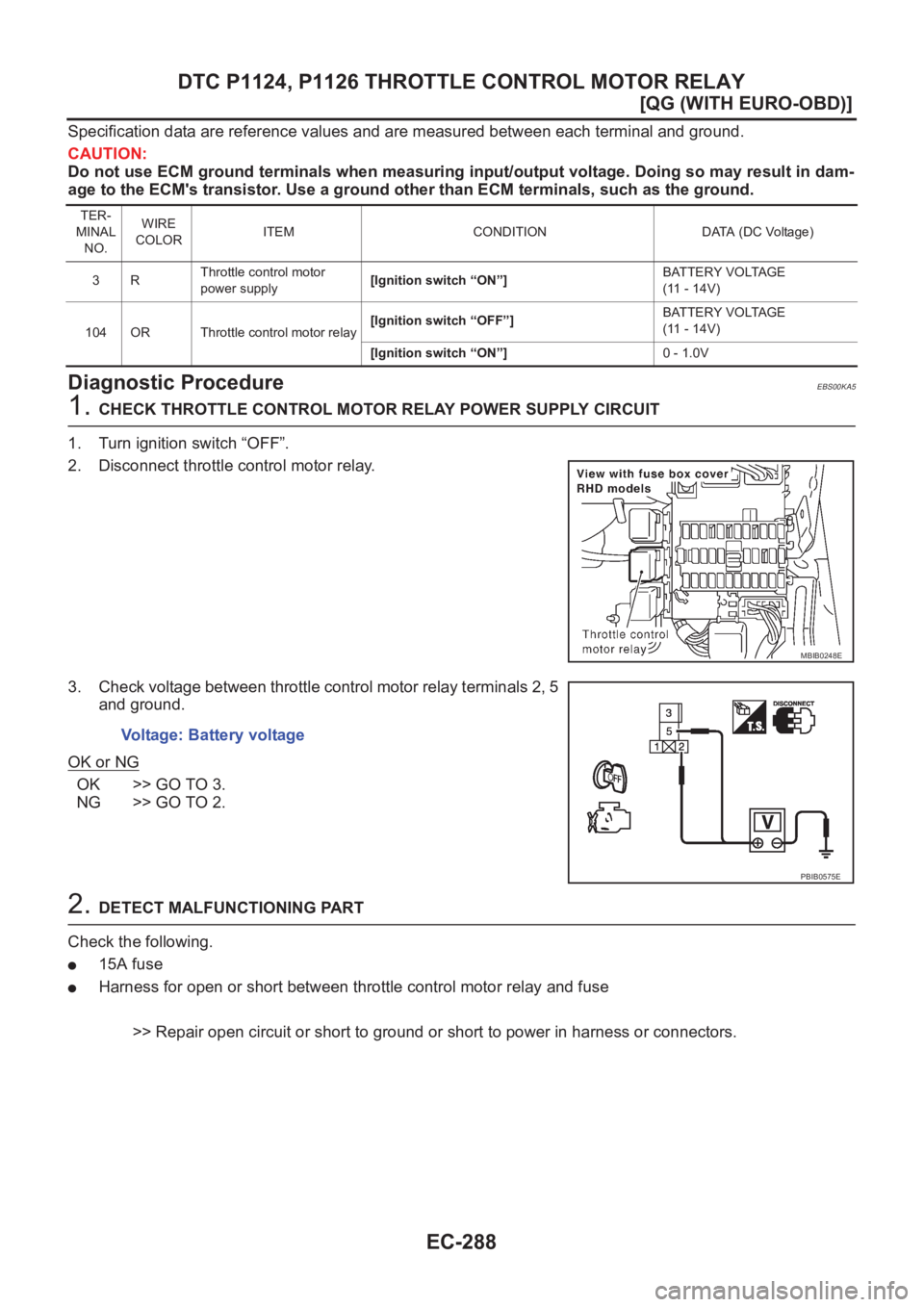

Diagnostic ProcedureEBS00KA5
1. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect throttle control motor relay.
3. Check voltage between throttle control motor relay terminals 2, 5
and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.
●15A fuse
●Harness for open or short between throttle control motor relay and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
3RThrottle control motor
power supply[Ignition switch “ON”]BATTERY VOLTAGE
(11 - 14V)
104 OR Throttle control motor relay[Ignition switch “OFF”]BATTERY VOLTAGE
(11 - 14V)
[Ignition switch “ON”]0 - 1.0V
MBIB0248E
Voltage: Battery voltage
PBIB0575E

DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY
EC-289
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 3 and throttle control motor relay terminal 3.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E225, F43
●Harness for open or short between ECM and throttle control motor relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK THROTTLE CONTROL MOTOR RELAY OUTPUT SIGNAL CIRCUIT
1. Check continuity between ECM terminal 104 and throttle control motor relay terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E75, F36
●Harness for open or short between ECM and throttle control motor relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK THROTTLE CONTROL MOTOR RELAY
Refer to EC-289, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace throttle control motor relay.
8.CHECK INTERMITTENT INCIDENT
Refer to EC-109, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00KA6
THROTTLE CONTROL MOTOR RELAY
1. Apply 12V direct current between relay terminals 1 and 2.Continuity should exist.
Continuity should exist.

EC-290
[QG (WITH EURO-OBD)]
DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY
2. Check continuity between relay terminals 3 and 5.
3. If NG, replace throttle control motor relay.
Conditions Continuity
12V direct current supply
between terminals 1 and 2Ye s
No current supply No
PBIB0098E

EC-324
[QG (WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
DTC P1217 ENGINE OVER TEMPERATURE
PFP:00000
System DescriptionEBS00KBC
NOTE:
If DTC P1217 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to EC-116, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
COOLING FAN CONTROL
*1: The ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: These signals are sent to the ECM through CAN communication line.
The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant
pressure, and air conditioner ON signal. The control system has 2-step control [ON/OFF].
The ECM sends a cooling fan control signal to the smart entrance control unit through CAN communication
line, and the smart entrance control unit controls cooling fan relays.
OPERATION
CONSULT-II Reference Value in Data Monitor ModeEBS00KBD
Specification data are reference values.
Sensor Input Signal to ECM ECM Function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed
*1
Cooling fan
controlCooling fan relay(s) Battery
Battery voltage
*1
Vehicle speed signal
Vehicle speed*2
Engine coolant temperature sensor Engine coolant temperature
Air conditioner switch
Air conditioner “ON” signal
*2
Refrigerant pressure sensor Refrigerant pressure
MBIB0036E
MONITOR ITEM CONDITION SPECIFICATION
AIR COND SIG
●Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON
COOLING FAN
●Engine: After warming up, idle
the engine
●Air conditioner switch: OFFEngine coolant temperature is 99°C
(210°F) or lessOFF
Engine coolant temperature is 100°C
(212°F) or moreON

DTC P1217 ENGINE OVER TEMPERATURE
EC-331
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PROCEDURE A
1.CHECK COOLING FAN POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan relay-1.
3. Turn ignition switch “ON”.
4. Check voltage between cooling fan relay-1 terminals 1, 3, 6 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2.DETECT MALFUNCTIONING PART
Check the following.
●Fuse block (J/B) connector E106
●10A fuse
●30A fusible links
●Harness for open or short between cooling fan relay-1 and fuse
●Harness for open or short between cooling fan relay-1 and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
MBIB0247E
Voltage: Battery voltage
PBIB0951E

EC-332
[QG (WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
3. CHECK COOLING FAN MOTORS CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan motor-1 harness connector and cooling
fan motor-2 harness connector.
3. Check harness continuity between cooling fan relay-1 terminal 5
and cooling fan motor-1 terminal 1, cooling fan motor-1 terminal
2 and body ground.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
5. Check harness continuity between cooling fan relay-1 terminal 7
and cooling fan motor-2 terminal 1, cooling fan motor-2 terminal
2 and body ground.
Refer to Wiring Diagram.
6. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK COOLING FAN OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect smart entrance control unit.
2. Check harness continuity between smart entrance control unit
terminal 33 and cooling fan relay-1 terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E251, M182 (LHD models)
●Harness connectors E174, M159 (RHD models)
●Harness for open or short between smart entrance control unit and cooling fan relay-1
>> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK COOLING FAN RELAY-1
Refer to EC-334, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace cooling fan relay.Continuity should exist.
Continuity should exist.
MBIB0252E
Continuity should exist.
MBIB0264E
