2003 NISSAN ALMERA N16 nats

EC-14
[QG (WITH EURO-OBD)]
INDEX FOR DTC
*1: 1st trip DTC No. is the same as DTC No.
*2: These numbers are prescribed by ISO 15031-5.
*3: In Diagnostic Test Mode II (Self-diagnostic results), these numbers are controlled by NISSAN.
*4: When engine is running.
*5: The trouble shooting for this DTC needs CONSULT-II.
*6: When the fail-safe operations for both self-diagnoses occur, the MI illuminates. P1217 1217 ENG OVER TEMP 1×EC-324
P1223 1223 TP SEN 2/CIRC 1×EC-335
P1224 1224 TP SEN 2/CIRC 1×EC-335
P1225 1225 CTP LEARNING 2 –EC-341
P1226 1226 CTP LEARNING 2 –EC-343
P1227 1227 APP SEN 2/CIRC 1×EC-345
P1228 1228 APP SEN 2/CIRC 1×EC-345
P1229 1229 SENSOR POWER/CIRC 1×EC-352
P1610 - P1615 1610 - 1615 NATS MALFUNCTION 2 –EC-49
P1705 1705 TPV SEN/CIRC A/T 1×AT-181
P1706 1706 P-N POS SW/CIRCUIT 2×EC-356
P1760 1760 O/R CLTCH SOL/CIRC 2×AT-187
P1805 1805 BRAKE SW/CIRCUIT 2 –EC-360
DTC*1
Items
(CONSULT-II screen terms)TripMI lighting
upReference page
CONSULT-II
GST*
2ECM*3

EC-38
[QG (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
CMP SEN/CIRC-B1 P0340 0340 — —×EC-240
TW CATALYST SYS-B1 P0420 0420××
×*4EC-246
PURG VOLUME CONT/V P0444 0444 — —×EC-251
VEH SPEED SEN/CIRC P0500 0500 — —×EC-257
PW ST P SEN/CIRC P0550 0550 — —×EC-260
ECM P0605 0605 — —×EC-265
PNP SW/CIRC P0705 0705 — —×AT- 111
ATF TEMP SEN/CIRC P0710 0710 — —×AT- 11 7
VEH SPD SEN/CIRC AT*5P0720 0720 — —×AT- 1 2 3
ENGINE SPEED SIG P0725 0725 — —×AT- 1 2 9
A/T 1ST GR FNCTN P0731 0731 — —×AT- 1 3 3
A/T 2ND GR FNCTN P0732 0732 — —×AT- 1 3 9
A/T 3RD GR FNCTN P0733 0733 — —×AT- 1 4 5
A/T 4TH GR FNCTN P0734 0734 — —×AT- 1 5 1
TCC SOLENOID/CIRC P0740 0740 — —×AT- 1 5 9
L/PRESS SOL/CIRC P0745 0745 — —×AT- 1 6 4
SFT SOL A/CIRC P0750 0750 — — —AT- 1 7 1
SFT SOL B/CIRC P0755 0755 — — —AT- 1 7 6
ECM BACK UP/CIRC P1065 1065 — —×EC-268
INT/V TIM V/CIR-B1 P1111 1111 — —×EC-272
ETC ACTR P1121 1121 — —×EC-276
ETC FUNCTION/CIRC P1122 1122 — — —EC-278
ETC MOT PWR P1124 1124 — — —EC-285
ETC MOT PWR P1126 1126 — — —EC-285
ETC MOT P11281128———EC-291
HO2S1 (B1) P1143 1143××
×*4EC-296
HO2S1 (B1) P1144 1144××
×*4EC-302
HO2S2 (B1) P1146 1146××
×*4EC-308
HO2S2 (B1) P1147 1147××
×*4EC-316
ENG OVER TEMP P1217 1217 — — —EC-324
TP SEN 2/CIRC P1223 1223 — — —EC-335
TP SEN 2/CIRC P1224 1224 — — —EC-335
CTP LEARNING P1225 1225 — —×EC-341
CTP LEARNING P1226 1226 — —×EC-343
APP SEN 2/CIRC P1227 1227 — — —EC-345
APP SEN 2/CIRC P1228 1228 — — —EC-345
SENSOR POWER/CIRC P1229 1229 — — —EC-352
NATS MALFUNCTION P1610 - P1615 1610 - 1615 — —×EC-49
TPV SEN/CIRC A/T P1705 1705 — — —AT- 1 8 1
P-N POS SW/CIRCUIT P1706 1706 — —×EC-356
Items
(CONSULT-II screen terms)DTC*
1
SRT codeTest Value/
Test Limit
(GST only)1st trip DTC Reference page
CONSULT-II
GST*
2ECM

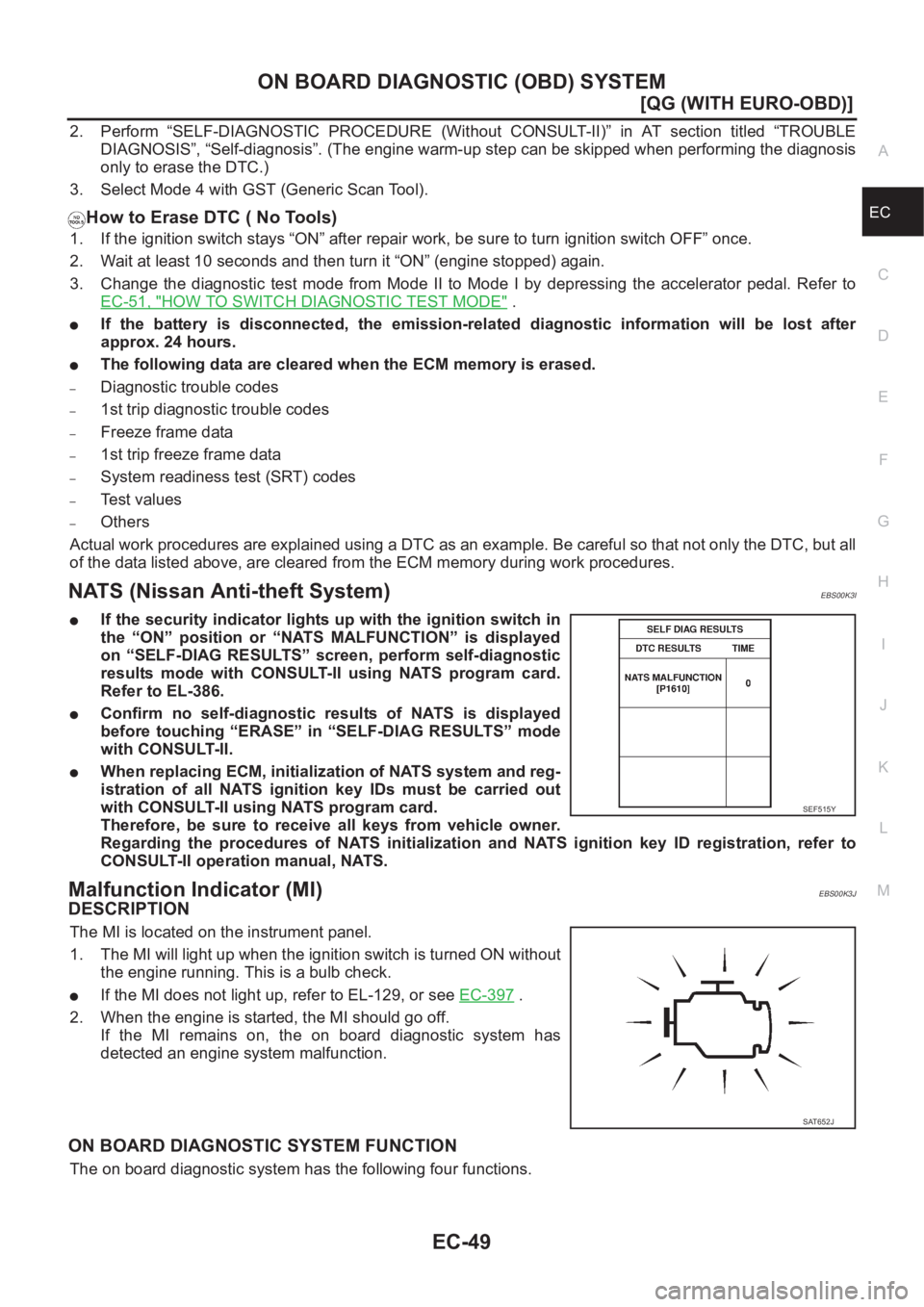

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-49
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. Perform “SELF-DIAGNOSTIC PROCEDURE (Without CONSULT-II)” in AT section titled “TROUBLE
DIAGNOSIS”, “Self-diagnosis”. (The engine warm-up step can be skipped when performing the diagnosis
only to erase the DTC.)
3. Select Mode 4 with GST (Generic Scan Tool).
How to Erase DTC ( No Tools)
1. If the ignition switch stays “ON” after repair work, be sure to turn ignition switch OFF” once.
2. Wait at least 10 seconds and then turn it “ON” (engine stopped) again.
3. Change the diagnostic test mode from Mode II to Mode I by depressing the accelerator pedal. Refer to
EC-51, "
HOW TO SWITCH DIAGNOSTIC TEST MODE" .
●If the battery is disconnected, the emission-related diagnostic information will be lost after
approx. 24 hours.
●The following data are cleared when the ECM memory is erased.
–Diagnostic trouble codes
–1st trip diagnostic trouble codes
–Freeze frame data
–1st trip freeze frame data
–System readiness test (SRT) codes
–Test values
–Others
Actual work procedures are explained using a DTC as an example. Be careful so that not only the DTC, but all
of the data listed above, are cleared from the ECM memory during work procedures.
NATS (Nissan Anti-theft System)EBS00K3I
●If the security indicator lights up with the ignition switch in
the “ON” position or “NATS MALFUNCTION” is displayed
on “SELF-DIAG RESULTS” screen, perform self-diagnostic
results mode with CONSULT-II using NATS program card.
Refer to EL-386.
●Confirm no self-diagnostic results of NATS is displayed
before touching “ERASE” in “SELF-DIAG RESULTS” mode
with CONSULT-II.
●When replacing ECM, initialization of NATS system and reg-
istration of all NATS ignition key IDs must be carried out
with CONSULT-II using NATS program card.
Therefore, be sure to receive all keys from vehicle owner.
Regarding the procedures of NATS initialization and NATS ignition key ID registration, refer to
CONSULT-II operation manual, NATS.
Malfunction Indicator (MI)EBS00K3J
DESCRIPTION
The MI is located on the instrument panel.
1. The MI will light up when the ignition switch is turned ON without
the engine running. This is a bulb check.
●If the MI does not light up, refer to EL-129, or see EC-397 .
2. When the engine is started, the MI should go off.
If the MI remains on, the on board diagnostic system has
detected an engine system malfunction.
ON BOARD DIAGNOSTIC SYSTEM FUNCTION
The on board diagnostic system has the following four functions.
SEF515Y
SAT652J

TROUBLE DIAGNOSIS
EC-63
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Fail-safe ChartEBS00K3N
●When the DTC listed below is detected, the ECM enters fail-safe mode and the MI lights up.
Priority Detected items (DTC)
1
●U1000 U1001 CAN communication line
●P0102 P0103 Mass air flow sensor
●P0112 P0113 Intake air temperature sensor
●P0117 P0118 Engine coolant temperature sensor
●P0221 P0222 P0223 P1223 P1224 P1225 P1226 P1229 Throttle position sensor
●P0226 P0227 P0228 P1227 P1228 Accelerator pedal position sensor
●P0327 P0328 Knock sensor
●P0335 Crankshaft position sensor (POS)
●P0340 Camshaft position sensor (PHASE)
●P0500 Vehicle speed sensor
●P0705 Park/Neutral position (PNP) switch
●P0605 ECM
●P1610-P1615 NATS
●P1706 Park/Neutral position (PNP) switch
2
●P0031 P0032 Heated oxygen sensor 1 heater
●P0037 P0038 Heated oxygen sensor 2 heater
●P0132 P0133 P0134 P1143 P1144 Heated oxygen sensor 1
●P0138 P0139 P1146 P1147 Heated oxygen sensor 2
●P0550 Power steering pressure sensor
●P0710-P0725 P0740-P0755 P1705 P1760 A/T related sensors and solenoid valves
●P1065 ECM power supply
●P 1111 I n ta k e v a l v e t i m i n g c o n t r o l s o l e n o i d v a l v e
●P1122 Electric throttle control function
●P1124 P1126 P1128 Electric throttle control actuator
●P1805 Brake switch
3
●P0011 Intake valve timing control
●P0171 P0172 Fuel injection system function
●P0300 - P0304 Misfire
●P0420 Three way catalyst function
●P0444 EVAP canister purge volume control solenoid valve
●P0731-P0734 A/T function
●P1121 Electric throttle control actuator
●P1217 Engine over temperature (OVERHEAT)
DTC No. Detected items Engine operating condition in fail-safe mode
P0102
P0103Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.

TROUBLE DIAGNOSIS
EC-67
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
6.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-31, "
Idle Air Volume Learning" .
Ye s o r N o
Ye s > > G O T O 7 .
No >> 1. Follow the construction of “Idle Air Volume Learning”.
2. GO TO 4.
7.CHECK TARGET IDLE SPEED AGAIN
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Read idle speed in “DATA MONITOR” mode with CONSULT-II.
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.
OK or NG
OK >> GO TO 10.
NG >> GO TO 8.
8.DETECT MALFUNCTIONING PART
Check the following.
●Check camshaft position sensor (PHASE) and circuit. Refer to EC-240 .
●Check crankshaft position sensor (POS) and circuit. Refer to EC-234 .
OK or NG
OK >> GO TO 9.
NG >> 1. Repair or replace.
2. GO TO 4.
9.CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of a incident, but
this is the rarely the case.)
2. Perform initialization of NATS system and registration of NATS ignition key IDs. Refer to EC-49, "
NATS
(Nissan Anti-theft System)" .
>> GO TO 4. Is″Idle Air Volume Learning″ carried out successfully?
M/T: 700 ± 50 rpm
A/T: 800 ± 50 rpm (in “P” or “N” position)
M/T: 700 ± 50 rpm
A/T: 800 ± 50 rpm (in “P” or “N” position)

TROUBLE DIAGNOSIS
EC-69
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
15.CHECK IGNITION TIMING AGAIN
1. Run engine at idle.
2. Check ignition timing with a timing light.
OK or NG
OK >>INSPECTION END
NG >> GO TO 16.
16.CHECK TIMING CHAIN INSTALLATION
Check timing chain installation. Refer to EM-47, "
TIMING CHAIN" .
OK or NG
OK >> GO TO 17.
NG >> 1. Repair the timing chain installation.
2. GO TO 4.
17.DETECT MALFUNCTIONING PART
Check the following.
●Check camshaft position sensor (PHASE) and circuit. Refer to EC-240 .
●Check crankshaft position sensor (POS) and circuit. Refer to EC-234 .
OK or NG
OK >> GO TO 18.
NG >> 1. Repair or replace.
2. GO TO 4.
18.CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of a incident, but
this is the rarely the case.)
2. Perform initialization of NATS system and registration of NATS ignition key IDs. Refer to EC-49, "
NATS
(Nissan Anti-theft System)" .
>> GO TO 4. M/T: 8 ± 5° BTDC
A/T: 10 ± 5° BTDC (in “P” or “N” position)

TROUBLE DIAGNOSIS
EC-73
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
1 - 6: The numbers refer to the order of inspection.Cooling Radiator/Hose/Radiator filler cap
55555 55 25LC-12
Thermostat 5 LC-15
Water pumpLC-14
Water galleryLC-12
Cooling fan 5 LC-17
Coolant level (low)/Contaminated
coolantLC-17
NATS (Nissan Anti-Theft System) 1 1EC-49
or
EL-386 SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA

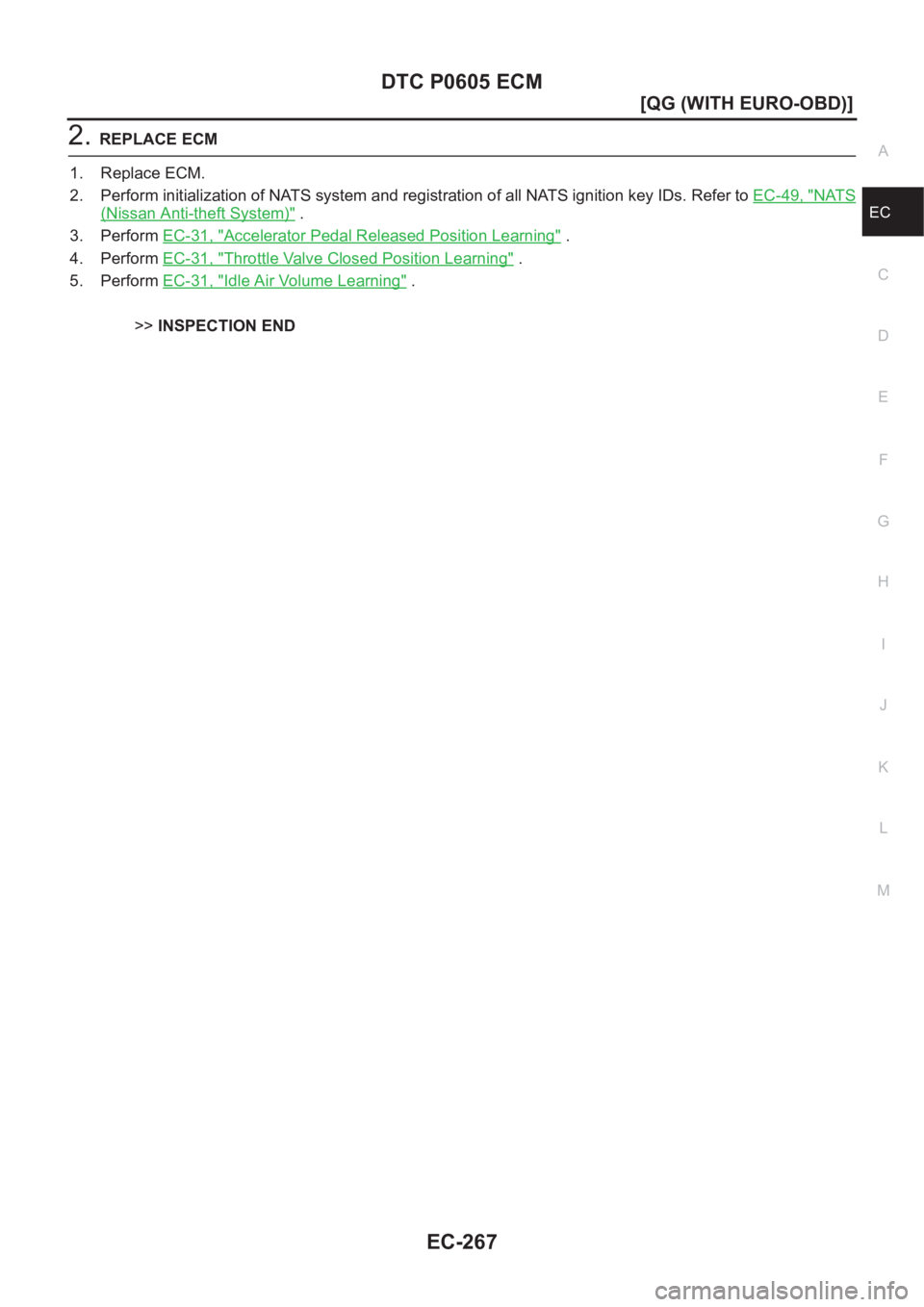

DTC P0605 ECM
EC-267
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2.REPLACE ECM
1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to EC-49, "
NATS
(Nissan Anti-theft System)" .
3. Perform EC-31, "
Accelerator Pedal Released Position Learning" .
4. Perform EC-31, "
Throttle Valve Closed Position Learning" .
5. Perform EC-31, "
Idle Air Volume Learning" .
>>INSPECTION END
