2003 NISSAN ALMERA N16 door lock

DescriptionNJEL0583The Smart Entrance Control Unit is applied for QG engine models and YD engine models with common rail.
OUTLINENJEL0583S01The smart entrance control unit totally controls the following body electrical system operations.
Warning chime, refer to EL-136, “WARNING CHIME”.
Rear defogger and door mirror defogger, refer to EL-173, “REAR WINDOW DEFOGGER”.
Power door lock, refer to EL-261, “POWER DOOR LOCK SYSTEM”.
Power door lock - Super lock - (RHD models), refer to EL-301, “POWER DOOR LOCK — SUPER LOCK
—”.
Multi-remote control system, refer to EL-352, “MULTI-REMOTE CONTROL SYSTEM”.
NATS (Nissan Anti-Theft system), refer to EL-386, “NATS (NISSAN ANTI-THEFT SYSTEM)”.
Interior lamp, refer to EL-80, “INTERIOR ROOM LAMP”.
Also, smart entrance control unit has the “sleep/wake-up control” function. Smart entrance control unit puts
itself (the whole smart entrance control unit) to sleep under certain conditions to prevent unnecessary power
consumption. Then, when a certain input is detected, the system wakes itself up. For more detailed
information, refer to EL-368, “SLEEP/WAKE-UP CONTROL”.
INTERIOR LAMP/SPOT LAMP/VANITY MIRROR ILLUMINATIONNJEL0583S02The lamps turn off automatically when the interior lamp, spot lamp or/and vanity mirror illumination are illumi-
nated with the ignition key in the OFF position, if the lamp remains lit by the door switch open signal or if the
lamp switch is in the ON position for more than 30 minutes.
After lamps are turned off by the smart entrance control unit, the lamps illuminate again when:
Driver’s door is locked or unlocked with remote controller, door lock/unlock switch or door key cylinder.
Ignition switch is turned to ON.
Door is opened or closed,
Key is inserted into ignition key cylinder.
REAR WINDOW DEFOGGER/DOOR MIRROR DEFOGGERNJEL0583S03Rear window defogger is turned off in approximately 15 minutes after the rear window defogger switch is turned
on.
SLEEP/WAKE-UP CONTROLNJEL0583S04Sleep ControlNJEL0583S0401“Sleep” control prevents unnecessary power consumption. After the following conditions are met, the smart
entrance control unit suspends the operation. The whole smart entrance control unit is set in the “sleep” mode.
Ignition switch “OFF”
All electrical loads (in the smart entrance control unit) “OFF”
Timer “OFF”
Each switch do not input
Wake-up ControlNJEL0583S0402When the smart entrance control unit detects a “wake-up” signal, it wakes up the whole system and starts
operating again. When any one of the following switches are turned ON, the “sleep” mode is canceled:
Ignition switch
Hazard switch
Headlamp switch
Hood switch
Trunk room lamp switch (sedan models)
Back door switch (hatchback or wagon models)
Each door switch
Trunk release switch (sedan models)
Back door release switch (hatchback or wagon models)
External trunk release switch (sedan models)
External back door release switch (hatchback or wagon models)
SMART ENTRANCE CONTROL SYSTEM
Description
EL-368

INPUT/OUTPUTNJEL0583S05
System Input Output
Power door lockDoor lock/unlock switch
Key switch (Insert)
Door switches
Trunk or back door release switch
External trunk or back door release switchDoor lock actuators
Trunk or back door release actuator
Multi-remote controlKey switch (Insert)
Ignition switch (ON)
Door switches
Key fob signal
Door lock/unlock switchHazard warning lamp
Door lock actuator
Warning chimeKey switch (Insert)
Ignition switch (ON)
Lighting switch (1st)
Seat belt switch
Front door switch LHWarning chime (located in smart entrance
control unit)
Rear window defogger and door mirror
defoggerIgnition switch (ON)
Rear window defogger switchRear window defogger relay
Theft warningIgnition switch (ON)
Door switches
Hood switch
Trunk room lamp switch (sedan models)
Back door switch (hatchback or wagon
models)
Door lock/unlock switches
Smash sensorVehicle security horn relay
Siren control unit
Security indicator (located in combination
meter)
Hazard warning lamp
Interior room lampDoor switches
Remote controller signal (lock/unlock)
Door lock/unlock switches (lock/unlock)
Trunk room lamp switch (sedan models)
Back door switch (hatchback or wagon
models)
Ignition switch (ON)
Key switch (Insert)Interior lamp
Key hole illumination
Step lamp
Spot lamp
Vanity mirror
CONSULT-IINJEL0584DIAGNOSTIC ITEMS APPLICATIONNJEL0584S01
Item (CONSULT-II screen
terms)Diagnosed system DATA MONITOR WORK SUPPORT
DOOR LOCKING Power door lock X X
DEFOG Rear window defogger X
KEY REMINDER Warning chime X
LIGHT ON REMINDER Warning chime X
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
SMART ENTRANCE CONTROL SYSTEM
Description (Cont’d)
EL-369

Item (CONSULT-II screen
terms)Diagnosed system DATA MONITOR WORK SUPPORT
ROOM LAMP Interior room lamps X
THEFT WARNING Theft warning system X X
RETAINED PWR Retained power control X X
KEYLESS ENTRY Multi-remote control system X X
H/L WASH Headlamp washer X
TRUNK RELEASE Trunk or back door release X X
DIRECTION INDICATORS Direction indicator sound X X
SEC-E C/U SEC self-diagnosis X
X: Applicable
For diagnostic item in each control system, refer to the relevant pages foreach system.
The description of DATA MONITOR and WORK SUPORT, refer to EL-370, “DATA MONITOR MODE or EL-371, WORK SUPPORT
MODE”.
DATA MONITOR MODENJEL0584S02
Item (CONSULT-II screen terms) Diagnosed system
IGNITION SW Indicates [ON/OFF] condition of ignition switch.
KEY IN DETECT Indicates [ON/OFF] condition of electronic key switch.
DOOR SW DR RR Indicates [ON/OFF] condition of rear door switch (driver side).
DOOR SW AS RR Indicates [ON/OFF] condition of rear door switch (passenger side).
AS DOOR SW Indicates [ON/OFF] condition of front door switch (passenger side).
DR DOOR SW Indicates [ON/OFF] condition of front door switch (driver side).
WASH SW Indicates [ON/OFF] condition of washer switch.
CDL LOCK SW Indicates [ON/OFF] condition of door lock/unlock switch (locksignal).
CDL UNLOCK SW Indicates [ON/OFF] condition of door lock/unlock switch (unlock signal).
TRUNK OPEN SW Indicates [ON/OFF] condition of
HOOD OPEN SW Indicates [ON/OFF] condition of hood switch.
INT TRUNK REL· Indicates [ON/OFF] condition of trunk or back door release switch.
EXT TRUNK REL Indicates [ON/OFF] condition of external trunk back door release switch.
HAZARD SW Indicates [ON/OFF] condition of hazard switch.
RH TURN SW Indicates [ON/OFF] condition of turn signal switch.
LH TURN SW Indicates [ON/OFF] condition of turn signal switch.
REAR DEF SW Indicates [ON/OFF] condition of multifunction switch (defogger switch).
RKE LOCK Indicates [ON/OFF] condition of lock signal from remote controller.
RKE UNLOCK Indicates [ON/OFF] condition of unlock signal from remote controller.
RKE SEL UNLOCK Indicates [ON/OFF] condition of select unlock signal from remote controller.
RKE TRUNK REL Indicates [ON/OFF] condition of trunk open signal from remote controller.
BATTERY CHECK Indicates [ON/OFF] condition of remote controller battery.
TAIL LAMP ON Indicates [ON/OFF] condition of lighting switch.
SMART ENTRANCE CONTROL SYSTEM
CONSULT-II (Cont’d)
EL-370

Item (CONSULT-II screen terms) Diagnosed system
CAN COMM
Indicates the communication condition of CAN communication line. CANCIRC1
CANCIRC2
CANCIRC3
WORK SUPPORT MODENJEL0584S03
Mode Description Test item
DOOR LOCKINGAUTO RE-LOCK This mode can set auto re-lock function.
SELECTIVE UNLOCK This mode can set select unlock function.
TRUNK RELERASE TRUNK OPEN DELAYThis mode can set trunk or back door open switch
operation time.
WORK SUPPORT for
ROOMKEYLESS REGISTRATION This mode can register remote controller ID.
KEYLESS CHECKThis mode can check whether water remote controller
ID code is registered or not.
KEYLESS DI FLASH This mode can set remote controller function.
DIRECTION INDICATORS AUDIBLE TRAILER WARNING This mode can set audible trailer warning function.
SELF-DIAG RESULTS MODENJEL0584S04
Diagnosis item Description Repair order
RH FLASHER (S) BULB BROKENRH turn signal lamp system is mal-
functioning.Check turn signal lamp system. Refer to EL-67,
“TURN SIGNAL AND HAZARD WARNINGLAMPS”.
LH FLASHER (S) BULB BROKENLH turn signal lamp system is malfunc-
tioning.Check turn signal lamp system. Refer to EL-67,
“TURN SIGNAL AND HAZARD WARNINGLAMPS”.
RH FLASHER CIRCUIT OVER
CURRENTRH turn signal lamp circuit is open or
shorted.Check turn signal lamp system. Refer to EL-67,
“TURN SIGNAL AND HAZARD WARNINGLAMPS”.
LH FLASHER CIRCUIT OVER
CURRENTLH turn signal lamp circuit is open or
shorted.Check turn signal lamp system. Refer to EL-67,
“TURN SIGNAL AND HAZARD WARNINGLAMPS”.
CAN COMM CIRCUIT*CAN communication line is open or
shorted.Check CAN communication line. Refer to EL-380,
“CAN Communication Line Check”.
*: If this malfunction is displayed, first perform the trouble diagnosis.
MAIA0009E
CONSULT-II INSPECTION PROCEDURENJEL0584S051. Turn ignition switch “OFF”.
2. Connect “CONSULT-II” to the data link connector.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
SMART ENTRANCE CONTROL SYSTEM
CONSULT-II (Cont’d)
EL-371

Smart Entrance Control Unit Inspection TableNJEL0586
Terminal
No.Wire
colorConnections Operated condition Voltage (Approximate values)
1GNATS antenna amp.
(Power supply)— Approx. 5V
2 G/ORNATS antenna amp.
(Ground)——
3 G/WNATS antenna amp.
(Signal line)Moment when key was inserted.The needle of analog tester
swings immediately after insert-
ing key.
4 G/YNATS antenna amp.
(Signal line)Moment when key was insertedThe needle of analog tester
swings immediately after insert-
ing key.
5 L/W Key switch Ignition key Removed,Inserted 0V,12V
8 L CAN communication line — —
9 Y or PU Audio unit Ignition key removed or inserted
MKIB0191E
11 R CAN communication line — —
12 PU/W Flasher sounderFlasher sound signal :
Triggered (0V)
.Not triggered (12V)12V,0V (850μs),12V
13 P Door lock/unlock switches Neutral,Locks 12V,0V
14 L Door lock/unlock switches Neutral,Unlocks 12V,0V
15 LG Hood switchHood switch:
ON (Open),OFF (Closed)0V,12V
16 GTrunk room lamp switch
(sedan models)
Back door switch (hatchback or
wagon models)Trunk or back door release switch:
OFF,ON (Only when pressed)12V,0V
17 R/G Tail lamp switch Lighting switch: OFF,1st or 2nd 0V,12V
18 LG CONSULT-II SCI interface — —
19 LG/RTrunk release switch (sedan
models)
Back door switch (hatchback
and wagon models)Internal trunk release switch:
Press,Release (Only when
pressed)12V,0V
20 W External trunk release switchExternal trunk or back door release
switch:
OFF (Closed),ON (Only when
pressed)12V,0V
22 L/YMultifunction switch
(Rear window defogger switch)[Ignition switch “ON”]
Multifunction switch: Press,
Release (Only when pressed)7V,0V
23 R Lock/unlock switch indicator Lock/unlock switch: Lock,Unlock 12V,0V
SMART ENTRANCE CONTROL SYSTEM
Smart Entrance Control Unit Inspection Table
EL-376

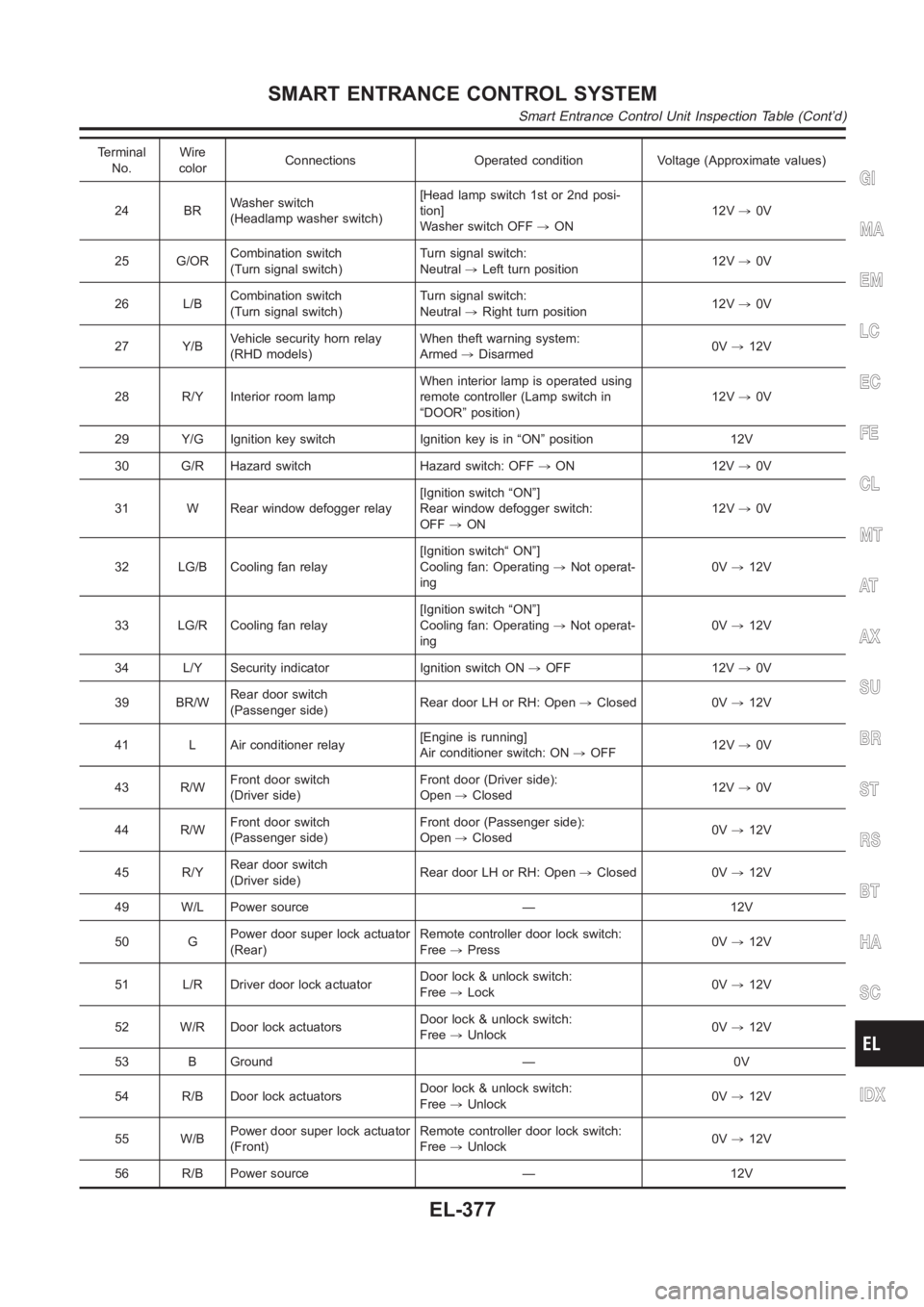

Terminal
No.Wire
colorConnections Operated condition Voltage (Approximate values)
24 BRWasher switch
(Headlamp washer switch)[Head lamp switch 1st or 2nd posi-
tion]
Washer switch OFF,ON12V,0V
25 G/ORCombination switch
(Turn signal switch)Turn signal switch:
Neutral,Left turn position12V,0V
26 L/BCombination switch
(Turn signal switch)Turn signal switch:
Neutral,Right turn position12V,0V
27 Y/BVehicle security horn relay
(RHD models)When theft warning system:
Armed,Disarmed0V,12V
28 R/Y Interior room lampWhen interior lamp is operated using
remote controller (Lamp switch in
“DOOR” position)12V,0V
29 Y/G Ignition key switch Ignition key is in “ON” position 12V
30 G/R Hazard switch Hazard switch: OFF,ON 12V,0V
31 W Rear window defogger relay[Ignition switch “ON”]
Rear window defogger switch:
OFF,ON12V,0V
32 LG/B Cooling fan relay[Ignition switch“ ON”]
Cooling fan: Operating,Not operat-
ing0V,12V
33 LG/R Cooling fan relay[Ignition switch “ON”]
Cooling fan: Operating,Not operat-
ing0V,12V
34 L/Y Security indicator Ignition switch ON,OFF 12V,0V
39 BR/WRear door switch
(Passenger side)Rear door LH or RH: Open,Closed 0V,12V
41 L Air conditioner relay[Engine is running]
Air conditioner switch: ON,
OFF12V,0V
43 R/WFront door switch
(Driver side)Front door (Driver side):
Open,Closed12V,0V
44 R/WFront door switch
(Passenger side)Front door (Passenger side):
Open,Closed0V,12V
45 R/YRear door switch
(Driver side)Rear door LH or RH: Open,Closed 0V,12V
49 W/L Power source — 12V
50 GPower door super lock actuator
(Rear)Remote controller door lock switch:
Free,Press0V,12V
51 L/R Driver door lock actuatorDoor lock & unlock switch:
Free,Lock0V,12V
52 W/R Door lock actuatorsDoor lock & unlock switch:
Free,Unlock0V,12V
53 B Ground — 0V
54 R/B Door lock actuatorsDoor lock & unlock switch:
Free,Unlock0V,12V
55 W/BPower door super lock actuator
(Front)Remote controller door lock switch:
Free,Unlock0V,12V
56 R/B Power source — 12V
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
SMART ENTRANCE CONTROL SYSTEM
Smart Entrance Control Unit Inspection Table (Cont’d)
EL-377

Terminal
No.Wire
colorConnections Operated condition Voltage (Approximate values)
57 G/BTrunk release actuator (sedan
models)
Back door release actuator
(hatchback or wagon)Trunk or back door release switch:
OFF,ON (Open)12V,0V
58 B/WStarter motor (With A/T or
CVT)Ignition switch: OFF,START posi-
tion0V,12V
59 B/Y Starter motor (With M/T)Ignition switch: OFF,START posi-
tion0V,12V
62 L/R Headlamp washer motor[Headlamp switch 1st or 2nd position]
Washer switch: OFF,ON12V,0V
63 G/Y RH turn signal lamp[When door lock or unlock is oper-
ated using remote controller]
Turn signal lamp: OFF,ON,OFF0V,12V,0V
64 G/B LH turn signal lamp[When door lock or unlock is oper-
ated using remote controller]
Turn signal lamp: OFF,ON,OFF0V,12V,0V
Trouble DiagnosesNJEL0587PRELIMINARY CHECKNJEL0587S01
1 CHECK “SELF-DIAG RESULTS” MODE WITH CONSULT-II
Check smart entrance system trouble diagnosis (SELF-DIAG RESULTS) in “SEC-E CE” mode with CONSULT-II. Refer to
EL-371, “SELF-DIAG RESULTS MODE”.
Can “SELF-DIAG RESULTS” mode be displayed?
Ye s G O T O 2 .
No GO TO 3.
2 CHECK DISPLAY ITEM
Check display item in “SELF-DIAG RESULTS” mode.
Is any malfunction indicated in “SELF-DIAG RESULTS” mode?
Yes GO TO EL-371, “SELF-DIAG RESULTS MODE”.
No Inspection end.
3 CHECK POWER SUPPLY AND GROUND CIRCUIT
Refer to EL-379, “Power Supply and Ground Circuit Check”.
OK or NG
OK Replace smart entrance control unit.
NG Repair or replace harness.
SMART ENTRANCE CONTROL SYSTEM
Smart Entrance Control Unit Inspection Table (Cont’d)
EL-378

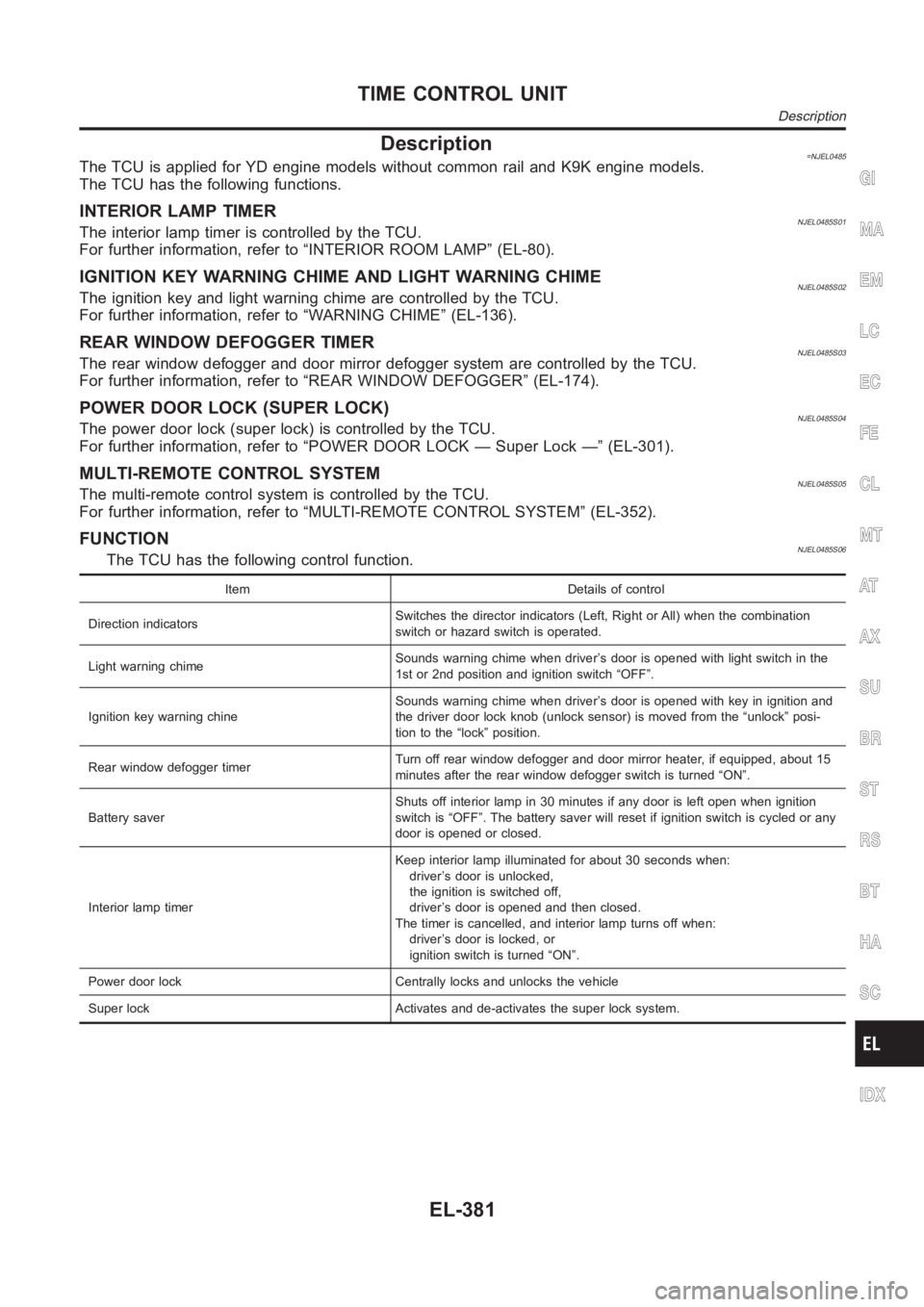

Description=NJEL0485The TCU is applied for YD engine models without common rail and K9K engine models.
The TCU has the following functions.
INTERIOR LAMP TIMERNJEL0485S01The interior lamp timer is controlled by the TCU.
For further information, refer to “INTERIOR ROOM LAMP” (EL-80).
IGNITION KEY WARNING CHIME AND LIGHT WARNING CHIMENJEL0485S02The ignition key and light warning chime are controlled by the TCU.
For further information, refer to “WARNING CHIME” (EL-136).
REAR WINDOW DEFOGGER TIMERNJEL0485S03The rear window defogger and door mirror defogger system are controlled bythe TCU.
For further information, refer to “REAR WINDOW DEFOGGER” (EL-174).
POWER DOOR LOCK (SUPER LOCK)NJEL0485S04The power door lock (super lock) is controlled by the TCU.
For further information, refer to “POWER DOOR LOCK — Super Lock —” (EL-301).
MULTI-REMOTE CONTROL SYSTEMNJEL0485S05The multi-remote control system is controlled by the TCU.
For further information, refer to “MULTI-REMOTE CONTROL SYSTEM” (EL-352).
FUNCTIONNJEL0485S06The TCU has the following control function.
Item Details of control
Direction indicatorsSwitches the director indicators (Left, Right or All) when the combination
switch or hazard switch is operated.
Light warning chimeSounds warning chime when driver’s door is opened with light switch in the
1st or 2nd position and ignition switch “OFF”.
Ignition key warning chineSounds warning chime when driver’s door is opened with key in ignition and
the driver door lock knob (unlock sensor) is moved from the “unlock” posi-
tion to the “lock” position.
Rear window defogger timerTurn off rear window defogger and door mirror heater, if equipped, about 15
minutes after the rear window defogger switch is turned “ON”.
Battery saverShuts off interior lamp in 30 minutes if any door is left open when ignition
switch is “OFF”. The battery saver will reset if ignition switch is cycled or any
door is opened or closed.
Interior lamp timerKeep interior lamp illuminated for about 30 seconds when:
driver’s door is unlocked,
the ignition is switched off,
driver’s door is opened and then closed.
The timer is cancelled, and interior lamp turns off when:
driver’s door is locked, or
ignition switch is turned “ON”.
Power door lock Centrally locks and unlocks the vehicle
Super lock Activates and de-activates the super lock system.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
TIME CONTROL UNIT
Description
EL-381
