2003 MITSUBISHI SHOGUN display

H11A363D
UKW/MW/LW electronic tuning radio with tape
player*
EH30A-Pa
The audio system can be used when the ignition switch is in the
“ON” or “ACC” position.
A-Display window
B-Audio system
C-Multi centre display
D-RV meter
NOTE
(1) A CD player or a CD autochanger can be connected to this
audio system. The CD player or the CD autochanger can be
operated by the switch on the audio body. Refer to
“Connection of a CD player or a CD autochanger” on page
6-15.
(2) To listen to the audio system while the engine is stopped, turn
the ignition switch to the “ACC” position.(3) When a cellular phone is used inside the vehicle, noise may
be produced from the audio equipment. This does not mean
that something is wrong with the audio equipment. In such a
case, use the cellular phone at a place as far as possible from
the audio equipment.
(4) In case of misuse (entry of a foreign object or water, smoke
or odour, etc.), immediately turn off the audio system and have
it checked at an authorized MITSUBISHI dealer. Never try to
repair it by yourself. Avoid continuous usage without inspec-
tion by a qualified person.
(5) The audio system’s control panel can be removed to deter
thieves. For details, refer to section entitled “Audio system
anti-theft feature” on page 6-32.
For pleasant driving
6-2Div:
Out put date:

H11A364D
To listen to the radio
EH30B-Fb
1- PWR (On-off) switch
2- VOL (Volume control)knob
3- U/M/L (UKW/MW/LW selection) button
4- Audio adjust button
5- AUDIO button
6- TUNE/SEEK
(Down-step/Down-seek) button
7- TUNE/SEEK
(Up-step/Up-seek) button
8- Memory select buttons
9- Frequency display window
10- Preset memory number display
11- ST (Stereo) indicator
For pleasant driving
6-3
Div:
Out put date:

1. Press the PWR switch (1) to turn on the
radio.
Press the PWR switch again to switch
it off.
2. Press the U/M/L button (3) to select the
desired band (U1/U2/MW/LW).
3. Press the TUNE/SEEK button (6 or 7)
or one of the Memory select buttons (8)
to tune to a station.
Refer to“How to adjust the tune”or
“How to enter frequencies in the
memory”on page 6-5.How to adjust the volumeVOL (Volume control)-2
Turn the VOL knob clockwise to increase
the volume.
H11A348G
Multi centre display
H30B003A
RV meterHow to adjust the tonePress the AUDIO button (5) to select
BASS→TREBLE→FADER→BALANCE
→Audio adjust mode off.
BASS (Bass tone control)
Press the Audio adjust button (4) either
or
to select the desired bass tone
quality.
TREBLE (Treble tone control)
Press the Audio adjust button (4) either
or
to select the desired treble tone
quality.
FADER (Front/rear balance control)
Press the Audio adjust button (4) either
or
to balance the volume of sound
from the front and the rear speakers.
For pleasant driving
6-4Div:
Out put date:

BALANCE (Left/right balance control)
Press the Audio adjust button (4) either
or
to balance the volume of sound
from the left and the right speakers.
NOTE
The audio adjust mode will be canceled
when radio or CD operation is performed
or no adjustment is performed for more
than 7 seconds.
How to adjust the tuneManual tuning
The frequency changes every time the
TUNE/SEEK button (6 or 7) is pressed.
Press the button to select the desired sta-
tion.
Automatic tuning
After keeping the TUNE/SEEK button (6 or
7) depressed for more than about 1 sec-
ond, release the button, and the selected
station reception will start.
H11A248A
How to enter frequencies in the
memoryManual setting
You can assign to the Memory select but-
tons (8) a maximum of 12 stations in the
UKW band (6 U1 stations and 6 U2
stations), 6 stations in the MW band, and
6 stations in the LW band. (Stations already
assigned to the Memory select buttons are
replaced by any newly assigned stations.)
Follow the steps described below.
1. Press either the TUNE/SEEK button (6
or 7) to tune the frequency to be entered
in the memory.
2. Press one of the Memory select but-
tons (8) for about 2 seconds or longer.
The sound will be momentarily inter-
rupted while the frequency is being
entered into the memory.The number of the button correspond-
ing to the memory entry, and the fre-
quency are displayed.
3. The preset memory setting is retrieved
by pressing the button and then releas-
ing it within 2 seconds.
Automatic setting
With the method, all manually set sta-
tions in the band currently selected for
reception are replaced with stations in the
same band that are automatically selected
in order of signal strength. The radio auto-
matically selects 12 stations in the UKW
band and 6 stations each in the MW and
LW band.
Follow the steps described below.
1. With the radio mode selected, hold down
the U/M/L button (3) until a beep is emit-
ted. The 6 stations with the best signal
strength will automatically be assigned
to the Memory select buttons (8), with
the lowest-frequency station being
assigned to the lowest-number button.
2. When you subsequently press a
Memory select button to select a chan-
nel number, the radio will begin receiv-
ing the station assigned to that number.
For pleasant driving
6-5
Div:
Out put date:

H11A365D

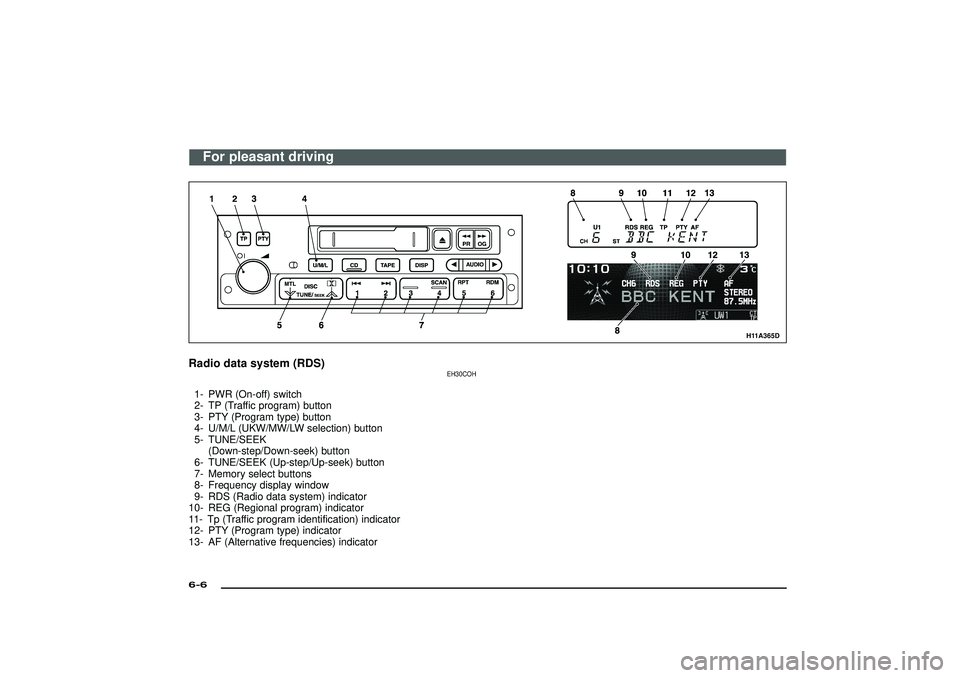

Radio data system (RDS)
EH30COH
1- PWR (On-off) switch
2- TP (Traffic program) button
3- PTY (Program type) button
4- U/M/L (UKW/MW/LW selection) button
5- TUNE/SEEK
(Down-step/Down-seek) button
6- TUNE/SEEK (Up-step/Up-seek) button
7- Memory select buttons
8- Frequency display window
9- RDS (Radio data system) indicator
10- REG (Regional program) indicator
11- Tp (Traffic program identification) indicator
12- PTY (Program type) indicator
13- AF (Alternative frequencies) indicatorFor pleasant driving
6-6Div:
Out put date:

RDS uses PI (program identification) sig-
nal and AF (alternative frequency) list trans-
mitted in addition to the normal UKW
broadcasting programs, and picks up the
UKW stations that are transmitting the
same program from the EON (enhanced
other network) and automatically tunes to
the station with the strongest signal inten-
sity.
Therefore, you can continue listening to
one program in, for example, a long dis-
tance driving without returning to other sta-
tion transmitting the same program when
you are leaving the service area of the cur-
rently receiving station.
The RDS radio also features the limited
reception of the program types, the break-in
reception of the traffic announcement and
emergency broadcast, and the limited
/unlimited reception of the regional pro-
grams.AF (Alternative Frequencies) function
The AF function finds a station broadcast-
ing the same program, and selects sta-
tion with the strongest signal of AF lists.
The AF function is tuned on (with the AF
indicator (13) shown on the display) at all
times unless you manually switch off.
To turn the function off, at first, switch off
the power from UKW mode, and while
pressing the No.5 of the memory select
buttons (7), press the PWR switch (1) until
it beeps. The AF indicator (13) on the dis-
play will turn off.
To turn the function on, use the same pro-
cedure.
REG (Regional) function
REG function limits to receive the sta-
tions broadcasting regional programs.
Regional programming and regional net-
works are organized differently depend-
ing on the country or area (they may be
changed according to the hour, state, or
broadcast area), so if you don’t want to
receive the regional programs automati-
cally, you can set up REG ON not to
receive regional programs.
To turn the function on, switch off the power
from UKW mode, and while pressing the
side of the TUNE/SEEK button (5),
press the PWR switch (1) until it beeps.
The“REG ON”will be shown on the dis-
play.To turn the function off, use the same pro-
cedure.
PI (Program Identification) search func-
tion
When traveling long distance and the
recalled preset station is weak, radio
searches another frequency broadcast-
ing the same programming with the same
PI code in AF list.
If there are no frequencies broadcasting the
same programming, the radio searches a
frequency broadcasting the regional pro-
gramming. The radio succeeds in search-
ing the regional programming, then the
display shows the REG indicator (10).
If the radio does not succeed in search-
ing the regional programming, the radio
returns to the recalled preset station.
For pleasant driving
6-7
Div:
Out put date:

PTY (Program type)
RDS broadcasts are classified according to
program type (PTY) as follows. Use the
TUNE/SEEK button (5 or 6) to select your
desired PTY.
1. NEWS
2. AFFAIRS (Current affairs)
3. INFO (Information)
4. SPORT
5. EDUCATE (Education)
6. DRAMA
7. CULTURE
8. SCIENCE
9. VARIED
10. POP M (Pop music)
11. ROCK M (Rock music)
12. EASY M (Easy music)
13. LIGHT M (Light classics)
14. CLASSICS
15. OTHER M (Other music)
16. WEATHER (Weather information)
17. FINANCE
18. CHILDREN
19. SOCIAL
20. RELIGION
21. PHONE IN
22. TRAVEL
23. LEISURE
24. JAZZ
25. COUNTRY
26. NATION M (National music)
27. OLDIES
28. FOLK M (Folk music)
29. DOCUMENT
H11A249A
To search for a broadcast of desired pro-
gram type:
1. Press the PTY button (3).
2. Press the TUNE/SEEK button (5 or 6)
for less than 1 second at a time to select
your desired PTY.
3. 2 seconds after a desired PTY has been
selected, the radio will begin to search
for a broadcast of your selected PTY.
During search, the selected PTY on the
display blinks, and the radio will begin
to search for a broadcast of your
selected PTY.
4. When the radio picks up a station with
your desired PTY, the display will show
the name of the station.NOTE
(1) If the TUNE/SEEK button (5 or 6) is
pressed for more than 1 second, the
radio will try to find out another broad-
cast of the same program type as cur-
rently selected.
(2) If no station is found with your desired
PTY, the display will show“EMPTy”for
about 5 seconds, and the radio will
return to the previous station.
How to enter PTYs in the memoryAs many as 6 PTYs can be entered in the
memory.
Follow the steps described below.
1. Press either the TUNE/SEEK button (5
or 6) to tune the PTY to be entered in
the memory.
2. Press one of the memory select but-
tons (7) for about 2 seconds or longer.
The sound will be momentarily inter-
rupted while the PTY is being entered
into the memory. The number of the but-
ton corresponding to the entry into the
memory, and the PTY are displayed.
3. The preset memory setting is retrieved
by pressing the button and then releas-
ing it within about 2 seconds.
NOTE
Disconnecting the battery terminal erases
all PTYs stored in the memory.
For pleasant driving
6-8Div:
Out put date:

H11A265G
To change the language of PTY dis-
play (Vehicles equipped with the
Multi centre display)You can select your favourite language
between English, French, German, Swed-
ish, Spanish, Italian.
1. Turn off the radio.
2. Turn the radio back on while holding
down the PTY button (B).
3. An alarm will sound and the system will
enter PTY Language Switching mode.
4. Use the H button (C) or the M button (D)
to select the desired language. Press
the SET button (E) to register your
selection.
5. Press the button on the left (A) to can-
cel the selection. The system will revert
to the settings prior to accessing PTY
Language Switching mode.
H11A250G
For pleasant driving
6-9
Div:
Out put date:
