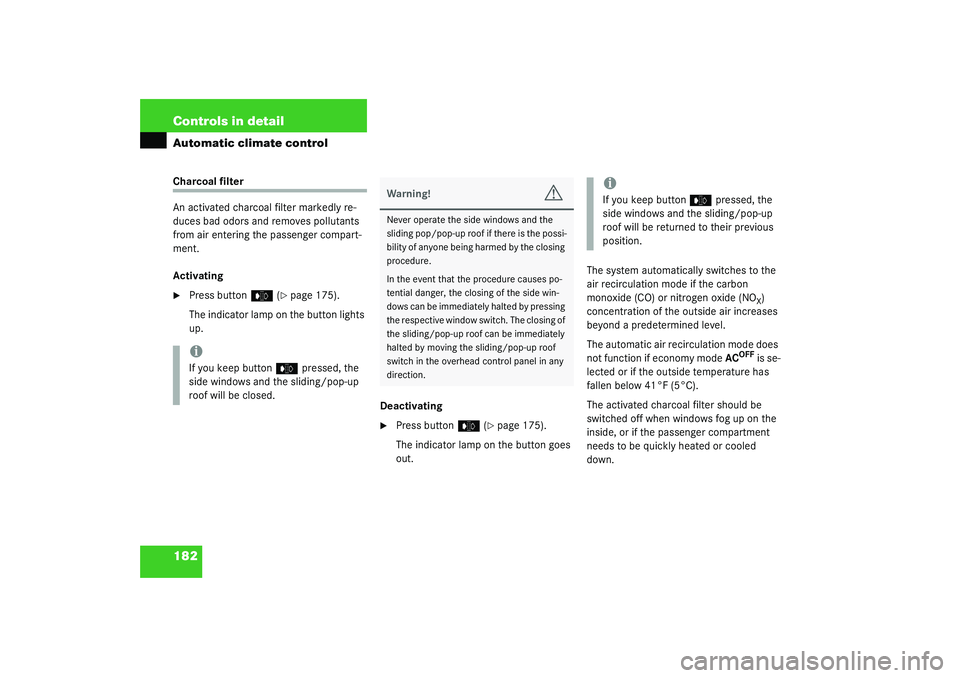

182 Controls in detailAutomatic climate controlCharcoal filter
An activated charcoal filter markedly re-
duces bad odors and removes pollutants
from air entering the passenger compart-
ment.
Activating
Press button
e
(page 175).
The indicator lamp on the button lights
up.
Deactivating

Press button
e
(page 175).
The indicator lamp on the button goes
out.The system automatically switches to the
air recirculation mode if the carbon
monoxide (CO) or nitrogen oxide (NO
X)
concentration of the outside air increases
beyond a predetermined level.
The automatic air recirculation mode does
not function if economy mode AC
OFF
is se-
lected or if the outside temperature has
fallen below 41°F (5°C).
The activated charcoal filter should be
switched off when windows fog up on the
inside, or if the passenger compartment
needs to be quickly heated or cooled
down.
iIf you keep button
e
pressed, the
side windows and the sliding/pop-up
roof will be closed.
Warning!
G
Never operate the side windows and the
sliding pop/pop-up roof if there is the possi-
bility of anyone being harmed by the closing
procedure.
In the event that the procedure causes po-
tential danger, the closing of the side win-
dows can be immediately halted by pressing
the respective window switch. The closing of
the sliding/pop-up roof can be immediately
halted by moving the sliding/pop-up roof
switch in the overhead control panel in any
direction.
iIf you keep button
e
pressed, the
side windows and the sliding/pop-up
roof will be returned to their previous
position.

183 Controls in detail
Automatic climate control
Rear window defroster
The rear window defroster uses a large
amount of power. To keep battery drain to
a minimum, switch off the defroster as
soon as the rear window is clear. The de-
froster is automatically deactivated after
approximately 6 to 17 minutes of opera-
tion depending on the outside tempera-
ture.
Activating
Press button
F
(page 175).
The indicator lamp on the button lights
up.
Deactivating

Press button
F
(page 175) again.
The indicator lamp on the button goes
out.Deactivating the climate control sys-
tem
Deactivating
It is possible to completely deactivate the
automatic climate control system.
Press button
M
(page 175).
The display shows “0”.
Reactivating
There are several ways to reactivate the
automatic climate control system:

Press one of the following buttons, M
, P
, U
, a temperature con-
trol switch (
page 175) or air volume
switch 9 on the automatic climate con-
trol panel.
Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.!If the rear window defroster switches
off too soon and the indicator lamp
starts blinking, this means that too
many electrical consumers are operat-
ing simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating
the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster au-
tomatically switches on again.

188 Controls in detailPower windows
Power windowsOpening and closing the windows
The side windows can be opened and
closed electrically. The switches for all the
side windows are on the driver’s door.
There are individual switches in the front
and rear doors for the respective windows.
1Right front window
2Right rear window
3Left rear window
4Left front window

Turn SmartKey in the starter switch to
position1 or2.
Opening the windows

Lightly press the symbol
k
on one
of the switches1 to4, until the corre-
sponding window reaches the desired
position.
Warning!
G
When closing the windows, make sure that
there is no danger of anyone being harmed
by the closing procedure.
The closing of the windows can be immedi-
ately halted by releasing the switch or, if the
switch was pressed past the resistance
point and released, by pressing the respec-
tive switch.
If the window encounters an obstruction
that blocks its path in a circumstance where
you pressed the switch past the resistance
point and released it to close the window,
the automatic reversal function will stop the
window and open it slightly.
If the window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pressing and
holding the switch, by pressing and holding
the
‹
button on the SmartKey, or by
pressing and
holding the lock button (vehicles with
KEYLESS-GO*) on the door handle, the auto-
matic reversal function will not operate.
When leaving the vehicle, always remove the
SmartKey from starter switch, take the
KEYLESS-GO* card (if so equipped) with
you, and lock your vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause an
accident and/or serious personal injury.

189 Controls in detail
Power windows
Closing the windows
Lightly press the
j
symbol on one
of the switches 1 to4 until the corre-
sponding window reaches the desired
position.
When pulling and holding the switch to
close the window, and upward movement
of the window is blocked during the last
few inches before closure, the window will
stop but not open slightly.
Fully opening windows

Press the
k
symbol on one of the
switches 1 to 4 beyond the point of re-
sistance and then release the switch.
The window opens completely.Fully closing windows

Press the
j
symbol on one of the
switches 1 to 4 beyond the point of re-
sistance and then release the switch.
The window closes completely.
If the upward movement of the window is
blocked during the closing procedure, the
window will stop and open slightly.Stopping windows

Press respective switch again.
Warning!
G
Driver’s door only:
If within five seconds you again press the
switch past the resistance point and re-
lease, the automatic reversal function will
not function.
iYou can also open or close the win-
dows using the:

SmartKey (
page 190)


O
button in the control panel of
the automatic climate control
(
page 175)


e
button in the control panel of
the automatic climate control
(
page 175).

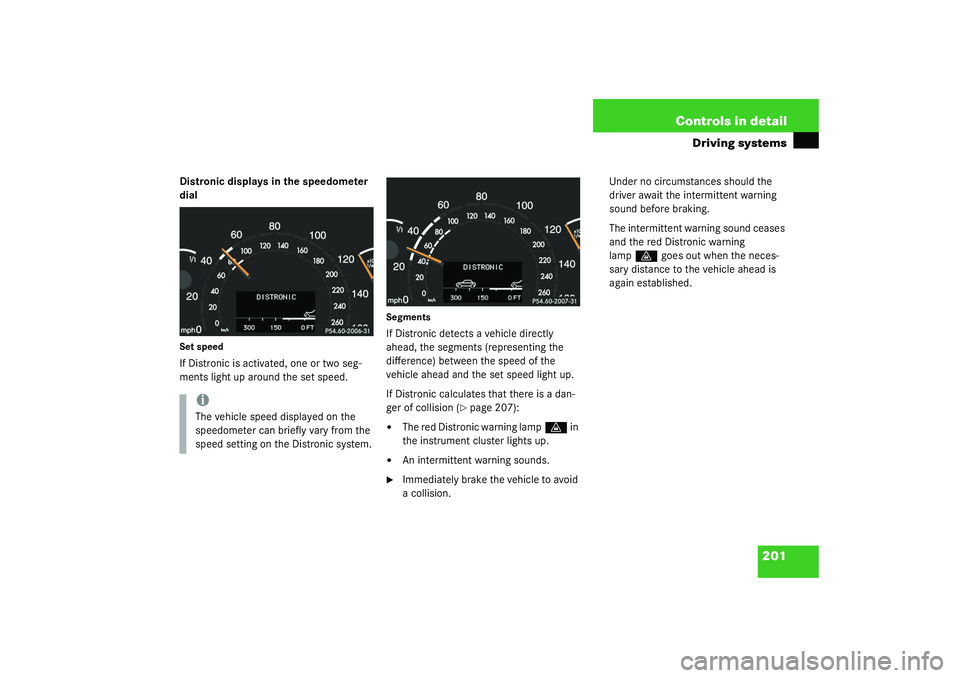

201 Controls in detail
Driving systems
Distronic displays in the speedometer
dialSet speedIf Distronic is activated, one or two seg-
ments light up around the set speed.
SegmentsIf Distronic detects a vehicle directly
ahead, the segments (representing the
difference) between the speed of the
vehicle ahead and the set speed light up.
If Distronic calculates that there is a dan-
ger of collision (
page 207):


The red Distronic warning lamp
l
in
the instrument cluster lights up.


An intermittent warning sounds.

Immediately brake the vehicle to avoid
a collision.Under no circumstances should the
driver await the intermittent warning
sound before braking.
The intermittent warning sound ceases
and the red Distronic warning
lamp
l
goes out when the neces-
sary distance to the vehicle ahead is
again established.
iThe vehicle speed displayed on the
speedometer can briefly vary from the
speed setting on the Distronic system.

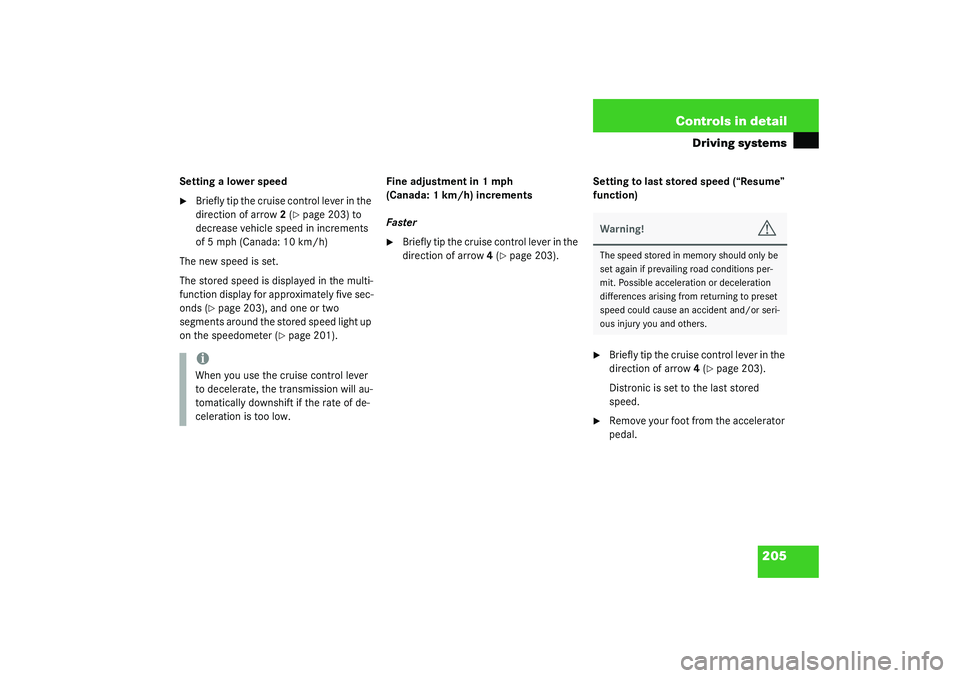

205 Controls in detail
Driving systems
Setting a lower speed
Briefly tip the cruise control lever in the
direction of arrow2 (
page 203) to
decrease vehicle speed in increments
of 5 mph (Canada: 10 km/h)
The new speed is set.
The stored speed is displayed in the multi-
function display for approximately five sec-
onds (
page 203), and one or two
segments around the stored speed light up
on the speedometer (
page 201).Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster

Briefly tip the cruise control lever in the
direction of arrow4 (
page 203).Setting to last stored speed (“Resume”
function)

Briefly tip the cruise control lever in the
direction of arrow4 (
page 203).
Distronic is set to the last stored
speed.

Remove your foot from the accelerator
pedal.
iWhen you use the cruise control lever
to decelerate, the transmission will au-
tomatically downshift if the rate of de-
celeration is too low.
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to preset
speed could cause an accident and/or seri-
ous injury you and others.

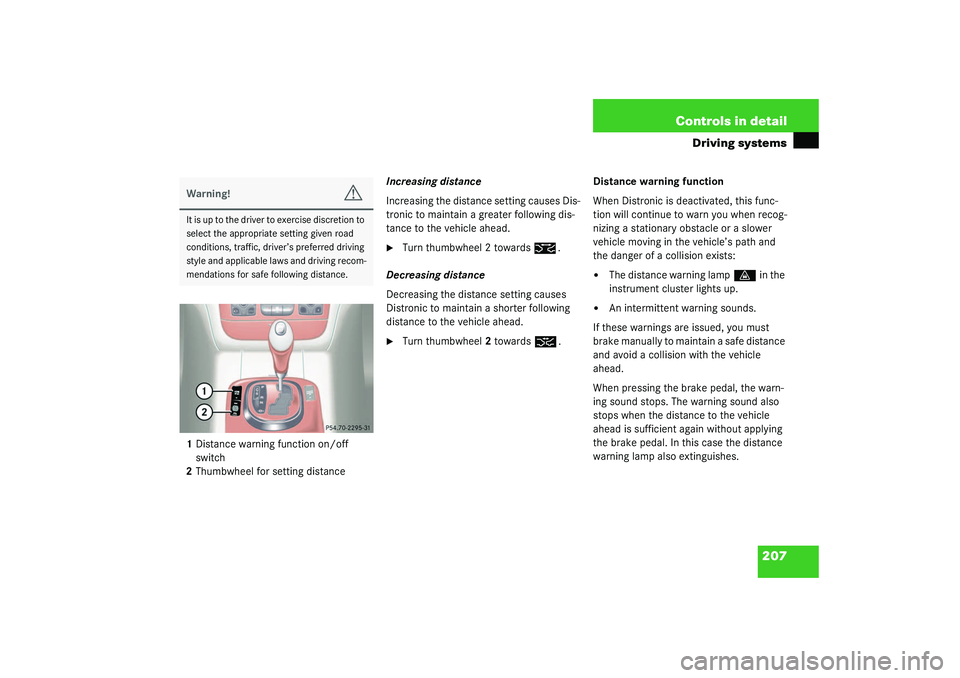

207 Controls in detail
Driving systems
1Distance warning function on/off
switch
2Thumbwheel for setting distanceIncreasing distance
Increasing the distance setting causes Dis-
tronic to maintain a greater following dis-
tance to the vehicle ahead.

Turn thumbwheel 2 towards
¯
.
Decreasing distance
Decreasing the distance setting causes
Distronic to maintain a shorter following
distance to the vehicle ahead.

Turn thumbwheel2 towards
®
.Distance warning function
When Distronic is deactivated, this func-
tion will continue to warn you when recog-
nizing a stationary obstacle or a slower
vehicle moving in the vehicle’s path and
the danger of a collision exists:


The distance warning lamp
l
in the
instrument cluster lights up.


An intermittent warning sounds.
If these warnings are issued, you must
brake manually to maintain a safe distance
and avoid a collision with the vehicle
ahead.
When pressing the brake pedal, the warn-
ing sound stops. The warning sound also
stops when the distance to the vehicle
ahead is sufficient again without applying
the brake pedal. In this case the distance
warning lamp also extinguishes.
Warning!
G
I t is up t o t he d ri ver to exer c is e di s cr et io n to
select the appropriate setting given road
conditions, traffic, driver’s preferred driving
style and applicable laws and driving recom-
mendations for safe following distance.

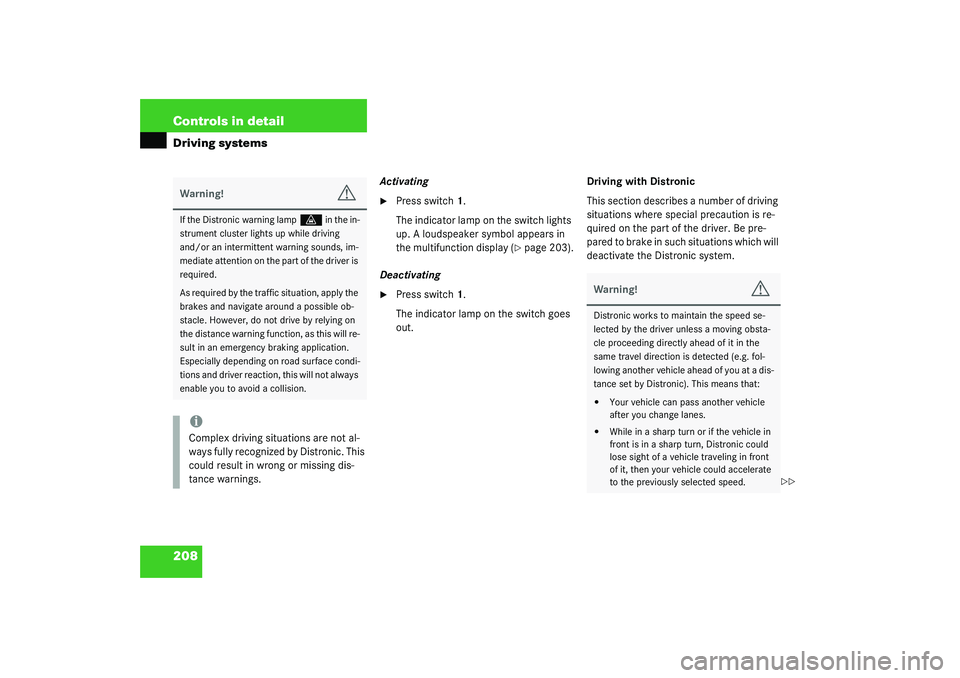

208 Controls in detailDriving systems
Activating
Press switch1.
The indicator lamp on the switch lights
up. A loudspeaker symbol appears in
the multifunction display (
page 203).
Deactivating

Press switch1.
The indicator lamp on the switch goes
out.Driving with Distronic
This section describes a number of driving
situations where special precaution is re-
quired on the part of the driver. Be pre-
pared to brake in such situations which will
deactivate the Distronic system.
Warning!
G
If the Distronic warning lamp
l
in the in-
strument cluster lights up while driving
and/or an intermittent warning sounds, im-
mediate attention on the part of the driver is
required.
As required by the traffic situation, apply the
brakes and navigate around a possible ob-
stacle. However, do not drive by relying on
the distance warning function, as this will re-
sult in an emergency braking application.
Especially depending on road surface condi-
tions and driver reaction, this will not always
enable you to avoid a collision.
iComplex driving situations are not al-
ways fully recognized by Distronic. This
could result in wrong or missing dis-
tance warnings.
Warning!
G
Distronic works to maintain the speed se-
lected by the driver unless a moving obsta-
cle proceeding directly ahead of it in the
same travel direction is detected (e.g. fol-
lowing another vehicle ahead of you at a dis-
tance set by Distronic). This means that:

Your vehicle can pass another vehicle
after you change lanes.


While in a sharp turn or if the vehicle in
front is in a sharp turn, Distronic could
lose sight of a vehicle traveling in front
of it, then your vehicle could accelerate
to the previously selected speed.
