53 Getting started
Parking and locking
Turning off engine with KEYLESS-GO*
Place the gear selector lever in P.

Press and hold the KEYLESS-GO
start/stop button until the engine
shuts off.
With the driver's door closed, the start-
er switch is now in position1. With the
driver’s door opened, the starter switch
is set to position0, same as SmartKey
removed from starter switch
(page 31).

Press the seat belt release button
(page 41).
1Lock button on the door handle

After exiting the vehicle, press lock
button1 on the door handle or on the
trunk lid.
The locking knobs on the doors move
down. The turn signal indicators light
up briefly.
For more information, see “Controls in de-
tail” (page 85).
!If you hear a warning signal you have ei-
ther:

forgotten to turn off the lights, or


not put the gear selector lever inP
before opening the driver’s door
Turn off the lights or place the gear se-
lector lever inP.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure that there
is no possibility of someone getting caught
in a door during closing.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
KEYLESS-GO* card (if so equipped) with
you, and lock your vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause an ac-
cident and/or serious personal injury.

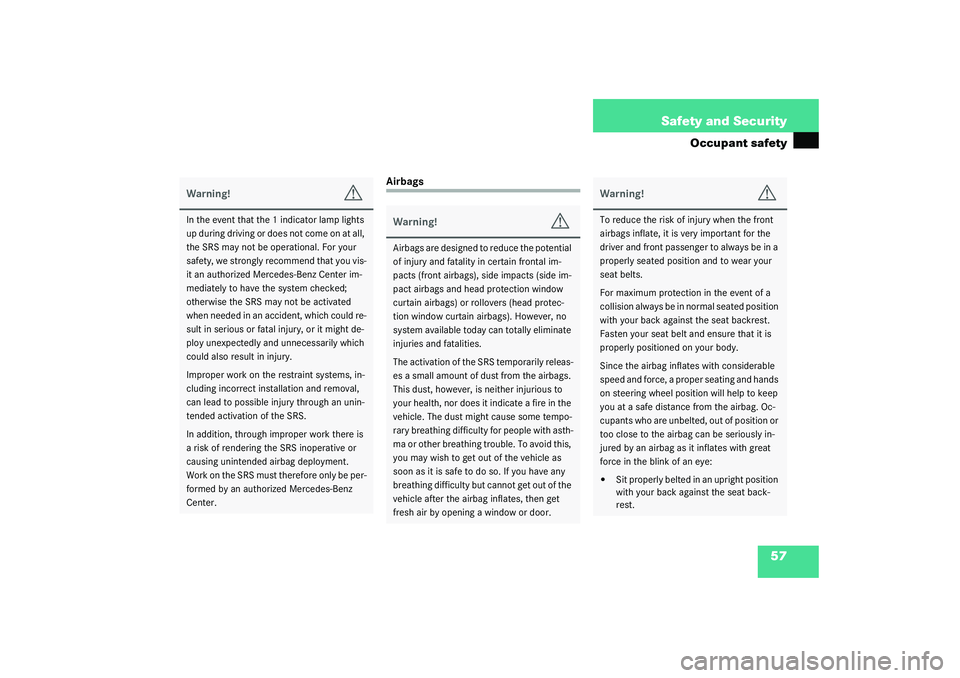

57 Safety and Security
Occupant safety
Airbags
Warning!
G
In the event that the 1 indicator lamp lights
up during driving or does not come on at all,
the SRS may not be operational. For your
safety, we strongly recommend that you vis-
it an authorized Mercedes-Benz Center im-
mediately to have the system checked;
otherwise the SRS may not be activated
when needed in an accident, which could re-
sult in serious or fatal injury, or it might de-
ploy unexpectedly and unnecessarily which
could also result in injury.
Improper work on the restraint systems, in-
cluding incorrect installation and removal,
can lead to possible injury through an unin-
tended activation of the SRS.
In addition, through improper work there is
a risk of rendering the SRS inoperative or
causing unintended airbag deployment.
W o r k o n t h e S R S m u s t t h e r e f o r e o n l y b e p e r -
formed by an authorized Mercedes-Benz
Center.
Warning!
G
Airbags are designed to reduce the potential
of injury and fatality in certain frontal im-
pacts (front airbags), side impacts (side im-
pact airbags and head protection window
curtain airbags) or rollovers (head protec-
tion window curtain airbags). However, no
system available today can totally eliminate
injuries and fatalities.
The activation of the SRS temporarily releas-
es a small amount of dust from the airbags.
This dust, however, is neither injurious to
your health, nor does it indicate a fire in the
vehicle. The dust might cause some tempo-
rary breathing difficulty for people with asth-
ma or other breathing trouble. To avoid this,
you may wish to get out of the vehicle as
soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the airbag inflates, then get
fresh air by opening a window or door.
Warning!
G
To reduce the risk of injury when the front
airbags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear your
seat belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the seat backrest.
Fasten your seat belt and ensure that it is
properly positioned on your body.
Since the airbag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the airbag. Oc-
cupants who are unbelted, out of position or
too close to the airbag can be seriously in-
jured by an airbag as it inflates with great
force in the blink of an eye:

Sit properly belted in an upright position
with your back against the seat back-
rest.

62 Safety and SecurityOccupant safetyThe front passenger side impact airbag2
will only deploy if the system senses that
the front passenger seat is occupied.
The window curtain airbags fill up the area
between the A and C pillars (see arrows).
3Window curtain airbag
4Side impact airbags
Seat belts
The seat belt nonusage warning lamp
<

in the instrument cluster lights up and a
warning sounds for a short time when you
turn the SmartKey in the starter switch to
position2 or press the KEYLESS-GO* (if so
equipped) start/stop button twice and the
driver’s seat belt is not fastened.
After starting the engine, the seat belt non-
usage warning lamp blinks for a brief peri-
od to remind the driver and passengers to
fasten their seat belts.
The use of seat belts and infant and child
restraint systems is required by law in
most states and all Canadian provinces.
Even where this is not the case, all vehicle
occupants should have their seat belts fas-
tened whenever the vehicle is in motion.
For information on fastening seat belts,
see “Getting started” (
page 29).
iFor information on infants and children
traveling with you in the vehicle and re-
straint systems for infants and chil-
dren, see “Children in the vehicle”
(page 67).

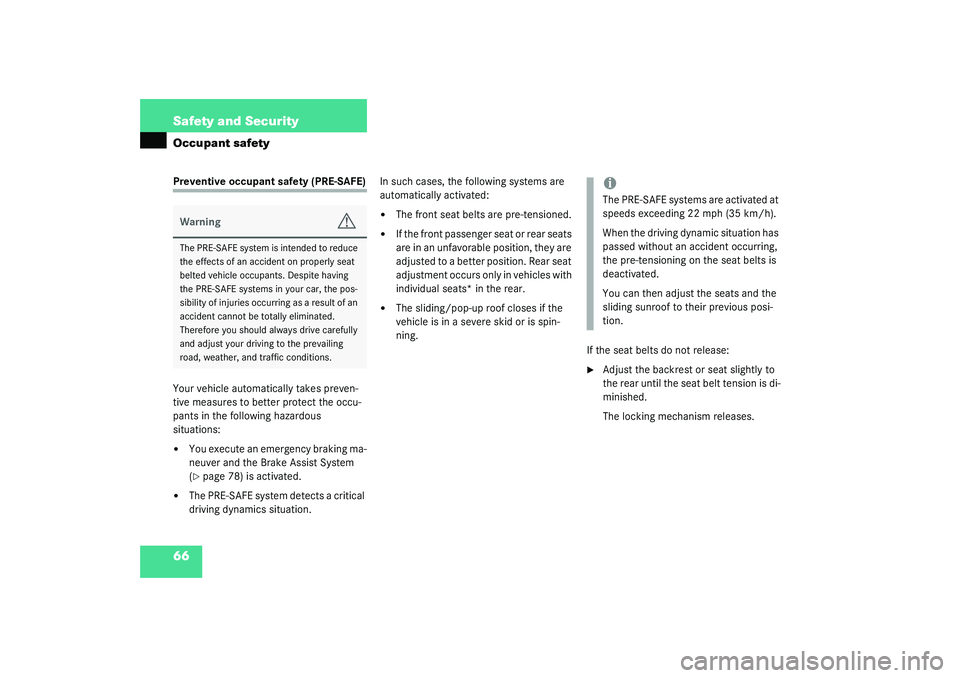

66 Safety and SecurityOccupant safetyPreventive occupant safety (PRE-SAFE)
Your vehicle automatically takes preven-
tive measures to better protect the occu-
pants in the following hazardous
situations:

You execute an emergency braking ma-
neuver and the Brake Assist System
(page 78) is activated.


The PRE-SAFE system detects a critical
driving dynamics situation.In such cases, the following systems are
automatically activated:


The front seat belts are pre-tensioned.


If the front passenger seat or rear seats
are in an unfavorable position, they are
adjusted to a better position. Rear seat
a d j u s t m e n t o c c u r s o n l y i n v e h i c l e s w i t h
individual seats* in the rear.


The sliding/pop-up roof closes if the
vehicle is in a severe skid or is spin-
ning.
If the seat belts do not release:

Adjust the backrest or seat slightly to
the rear until the seat belt tension is di-
minished.
The locking mechanism releases.
Warning
G
The PRE-SAFE system is intended to reduce
the effects of an accident on properly seat
belted vehicle occupants. Despite having
the PRE-SAFE systems in your car, the pos-
sibility of injuries occurring as a result of an
accident cannot be totally eliminated.
Therefore you should always drive carefully
and adjust your driving to the prevailing
road, weather, and traffic conditions.
iThe PRE-SAFE systems are activated at
speeds exceeding 22 mph (35 km/h).
When the driving dynamic situation has
passed without an accident occurring,
the pre-tensioning on the seat belts is
deactivated.
You can then adjust the seats and the
sliding sunroof to their previous posi-
tion.

70 Safety and SecurityOccupant safetySelf-test BabySmart
TM
without special
child seat installed
After turning the SmartKey in the starter
switch to position1 or2 or pressing the
KEYLESS-GO* (if so equipped) start/stop
button once or twice, the
“PASSENGER AIRBAG OFF” indicator
lamp1 located in the center console lights
up for approximately 6 seconds and then
goes out.
If the indicator lamp should not come on or
is continuously lit, the system is not func-
tioning. You must see an authorized
Mercedes-Benz Center before seating any
child on the passenger seat.
For more information see (page 294).
Warning!
G
The BabySmart
TM airbag deactivation sys-
tem will ONLY work with a special child seat
designed to operate with it. It will not work
with child seats which are not BabySmart
TM
compatible.
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the deactivation sys-
tem. The bottom of the child seat must
make full contact with the passenger seat
cushion. An incorrectly mounted child seat
could cause injuries to the child in case of an
accident, instead of protecting the child.
Follow the manufacturer’s instructions for
installation of special child seats.
Warning!
G
When using a BabySmart
TM compatible
child seat on the front passenger seat, the
passenger front airbag will not deploy only if
the PASSENGER AIRBAG OFF indicator lamp
remains illuminated.
Please be sure to check the indicator every
time you use the special system child seat.
Should the light go out while the restraint is
installed, please check installation. If the
light remains out, do not use the
BabySmart
TM restraint to transport children
on the front passenger seat until the system
has been repaired.
Do not place powered-on laptops, cell
phones and like electronic devices on the
front passenger seat. Signals from such de-
vices may interfere with the BabySmart
TM
system. Such signal interference may cause
the PASSENGER AIRBAG OFF indicator lamp
not to come on during self-test or be contin-
uously lit, indicating that the system is not
functioning.

74 Safety and SecurityOccupant safetyOverride switch for rear passenger compartment
You can disable select functions in the rear
passenger compartment for added safety
(for instance when you have children riding
in the rear passenger compartment).
You can disable the following functions in
the rear passenger compartment:

rear door window operation
(page 188)


adjustment of front passenger seat
from the rear* (
page 115)


cigarette lighter in rear (
page 234)
The switch is located on the driver’s door.1Override switch
Activating override switch

Slide override switch 1 to the right.
The functions in the rear are disabled.
Deactivating override switch

Slide override switch 1 to the left.
The functions in the rear are enabled
again.
!The rear door windows can still be op-
erated with the switches located in the
driver’s door.Warning!
G
Activate the override switch when children
are riding in the back seats of the vehicle.
The children may otherwise injure them-
selves, e.g. by becoming trapped in the win-
dow opening.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
KEYLESS-GO* card (if so equipped) with
you, and lock your vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause an ac-
cident and/or serious personal injury.

76 Safety and SecurityDriving safety systems
Driving safety systemsIn this section you will find information on
the following driving safety systems:

ABS (A
ntilock B
rake S
ystem)


BAS (B
rake A
ssist S
ystem)


ESP (E
lectronic S
tability P
rogram)


4MATIC (Four Wheel Electronic Trac-
tion System)
ABS
The ABS regulates the brake pressure so
that the wheels do not lock during braking.
This allows you to maintain the ability to
steer your vehicle.
The ABS is functional above a speed of ap-
proximately 5 mph (8 km/h) independent
of road surface conditions.
At the instant one of the wheels is about to
lock up, a slight pulsation can be felt in the
brake pedal, indicating that the ABS is in
the regulating mode. Keep firm and steady
pressure on the brake pedal while experi-
encing the pulsation.
iIn winter operation, the maximum ef-
fectiveness of the ABS, ESP and the
4MATIC is only achieved with winter
tires (M + S tires) or snow chains as re-
quired.
Warning!
G
The following factors increase the risk of ac-
cidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS, ESP, and 4MATIC cannot re-
duce this risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.
Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.

77 Safety and Security
Driving safety systems
Continuous, steady brake pedal pressure
yields the advantages provided by the ABS,
namely braking power and the ability to
steer the vehicle.
On slippery road surfaces, the ABS will re-
spond even with light brake pressure. The
pulsating brake pedal can be an indication
of hazardous road conditions and func-
tions as a reminder to take extra care while
driving.The
-
indicator lamp in the instrument
cluster lights up when you turn the
SmartKey in the starter switch to
position2 or press the KEYLESS-GO* (if so
equipped) start/stop button twice. It goes
out when the engine is running.
For more information, see “Practical hints”
(
page 289).
iTo alert following vehicles to slippery
road conditions you discover, operate
your hazard warning flashers as appro-
priate.
Warning!
G
The ABS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking or steering efficiency be-
yond that afforded by the condition of the
vehicle brakes and tires or the traction. The
ABS cannot prevent accidents, including
those resulting from excessive speed in
turns, following another vehicle too closely,
or hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The ca-
pabilities of an ABS equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the us-
er’s safety or the safety of others.
