2003 MERCEDES-BENZ S CLASS wiper blades

ContentsAt the gas station............................... 261
Check regularly and before a
long trip ........................................ 262
Engine compartment.......................... 263
Hood ............................................ 263
Engine oil...................................... 264
Transmission fluid level ................ 268
Active Body Control* (ABC*)
fluid level ...................................... 268
Coolant......................................... 268
Battery ......................................... 270
Windshield washer system and
headlamp cleaning system* ......... 271
Tires and wheels ................................ 272
Important guidelines .................... 272
Life of tires ................................... 273
Direction of rotation ..................... 273
Checking tire inflation pressure ... 273
Rotating wheels............................ 277
Winter driving..................................... 278
Winter tires................................... 278
Block heater* ............................... 279
Snow chains ................................. 279Maintenance ...................................... 280
Clearing the service indicator....... 280
Service term exceeded ................ 280
Calling up the service indicator .... 281
Resetting the service indicator..... 281
Vehicle care ....................................... 282
Cleaning and care of vehicle ........ 282
Practical hints.................................. 289
What to do if …? ................................. 290
Lamps in instrument cluster......... 290
Lamp in center console ................ 295
Messages in the display ............... 296
Where will I find ...? ........................... 322
First aid kit ................................... 322
Vehicle jack, vehicle tool kit,
luggage bowl, spare wheel ........... 322
Unlocking/locking in an emergency .. 326
Unlocking the vehicle ................... 326
Locking the vehicle ...................... 327
Changing batteries ....................... 328
Fuel filler flap ............................... 329
Opening/closing in an emergency ..... 330
Sliding/pop-up roof ..................... 330Replacing bulbs ................................. 331
Bulbs ............................................ 331
Replacing bulbs for front lamps ... 333
Replacing bulbs for rear lamps .... 336
Replacing wiper blades ...................... 337
Removing ..................................... 337
Installing ...................................... 338
Flat tire .............................................. 339
Preparing the vehicle ................... 339
Mounting the spare wheel............ 339
Battery............................................... 344
Disconnecting the battery ............ 345
Removing the battery................... 345
Charging and reinstalling
battery ......................................... 345
Reconnecting the battery............. 345
Jump starting ..................................... 347
Towing the vehicle ............................. 349
Installing towing eye bolt ............. 351
Fuses ................................................. 353
Fuse boxes in passenger
compartment ............................... 353
Fuse boxes in engine
compartment ............................... 354
Emergency engine shut-down ...... 355

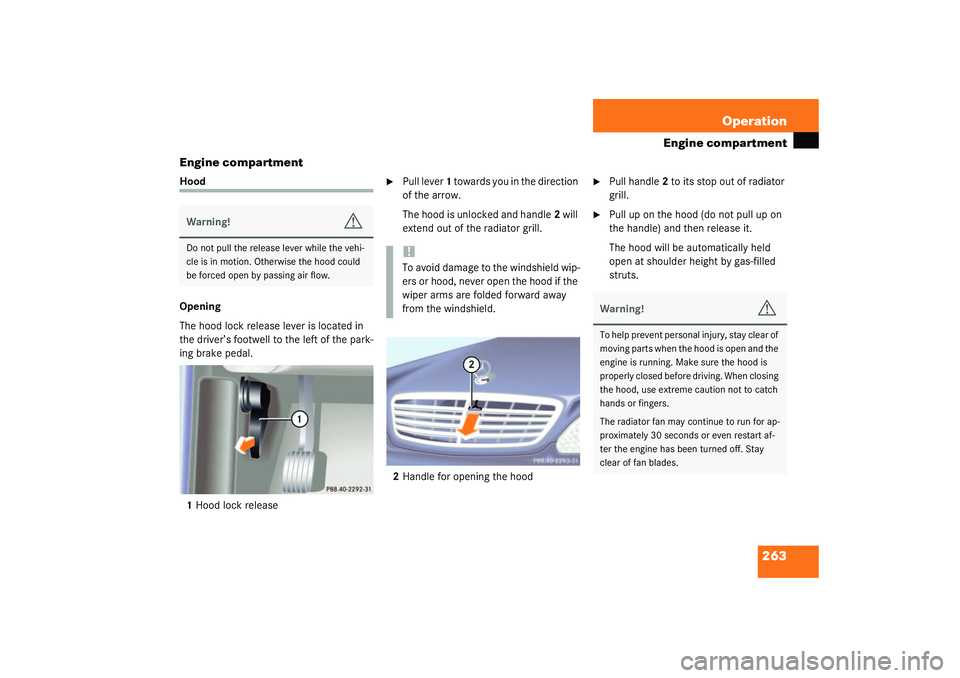

263 Operation
Engine compartment
Engine compartment
Hood
Opening
The hood lock release lever is located in
the driver’s footwell to the left of the park-
ing brake pedal.
1Hood lock release

Pull lever 1 towards you in the direction
of the arrow.
The hood is unlocked and handle2 will
extend out of the radiator grill.
2Handle for opening the hood

Pull handle 2 to its stop out of radiator
grill.

Pull up on the hood (do not pull up on
the handle) and then release it.
The hood will be automatically held
open at shoulder height by gas-filled
struts.
Warning!
G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
!To avoid damage to the windshield wip-
ers or hood, never open the hood if the
wiper arms are folded forward away
from the windshield.
Warning!
G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running. Make sure the hood is
properly closed before driving. When closing
the hood, use extreme caution not to catch
hands or fingers.
The radiator fan may continue to run for ap-
proximately 30 seconds or even restart af-
ter the engine has been turned off. Stay
clear of fan blades.

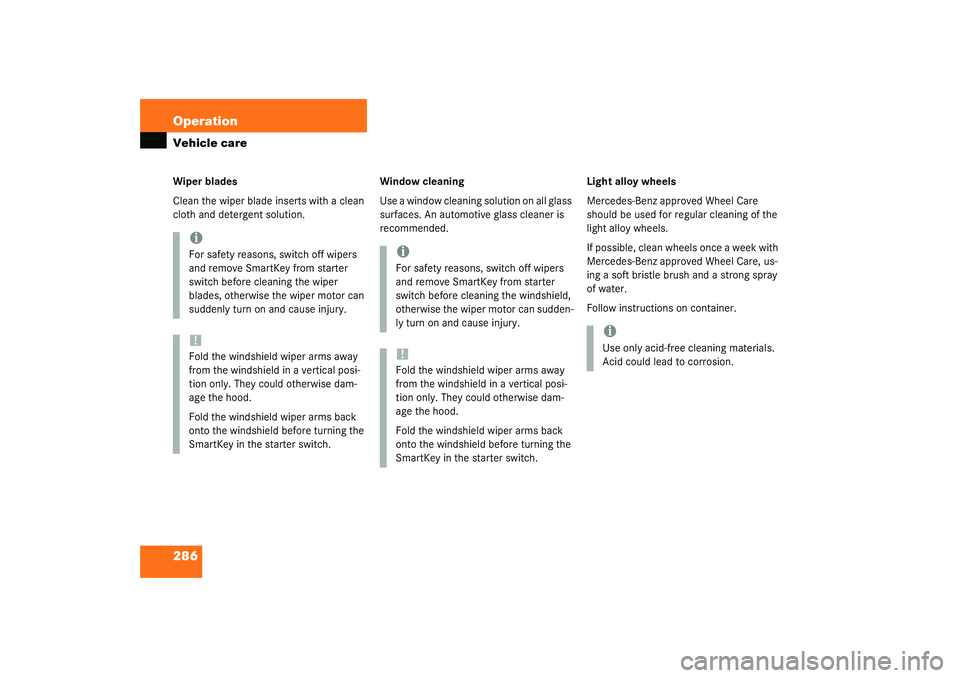

286 OperationVehicle careWiper blades
Clean the wiper blade inserts with a clean
cloth and detergent solution.Window cleaning
Use a window cleaning solution on all glass
surfaces. An automotive glass cleaner is
recommended.Light alloy wheels
Mercedes-Benz approved Wheel Care
should be used for regular cleaning of the
light alloy wheels.
If possible, clean wheels once a week with
Mercedes-Benz approved Wheel Care, us-
ing a soft bristle brush and a strong spray
of water.
Follow instructions on container.
iFor safety reasons, switch off wipers
and remove SmartKey from starter
switch before cleaning the wiper
blades, otherwise the wiper motor can
suddenly turn on and cause injury.!Fold the windshield wiper arms away
from the windshield in a vertical posi-
tion only. They could otherwise dam-
age the hood.
Fold the windshield wiper arms back
onto the windshield before turning the
SmartKey in the starter switch.
iFor safety reasons, switch off wipers
and remove SmartKey from starter
switch before cleaning the windshield,
otherwise the wiper motor can sudden-
ly turn on and cause injury.!Fold the windshield wiper arms away
from the windshield in a vertical posi-
tion only. They could otherwise dam-
age the hood.
Fold the windshield wiper arms back
onto the windshield before turning the
SmartKey in the starter switch.
iUse only acid-free cleaning materials.
Acid could lead to corrosion.

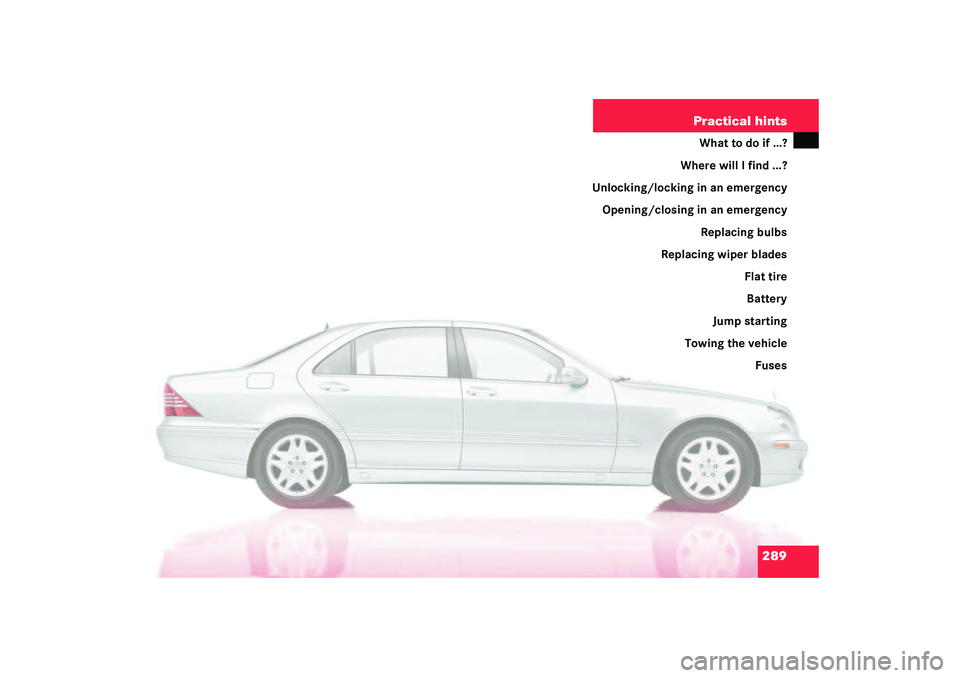

289 Practical hints
What to do if …?
Where will I find ...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses

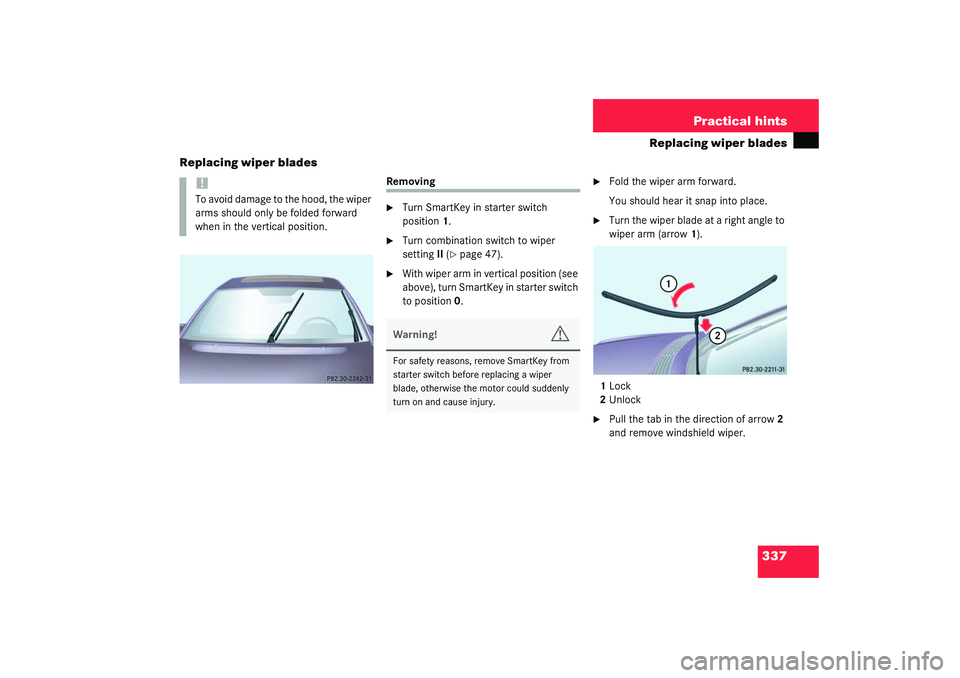

337 Practical hints
Replacing wiper blades
Replacing wiper blades
Removing
Turn SmartKey in starter switch
position1.

Turn combination switch to wiper
settingII (
page 47).

With wiper arm in vertical position (see
above), turn SmartKey in starter switch
to position0.

Fold the wiper arm forward.
You should hear it snap into place.

Turn the wiper blade at a right angle to
wiper arm (arrow 1).
1Lock
2Unlock

Pull the tab in the direction of arrow2
and remove windshield wiper.
!To avoid damage to the hood, the wiper
arms should only be folded forward
when in the vertical position.
Warning!
G
For safety reasons, remove SmartKey from
starter switch before replacing a wiper
blade, otherwise the motor could suddenly
turn on and cause injury.

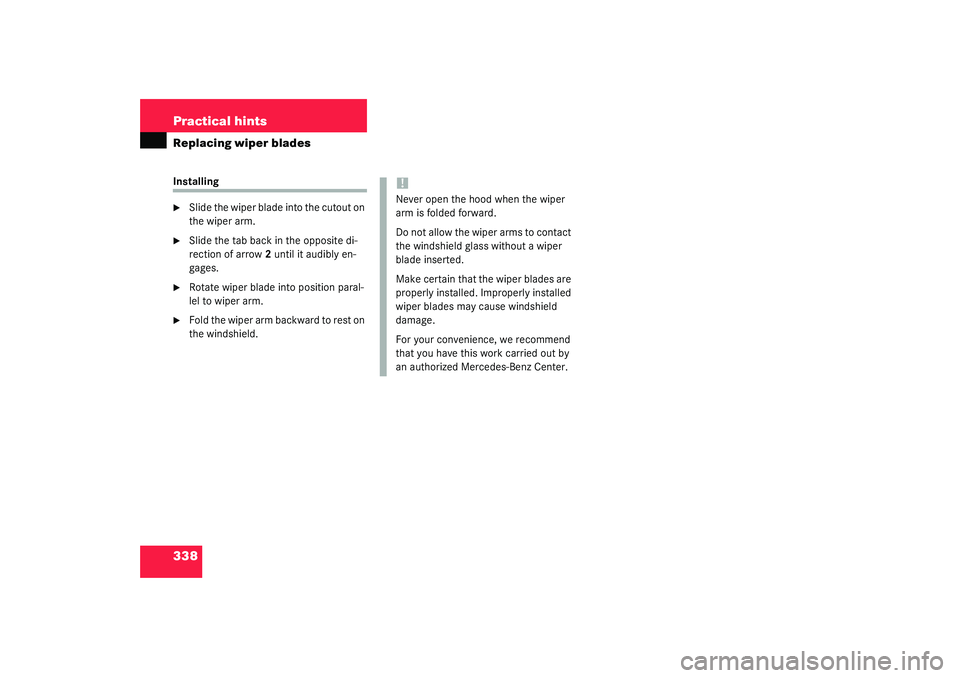

338 Practical hintsReplacing wiper bladesInstalling
Slide the wiper blade into the cutout on
the wiper arm.

Slide the tab back in the opposite di-
rection of arrow2 until it audibly en-
gages.

Rotate wiper blade into position paral-
lel to wiper arm.

Fold the wiper arm backward to rest on
the windshield.
!Never open the hood when the wiper
arm is folded forward.
Do not allow the wiper arms to contact
the windshield glass without a wiper
blade inserted.
Make certain that the wiper blades are
properly installed. Improperly installed
wiper blades may cause windshield
damage.
For your convenience, we recommend
that you have this work carried out by
an authorized Mercedes-Benz Center.

390 IndexC
CAC (Customer Assistance Center) 381
Calling up
Distronic* settings 142
Range (distance to empty) 145
Service indicator 281
CAN system 381
Cargo tie-down hooks 223
Catalytic converter 259
CD changer* 137
CD mode 137
CD player
Operating 136
Center console 25
AIRBAG OFF indicator lamp 295
Centigrade
Setting temperature units 149
Central locking
Automatic 102
From inside 103
Switch 103
Switching on/off (control system) 155
Unlocking from inside 103
Central locking switch 103Changing
Batteries (SmartKey) 328, 329
CDs 137
KEYLESS-GO* card setting 91
SmartKey setting 155
Vehicle level 213, 216
Charcoal filter 182
Activating 182
Deactivating 182
Charging
Vehicle battery 345
CHECK ENGINE malfunction indicator
lamp 294
Checking
Batteries (KEYLESS-GO* card) 92
Brake fluid 262
Coolant level 268
Oil level 262, 264
Tire inflate pressure 262
Vehicle lighting 262
Vehicle lock status (KEYLESS-GO*
card) 93Child safety 67
Airbags 58
Infant and child restraint systems 62,
67
LATCH child seat anchors 72
Cigarette lighter 233
Cleaning
Cup holder 287
Distronic* system sensor cover 285
Gear selector lever 287
Hard plastic trim items 287
Headlamps 171
Headliner 287
Instrument cluster 287
Leather upholstery 287
Light alloy wheels 286
Parktronic* system sensor 285
Plastic and rubber parts 287
Seat belts 287
Steering wheel 287
Windows 286
Windshield 48
Wiper blades 286

396 IndexH
Hand-held transmitter
Programming integrated remote con-
trol 246
Hands-free microphone 27
Hard plastic trim items
Cleaning 287
Hazard warning flasher 124
Switching off 124
Switching on 124
Head restraint folding 114
Head restraints 105
Headlamp cleaning system* 271
Headlamps
Automatic control 121
Bi-Xenon 381
Cleaning 284
Cleaning system* 171, 271
Refilling washer fluid 271
Switching off 51
Switching on 46
Headliner
Cleaning 287
Heated steering wheel* 235
Height adjustment
Head restraints 37Steering wheel 37
Height adjustments
Vehicle level 212, 215
High beam
Replacing bulbs 331
High beam flasher 46, 123
High beam headlamps
Messages in display 313
Switching on 123
High mounted brake lamp 332
Hood 263
Closing 264
Message in display 311
Opening 263
Hydroplaning 255
I
Identification labels 360
Ignition 31, 33
Switching on 43
Immobilizer 82
Activating 82
Deactivating 82
Indicator lamps see Lamps, indicator and
warning
Individual seats* 114Infant and child restraint systems 67
Installing 71
LATCH child seat anchors 72
Information
About service and warranty 10
Button for Tele Aid* 242
Infrared reflecting windshield 248
Inside rear view mirror
Adjusting 38
Antiglare 168
Installing
Infant and child restraint systems 71
Towing eye bolt 351
Wiper blades 338
Instrument cluster 22, 127, 383
Cleaning 287
Coolant temperature gauge 128
Illumination 127
Multifunction display 130
Outside temperature indicator 129
Selecting language 150
Integrated remote control
Canadian programming 247
Erasing memory 247
Hand-held transmitter 246
Operating 247
