2003 MERCEDES-BENZ S CLASS key

Contents
Introduction.......................................... 9
Product information ................................ 9
Operator’s Manual ............................... 10
Service and warranty information .. 10
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 12
Operating your vehicle outside the
USA or Canada............................... 13
Where to find it .................................... 14
Symbols ............................................... 15
Operating safety .................................. 16
Proper use of the vehicle ............... 16
Problems with your vehicle .................. 17
Reporting safety defects...................... 18
Reporting safety defects ................ 18At a glance......................................... 19
Cockpit ................................................ 20
Instrument cluster ............................... 22
Multifunction steering wheel ............... 24Center console ..................................... 25
Upper part ...................................... 25
Lower part ...................................... 26
Overhead control panel ........................ 27
Door control panel................................ 28
Getting started................................... 29
Unlocking ............................................. 30
Unlocking with the SmartKey.......... 30
Unlocking with KEYLESS-GO* ......... 32
Adjusting .............................................. 34
Seats............................................... 34
Steering wheel ................................ 37
Mirrors ............................................ 38
Driving .................................................. 40
Fastening the seat belts.................. 40
Starting the engine ......................... 42
Switching on headlamps ................. 46
Turn signals and high beam ............ 46
Windshield wipers ........................... 47
Problems while driving .................... 48
Parking and locking .............................. 50
Parking brake.................................. 50
Switching off headlamps................. 51
Turning off engine ........................... 52
Safety and Security........................... 55
Occupant safety ................................... 56
Airbags ........................................... 57
Seat belts ....................................... 62
Preventive occupant safety
(PRE-SAFE) ..................................... 66
Children in the vehicle .................... 67
Override switch for rear passenger
compartment .................................. 74
Panic alarm .......................................... 75
Activating........................................ 75
Deactivating.................................... 75
Driving safety systems ......................... 76
ABS ................................................. 76
BAS ................................................. 78
ESP ................................................. 78
Four wheel electronic traction system
(4MATIC) with the ESP .................... 81
Anti-theft systems ................................ 82
Immobilizer ..................................... 82
Anti-theft alarm system .................. 82
Tow-away alarm .............................. 84

ContentsControls in detail............................... 85
Locking and unlocking ......................... 86
SmartKey ....................................... 86
KEYLESS-GO card*......................... 89
Opening the doors from the
inside ............................................. 94
Opening the trunk lid...................... 95
Opening the trunk from the
inside ............................................. 96
Trunk lid emergency release .......... 96
Closing the trunk lid ....................... 97
Separately locking the trunk .......... 98
Separately unlocking the trunk ...... 98
Trunk lid opening/closing
ystem* ........................................... 99
Power closing assist for doors
and trunk lid ................................. 102
Automatic central locking ............ 102
Locking and unlocking from
the inside ..................................... 103
Seats.................................................. 104
Lumbar support ............................ 104
Easy-entry/exit feature ................ 104
Head restraints............................. 105
Multicontour seat* ....................... 107Drive-dynamic seat* .................... 109
Seat ventilation* .......................... 110
Seat heating* ............................... 111
Rear seats .................................... 113
Memory function ............................... 117
Storing positions into memory ..... 118
Recalling positions from
memory ........................................ 118
Storing exterior rear view mirror
parking position ........................... 118
Lighting.............................................. 120
Exterior lamp switch..................... 120
Combination switch ..................... 123
Hazard warning flasher ................ 124
Interior lighting............................. 124
Courtesy lighting .......................... 126
Instrument cluster ............................. 127
Instrument cluster illumination .... 127
Coolant temperature gauge ......... 128
Trip odometer .............................. 128
Tachometer .................................. 129
Outside temperature indicator ..... 129
Control system .................................. 130
Multifunction display .................... 130
Multifunction steering wheel ........ 131
Menus .......................................... 133Standard display menu ................ 135
AUDIO menu ................................ 135
CD changer* operating mode ...... 137
TEL menu* ................................... 139
NAVI menu ................................... 142
Distronic* menu .......................... 142
Trip computer menu..................... 143
Malfunction memory menu .......... 145
Settings menu .............................. 146
Automatic transmission ..................... 160
One-touch gearshifting ................ 161
Gear ranges ................................. 162
Gear selector lever position ......... 163
Program mode selector switch .... 164
Accelerator position ..................... 165
Emergency operation (Limp home
mode) .......................................... 165
Steering wheel gearshift control
(Speedshift) and manual shift
program S 55 AMG ...................... 166
Good visibility .................................... 168
Rear view mirror .......................... 168
Electrically folding exterior rear
view mirrors ................................. 170
Windshield wipers ........................ 171
Headlamp cleaning system .......... 171

23 At a glance
Instrument cluster
Item
Page
1
Coolant temperature
gauge
128
2
Fuel gauge with:Fuel reserve warning lamp
294
3
L
Left turn signal
indicator lamp
K
Right turn signal
indicator lamp
46
4
Speedometer with:v
Electronic Stability
Program (ESP)
warning lamp
l
Distance* warning
lamp
1
1Vehicles without Distronic*: Warning lamp without
function. It illuminates with SmartKey in starter
switch position2. It should go out when the engine
is running.
290
5
Tachometer
129
Item
Page
6
Right display with:-
Antilock Brake Sys-
tem (ABS) malfunc-
tion indicator lamp
290
A
High beam head-
lamp indicator
46
<
Seat belt nonusage
warning lamp
289
7
J
Reset button
127
8
Display with:
Program mode
164
Gear range
indicator
162
Digital clock (see
COMAND operat-
ing instructions)
9
Multifunction display
with:
Trip odometer
130
Main odometer
130
Stored speed for:Cruise control
196
Distronic*
142
10
Outside temperature in-
dicator
129
11
Left display with:1
Supplemental
restraint system
indicator lamp
292
;
Brake warning
lamp, except
Canada
293
3
Brake warning
lamp, Canada only
293
?
Engine malfunction
indicator lamp
294
12
Knob for instrument
cluster illumination
127
Item
Page

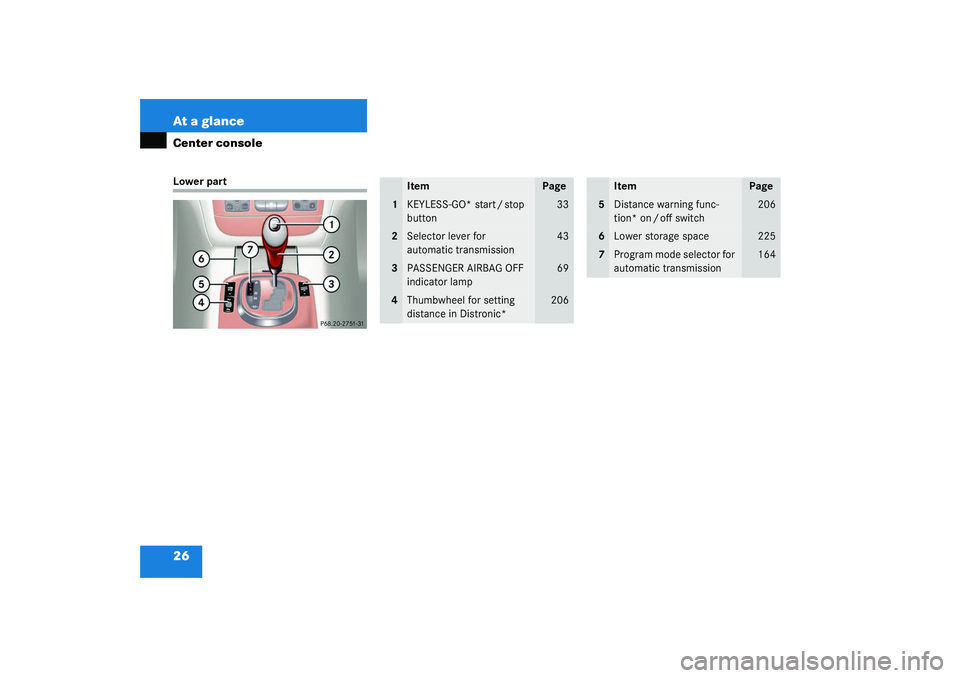

26 At a glanceCenter consoleLower part
Item
Page
1
KEYLESS-GO* start / stop
button
33
2
Selector lever for
automatic transmission
43
3
PASSENGER AIRBAG OFF
indicator lamp
69
4
Thumbwheel for setting
distance in Distronic*
206
Item
Page
5
Distance warning func-
tion* on / off switch
206
6
Lower storage space
225
7
Program mode selector for
automatic transmission
164

30 Getting startedUnlockingThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will help you with further in-
formation. The corresponding page refer-
ences are at the end of each segment.
UnlockingUnlocking with the SmartKey
Your vehicle comes equipped with two
SmartKeys with integrated remote con-
trols and removable mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys are a differ-
ent color to help distinguish each
SmartKey unit.SmartKey with remote control 1‹
Lock button
2
Š
Unlock button for trunk lid
3
Œ
Unlock button
4
Â
Panic button

Press unlock button
Œ
on the
SmartKey.
All turn signal lamps blink once. The
locking knobs in the doors move up.

Get in the vehicle and insert the
SmartKey in the starter switch.

31 Getting started
Unlocking

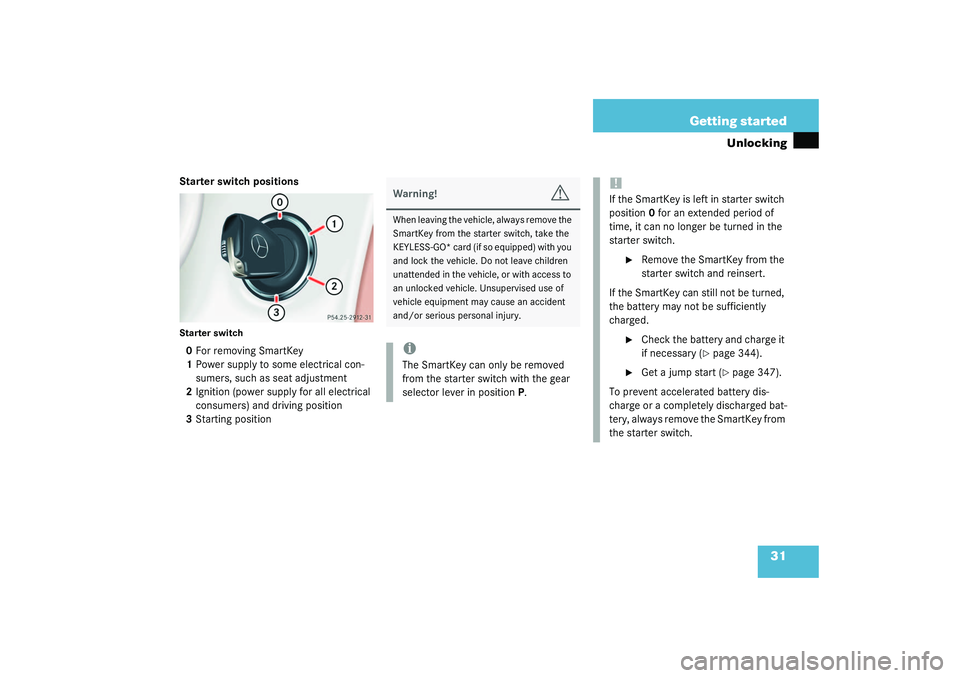

Starter switch positionsStarter switch0For removing SmartKey
1Power supply to some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position
3Starting position
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
KEYLESS-GO* card (if so equipped) with you
and lock the vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. Unsupervised use of
vehicle equipment may cause an accident
and/or serious personal injury.iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in position P.
!If the SmartKey is left in starter switch
position 0 for an extended period of
time, it can no longer be turned in the
starter switch.

Remove the SmartKey from the
starter switch and reinsert.
If the SmartKey can still not be turned,
the battery may not be sufficiently
charged.

Check the battery and charge it
if necessary (
page 344).

Get a jump start (
page 347).
To prevent accelerated battery dis-
charge or a completely discharged bat-
tery, always remove the SmartKey from
the starter switch.

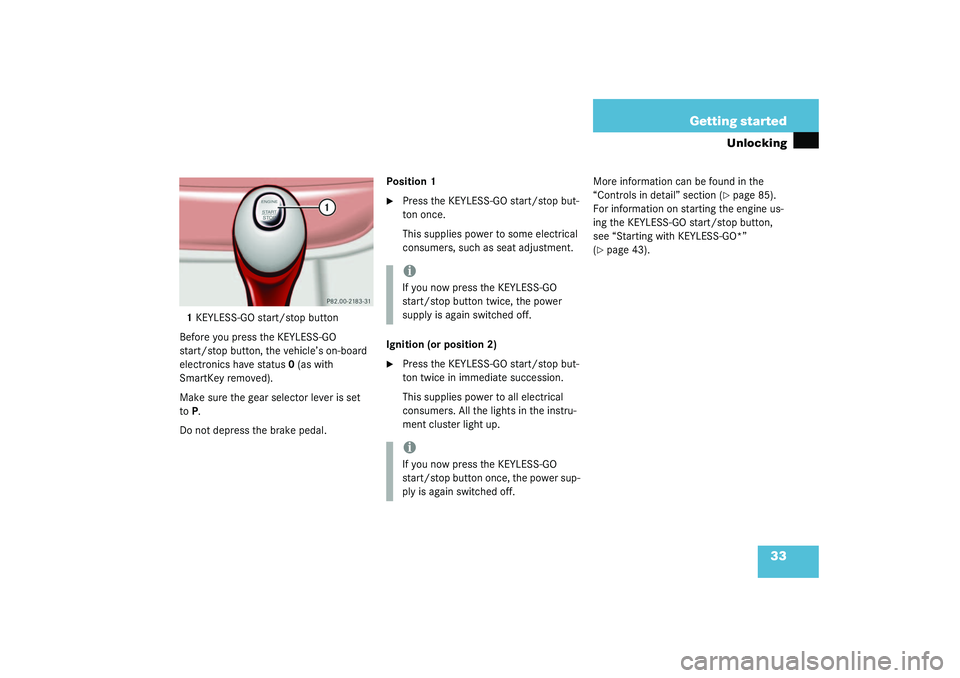

32 Getting startedUnlockingUnlocking with KEYLESS-GO*
Vehicles with KEYLESS-GO*: In addition to
the two SmartKeys with remote controls
and removable mechanical key, your vehi-
cle comes equipped with two
KEYLESS-GO* cards.
The function of the SmartKey overrules the
KEYLESS-GO function.If you have the KEYLESS-GO function, your
vehicle checks whether the KEYLESS-GO
card is valid when you grasp the door han-
dle. If your KEYLESS-GO card is valid, the
doors will unlock, and you can open them.

Grasp the door handle.
All turn signal lamps blink once. The
locking knobs in the doors move up.Pressing the KEYLESS-GO start/stop but-
ton on the selector lever corresponds to
turning the key to the various starter
switch positions.iTo unlock the vehicle, the KEYLESS-GO
card must be outside the vehicle, no
further than approximately 3 feet
(1 meter) away from the door.
Warning!
G
When leaving the vehicle, always take the
SmartKey and the KEYLESS-GO card with
you, and lock the vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause an ac-
cident and/or serious personal injury.

33 Getting started
Unlocking
1KEYLESS-GO start/stop button
Before you press the KEYLESS-GO
start/stop button, the vehicle’s on-board
electronics have status 0 (as with
SmartKey removed).
Make sure the gear selector lever is set
toP.
Do not depress the brake pedal.Position 1

Press the KEYLESS-GO start/stop but-
ton once.
This supplies power to some electrical
consumers, such as seat adjustment.
Ignition (or position 2)

Press the KEYLESS-GO start/stop but-
ton twice in immediate succession.
This supplies power to all electrical
consumers. All the lights in the instru-
ment cluster light up.More information can be found in the
“Controls in detail” section (
page 85).
For information on starting the engine us-
ing the KEYLESS-GO start/stop button,
see “Starting with KEYLESS-GO*”
(
page 43).
iIf you now press the KEYLESS-GO
start/stop button twice, the power
supply is again switched off.iIf you now press the KEYLESS-GO
start/stop button once, the power sup-
ply is again switched off.
