56 Safety and SecurityOccupant safety
Occupant safetyIn this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are:

Seat belts


Emergency tensioning device


Airbags


Child seats


Child seat recognition


Lower anchors and tethers for children
(LATCH)
As independent systems their protective
effects work in conjunction with each oth-
er.The
1
indicator lamp in the instrument
cluster lights up


for about four seconds when you turn
the key in the starter switch to
position1 or press the KEYLESS-GO*
start/stop button once. It then goes
out briefly, lights up again and remains
lit until you start the engine.


for about four seconds when you start
the engine by turning the key or press-
ing the KEYLESS-GO* start/stop but-
ton.The restraint systems are fully operational
if the 1 indicator lamp is not lit when the
engine is running.
A malfunction in the system has been de-
tected, if the 1 indicator lamp:


fails to go out after approximately four
seconds.


does not come on at all.


comes on after the engine was started
or while driving.
For safety reasons, we strongly recom-
mend that you visit an authorized
Mercedes-Benz Center immediately to
have the system checked.
More information can be found in the
“Practical hints” section (
page 289).
iFor information on infants and children
traveling with you in the vehicle and re-
straint systems for infants and chil-
dren, see “Children in the vehicle”
(page 67).
iThe
1
indicator lamp lights up and
remains lit if the key is turned to posi-
tion 2 and left there or the
KEYLESS-GO* start/stop button is
pressed twice. The indicator lamp will
go out when you start the engine.

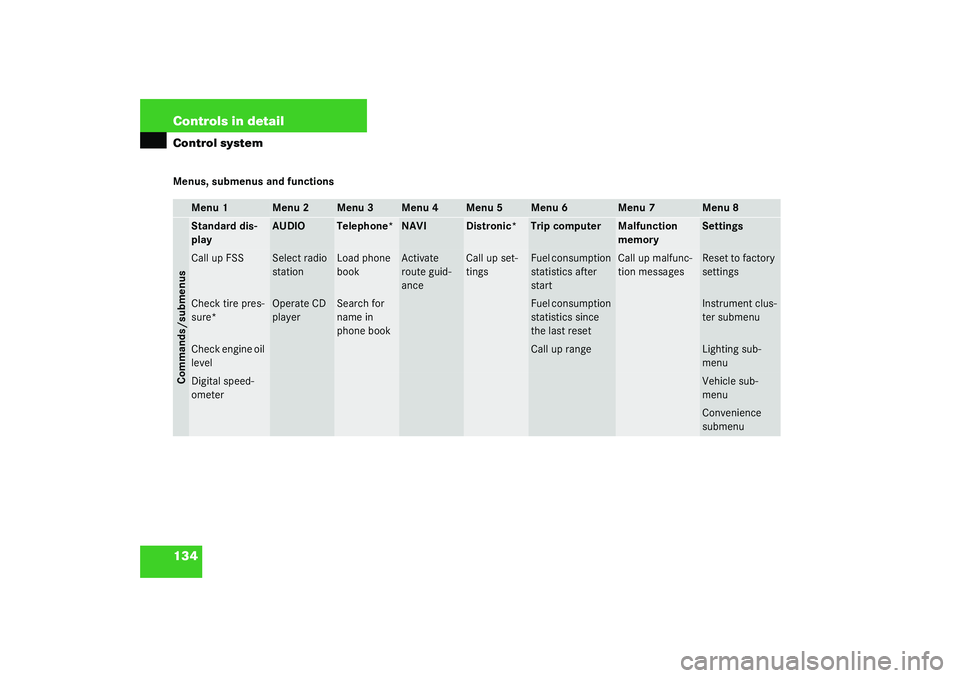

134 Controls in detailControl systemMenus, submenus and functions
Menu 1
Menu 2
Menu 3
Menu 4
Menu 5
Menu 6
Menu 7
Menu 8
Commands/submenusStandard dis-
play
AUDIO
Telephone*
NAVI
Distronic*
Trip computer
Malfunction
memory
Settings
Call up FSS
Select radio
station
Load phone
book
Activate
route guid-
ance
Call up set-
tings
Fuel consumption
statistics after
start
Call up malfunc-
tion messages
Reset to factory
settings
Check tire pres-
sure*
Operate CD
player
Search for
name in
phone book
Fuel consumption
statistics since
the last reset
Instrument clus-
ter submenu
Check engine oil
level
Call up range
Lighting sub-
menu
Digital speed-
ometer
Vehicle sub-
menuConvenience
submenu

184 Controls in detailAutomatic climate controlAir conditioning
The air conditioning is operational while
the engine is running and cools the interior
air to the temperature you have set.
Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the automatic
climate control system. The air in the vehi-
cle will then no longer be cooled or dehu-
midified.
Press buttonAC
OFF
(page 175).
The indicator lamp on the
buttonAC
OFF
lights up.Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condition-
ing.

PressAC
OFF
again (
page 175).
The indicator lamp on the AC
OFF
but-
ton goes out.
The air conditioning uses the refrigerant
R134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.
Storage compartment ventilation
The storage compartment below the front
armrest (
page 225) has its own air vent.
Ventilation of the storage compartment
below the front armrest is possible only
when the climate control system is on. The
air volume depends on the setting of the
air distribution control, the air volume con-
trol, and the air vents in the dashboard.
The switch is located inside the storage
compartment in the front armrest
(
page 225).
Opening air vent

Push upper portion of switch.
Closing air vent

Push lower portion of switch.
iCondensation may drip out from under-
neath the vehicle. This is normal and
not an indication of a malfunction.
!If the AC
OFF
button on the automatic
climate control panel starts to blink,
the air conditioning may be losing re-
frigerant. The compressor was turned
off. The air conditioning cannot be
turned on again.
Have the air conditioning checked at
the nearest authorized Mercedes-Benz
Center.

262 OperationAt the gas station
Check regularly and before a long trip
1Windshield washer and headlamp
cleaning system
More information on refilling the reser-
voir can be found in the “Operation”
section on (
page 271).
2Coolant level
More information on coolant can be
found in the “Operation” section on
(
page 268).
3Brake fluid
More information on brake fluid can be
found in the “Technical data” section
on (page 373).Engine oil level
More information on engine oil can be
found in the “Operation” section on
(
page 264).
Opening hood see (
page 263).
Vehicle lighting
Check function and cleanliness.More infor-
mation on replacing light bulbs can be
found in the “Practical hints” section
(
page 331).
Exterior lamp switch see “Switching on
headlamps” (
page 46).
Tire inflation pressure
More information on tire inflation pressure
can be found in the “Operation” section
(
page 273).
iLeaving the engine running and the fuel
cap open can cause the
?
lamp to
illuminate.
More information can be found in the
“Practical hints” section (
page 289).

266 OperationEngine compartmentIf there is excessive engine oil with the en-
gine at normal operating temperature, the
following message will appear:ENGINE OIL LEVEL
REDUCE OIL LEVEL!
Have excess oil siphoned.
See “Practical hints” (
page 289) if the
engine oil level indicator lights up in the
display while the engine is running.
More information on engine oil can be
found in “Technical data” (page 357).Checking the engine oil level with the
oil dipstick (except S 430 4MATIC,
S 500 4MATIC, and S 600)
The engine oil level can be checked by ei-
ther oil dipstick1 or via the multifunction
display in the instrument cluster
(
page 265). The amount of engine oil
needed is shown more precisely on the op-
erating system display.
1Oil dipstick

Open the hood (
page 263).

Pull out oil dipstick1 (
page 267).

Wipe oil dipstick1 clean.

Fully insert oil dipstick1 into the dip-
stick guide tube, and remove after ap-
proximately three seconds to obtain
accurate reading.
The oil level is acceptable when it
leaves a line between the upper and
lower marks of oil dipstick 1.
For adding oil see (
page 267).
See “Practical hints” (page 289) if the
engine oil level indicator lights up in the
display while the engine is running.
iIf you want to interrupt the checking
procedure, press the
k
or
j
but-
ton on the multifunction steering
wheel.
iThe filling quantity between the upper
and lower marks on the oil dipstick is
approximately 2.1 US qt. (2.0 l).

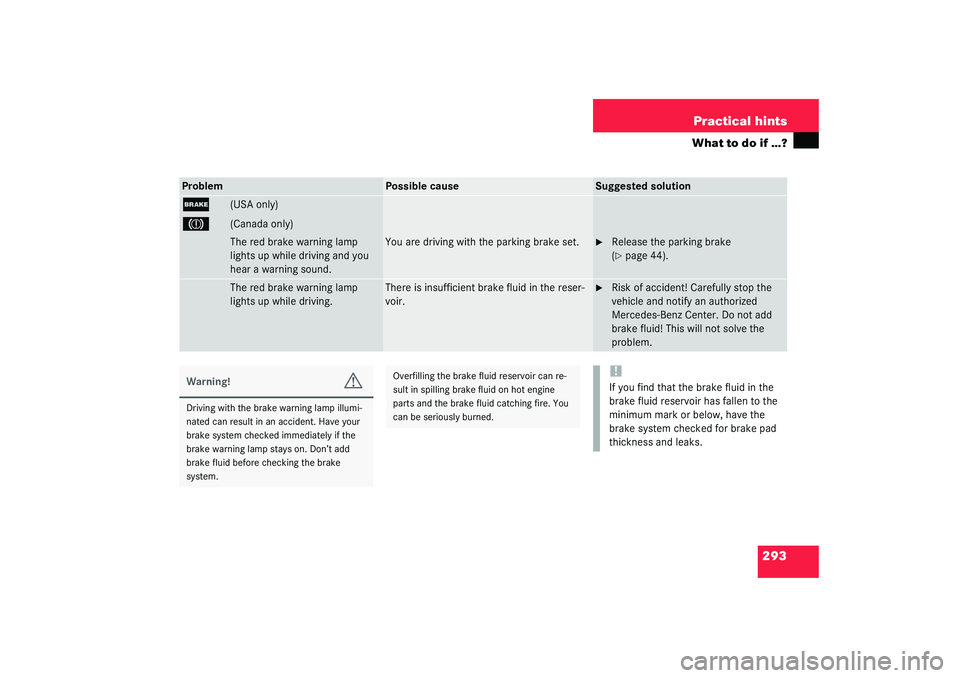

293 Practical hints
What to do if …?
Problem
Possible cause
Suggested solution
;
(USA only)
3
(Canada only)The red brake warning lamp
lights up while driving and you
hear a warning sound.
You are driving with the parking brake set.

Release the parking brake
(page 44).
The red brake warning lamp
lights up while driving.
There is insufficient brake fluid in the reser-
voir.

Risk of accident! Carefully stop the
vehicle and notify an authorized
Mercedes-Benz Center. Do not add
brake fluid! This will not solve the
problem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Don’t add
brake fluid before checking the brake
system.
Overfilling the brake fluid reservoir can re-
sult in spilling brake fluid on hot engine
parts and the brake fluid catching fire. You
can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.

294 Practical hintsWhat to do if …?Problem
Possible cause
Suggested solution
?
The yellow “CHECK ENGINE”
malfunction indicator lamp
comes on while driving.
There is a malfunction in:

The fuel management system


The ignition system


The emission control system


Systems which affect emissions
Such malfunctions may result in excessive
emissions values and may switch the engine
to its limp-home (emergency operation)
mode.

Have the vehicle checked as soon as
possible by an authorized
Mercedes-Benz Center.
An on-board diagnostic connector is
used by the service station to link the
vehicle to the shop diagnostics sys-
tem. It allows the accurate identifica-
tion of system malfunctions through
the readout of diagnostic trouble
codes. It is located in the front left
area of the footwell next to the park-
ing brake pedal.
The fuel cap is not closed tightly.

Close the fuel cap.
Your gas tank is empty.

After refuelling, start the engine three
or four times in succession.
The limp-home mode is canceled. You do
not need to have your vehicle checked.
The yellow fuel tank reserve
warning lamp lights up while
driving.
The fuel level has gone below the reserve
mark.

Refuel at the next gas station
(page 261).
<
The red seat belt warning lamp
blinks for a brief period after
starting the engine.
The warning lamp reminds you to fasten seat
belts.

Fasten your seat belt.

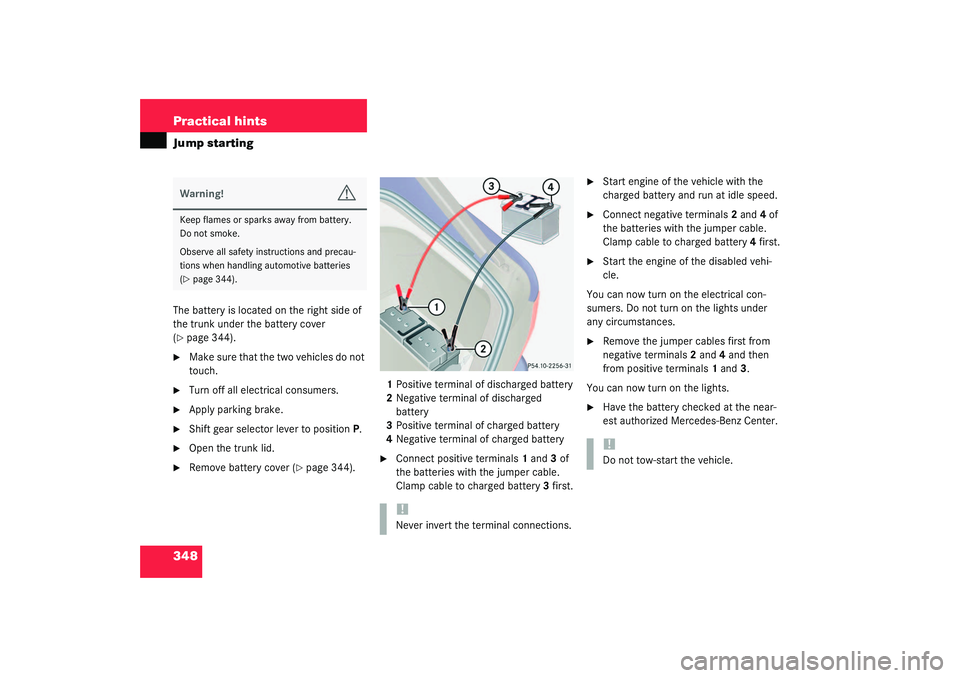

348 Practical hintsJump startingThe battery is located on the right side of
the trunk under the battery cover
(page 344).

Make sure that the two vehicles do not
touch.

Turn off all electrical consumers.

Apply parking brake.

Shift gear selector lever to positionP.

Open the trunk lid.

Remove battery cover (
page 344).1Positive terminal of discharged battery
2Negative terminal of discharged
battery
3Positive terminal of charged battery
4Negative terminal of charged battery

Connect positive terminals1 and3 of
the batteries with the jumper cable.
Clamp cable to charged battery3 first.

Start engine of the vehicle with the
charged battery and run at idle speed.

Connect negative terminals2 and4 of
the batteries with the jumper cable.
Clamp cable to charged battery4 first.

Start the engine of the disabled vehi-
cle.
You can now turn on the electrical con-
sumers. Do not turn on the lights under
any circumstances.

Remove the jumper cables first from
negative terminals2 and4 and then
from positive terminals1 and3.
You can now turn on the lights.

Have the battery checked at the near-
est authorized Mercedes-Benz Center.
Warning!
G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(page 344).
!Never invert the terminal connections.
!Do not tow-start the vehicle.
