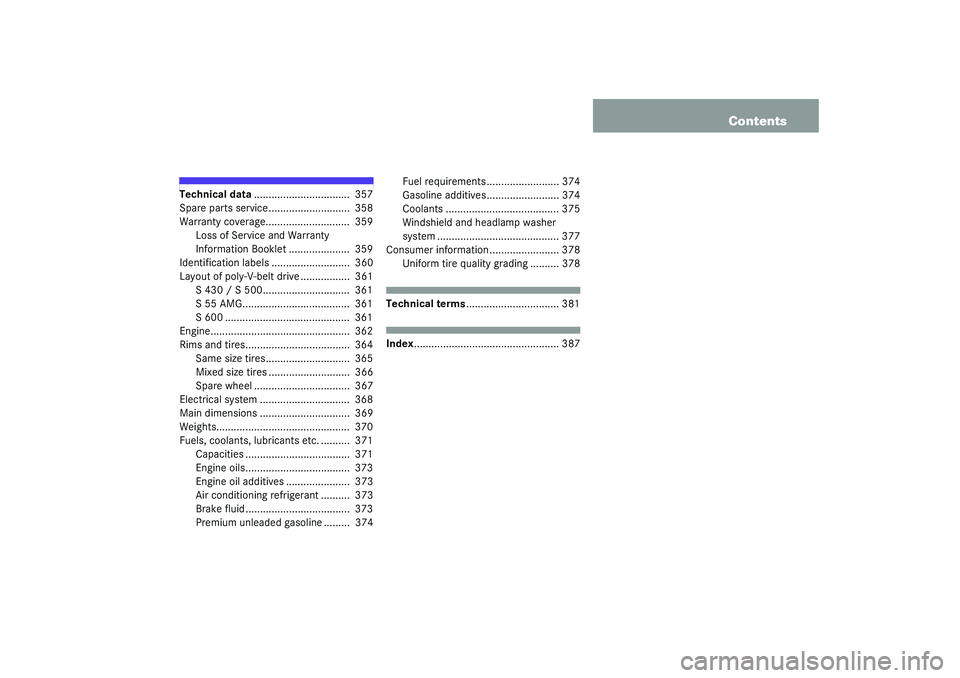

Contents
Technical data................................. 357
Spare parts service ............................ 358
Warranty coverage............................. 359
Loss of Service and Warranty
Information Booklet ..................... 359
Identification labels ........................... 360
Layout of poly-V-belt drive ................. 361
S 430 / S 500.............................. 361
S 55 AMG..................................... 361
S 600 ........................................... 361
Engine................................................ 362
Rims and tires.................................... 364
Same size tires............................. 365
Mixed size tires ............................ 366
Spare wheel ................................. 367
Electrical system ............................... 368
Main dimensions ............................... 369
Weights.............................................. 370
Fuels, coolants, lubricants etc. .......... 371
Capacities .................................... 371
Engine oils.................................... 373
Engine oil additives ...................... 373
Air conditioning refrigerant .......... 373
Brake fluid .................................... 373
Premium unleaded gasoline ......... 374Fuel requirements ......................... 374
Gasoline additives......................... 374
Coolants ....................................... 375
Windshield and headlamp washer
system .......................................... 377
Consumer information ........................ 378
Uniform tire quality grading .......... 378
Technical terms................................ 381Index.................................................. 387

325 Practical hints
Where will I find ...?
More information can be found in the
“Technical data” section (
page 357).Spare wheel S 55 AMG and Sport
Package*
In case of a flat tire, you may temporarily
use the spare wheel when observing the
following restrictions:


Do not exceed a vehicle speed of
50 mph (80 km/h).


Drive to the nearest tire repair facility
to have the flat tire repaired or re-
placed as appropriate.


Do not operate vehicle with more than
one spare wheel mounted.
More information can be found in the
“Technical data” section (
page 357).
Warning!
G
Never operate the vehicle with more than
one spare wheel mounted.
The spare wheel rim is for temporary use
only. Use for over a total of 12 000 miles
(20 000 km) (aggregate of all uses) may
cause wheel rim failure leading to an acci-
dent and possible injuries.
The spare wheel should only be used tempo-
rarily and replaced with a regular road wheel
as quickly as possible.
Warning!
G
The dimensions of the spare wheel are dif-
ferent from those of the road wheels. As a
result, the vehicle handling characteristics
change when driving with a mounted spare
wheel. Adapt your driving style accordingly.
Never operate the vehicle with more than
one spare wheel mounted.
The spare wheel is for temporary use only.
When driving with spare wheel mounted, en-
sure proper tire pressure and do not exceed
vehicle speed of 50 mph (80 km).
The spare wheel rim is for temporary use
only. Use for over a total of 12 000 miles
(20 000 km) (aggregate of all uses) may
cause wheel rim failure leading to an acci-
dent and possible injuries.
The spare wheel should only be used tempo-
rarily and replaced with a regular road wheel
as quickly as possible.

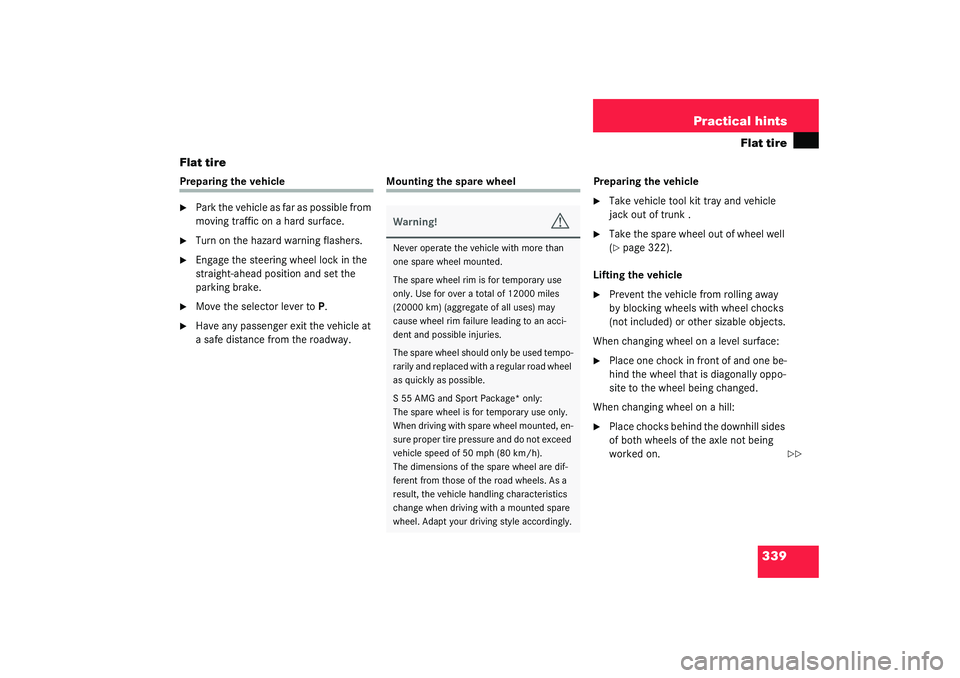

339 Practical hints
Flat tire
Flat tire
Preparing the vehicle
Park the vehicle as far as possible from
moving traffic on a hard surface.

Turn on the hazard warning flashers.

Engage the steering wheel lock in the
straight-ahead position and set the
parking brake.

Move the selector lever toP.

Have any passenger exit the vehicle at
a safe distance from the roadway.
Mounting the spare wheel Preparing the vehicle

Take vehicle tool kit tray and vehicle
jack out of trunk .

Take the spare wheel out of wheel well
(page 322).
Lifting the vehicle

Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
(not included) or other sizable objects.
When changing wheel on a level surface:

Place one chock in front of and one be-
hind the wheel that is diagonally oppo-
site to the wheel being changed.
When changing wheel on a hill:

Place chocks behind the downhill sides
of both wheels of the axle not being
worked on.
Warning!
G
Never operate the vehicle with more than
one spare wheel mounted.
The spare wheel rim is for temporary use
only. Use for over a total of 12000 miles
(20000 km) (aggregate of all uses) may
cause wheel rim failure leading to an acci-
dent and possible injuries.
The spare wheel should only be used tempo-
rarily and replaced with a regular road wheel
as quickly as possible.
S 55 AMG and Sport Package* only:
The spare wheel is for temporary use only.
When driving with spare wheel mounted, en-
sure proper tire pressure and do not exceed
vehicle speed of 50 mph (80 km/h).
The dimensions of the spare wheel are dif-
ferent from those of the road wheels. As a
result, the vehicle handling characteristics
change when driving with a mounted spare
wheel. Adapt your driving style accordingly.


357 Technical data
Spare parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions
Weights
Fuels, coolants, lubricants etc.
Consumer information

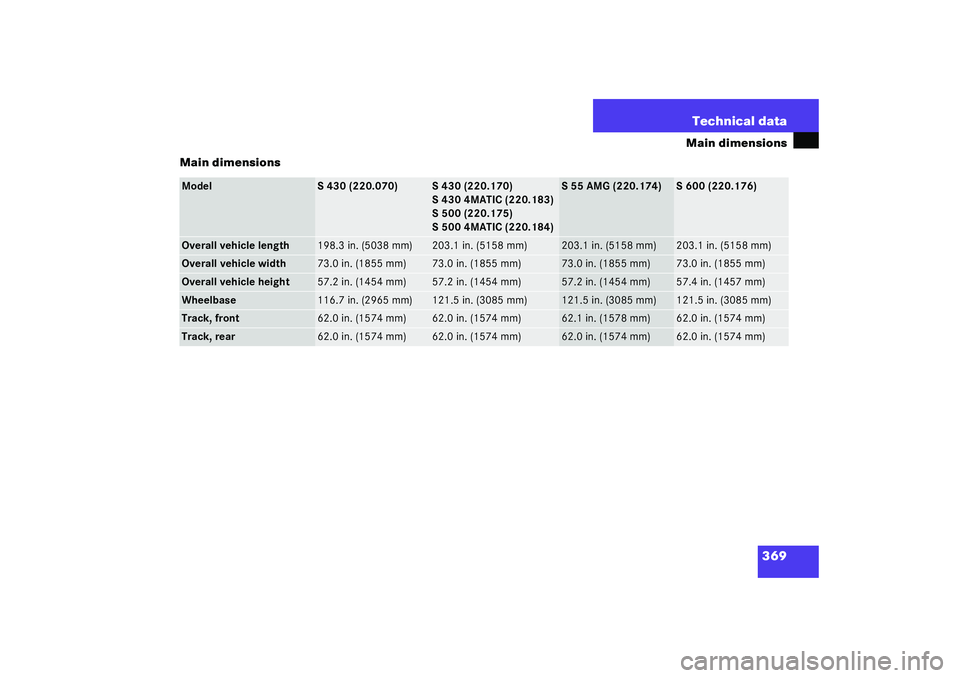

369 Technical data
Main dimensions
Main dimensions
Model
S 430 (220.070)
S 430 (220.170)
S 430 4MATIC (220.183)
S 500 (220.175)
S 500 4MATIC (220.184)
S 55 AMG (220.174)
S 600 (220.176)
Overall vehicle length
198.3 in. (5038 mm)
203.1 in. (5158 mm)
203.1 in. (5158 mm)
203.1 in. (5158 mm)
Overall vehicle width
73.0 in. (1855 mm)
73.0 in. (1855 mm)
73.0 in. (1855 mm)
73.0 in. (1855 mm)
Overall vehicle height
57.2 in. (1454 mm)
57.2 in. (1454 mm)
57.2 in. (1454 mm)
57.4 in. (1457 mm)
Wheelbase
116.7 in. (2965 mm)
121.5 in. (3085 mm)
121.5 in. (3085 mm)
121.5 in. (3085 mm)
Track, front
62.0 in. (1574 mm)
62.0 in. (1574 mm)
62.1 in. (1578 mm)
62.0 in. (1574 mm)
Track, rear
62.0 in. (1574 mm)
62.0 in. (1574 mm)
62.0 in. (1574 mm)
62.0 in. (1574 mm)
