2003 MERCEDES-BENZ S CLASS mirror

Contents
Introduction.......................................... 9
Product information ................................ 9
Operator’s Manual ............................... 10
Service and warranty information .. 10
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 12
Operating your vehicle outside the
USA or Canada............................... 13
Where to find it .................................... 14
Symbols ............................................... 15
Operating safety .................................. 16
Proper use of the vehicle ............... 16
Problems with your vehicle .................. 17
Reporting safety defects...................... 18
Reporting safety defects ................ 18At a glance......................................... 19
Cockpit ................................................ 20
Instrument cluster ............................... 22
Multifunction steering wheel ............... 24Center console ..................................... 25
Upper part ...................................... 25
Lower part ...................................... 26
Overhead control panel ........................ 27
Door control panel................................ 28
Getting started................................... 29
Unlocking ............................................. 30
Unlocking with the SmartKey.......... 30
Unlocking with KEYLESS-GO* ......... 32
Adjusting .............................................. 34
Seats............................................... 34
Steering wheel ................................ 37
Mirrors ............................................ 38
Driving .................................................. 40
Fastening the seat belts.................. 40
Starting the engine ......................... 42
Switching on headlamps ................. 46
Turn signals and high beam ............ 46
Windshield wipers ........................... 47
Problems while driving .................... 48
Parking and locking .............................. 50
Parking brake.................................. 50
Switching off headlamps................. 51
Turning off engine ........................... 52
Safety and Security........................... 55
Occupant safety ................................... 56
Airbags ........................................... 57
Seat belts ....................................... 62
Preventive occupant safety
(PRE-SAFE) ..................................... 66
Children in the vehicle .................... 67
Override switch for rear passenger
compartment .................................. 74
Panic alarm .......................................... 75
Activating........................................ 75
Deactivating.................................... 75
Driving safety systems ......................... 76
ABS ................................................. 76
BAS ................................................. 78
ESP ................................................. 78
Four wheel electronic traction system
(4MATIC) with the ESP .................... 81
Anti-theft systems ................................ 82
Immobilizer ..................................... 82
Anti-theft alarm system .................. 82
Tow-away alarm .............................. 84

ContentsControls in detail............................... 85
Locking and unlocking ......................... 86
SmartKey ....................................... 86
KEYLESS-GO card*......................... 89
Opening the doors from the
inside ............................................. 94
Opening the trunk lid...................... 95
Opening the trunk from the
inside ............................................. 96
Trunk lid emergency release .......... 96
Closing the trunk lid ....................... 97
Separately locking the trunk .......... 98
Separately unlocking the trunk ...... 98
Trunk lid opening/closing
ystem* ........................................... 99
Power closing assist for doors
and trunk lid ................................. 102
Automatic central locking ............ 102
Locking and unlocking from
the inside ..................................... 103
Seats.................................................. 104
Lumbar support ............................ 104
Easy-entry/exit feature ................ 104
Head restraints............................. 105
Multicontour seat* ....................... 107Drive-dynamic seat* .................... 109
Seat ventilation* .......................... 110
Seat heating* ............................... 111
Rear seats .................................... 113
Memory function ............................... 117
Storing positions into memory ..... 118
Recalling positions from
memory ........................................ 118
Storing exterior rear view mirror
parking position ........................... 118
Lighting.............................................. 120
Exterior lamp switch..................... 120
Combination switch ..................... 123
Hazard warning flasher ................ 124
Interior lighting............................. 124
Courtesy lighting .......................... 126
Instrument cluster ............................. 127
Instrument cluster illumination .... 127
Coolant temperature gauge ......... 128
Trip odometer .............................. 128
Tachometer .................................. 129
Outside temperature indicator ..... 129
Control system .................................. 130
Multifunction display .................... 130
Multifunction steering wheel ........ 131
Menus .......................................... 133Standard display menu ................ 135
AUDIO menu ................................ 135
CD changer* operating mode ...... 137
TEL menu* ................................... 139
NAVI menu ................................... 142
Distronic* menu .......................... 142
Trip computer menu..................... 143
Malfunction memory menu .......... 145
Settings menu .............................. 146
Automatic transmission ..................... 160
One-touch gearshifting ................ 161
Gear ranges ................................. 162
Gear selector lever position ......... 163
Program mode selector switch .... 164
Accelerator position ..................... 165
Emergency operation (Limp home
mode) .......................................... 165
Steering wheel gearshift control
(Speedshift) and manual shift
program S 55 AMG ...................... 166
Good visibility .................................... 168
Rear view mirror .......................... 168
Electrically folding exterior rear
view mirrors ................................. 170
Windshield wipers ........................ 171
Headlamp cleaning system .......... 171

27 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Left reading lamp on/off
126
2
Rear interior lighting
on/off
126
3
Right reading lamp on/off
126
4
Interior lighting control
125
5
Sliding/pop-up roof
192
6
Hands-free microphone for
Tele Aid (emergency call
system), telephone*, and
voice control system* (see
separate operating instruc-
tions)
237
7
Rear view mirror
38
8
Garage door opener
245
9
Tele Aid (emergency call
system) button
240

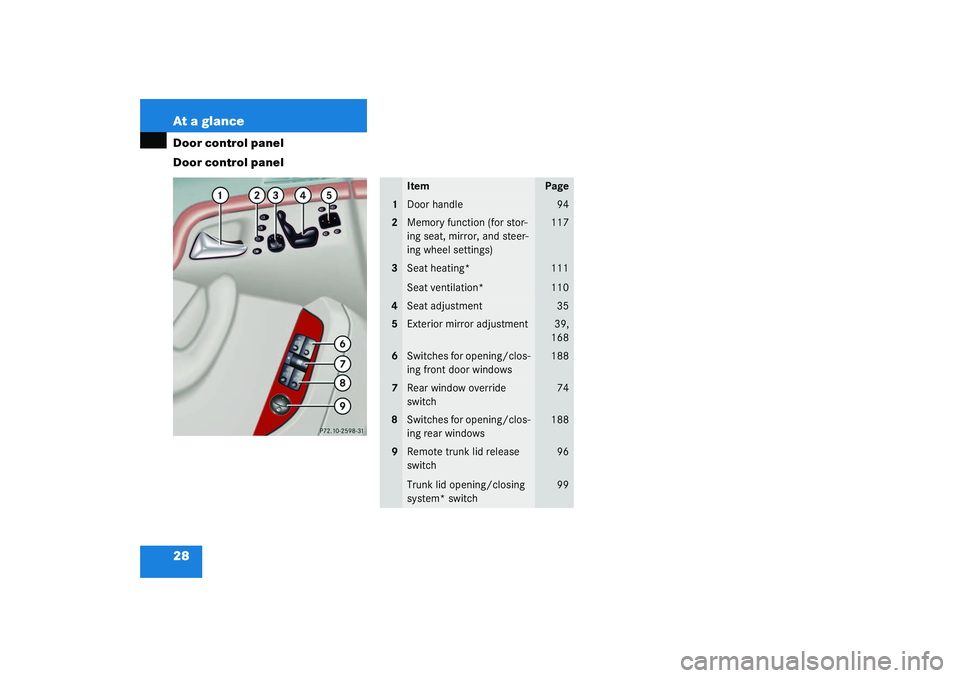

28 At a glanceDoor control panel
Door control panel
Item
Page
1
Door handle
94
2
Memory function (for stor-
ing seat, mirror, and steer-
ing wheel settings)
117
3
Seat heating*
Seat ventilation*
111
110
4
Seat adjustment
35
5
Exterior mirror adjustment
39,
168
6
Switches for opening/clos-
ing front door windows
188
7
Rear window override
switch
74
8
Switches for opening/clos-
ing rear windows
188
9
Remote trunk lid release
switch
Trunk lid opening/closing
system* switch
96
99

34 Getting startedAdjusting
Adjusting
Seats
Warning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.
Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back reclined. Sitting in an excessively re-
clined position can be dangerous. You could
slide under the seat belt in a collision. If you
slide under it, the belt would apply force at
the abdomen or neck. That could cause se-
rious or fatal injuries. The seat backrest and
seat belts provide the best restraint when
the wearer is in an upright position and belts
are properly positioned on the body.
Your seat must be adjusted so that you can
correctly fasten your seat belt.
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
KEYLESS-GO* card (if so equipped) with
you, and lock your vehicle.
The power seats can also be operated with
the driver’s or passenger door open. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.

38 Getting startedAdjustingSteering wheel adjustment
The stalk is located on the steering column
(lower left).
1Steering column, lengthen or shorten
2Steering column, height
Turn the SmartKey in the starter switch
to position1or2.
or

Press the KEYLESS GO* start/stop
button once or twice.
or

Open the driver’s or passenger door.Steering column, lengthen or shorten

Move stalk forward or backward in the
direction of arrows1 until a comfort-
able steering wheel position is reached
with your arms slightly bent at the el-
bow.
Steering column, height

Move the stalk up or down in the direc-
tion of arrows2. Make sure that your
legs can move freely and that all of the
displays (including malfunction and in-
dicator lamps) on the instrument clus-
ter are clearly visible.
Mirrors
Adjust the inside and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.
Inside rear view mirror
Manually adjust the inside rear view
mirror.Warning!
G
In the case of an accident liquid electrolyte
may escape the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.

39 Getting started
Adjusting
Exterior rear view mirrorThe buttons are located on the driver’s
door.
1Driver’s side mirror
2Passenger side mirror
3Adjustment button

Make sure that the ignition is switched
on.
All the lights in the instrument cluster
light up.

Press button1 for the left mirror or
button2 for the right mirror.

Push adjustment button3 up, down,
left, or right according to the desired
setting.For information on the electrically folding
exterior rear view mirrors, see “Folding the
exterior mirrors in and out automatically”
(
page 170).
Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
side rear view mirror or glance over your
shoulder before changing lanes.!Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their liq-
uid state and by applying plenty of wa-
ter.
!For information on how to reposition
the exterior mirror housing when it was
forcibly pushed forward (hit from the
rear) or forcibly pushed rearward (hit
from the front), see “Folding the exteri-
or mirrors in and out manually”
(page 170).
iAt low ambient temperatures, the mir-
rors will be heated automatically.

117 Controls in detail
Memory function
Memory function
The memory button and stored position
switch are located on the door.
You can store up to three different settings
per SmartKey or KEYLESS-GO* card.
The following settings are saved for each
stored position:

Seat and backrest position


Settings for the multi-contour seat*


Steering wheel position


Inside rear view mirror position


Exterior rear view mirror position


Automatic climate control
These key dependent memory settings can
be deactivated if desired (
page 156).
1 Stored position buttons
2Memory button

Make sure that the ignition is switched
on or the relevant door is open and the
SmartKey is inserted in the starter
switch.
!Prior to operating the vehicle, the driv-
er should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to en-
sure adequate control, reach, and com-
fort. The head restraint should also be
adjusted for proper height. Also see
“Airbags” (
page 57) section for prop-
er seat positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the inside and
outside rear view mirrors should be ad-
justed for adequate rear vision.
Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and Canadian
Motor Vehicle Safety Standards 213
and 210.2.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.
