2003 MERCEDES-BENZ S CLASS mirror

312 Practical hintsWhat to do if …?Display
Possible cause
Suggested solution
.
LIGHT SENSOR
VISIT WORKSHOP!
The lamp sensor is malfunctioning. The
headlamps switch on automatically.

In the control system, set lamp operation
to manual (
page 149).

Switch on headlamps using the exterior
lamp switch.
BRAKE LIGHT
VISIT WORKSHOP!
Brake lamp illumination is delayed or lamp
is permanently on.

Visit an authorized Mercedes-Benz Cen-
ter as soon as possible.
DISPLAY MALFUNCTION
VISIT WORKSHOP!
The display for the lamps or the system is
malfunctioning.

Visit an authorized Mercedes-Benz Cen-
ter as soon as possible.
TURN OFF LIGHTS!
Lamps have been turned on although the
SmartKey in the ignition is in position 0.

Turn off the headlamps
TURN SIG. MIRROR, L
CHECK LIGHT!

The left turn signal in the side mirror is
malfunctioning. This message will only ap-
pear if all light emitting diodes have
stopped working.

Visit an authorized Mercedes-Benz Cen-
ter as soon as possible.
TURN SIG. MIRROR, R
CHECK LIGHT!

The right turn signal in the side mirror is
malfunctioning. This message will only ap-
pear if all light emitting diodes have
stopped working.

Visit an authorized Mercedes-Benz Cen-
ter as soon as possible.
TURN SIG., LF
CHECK LIGHT!

BACK-UP LIGHT ON!

The left front turn signal lamp is malfunc-
tioning. A back-up bulb is being used.

Replace the bulb as soon as possible.

321 Practical hints
What to do if …?
ì
FUNCTION
NOT AVAILABLE!
This display appears if button
ì
or
í

on the multifunction steering wheel is
pressed and the vehicle is not equipped
with a telephone.
Ê
TRUNK OPEN!
This message will appear whenever the
trunk lid is open.

Close the trunk lid.
W
WASHER FLUID
CHECK LEVEL!
The fluid level has dropped to about
1/3 of
total reservoir capacity.

Add washer fluid (
page 271).
CRUISE CONTROL
CRUISE CONTROL
VISIT WORKSHOP!
Cruise control or Distronic* is malfunction-
ing.

Have cruise control or Distronic*
checked by an authorized
Mercedes-Benz Center.
_
ENTRY POSITION
DO NOT DRIVE!
Seat, mirrors and steering wheel have not
yet moved to their preset driving positions.

Wait until the seat, mirrors and steer-
ing wheel have moved to their driving
positions.
The message will disappear.
±
DISPLAY MALFUNCTION
VISIT WORKSHOP!
Certain electronic systems are unable to
relay information to the control system.
The following systems may have failed:

Coolant temperature display


Tachometer


Cruise control display

Have the electronic systems
checked by an authorized
Mercedes-Benz Center.
Display
Possible cause
Suggested solution

332 Practical hintsReplacing bulbsRear lamps Notes on bulb replacement


Use only 12 volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not light
up, visit an authorized Mercedes-Benz
Center.


Have the LEDs and bulbs for the follow-
ing lamps replaced by an authorized
Mercedes-Benz Center.

Additional turn signal lamps in the
exterior rear view mirrors


High mounted brake lamp


Bi-Xenon lamps*


Front fog lamps
Lamp
Type
8
Brake lamp
LED
9
Turn signal lamp
PY 21 W
10
Tail and standing
lamp, side marker
P21/4W
11
Backup lamp
P21W
12
License plate lamps
C5W
13
Tail lamp, Rear fog
lamp
P21/4W
14
High mounted brake
lamp
LED
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas. A
bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in Bi-Xenon lamps,
it is dangerous to replace the bulb or repair
the lamp and its components. We recom-
mend that you have such work done by a
qualified technician.

383 Technical terms
FSS
(F
lexible S
ervice S
ystem)
Service indicator in the multifunction
display that informs the driver when
the next vehicle maintenance service is
due.
Gear range
Number of gears which are available to
the automatic transmission for shifting.
The automatic gear shifting process
can be adapted to specific operating
conditions using the selector lever.
GPS
(G
lobal P
ositioning S
ystem)
Satellite-based system for relaying
geographic location information to and
from vehicles equipped with special re-
ceivers. Employs CD digital maps for
navigation.
Instrument cluster
The displays and indicator/warning
lamps in the driver’s field of vision, in-
cluding the tachometer, speedometer,
engine temperature and fuel gauge.KEYLESS-GO*
System for entering and operating the
vehicle without the use of a SmartKey.
Kickdown
Depressing the accelerator past the
point of resistance shifts the transmis-
sion down to the lowest possible gear.
This very quickly accelerates the vehi-
cle and should not be used for normal
acceleration needs.
Lock button
Button on the door which indicates
whether the door is locked or un-
locked. Pushing the lock button down
on an individual door from inside will
lock that door.
Memory function*
Used to store three individual seat,
steering wheel and mirror positions for
each SmartKey or, if so equipped, KEY-
LESS-GO* card.Menu
The control system displays are ar-
ranged in menus. Each menu contains
a number of commands for particular
systems. In the Audio menu, for exam-
ple, you will find the commands
Select
radio station
or Operate CD player
.
Using commands, you can directly
change the settings for your vehicle.
MON
(M
otor O
ctane N
umber)
The Motor Octane Number for gasoline
as determined by a standardized meth-
od. It is an indication of a gasoline's
ability to resist undesired detonation
(knocking). The average of both the
MON (Motor Octane Number) and
->RON (Research Octane Number) is
posted at the pump, also known as AN-
TI-KNOCK INDEX.
Multifunction display
Display field in the speedometer used
to present information provided by the
control system.

387 Index
A
ABC 213
Messages in display 297, 299
Setting vehicle level 212, 215
ABS 76, 381
Malfunction indicator lamp 291
Messages in display 298
Warning lamp 291
Accelerator position, automatic transmis-
sion 165
Accident
In case of 49
Activating
Air conditioner (cooling) 184
Air conditioning 184
Air recirculation mode 180
Anti-theft alarm system 83
Central locking (control system) 155
Charcoal filter 182
Distance warning function* 208
Distronic* 204
Easy-entry/exit feature 156
ESP 80
Exterior lamps 121Exterior rear view mirror parking posi-
tion 169
Front and rear fog lamp 121
Hazard warning flasher 124
Headlamps 46
High beams 123
Ignition 31
Ignition with KEYLESS-GO* start/stop
button 33
Immobilizer 52, 82
Rear window defroster 183
Residual heat 185
Seat heater 111, 112
Seat ventilation* 110
Tow-away alarm 84
Windshield wipers 47
Activating steering wheel gearshift control
166
Downshifting 167
Upshifting 166
Adding
Coolant 269
Engine oil 266, 267
Additional turn signals 331Adjustable air vents, rear passenger com-
partment 186
Adjusting 34
Air distribution 178
Air volume 179
Backrest tilt 36
Drive-dynamic seats 159
Exterior rear view mirror 39
Head restraint height 37
Head restraint tilt 37
Inside rear view mirror 38
Instrument cluster illumination 127
Lumbar support 104
Mirrors 38
Multicontour seat* 107
Power seat bench* 113
Seat cushion depth 36, 108
Seat cushion tilt 36
Seat fore and aft adjustment 36
Seat height 36
Seat in the lumbar region 108
Seat in the shoulder region 108
Seats 34
Steering column height 38
Steering column length 38
Steering wheel 37

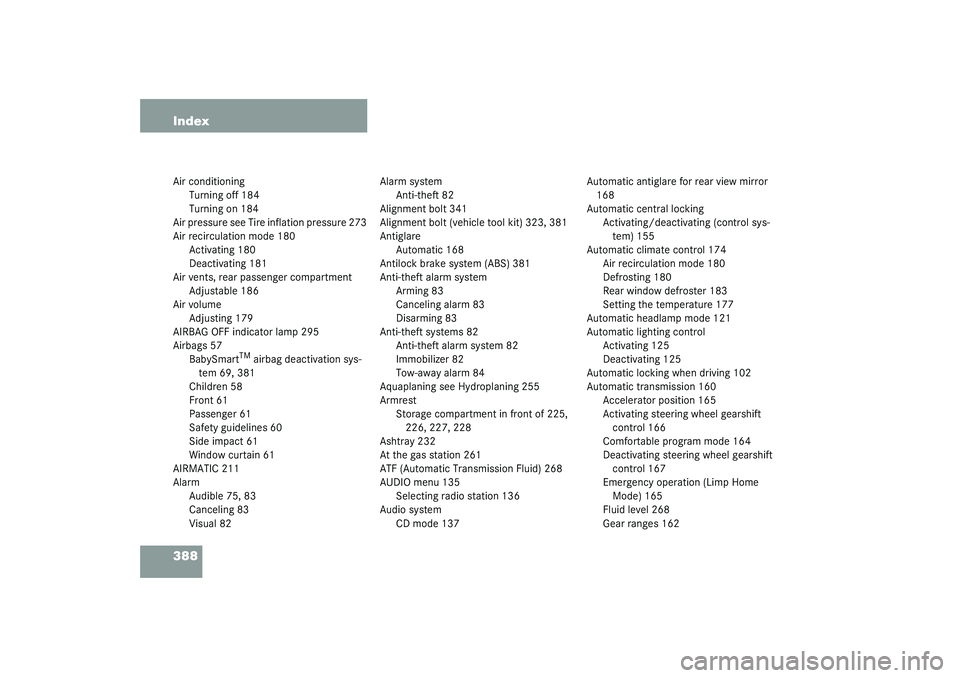

388 IndexAir conditioning
Turning off 184
Turning on 184
Air pressure see Tire inflation pressure 273
Air recirculation mode 180
Activating 180
Deactivating 181
Air vents, rear passenger compartment
Adjustable 186
Air volume
Adjusting 179
AIRBAG OFF indicator lamp 295
Airbags 57
BabySmart
TM airbag deactivation sys-
tem 69, 381
Children 58
Front 61
Passenger 61
Safety guidelines 60
Side impact 61
Window curtain 61
AIRMATIC 211
Alarm
Audible 75, 83
Canceling 83
Visual 82Alarm system
Anti-theft 82
Alignment bolt 341
Alignment bolt (vehicle tool kit) 323, 381
Antiglare
Automatic 168
Antilock brake system (ABS) 381
Anti-theft alarm system
Arming 83
Canceling alarm 83
Disarming 83
Anti-theft systems 82
Anti-theft alarm system 82
Immobilizer 82
Tow-away alarm 84
Aquaplaning see Hydroplaning 255
Armrest
Storage compartment in front of 225,
226, 227, 228
Ashtray 232
At the gas station 261
ATF (Automatic Transmission Fluid) 268
AUDIO menu 135
Selecting radio station 136
Audio system
CD mode 137Automatic antiglare for rear view mirror
168
Automatic central locking
Activating/deactivating (control sys-
tem) 155
Automatic climate control 174
Air recirculation mode 180
Defrosting 180
Rear window defroster 183
Setting the temperature 177
Automatic headlamp mode 121
Automatic lighting control
Activating 125
Deactivating 125
Automatic locking when driving 102
Automatic transmission 160
Accelerator position 165
Activating steering wheel gearshift
control 166
Comfortable program mode 164
Deactivating steering wheel gearshift
control 167
Emergency operation (Limp Home
Mode) 165
Fluid level 268
Gear ranges 162

391 Index
Closing
Cup holder 230
Glove box 224
Hood 264
Side windows 189
Side windows with KEYLESS-GO* 93
Sliding/pop-up roof 192, 330
Sliding/pop-up roof with KEY-
LESS-GO* 93, 190, 194
Sliding/pop-up roof with SmartKey
194
Trunk 97
Windows 188
Windows with KEYLESS-GO* 190, 194
Windows with SmartKey 190
Closing from the inside
Trunk 99
Closing sliding/pop-up roof
In an emergency 330
Cockpit 20, 381
Cockpit management and data system
(COMAND*) 382
COMAND* 382
COMAND* see separate operating instruc-
tionsCombination switch 123
High beam flasher 46, 123
Turn signals 46
Windshield wipers 47
Comfortable driving
Transmission program mode 164
Consumer information 378
Control and operation of radio transmitters
258
Control system 130, 382
AUDIO menu 135
Convenience submenu 155
Display digital speedometer 135
Distronic* menu 142
Functions 131, 134
Instrument cluster submenu 149
Lighting submenu 150
Malfunction memory menu 145
Menus 133, 134, 383
Multifunction display 130
Multifunction steering wheel 131
NAVI menu 142
Selecting radio system 136
Settings menu 146
Standard display menu 135
Submenus 132, 134TEL* menu 139
Trip computer menu 143
Vehicle submenu 154
Convenience submenu 155
Activating easy-entry/exit feature 156
Adjusting drive-dynamic seats 159
Setting key dependency 156
Setting parking position for exterior
rear view mirror 158
Coolant 268
Adding 269
Checking level 268
Messages in display 304, 305
Temperature 260
Temperature gauge 128
Warning lamp 305
Coolant level
Checking 268
Courtesy lighting 126
Cruise control 196, 382
Canceling 197
Driving downhill 197
Driving uphill 197
Fine adjustment 198
Lever 203
Setting current speed 197

393 Index
Distronic* 199, 382
Activated 203
Activating 204
Calling up settings 142, 202
Cleaning system sensor 285
Cruise control lever 203
Deactivated 203
Deactivating 206
Deceleration 202
Decreasing distance 207
Decreasing time interval 206
Displays in the speedometer dial 201
Distance warning function 207
Driving hints 208
Fine adjustment 205
Increasing distance 207
Increasing time interval 206
Intermittent signal tone 201
Menu 202
Messages in display 307
Sensor cover 285
Setting a higher speed 204
Setting a slower speed 205
Setting following distance 206
Setting the current speed 204
Setting to last stored speed ("Resume" function) 205
Warning and indicator lamps 201
Door control panel 19, 28
Door unlock
With Tele Aid* 244
Doors
Message in display 307
Opening from inside vehicle 94
Opening from outside 87
Downhill driving
Cruise control 197
Downshifting 161, 167
Drink holder see Cup holder 229
Drinking and driving 251
Drive-dynamic seat* 109
Drive-dynamic seats
Adjusting 159
Driving
Abroad 258
General instructions 40, 251
Hydroplaning 255
In winter 256
Problems 48
Safety systems 76
Through standing water 257
With Distronic* 208Driving abroad 258
Driving instructions 251
Driving off 253
Driving safety systems
4MATIC 81
ABS 76
BAS 78
ESP 78
Driving systems 196
ABC 213
AIRMATIC 211
Cruise control 196
Distronic* 199
Driving safety systems 76
Parktronic 218
Vehicle level control 212, 215
E
Easy-entry/exit feature 104
Activating 156
Interrupting movement 157
Electrical fuses 353
Electrical system 368
Electrically folding exterior rear view
mirrors 170
Electronic Stability Program see ESP 78,
382
