2003 MERCEDES-BENZ G55AMG Owner's Manual

33 Getting started
Unlocking
Starter switch positionsStarter switch0For removing key
The steering is locked when the key is
removed from the starter switch. If
necessary, move steering wheel slight-
ly to allow the locking mechanism to
engage.
1Power supply to some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position
3Starting position
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch and lock
the vehicle. Do not leave children unattend-
ed in the vehicle, or with access to an un-
locked vehicle. Unsupervised use of vehicle
equipment may cause an accident and/or
serious personal injury.
!If the key is left in starter switch
position0 for an extended period of
time, it can no longer be turned in the
starter switch.

Remove key from the starter switch
and reinsert.
If the key can still not be turned, the
battery may not be sufficiently
charged.


Check the battery and charge it if
necessary (
page 295).


Get a jump start (
page 297).
To prevent accelerated battery dis-
charge and a possible dead battery, al-
ways remove the key from the starter
switch.

34 Getting startedAdjusting
AdjustingSeatsWarning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back reclined. Sitting in an excessively re-
clined position can be dangerous. You could
slide under the seat belt in a collision. If you
slide under it, the belt would apply force at
the abdomen or neck. That could cause se-
rious or fatal injuries.
The seat back and seat belts provide the
best restraint when the wearer is in an up-
right position and belts are properly posi-
tioned on the body. Your seat must be
adjusted so that you can correctly fasten
your seat belt (
page 40).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, and lock your
vehicle.
The power seats can also be operated with
the driver’s or front passenger door open.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger side front
airbag when it is properly installed. Other-
wise they will be struck by the airbag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must be seated in an appropriate infant or
child restraint system, which is properly se-
cured with the vehicle's seat belt and top
tether strap, or secured via lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer's instruc-
tions.

35 Getting started
Adjusting
The seat adjustment switches are located
in each front door.
1Seat height
2Seat fore and aft adjustment
3Seat cushion tilt
4Backrest tilt
5Head restraint height

Turn the key in the starter switch to
position1 or2 (
page 33).
or

Open the driver’s or front passenger
door.
Seat fore and aft adjustment

Press the switch forward or back in the
direction of arrow2.
Adjust a comfortable seating position
that still allows you to reach the accel-
erator/brake pedal safely. The position
should be as far rearward as possible,
consistent with ability to properly oper-
ate controls.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
iWhen moving the seat, be sure that

there are no items in the footwell or
behind the seats


the cup holder next to the armrest
is removed (
page 178)


the cup holder in the front passen-
ger footwell is folded closed
(page 178)
Otherwise you could damage the seats
and/or cup holders.

36 Getting startedAdjustingSeat height
Press the switch up or down in the di-
rection of arrow1.
Make sure that you have sufficient
headroom.
Seat cushion tilt

Press the switch up or down in the di-
rection of arrow3 until your upper legs
are lightly supported.
Backrest tilt

Press the switch forward or back in di-
rection of arrow4 until your arms are
slightly angled when holding the steer-
ing wheel.Head restraint height
Adjust head restraint to support the back
of the head approximately at ear level.
Driver’s or front passenger seat

Press the switch up and down in the di-
rection of arrow5.
Rear seat

Push down or pull up on the head re-
straint.Head restraint tilt

Manually adjust the angle of the head
restraint. Push or pull on the lower
edge of the head restraint cushion.
More information on the seats can be
found in the “Controls in detail” section
(
page 91).
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint to support the back of
the head approximately at ear level.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
iThe memory function can be used to
save the seat settings together with the
steering wheel and exterior mirror set-
tings (
page 97).

37 Getting started
Adjusting
Steering wheelThe stalk is located on the steering column
(lower left).
1Steering column, lengthen or shorten
2Steering column, height

Turn the key in the starter switch to
position1 or2 (
page 33).
or

Open the driver’s door.Steering column, lengthen or shorten

Move stalk forward or back in the direc-
tion of arrow1 until a comfortable
steering wheel position is reached with
your arms slightly bent at the elbow.
Steering column, height

Move stalk up or down in the direction
of arrow2.
Make sure that your legs can move
freely and that all the displays (incl.
malfunction and indicator lamps) on
the instrument cluster are clearly visi-
ble.
Warning!
G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing, or driving without the adjustment
locked could cause the driver to lose control
of the vehicle.
When leaving the vehicle, always remove the
key from the starter switch, and lock your
vehicle.
The steering wheel adjustment feature can
also be operated with the driver’s door
open. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
iThe memory function (
page 97) can
be used to save the steering wheel set-
tings together with the seat and exteri-
or mirror settings.

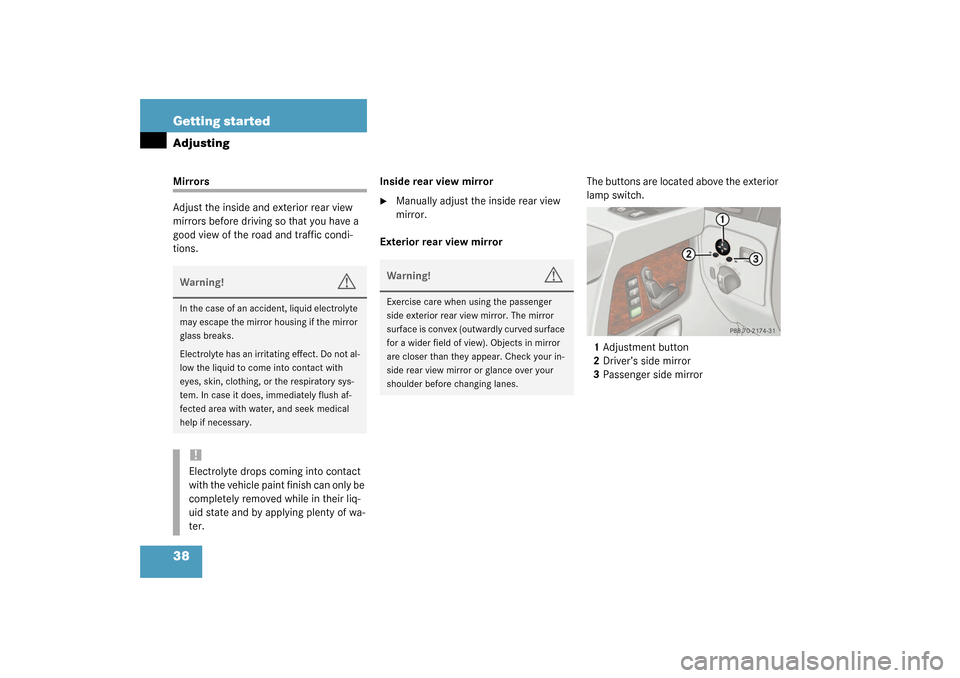

38 Getting startedAdjustingMirrors
Adjust the inside and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.Inside rear view mirror

Manually adjust the inside rear view
mirror.
Exterior rear view mirrorThe buttons are located above the exterior
lamp switch.
1Adjustment button
2Driver’s side mirror
3Passenger side mirror
Warning!
G
In the case of an accident, liquid electrolyte
may escape the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or the respiratory sys-
tem. In case it does, immediately flush af-
fected area with water, and seek medical
help if necessary.!Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their liq-
uid state and by applying plenty of wa-
ter.
Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
side rear view mirror or glance over your
shoulder before changing lanes.

39 Getting started
Adjusting

Make sure that the ignition is switched
on.
All the lights in the instrument cluster
light up.

Press button2 for left mirror or
button3 for right mirror.

Push adjustment button1 up, down,
left or right according to the setting de-
sired.
More information can be found in the
“Controls in detail” section (
page 99).
iThe memory function (
page 97) can
be used to save the exterior mirror set-
tings together with the seat and steer-
ing wheel settings.
!If an exterior rear view mirror housing
is forcibly pushed forward or rearward,
reposition it by applying firm pressure
until it snaps into place. The mirror
housing is now properly positioned and
you can adjust the mirror normally.

40 Getting startedDriving
DrivingFastening the seat beltWarning!
G
Do not lay any objects in the driver’s foot-
well. Be careful that floor mats or carpets in
the driver’s footwell have sufficient clear-
ance for the pedals.
During sudden driving or braking maneuvers
the objects could get caught between the
pedals. You could then no longer brake or
accelerate.Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passenger should al-
ways wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The airbags can only protect as ex-
pected if the occupants are using their seat
belts (
page 54).
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger side front
airbag when it is properly installed. Other-
wise they will be struck by the airbag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle's
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er's instructions.
