2003 MERCEDES-BENZ G55AMG power steering

Contents
Climate control .................................. 150
Setting the temperature ............... 152
Adjusting air distribution and
volume ......................................... 153
Defrosting .................................... 154
Air recirculation............................ 154
Rear window defroster ................. 155
Residual engine heat utilization.... 156
Deactivating the climate control
system ......................................... 156
Air conditioning ............................ 157
Rear passenger compartment
adjustable air vents ...................... 157
Power windows.................................. 158
Opening and closing the windows 158
Sliding/pop-up roof ........................... 160
Opening and closing the
sliding/pop-up roof ...................... 160
Driving systems ................................. 162
Cruise control .............................. 162
Rear Park Assist* ......................... 165
Loading.............................................. 168
Roof rack ..................................... 168
Cargo area cover.......................... 168
Enlarged cargo area ..................... 169
Split rear seat bench .................... 169Partition net* (MB Accessory) ...... 171
Loading instructions ..................... 173
Cargo tie-down rings ..................... 175
Useful features ................................... 176
Interior storage spaces ................. 176
Ashtrays........................................ 179
Cigarette lighter ............................ 181
Electrical outlet ............................. 181
Telephone* ................................... 182
Tele Aid ......................................... 183
Garage door opener ...................... 191
Heated steering wheel .................. 194
Operation.......................................... 195
The first 1000 miles (1500 km) .......... 196
Driving instructions ............................ 197
Drive sensibly – save fuel.............. 197
Drinking and driving ...................... 197
Pedals ........................................... 197

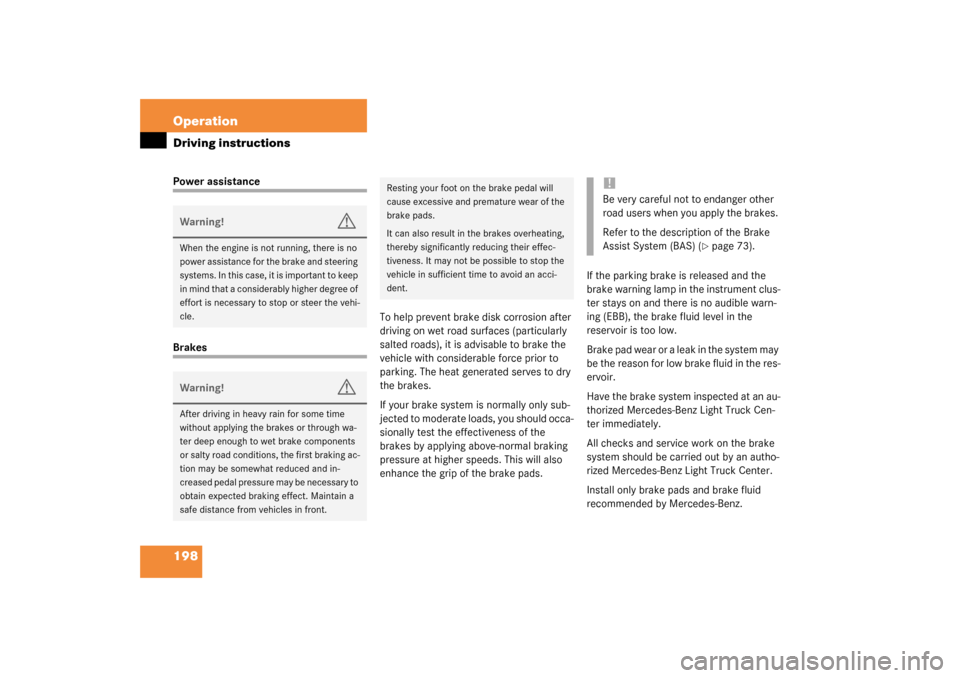

Power assistance .......................... 198
Brakes........................................... 198
Driving off ..................................... 199
Parking.......................................... 199
Tires .............................................. 200
Hydroplaning................................. 200Tire traction .................................. 201
Tire speed rating ........................... 201
Winter driving instructions ............ 202
Standing water ............................. 203
Passenger compartment............... 203
Off-road driving ............................. 203
Control and operation of radio
transmitters .................................. 210
Driving abroad .............................. 211
Catalytic converter ....................... 211
Emission control ........................... 212
Coolant temperature .................... 212
At the gas station ............................... 214
Check regularly and
before a long trip .......................... 215
Engine compartment .......................... 216
Hood ............................................. 216
Engine oil ...................................... 217
Transmission fluid level ................ 220
Coolant level ................................. 220
Windshield/rear window washer
system and headlamp cleaning
system .......................................... 222
Battery ............................................... 223

33 Getting started
Unlocking
Starter switch positionsStarter switch0For removing key
The steering is locked when the key is
removed from the starter switch. If
necessary, move steering wheel slight-
ly to allow the locking mechanism to
engage.
1Power supply to some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position
3Starting position
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch and lock
the vehicle. Do not leave children unattend-
ed in the vehicle, or with access to an un-
locked vehicle. Unsupervised use of vehicle
equipment may cause an accident and/or
serious personal injury.
!If the key is left in starter switch
position0 for an extended period of
time, it can no longer be turned in the
starter switch.

Remove key from the starter switch
and reinsert.
If the key can still not be turned, the
battery may not be sufficiently
charged.


Check the battery and charge it if
necessary (
page 295).


Get a jump start (
page 297).
To prevent accelerated battery dis-
charge and a possible dead battery, al-
ways remove the key from the starter
switch.

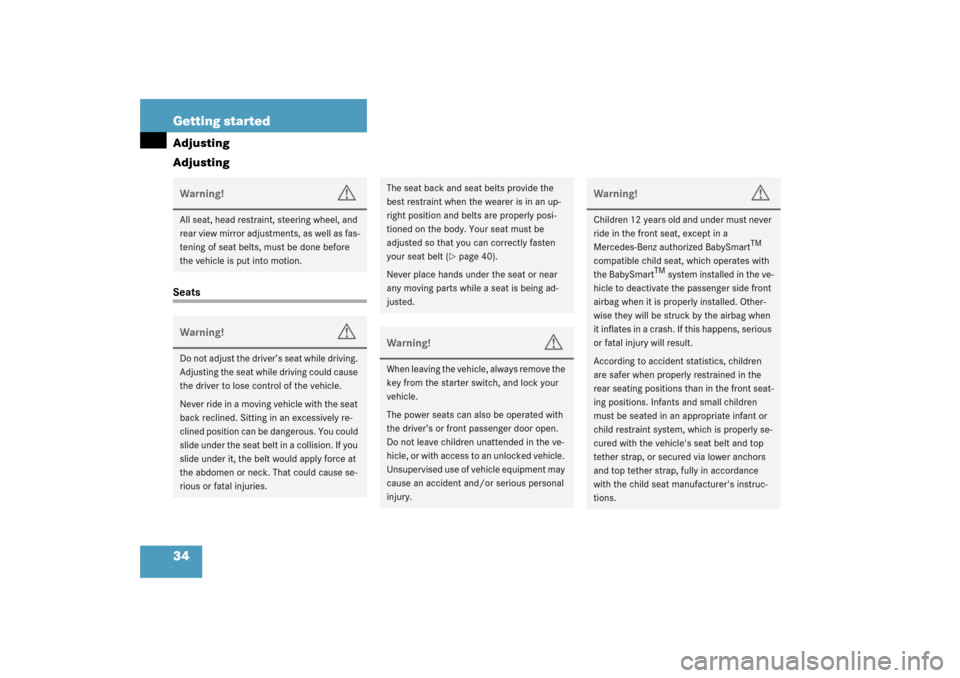

34 Getting startedAdjusting
AdjustingSeatsWarning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back reclined. Sitting in an excessively re-
clined position can be dangerous. You could
slide under the seat belt in a collision. If you
slide under it, the belt would apply force at
the abdomen or neck. That could cause se-
rious or fatal injuries.
The seat back and seat belts provide the
best restraint when the wearer is in an up-
right position and belts are properly posi-
tioned on the body. Your seat must be
adjusted so that you can correctly fasten
your seat belt (
page 40).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, and lock your
vehicle.
The power seats can also be operated with
the driver’s or front passenger door open.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger side front
airbag when it is properly installed. Other-
wise they will be struck by the airbag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must be seated in an appropriate infant or
child restraint system, which is properly se-
cured with the vehicle's seat belt and top
tether strap, or secured via lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer's instruc-
tions.

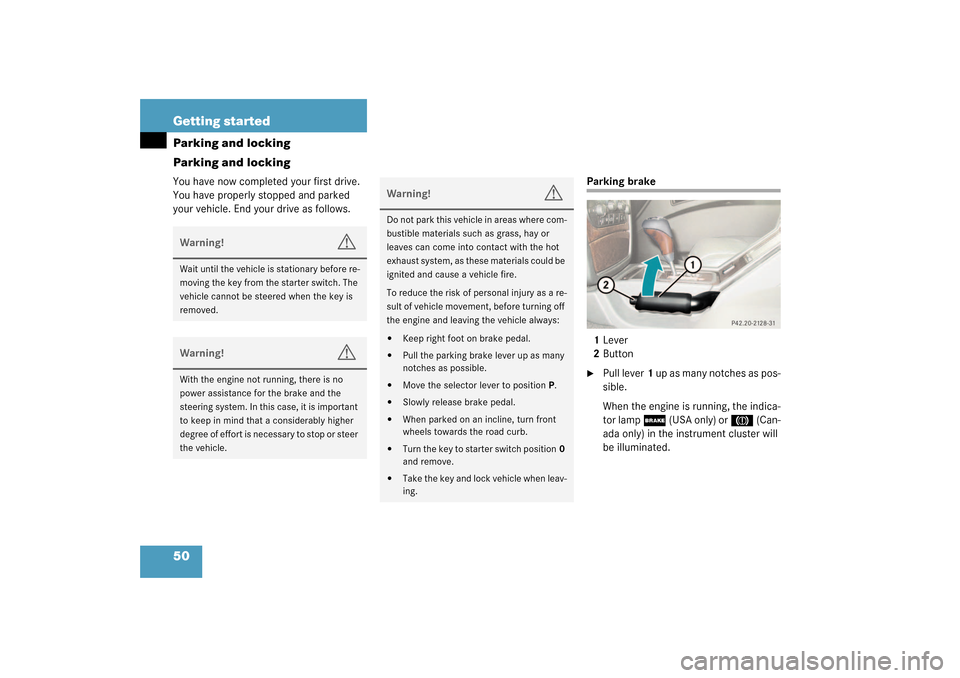

50 Getting startedParking and locking
Parking and lockingYou have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.
Parking brake
1Lever
2Button
Pull lever1 up as many notches as pos-
sible.
When the engine is running, the indica-
tor lamp
;
(USA only) or
3
(Can-
ada only) in the instrument cluster will
be illuminated.
Warning!
G
Wait until the vehicle is stationary before re-
moving the key from the starter switch. The
vehicle cannot be steered when the key is
removed.Warning!
G
With the engine not running, there is no
power assistance for the brake and the
steering system. In this case, it is important
to keep in mind that a considerably higher
degree of effort is necessary to stop or steer
the vehicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:

Keep right foot on brake pedal.


Pull the parking brake lever up as many
notches as possible.


Move the selector lever to positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheels towards the road curb.


Turn the key to starter switch position0
and remove.


Take the key and lock vehicle when leav-
ing.

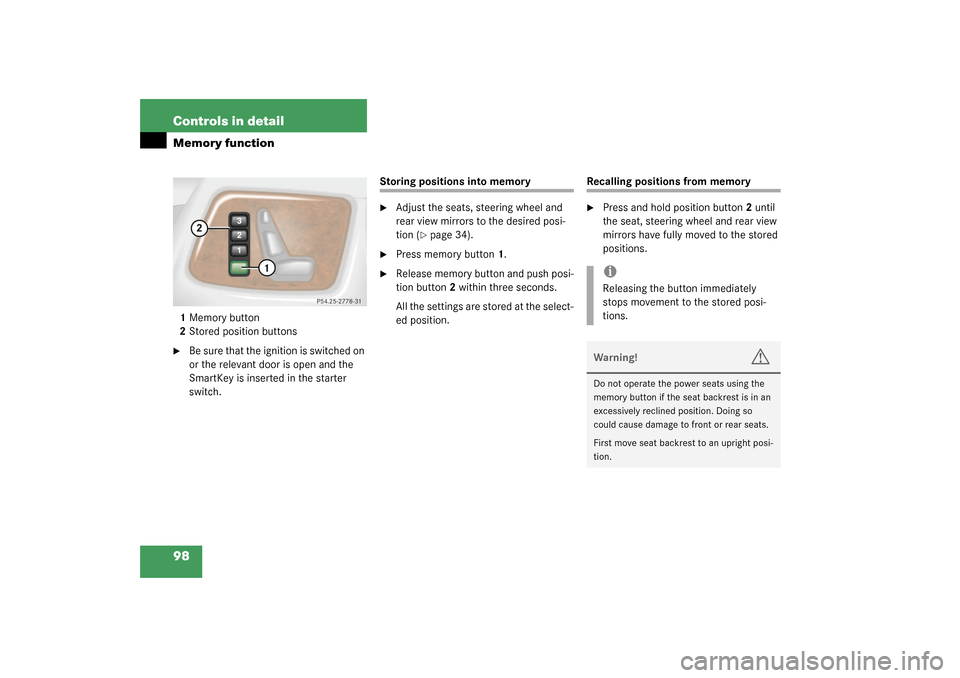

98 Controls in detailMemory function1Memory button
2Stored position buttons
Be sure that the ignition is switched on
or the relevant door is open and the
SmartKey is inserted in the starter
switch.
Storing positions into memory
Adjust the seats, steering wheel and
rear view mirrors to the desired posi-
tion (
page 34).

Press memory button1.

Release memory button and push posi-
tion button2 within three seconds.
All the settings are stored at the select-
ed position.
Recalling positions from memory
Press and hold position button2 until
the seat, steering wheel and rear view
mirrors have fully moved to the stored
positions.iReleasing the button immediately
stops movement to the stored posi-
tions.Warning!
G
Do not operate the power seats using the
memory button if the seat backrest is in an
excessively reclined position. Doing so
could cause damage to front or rear seats.
First move seat backrest to an upright posi-
tion.

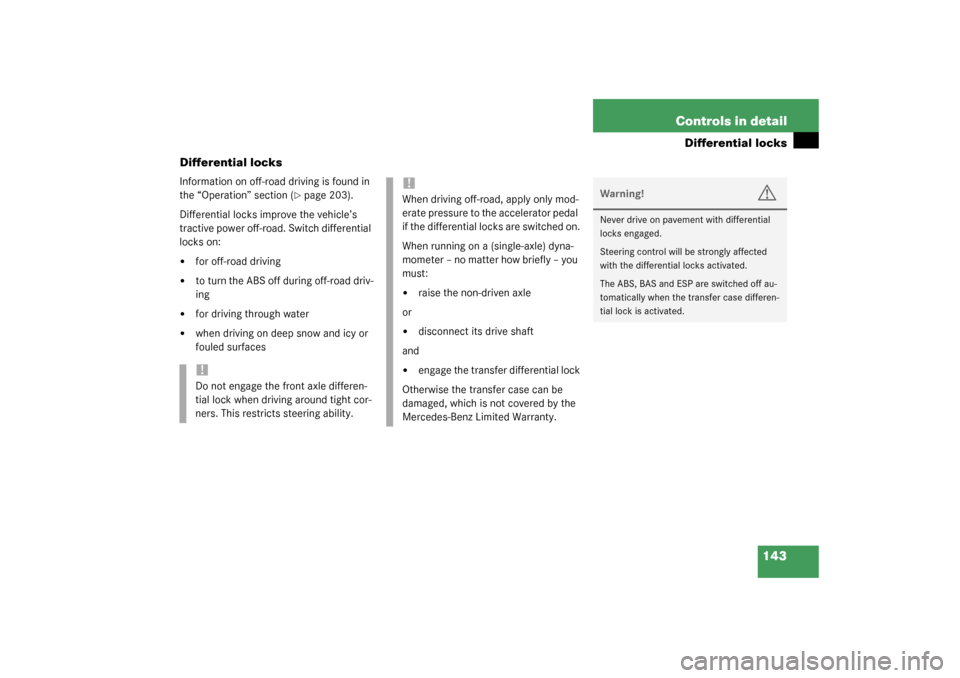

143 Controls in detail
Differential locks
Differential locks
Information on off-road driving is found in
the “Operation” section (
page 203).
Differential locks improve the vehicle’s
tractive power off-road. Switch differential
locks on:


for off-road driving


to turn the ABS off during off-road driv-
ing


for driving through water


when driving on deep snow and icy or
fouled surfaces!Do not engage the front axle differen-
tial lock when driving around tight cor-
ners. This restricts steering ability.
!When driving off-road, apply only mod-
erate pressure to the accelerator pedal
if the differential locks are switched on.
When running on a (single-axle) dyna-
mometer – no matter how briefly – you
must:

raise the non-driven axle
or


disconnect its drive shaft
and


engage the transfer differential lock
Otherwise the transfer case can be
damaged, which is not covered by the
Mercedes-Benz Limited Warranty.
Warning!
G
Never drive on pavement with differential
locks engaged.
Steering control will be strongly affected
with the differential locks activated.
The ABS, BAS and ESP are switched off au-
tomatically when the transfer case differen-
tial lock is activated.

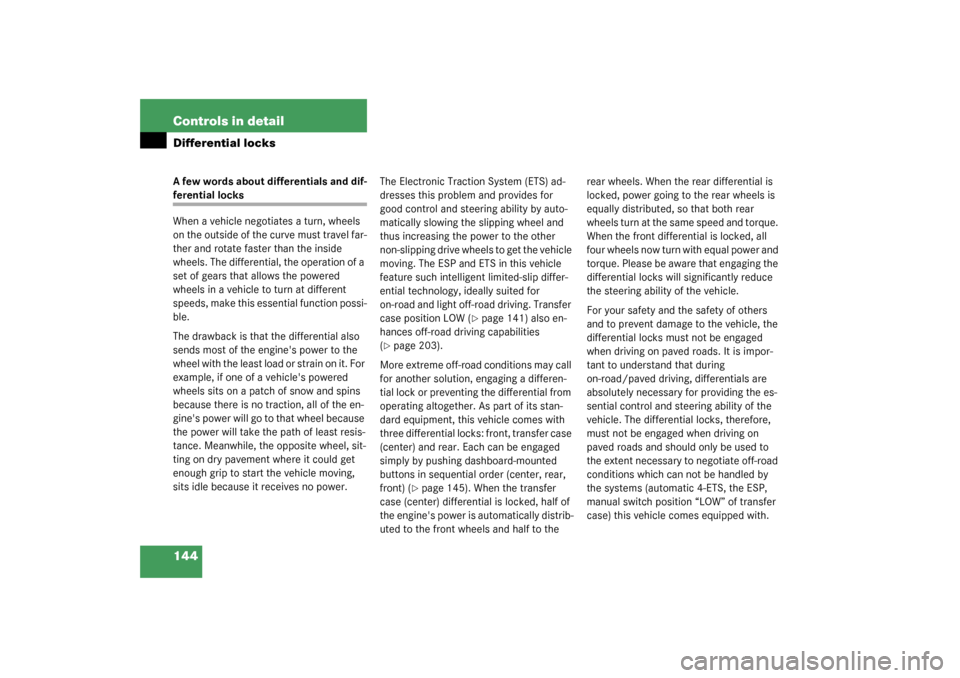

144 Controls in detailDifferential locksA few words about differentials and dif-ferential locks
When a vehicle negotiates a turn, wheels
on the outside of the curve must travel far-
ther and rotate faster than the inside
wheels. The differential, the operation of a
set of gears that allows the powered
wheels in a vehicle to turn at different
speeds, make this essential function possi-
ble.
The drawback is that the differential also
sends most of the engine's power to the
wheel with the least load or strain on it. For
example, if one of a vehicle's powered
wheels sits on a patch of snow and spins
because there is no traction, all of the en-
gine's power will go to that wheel because
the power will take the path of least resis-
tance. Meanwhile, the opposite wheel, sit-
ting on dry pavement where it could get
enough grip to start the vehicle moving,
sits idle because it receives no power.The Electronic Traction System (ETS) ad-
dresses this problem and provides for
good control and steering ability by auto-
matically slowing the slipping wheel and
thus increasing the power to the other
non-slipping drive wheels to get the vehicle
moving. The ESP and ETS in this vehicle
feature such intelligent limited-slip differ-
ential technology, ideally suited for
on-road and light off-road driving. Transfer
case position LOW (
page 141) also en-
hances off-road driving capabilities
(
page 203).
More extreme off-road conditions may call
for another solution, engaging a differen-
tial lock or preventing the differential from
operating altogether. As part of its stan-
dard equipment, this vehicle comes with
three differential locks: front, transfer case
(center) and rear. Each can be engaged
simply by pushing dashboard-mounted
buttons in sequential order (center, rear,
front) (
page 145). When the transfer
case (center) differential is locked, half of
the engine's power is automatically distrib-
uted to the front wheels and half to the rear wheels. When the rear differential is
locked, power going to the rear wheels is
equally distributed, so that both rear
wheels turn at the same speed and torque.
When the front differential is locked, all
four wheels now turn with equal power and
torque. Please be aware that engaging the
differential locks will significantly reduce
the steering ability of the vehicle.
For your safety and the safety of others
and to prevent damage to the vehicle, the
differential locks must not be engaged
when driving on paved roads. It is impor-
tant to understand that during
on-road/paved driving, differentials are
absolutely necessary for providing the es-
sential control and steering ability of the
vehicle. The differential locks, therefore,
must not be engaged when driving on
paved roads and should only be used to
the extent necessary to negotiate off-road
conditions which can not be handled by
the systems (automatic 4-ETS, the ESP,
manual switch position “LOW” of transfer
case) this vehicle comes equipped with.

198 OperationDriving instructionsPower assistanceBrakesTo help prevent brake disk corrosion after
driving on wet road surfaces (particularly
salted roads), it is advisable to brake the
vehicle with considerable force prior to
parking. The heat generated serves to dry
the brakes.
If your brake system is normally only sub-
jected to moderate loads, you should occa-
sionally test the effectiveness of the
brakes by applying above-normal braking
pressure at higher speeds. This will also
enhance the grip of the brake pads.If the parking brake is released and the
brake warning lamp in the instrument clus-
ter stays on and there is no audible warn-
ing (EBB), the brake fluid level in the
reservoir is too low.
Brake pad wear or a leak in the system may
be the reason for low brake fluid in the res-
ervoir.
Have the brake system inspected at an au-
thorized Mercedes-Benz Light Truck Cen-
ter immediately.
All checks and service work on the brake
system should be carried out by an autho-
rized Mercedes-Benz Light Truck Center.
Install only brake pads and brake fluid
recommended by Mercedes-Benz.Warning!
G
When the engine is not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to stop or steer the vehi-
cle.Warning!
G
After driving in heavy rain for some time
without applying the brakes or through wa-
ter deep enough to wet brake components
or salty road conditions, the first braking ac-
tion may be somewhat reduced and in-
creased pedal pressure may be necessary to
obtain expected braking effect. Maintain a
safe distance from vehicles in front.
Resting your foot on the brake pedal will
cause excessive and premature wear of the
brake pads.
It can also result in the brakes overheating,
thereby significantly reducing their effec-
tiveness. It may not be possible to stop the
vehicle in sufficient time to avoid an acci-
dent.
!Be very careful not to endanger other
road users when you apply the brakes.
Refer to the description of the Brake
Assist System (BAS) (
page 73).
