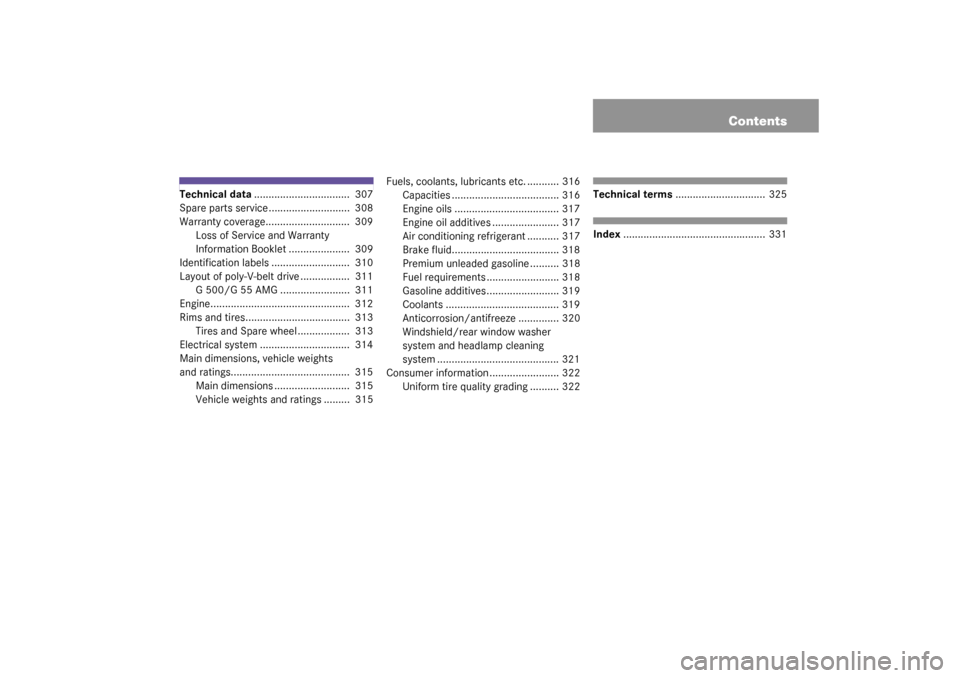

Contents
Technical data................................. 307
Spare parts service ............................ 308
Warranty coverage............................. 309
Loss of Service and Warranty
Information Booklet ..................... 309
Identification labels ........................... 310
Layout of poly-V-belt drive ................. 311
G 500/G 55 AMG ........................ 311
Engine................................................ 312
Rims and tires.................................... 313
Tires and Spare wheel .................. 313
Electrical system ............................... 314
Main dimensions, vehicle weights
and ratings......................................... 315
Main dimensions .......................... 315
Vehicle weights and ratings ......... 315Fuels, coolants, lubricants etc. ........... 316
Capacities ..................................... 316
Engine oils .................................... 317
Engine oil additives ....................... 317
Air conditioning refrigerant ........... 317
Brake fluid..................................... 318
Premium unleaded gasoline .......... 318
Fuel requirements ......................... 318
Gasoline additives......................... 319
Coolants ....................................... 319
Anticorrosion/antifreeze .............. 320
Windshield/rear window washer
system and headlamp cleaning
system .......................................... 321
Consumer information ........................ 322
Uniform tire quality grading .......... 322
Technical terms............................... 325Index................................................. 331

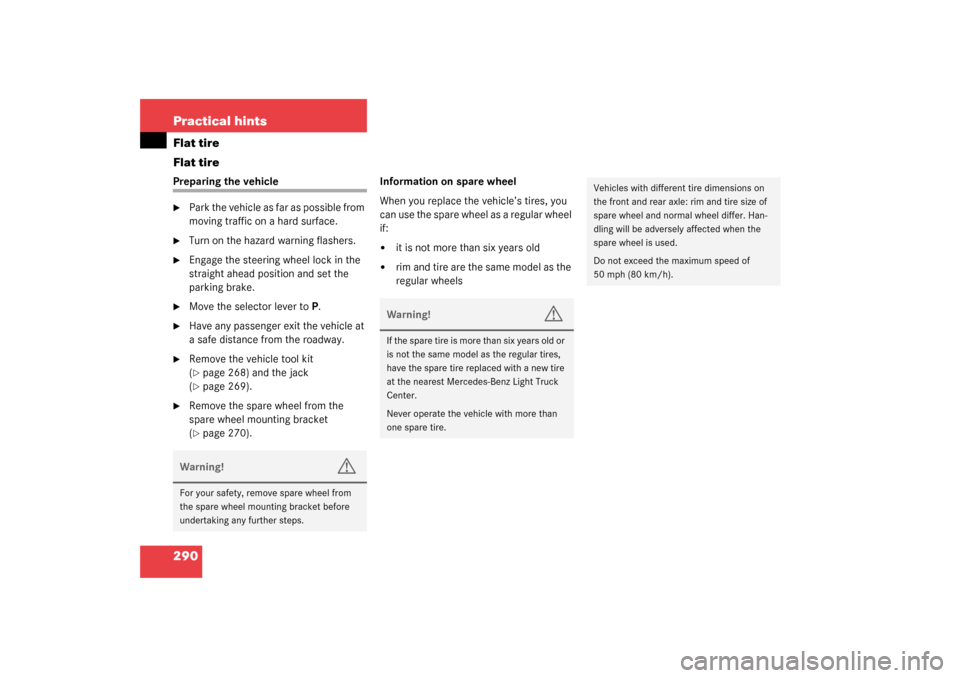

290 Practical hintsFlat tire
Flat tirePreparing the vehicle
Park the vehicle as far as possible from
moving traffic on a hard surface.

Turn on the hazard warning flashers.

Engage the steering wheel lock in the
straight ahead position and set the
parking brake.

Move the selector lever toP.

Have any passenger exit the vehicle at
a safe distance from the roadway.

Remove the vehicle tool kit
(page 268) and the jack
(page 269).

Remove the spare wheel from the
spare wheel mounting bracket
(page 270).Information on spare wheel
When you replace the vehicle’s tires, you
can use the spare wheel as a regular wheel
if:


it is not more than six years old


rim and tire are the same model as the
regular wheels
Warning!
G
For your safety, remove spare wheel from
the spare wheel mounting bracket before
undertaking any further steps.
Warning!
G
If the spare tire is more than six years old or
is not the same model as the regular tires,
have the spare tire replaced with a new tire
at the nearest Mercedes-Benz Light Truck
Center.
Never operate the vehicle with more than
one spare tire.
Vehicles with different tire dimensions on
the front and rear axle: rim and tire size of
spare wheel and normal wheel differ. Han-
dling will be adversely affected when the
spare wheel is used.
Do not exceed the maximum speed of
50 mph (80 km/h).

307 Technical data
Spare parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions, vehicle weights and ratings
Fuels, coolants, lubricants etc.
Consumer information

311 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive
For dimensions of the poly-V-belt, see
technical data (
page 312).
G500/G55AMG
1Automatic belt tensioner
2Power steering pump
3Air conditioner compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley

315 Technical data
Main dimensions, vehicle weights and ratings
Main dimensions, vehicle weights and ratings
Main dimensionsVehicle weights and ratings
G500
G55AMG
Overall vehicle length
(inc. spare wheel)
185.6 in (4715 mm)
185.6 in (4715 mm)
Overall vehicle width
71.3 in (1811 mm)
73.4 in (1864 mm)
Overall vehicle height
77.8 in (1977 mm)
77.8 in (1977 mm)
Wheel base
112.2 in (2850 mm)
112.2 in (2850 mm)
Ground clearance
8.3 in (211 mm)
8.3 in (211 mm)
Turning radius
523.6 in (13.3 m)
523.6 in (13.3 m)
Track, front and rear
59.6 in (1515 mm)
59.1 in (1501 mm)
G500
G55AMG
Gross Vehicle Weight Rating
1
1GVWR is the maximum permissible vehicle weight. Gross Vehicle Weight (GVW) comprises weight of vehicle including fuel, tools, spare wheel, installed accessories,
passengers, cargo and trailer tongue. It must never exceed the GVWR.
6615 lbs. (3000 kg)
6615 lbs. (3000 kg)
Gross Axle Weight Rating, front
2
2GAWR is the maximum permissible axle weight.
3110 lbs. (1410 kg)
3110 lbs. (1410 kg)
Gross Axle Weight Rating, rear
2
3965 lbs. (1800 kg)
3965 lbs. (1800 kg)

341 Index

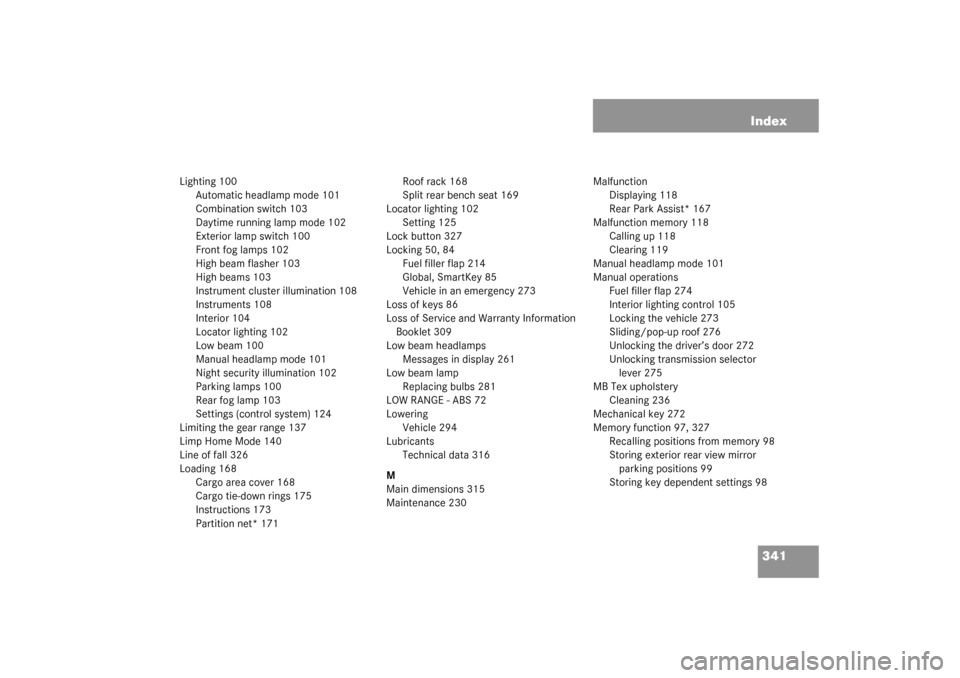

Lighting 100
Automatic headlamp mode 101
Combination switch 103
Daytime running lamp mode 102
Exterior lamp switch 100
Front fog lamps 102
High beam flasher 103
High beams 103
Instrument cluster illumination 108
Instruments 108
Interior 104
Locator lighting 102
Low beam 100
Manual headlamp mode 101
Night security illumination 102
Parking lamps 100
Rear fog lamp 103
Settings (control system) 124
Limiting the gear range 137
Limp Home Mode 140
Line of fall 326
Loading 168
Cargo area cover 168
Cargo tie-down rings 175
Instructions 173
Partition net* 171Roof rack 168
Split rear bench seat 169
Locator lighting 102
Setting 125
Lock button 327
Locking 50, 84
Fuel filler flap 214
Global, SmartKey 85
Vehicle in an emergency 273
Loss of keys 86
Loss of Service and Warranty Information
Booklet 309
Low beam headlamps
Messages in display 261
Low beam lamp
Replacing bulbs 281
LOW RANGE - ABS 72
Lowering
Vehicle 294
Lubricants
Technical data 316
M
Main dimensions 315
Maintenance 230Malfunction
Displaying 118
Rear Park Assist* 167
Malfunction memory 118
Calling up 118
Clearing 119
Manual headlamp mode 101
Manual operations
Fuel filler flap 274
Interior lighting control 105
Locking the vehicle 273
Sliding/pop-up roof 276
Unlocking the driver’s door 272
Unlocking transmission selector
lever 275
MB Tex upholstery
Cleaning 236
Mechanical key 272
Memory function 97, 327
Recalling positions from memory 98
Storing exterior rear view mirror
parking positions 99
Storing key dependent settings 98

349 Index

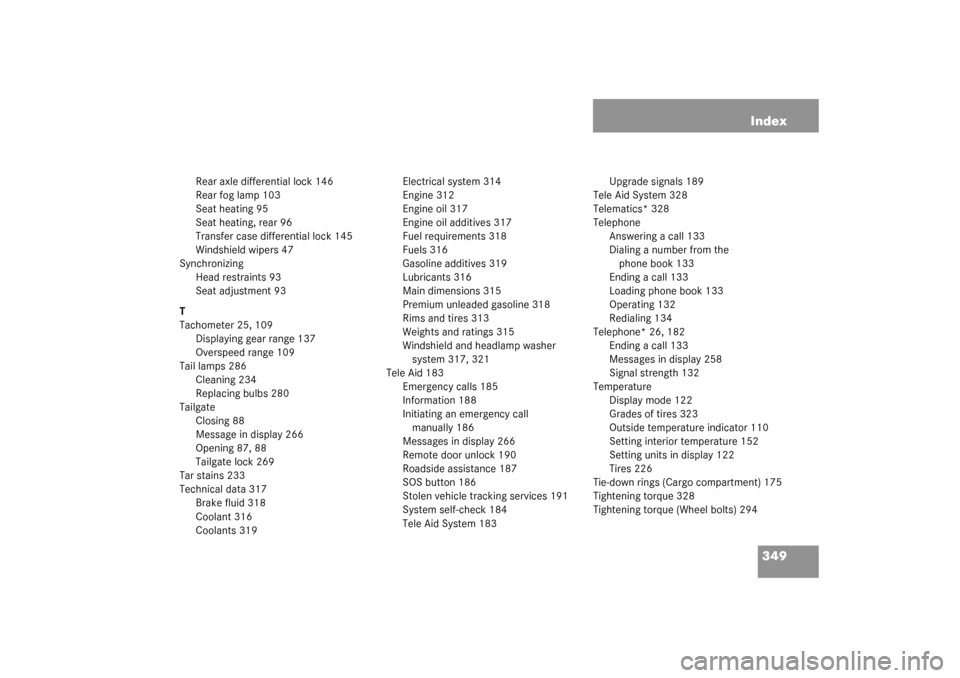

Rear axle differential lock 146
