214 OperationAt the gas station
At the gas stationThe fuel filler flap is located on the
right-hand side of the vehicle towards the
rear. Locking/unlocking the vehicle with
the remote control automatically
locks/unlocks the fuel filler flap.
Turn off the engine.
Remove the key from the starter
switch.
Open the fuel filler flap by pushing at
the point indicated by the arrow.
Turn the fuel cap to the left and hold on
to it until possible pressure is released.
Take off the cap and set it in the recess
on the fuel filler flap.
To prevent fuel vapors from escaping
into open air, fully insert filler nozzle
unit.
Only fill your tank until the filler nozzle
unit cuts out – do not top up or overfill.
Replace the fuel cap by turning it to the
right.
You should hear the fuel filler cap en-
gage.
Close the fuel filler flap.
Warning!
G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious inju-
ry. Whenever you are around gasoline, avoid
inhaling fumes and skin contact, extinguish
all smoking materials. Never allow sparks,
flame or smoking materials near gasoline!
Failure to remove the fuel cap slowly could
result in personal injury.
Warning!
G
Overfilling of the fuel tank may create pres-
sure in the system which could cause a gas
discharge. This could cause the gas to spray
back out when removing the fuel pump noz-
zle, which could cause personal injury.!The fuel filler cap is tethered to the fuel
f i l l e r n e c k . D o n o t d r o p t h e c a p . I t c o u l d
damage the vehicle paint finish.
When refueling the vehicle, make cer-
tain that no gasoline comes into con-
tact with plastic tail lamp to prevent
damaging the lens.

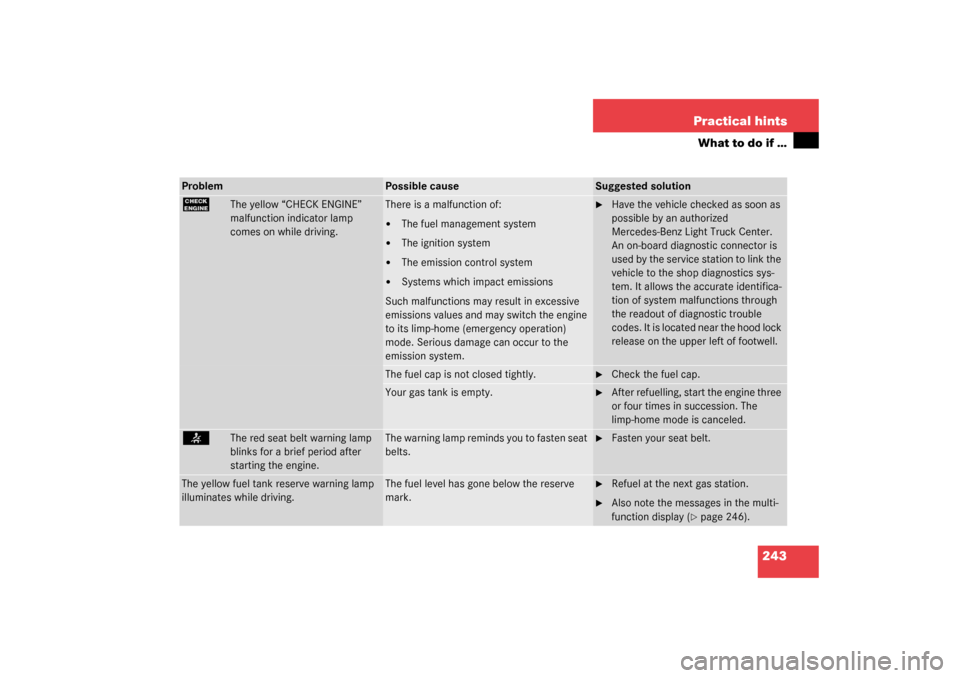

243 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
?
The yellow “CHECK ENGINE”
malfunction indicator lamp
comes on while driving.
There is a malfunction of:
The fuel management system
The ignition system
The emission control system
Systems which impact emissions
Such malfunctions may result in excessive
emissions values and may switch the engine
to its limp-home (emergency operation)
mode. Serious damage can occur to the
emission system.
Have the vehicle checked as soon as
possible by an authorized
Mercedes-Benz Light Truck Center.
An on-board diagnostic connector is
used by the service station to link the
vehicle to the shop diagnostics sys-
tem. It allows the accurate identifica-
tion of system malfunctions through
the readout of diagnostic trouble
c o d e s . I t i s l o c a t e d n e a r t h e h o o d l o c k
release on the upper left of footwell.
The fuel cap is not closed tightly.
Check the fuel cap.
Your gas tank is empty.
After refuelling, start the engine three
or four times in succession. The
limp-home mode is canceled.
<
The red seat belt warning lamp
blinks for a brief period after
starting the engine.
The warning lamp reminds you to fasten seat
belts.
Fasten your seat belt.
The yellow fuel tank reserve warning lamp
illuminates while driving.
The fuel level has gone below the reserve
mark.
Refuel at the next gas station.
Also note the messages in the multi-
function display (
page 246).
