2003 MERCEDES-BENZ G55AMG open hood

Contents
Climate control .................................. 150
Setting the temperature ............... 152
Adjusting air distribution and
volume ......................................... 153
Defrosting .................................... 154
Air recirculation............................ 154
Rear window defroster ................. 155
Residual engine heat utilization.... 156
Deactivating the climate control
system ......................................... 156
Air conditioning ............................ 157
Rear passenger compartment
adjustable air vents ...................... 157
Power windows.................................. 158
Opening and closing the windows 158
Sliding/pop-up roof ........................... 160
Opening and closing the
sliding/pop-up roof ...................... 160
Driving systems ................................. 162
Cruise control .............................. 162
Rear Park Assist* ......................... 165
Loading.............................................. 168
Roof rack ..................................... 168
Cargo area cover.......................... 168
Enlarged cargo area ..................... 169
Split rear seat bench .................... 169Partition net* (MB Accessory) ...... 171
Loading instructions ..................... 173
Cargo tie-down rings ..................... 175
Useful features ................................... 176
Interior storage spaces ................. 176
Ashtrays........................................ 179
Cigarette lighter ............................ 181
Electrical outlet ............................. 181
Telephone* ................................... 182
Tele Aid ......................................... 183
Garage door opener ...................... 191
Heated steering wheel .................. 194
Operation.......................................... 195
The first 1000 miles (1500 km) .......... 196
Driving instructions ............................ 197
Drive sensibly – save fuel.............. 197
Drinking and driving ...................... 197
Pedals ........................................... 197
Power assistance .......................... 198
Brakes........................................... 198
Driving off ..................................... 199
Parking.......................................... 199
Tires .............................................. 200
Hydroplaning................................. 200Tire traction .................................. 201
Tire speed rating ........................... 201
Winter driving instructions ............ 202
Standing water ............................. 203
Passenger compartment............... 203
Off-road driving ............................. 203
Control and operation of radio
transmitters .................................. 210
Driving abroad .............................. 211
Catalytic converter ....................... 211
Emission control ........................... 212
Coolant temperature .................... 212
At the gas station ............................... 214
Check regularly and
before a long trip .......................... 215
Engine compartment .......................... 216
Hood ............................................. 216
Engine oil ...................................... 217
Transmission fluid level ................ 220
Coolant level ................................. 220
Windshield/rear window washer
system and headlamp cleaning
system .......................................... 222
Battery ............................................... 223

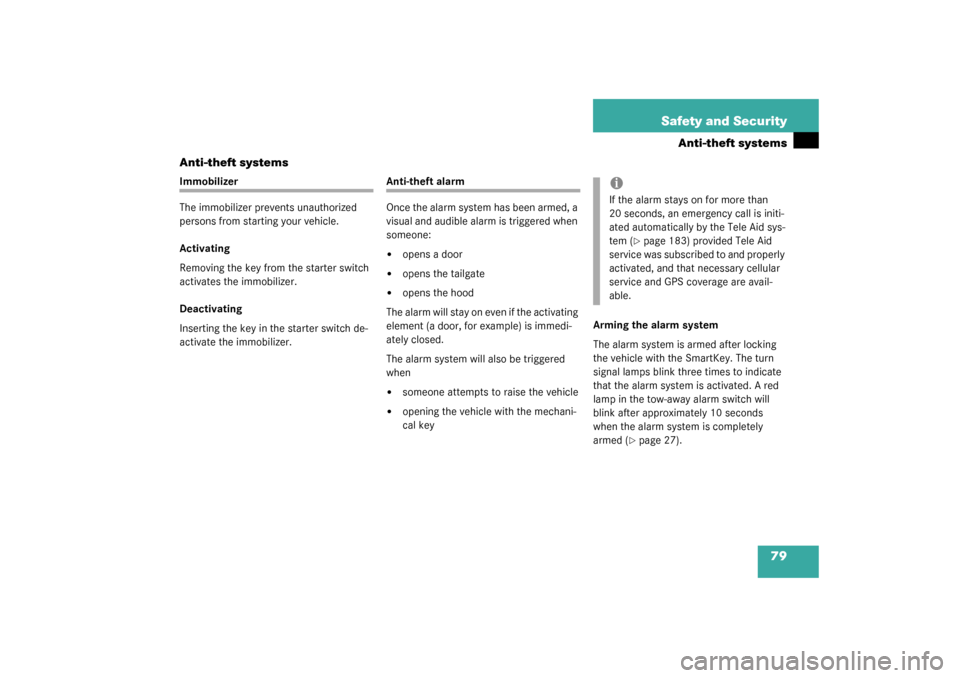

79 Safety and Security
Anti-theft systems
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
Removing the key from the starter switch
activates the immobilizer.
Deactivating
Inserting the key in the starter switch de-
activate the immobilizer.
Anti-theft alarm
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone:

opens a door


opens the tailgate


opens the hood
The alarm will stay on even if the activating
element (a door, for example) is immedi-
ately closed.
The alarm system will also be triggered
when


someone attempts to raise the vehicle


opening the vehicle with the mechani-
cal keyArming the alarm system
The alarm system is armed after locking
the vehicle with the SmartKey. The turn
signal lamps blink three times to indicate
that the alarm system is activated. A red
lamp in the tow-away alarm switch will
blink after approximately 10 seconds
when the alarm system is completely
armed (
page 27).
iIf the alarm stays on for more than
20 seconds, an emergency call is initi-
ated automatically by the Tele Aid sys-
tem (
page 183) provided Tele Aid
service was subscribed to and properly
activated, and that necessary cellular
service and GPS coverage are avail-
able.

108 Controls in detailInstrument cluster
Instrument clusterA full view illustration of the instrument
cluster can be found in the “At a glance”
section of this manual (
page 24).
1Reset knob
The instrument cluster is activated when
you:


open a door


turn on the ignition


press reset knob1


switch on the exterior lamps
You can change the instrument cluster set-
tings in the Instrument cluster submenu of
the control system (
page 122).
Instrument cluster illumination
Use the reset knob to adjust the illumina-
tion brightness for the instrument cluster.
To brighten illumination
Turn reset knob1 in the instrument
cluster clockwise.
The instrument cluster illumination will
brighten.To dim illumination

Turn reset knob1 in the instrument
cluster counterclockwise.
The instrument cluster illumination will
dim.
Coolant temperature display
iThe instrument cluster illumination is
dimmed or brightened automatically to
suit ambient light conditions.
The instrument cluster illumination will
also be adjusted automatically when
you switch on the vehicle’s exterior
lamps.
Warning!
G


Driving when your engine is badly over-
heated can cause some fluids which
may have leaked into the engine com-
partment to catch fire. You could be se-
riously burned


Steam from an overheated engine can
cause serious burns and can occur just
by opening the engine hood. Stay away
f r o m t h e e n g i n e i f y o u s e e o r h e a r s t e a m
coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until it
cools down.

213 Operation
Driving instructions
Warning!
G


Driving when your engine is badly over-
heated can cause some fluids which
may have leaked into the engine com-
partment to catch fire. You could be se-
riously burned


Steam from an overheated engine can
cause serious burns and can occur just
by opening the engine hood. Stay away
f r o m t h e e n g i n e i f y o u s e e o r h e a r s t e a m
coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until it
cools down.

215 Operation
At the gas station
Check regularly and before a long trip
1Coolant
2Brake fluid
Coolant
For normal replenishing, use water (pota-
ble water quality). For more information on
coolant level see (
page 220) and the
“Technical data” section (
page 316).
Brake fluid
More information on brake fluid can be
found in the “Technical data” section
(
page 316).Windshield/rear window washer sys-
tem and headlamp cleaning system
For more information on refilling the reser-
voir, see (
page 222).
Engine oil level
For more information on engine oil, see
(
page 218).
Vehicle lighting
Check function and cleanliness. More in-
formation on replacing light bulbs can be
found in the “Practical hints” section
(page 279).
Exterior lamp switch (
page 100).
Tire inflation pressure
For more information on tire inflation pres-
sure, see (
page 225).
iUse only premium unleaded gasoline
with a minimum Posted Octane Rating
of 91 (average of 96 RON / 86 MON).
Information on gasoline quality can
normally be found on the fuel pump.
More information on gasoline can be
found in the Factory Approved Service
Products pamphlet. iLeaving the engine running and the fuel
cap open can cause the
?
lamp to
illuminate.
See also “Practical hints” section
(
page 243).
iOpening the hood, see (
page 216).

216 OperationEngine compartment
Engine compartmentHood
Opening
The pull release lever is under the driver’s
side of the instrument panel.
1Release lever

Pull release lever1 upward.
The hood is unlocked.
2Safety hook

Lift hood up slightly.

Pull safety hook2 in direction of arrow
and open hood.
Warning!
G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
!To avoid damage to the windshield wip-
ers or hood, open the hood only with
wipers in parked position.
Warning!
G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running. Make sure the hood is
properly closed before driving. When closing
the hood, use extreme caution not to catch
hands or fingers.
The radiator fan may continue to run for ap-
proximately 30 seconds or even restart af-
ter the engine has been turned off. Stay
clear of fan blades.Warning!
G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature display indicates that the engine is
overheated, do not open the hood. Move
away from vehicle and do not open the hood
until the engine has cooled. If necessary,
call the fire department.

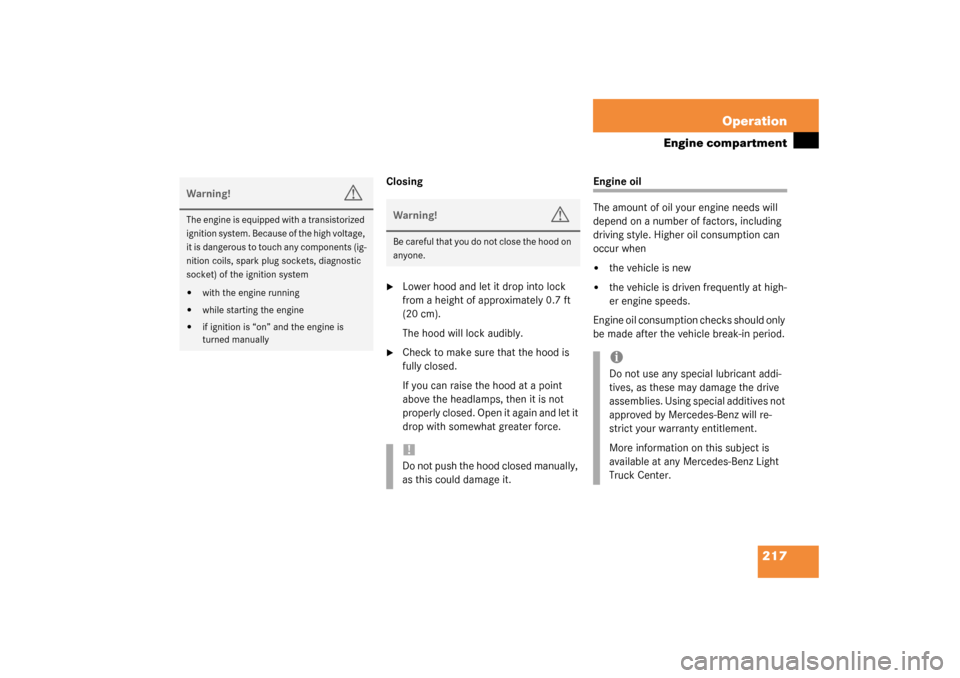

217 Operation
Engine compartment
Closing
Lower hood and let it drop into lock
from a height of approximately 0.7 ft
(20 cm).
The hood will lock audibly.

Check to make sure that the hood is
fully closed.
If you can raise the hood at a point
above the headlamps, then it is not
properly closed. Open it again and let it
drop with somewhat greater force.
Engine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Higher oil consumption can
occur when

the vehicle is new


the vehicle is driven frequently at high-
er engine speeds.
Engine oil consumption checks should only
be made after the vehicle break-in period.
Warning!
G
The engine is equipped with a transistorized
ignition system. Because of the high voltage,
it is dangerous to touch any components (ig-
nition coils, spark plug sockets, diagnostic
socket) of the ignition system

with the engine running


while starting the engine


if ignition is “on” and the engine is
turned manually
Warning!
G
Be careful that you do not close the hood on
anyone.!Do not push the hood closed manually,
as this could damage it.
iDo not use any special lubricant addi-
tives, as these may damage the drive
assemblies. Using special additives not
approved by Mercedes-Benz will re-
strict your warranty entitlement.
More information on this subject is
available at any Mercedes-Benz Light
Truck Center.

220 OperationEngine compartmentAdding engine oil
Unscrew cap2 from the filler neck.

Add oil. Be careful not to overfill with
oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
coming into contact with the ground or wa-
ter.

Screw cap2 back on the filler neck.
Transmission fluid level
The transmission fluid level does not need
to be checked. The transmission has a per-
manent supply of automatic transmission
fluid.
If you notice transmission fluid loss or gear
shifting malfunctions, have an authorized
Mercedes-Benz Light Truck Center check
the automatic transmission.Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze.
When checking the coolant level

the vehicle must be parked on level
ground


the engine must be cool. The coolant
level should reach the COLD LEVEL
mark in the reservoir.
!Excessive oil must be siphoned or
drained off. It could cause damage to
the engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.
The oil dipstick1 tube allows for drain-
ing of oil by using a suction device.
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature display in-
dicates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if engine temperature is above
194°F (90°C). Allow engine to cool
down before removing cap. The coolant
reservoir contains hot fluid and is under
pressure.


Using a rag, slowly open the cap approx-
imately
1⁄2turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.
