36 Getting startedAdjustingSeat height
Press the switch up or down in the di-
rection of arrow1.
Make sure that you have sufficient
headroom.
Seat cushion tilt

Press the switch up or down in the di-
rection of arrow3 until your upper legs
are lightly supported.
Backrest tilt

Press the switch forward or back in di-
rection of arrow4 until your arms are
slightly angled when holding the steer-
ing wheel.Head restraint height
Adjust head restraint to support the back
of the head approximately at ear level.
Driver’s or front passenger seat

Press the switch up and down in the di-
rection of arrow5.
Rear seat

Push down or pull up on the head re-
straint.Head restraint tilt

Manually adjust the angle of the head
restraint. Push or pull on the lower
edge of the head restraint cushion.
More information on the seats can be
found in the “Controls in detail” section
(
page 91).
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint to support the back of
the head approximately at ear level.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
iThe memory function can be used to
save the seat settings together with the
steering wheel and exterior mirror set-
tings (
page 97).

37 Getting started
Adjusting
Steering wheelThe stalk is located on the steering column
(lower left).
1Steering column, lengthen or shorten
2Steering column, height

Turn the key in the starter switch to
position1 or2 (
page 33).
or

Open the driver’s door.Steering column, lengthen or shorten

Move stalk forward or back in the direc-
tion of arrow1 until a comfortable
steering wheel position is reached with
your arms slightly bent at the elbow.
Steering column, height

Move stalk up or down in the direction
of arrow2.
Make sure that your legs can move
freely and that all the displays (incl.
malfunction and indicator lamps) on
the instrument cluster are clearly visi-
ble.
Warning!
G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing, or driving without the adjustment
locked could cause the driver to lose control
of the vehicle.
When leaving the vehicle, always remove the
key from the starter switch, and lock your
vehicle.
The steering wheel adjustment feature can
also be operated with the driver’s door
open. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
iThe memory function (
page 97) can
be used to save the steering wheel set-
tings together with the seat and exteri-
or mirror settings.

46 Getting startedDrivingSwitching on headlampsExterior lamp switch1Off
2Low beam headlamps on
Turn the switch to
B
.
More information can be found in the
“Controls in detail” section (page 100).
Turn signals and high beam
The combination switch is on the left of the
steering column.Combination switch1Turn signals, right
2Turn signals, left
Press combination switch up1 or
down2.
The switch is automatically canceled
when the steering wheel is turned a
sufficient degree.High beam

Push the combination switch forward.
The high beam symbol
A
in the
instrument cluster lights up.
More information can be found in the
“Controls in detail” section (
page 103).
iTo signal minor directional changes,
move combination switch to point of
resistance only and release. The turn
signal blinks three times.

47 Getting started
Driving
Windshield wipers
The combination switch is on the left of the
steering column.Combination switch1Single wipe
2Switching on windshield wipers
Make sure that the ignition is switched
on.Switching on windshield wipers

Turn the combination switch to the de-
sired position depending on the inten-
sity of the rain.
0Windshield wipers off
IIntermittent wiping
IINormal wiper speed
IIIFast wiper speedSingle wipe

Press switch briefly in the direction of
arrow1.
The windshield wipers wipe one time
without washer fluid.
Wiping with windshield washer fluid

Push switch in the direction of arrow1
past the resistance point.
The windshield wipers operate with
washer fluid until the switch is re-
leased.
Information on filling up the washer reser-
voir can be found in the “Operation” sec-
tion (page 222).
iThe intermittent wiping interval de-
pends on the wetness of the wind-
shield. Wiping will not occur with a
front door open.!Do not leave in intermittent setting
when vehicle is taken to an automatic
car wash or during windshield cleaning.
Wipers will operate in the presence of
water sprayed on the windshield, and
wipers may be damaged as a result.
The switch should not be left in
intermittent setting as the wipers will
wipe the windshield once every time
the engine is started. Dust that accu-
mulates on the windshield might
scratch the glass when wiping occurs
on a dry windshield.

50 Getting startedParking and locking
Parking and lockingYou have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.
Parking brake
1Lever
2Button
Pull lever1 up as many notches as pos-
sible.
When the engine is running, the indica-
tor lamp
;
(USA only) or
3
(Can-
ada only) in the instrument cluster will
be illuminated.
Warning!
G
Wait until the vehicle is stationary before re-
moving the key from the starter switch. The
vehicle cannot be steered when the key is
removed.Warning!
G
With the engine not running, there is no
power assistance for the brake and the
steering system. In this case, it is important
to keep in mind that a considerably higher
degree of effort is necessary to stop or steer
the vehicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:

Keep right foot on brake pedal.


Pull the parking brake lever up as many
notches as possible.


Move the selector lever to positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheels towards the road curb.


Turn the key to starter switch position0
and remove.


Take the key and lock vehicle when leav-
ing.

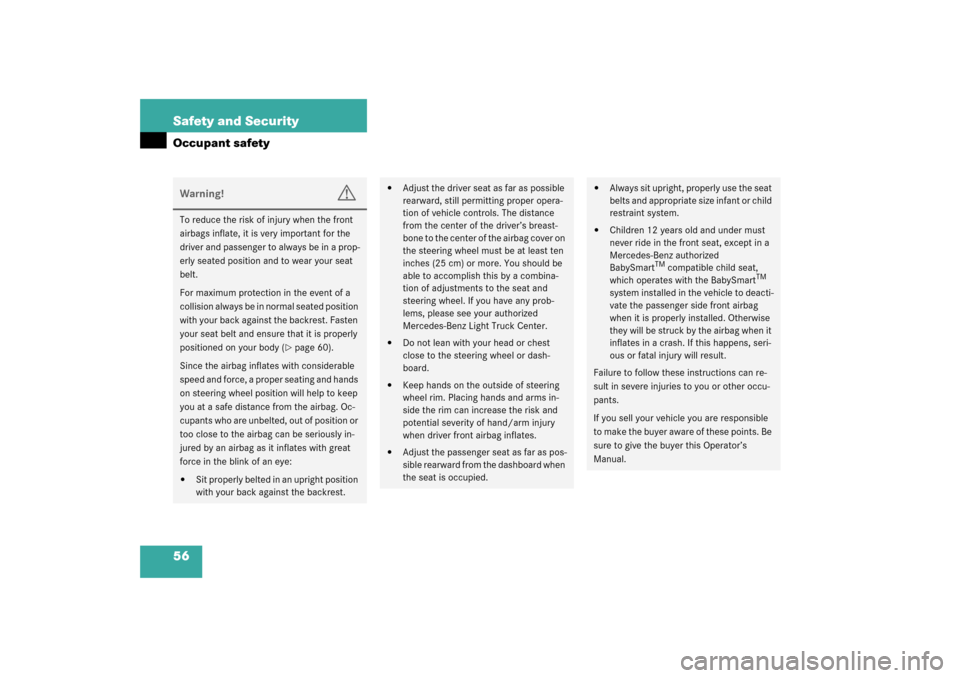

56 Safety and SecurityOccupant safetyWarning!
G
To reduce the risk of injury when the front
airbags inflate, it is very important for the
driver and passenger to always be in a prop-
erly seated position and to wear your seat
belt.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and ensure that it is properly
positioned on your body (
page 60).
Since the airbag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the airbag. Oc-
cupants who are unbelted, out of position or
too close to the airbag can be seriously in-
jured by an airbag as it inflates with great
force in the blink of an eye:


Sit properly belted in an upright position
with your back against the backrest.


Adjust the driver seat as far as possible
rearward, still permitting proper opera-
tion of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the airbag cover on
the steering wheel must be at least ten
inches (25 cm) or more. You should be
able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see your authorized
Mercedes-Benz Light Truck Center.


Do not lean with your head or chest
close to the steering wheel or dash-
board.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver front airbag inflates.


Adjust the passenger seat as far as pos-
sible rearward from the dashboard when
the seat is occupied.


Always sit upright, properly use the seat
belts and appropriate size infant or child
restraint system.


Children 12 years old and under must
never ride in the front seat, except in a
Mercedes-Benz authorized
BabySmart
TM compatible child seat,
which operates with the BabySmart
TM
system installed in the vehicle to deacti-
vate the passenger side front airbag
when it is properly installed. Otherwise
they will be struck by the airbag when it
inflates in a crash. If this happens, seri-
ous or fatal injury will result.
Failure to follow these instructions can re-
sult in severe injuries to you or other occu-
pants.
If you sell your vehicle you are responsible
to make the buyer aware of these points. Be
sure to give the buyer this Operator’s
Manual.

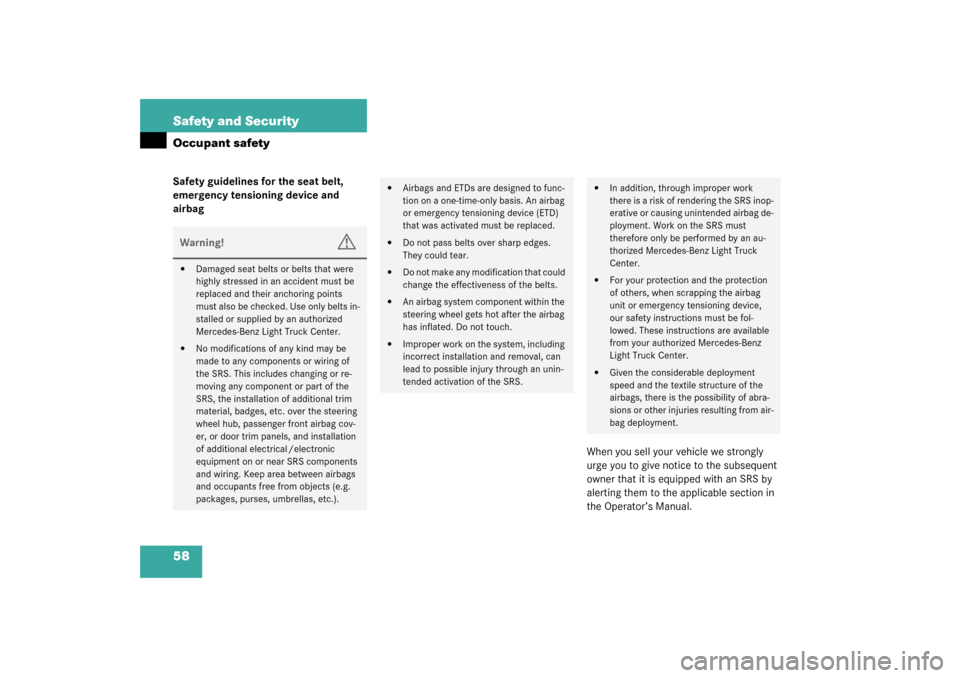

58 Safety and SecurityOccupant safetySafety guidelines for the seat belt,
emergency tensioning device and
airbag
When you sell your vehicle we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.Warning!
G


Damaged seat belts or belts that were
highly stressed in an accident must be
replaced and their anchoring points
must also be checked. Use only belts in-
stalled or supplied by an authorized
Mercedes-Benz Light Truck Center.


No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or re-
moving any component or part of the
SRS, the installation of additional trim
material, badges, etc. over the steering
wheel hub, passenger front airbag cov-
er, or door trim panels, and installation
of additional electrical /electronic
equipment on or near SRS components
and wiring. Keep area between airbags
and occupants free from objects (e.g.
packages, purses, umbrellas, etc.).


Airbags and ETDs are designed to func-
tion on a one-time-only basis. An airbag
or emergency tensioning device (ETD)
that was activated must be replaced.


Do not pass belts over sharp edges.
They could tear.


Do not make any modification that could
change the effectiveness of the belts.


An airbag system component within the
steering wheel gets hot after the airbag
has inflated. Do not touch.


Improper work on the system, including
incorrect installation and removal, can
lead to possible injury through an unin-
tended activation of the SRS.


In addition, through improper work
there is a risk of rendering the SRS inop-
erative or causing unintended airbag de-
ployment. Work on the SRS must
therefore only be performed by an au-
thorized Mercedes-Benz Light Truck
Center.


For your protection and the protection
of others, when scrapping the airbag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from your authorized Mercedes-Benz
Light Truck Center.


Given the considerable deployment
speed and the textile structure of the
airbags, there is the possibility of abra-
sions or other injuries resulting from air-
bag deployment.

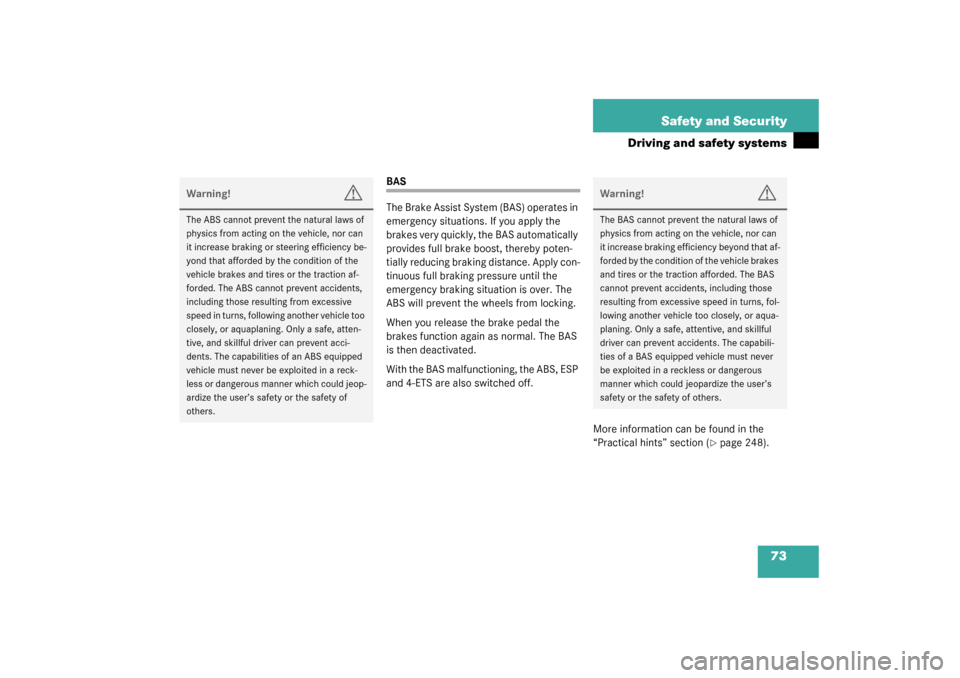

73 Safety and Security
Driving and safety systems
BAS
The Brake Assist System (BAS) operates in
emergency situations. If you apply the
brakes very quickly, the BAS automatically
provides full brake boost, thereby poten-
tially reducing braking distance. Apply con-
tinuous full braking pressure until the
emergency braking situation is over. The
ABS will prevent the wheels from locking.
When you release the brake pedal the
brakes function again as normal. The BAS
is then deactivated.
With the BAS malfunctioning, the ABS, ESP
and 4-ETS are also switched off.
More information can be found in the
“Practical hints” section (
page 248).
Warning!
G
The ABS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking or steering efficiency be-
yond that afforded by the condition of the
vehicle brakes and tires or the traction af-
forded. The ABS cannot prevent accidents,
including those resulting from excessive
speed in turns, following another vehicle too
closely, or aquaplaning. Only a safe, atten-
tive, and skillful driver can prevent acci-
dents. The capabilities of an ABS equipped
vehicle must never be exploited in a reck-
less or dangerous manner which could jeop-
ardize the user’s safety or the safety of
others.
Warning!
G
The BAS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking efficiency beyond that af-
forded by the condition of the vehicle brakes
and tires or the traction afforded. The BAS
cannot prevent accidents, including those
resulting from excessive speed in turns, fol-
lowing another vehicle too closely, or aqua-
planing. Only a safe, attentive, and skillful
driver can prevent accidents. The capabili-
ties of a BAS equipped vehicle must never
be exploited in a reckless or dangerous
manner which could jeopardize the user’s
safety or the safety of others.
