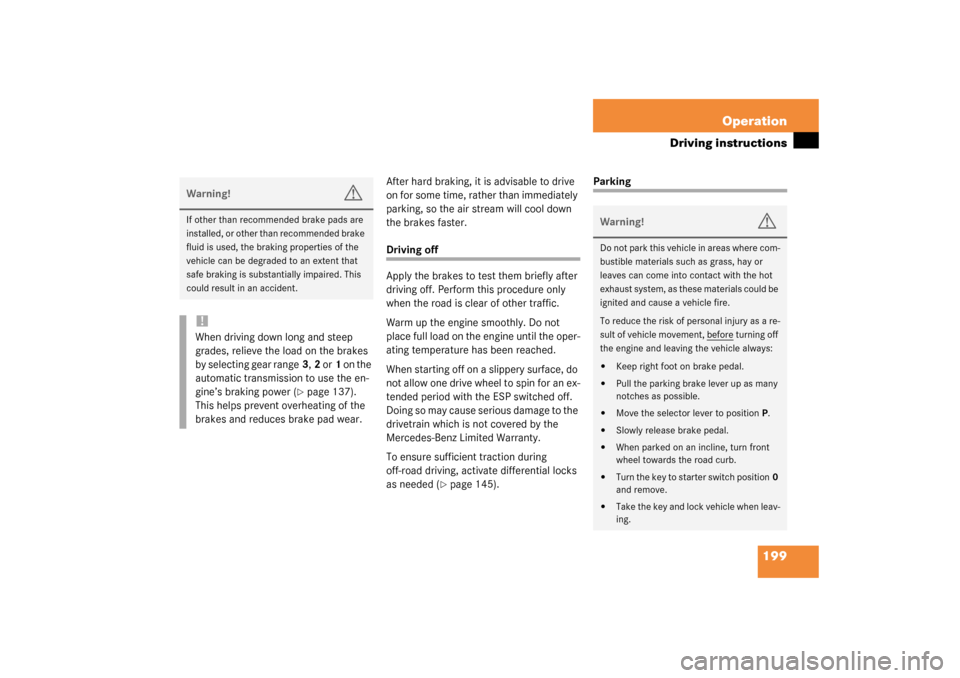

199 Operation
Driving instructions
After hard braking, it is advisable to drive
on for some time, rather than immediately
parking, so the air stream will cool down
the brakes faster.Driving off
Apply the brakes to test them briefly after
driving off. Perform this procedure only
when the road is clear of other traffic.
Warm up the engine smoothly. Do not
place full load on the engine until the oper-
ating temperature has been reached.
When starting off on a slippery surface, do
not allow one drive wheel to spin for an ex-
tended period with the ESP switched off.
Doing so may cause serious damage to the
drivetrain which is not covered by the
Mercedes-Benz Limited Warranty.
To ensure sufficient traction during
off-road driving, activate differential locks
as needed (
page 145).
Parking
Warning!
G
If other than recommended brake pads are
installed, or other than recommended brake
fluid is used, the braking properties of the
vehicle can be degraded to an extent that
safe braking is substantially impaired. This
could result in an accident.!When driving down long and steep
grades, relieve the load on the brakes
by selecting gear range3,2 or1 on the
automatic transmission to use the en-
gine’s braking power (
page 137).
This helps prevent overheating of the
brakes and reduces brake pad wear.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before
turning off
the engine and leaving the vehicle always:


Keep right foot on brake pedal.


Pull the parking brake lever up as many
notches as possible.


Move the selector lever to positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheel towards the road curb.


Turn the key to starter switch position0
and remove.


Take the key and lock vehicle when leav-
ing.

214 OperationAt the gas station
At the gas stationThe fuel filler flap is located on the
right-hand side of the vehicle towards the
rear. Locking/unlocking the vehicle with
the remote control automatically
locks/unlocks the fuel filler flap.

Turn off the engine.

Remove the key from the starter
switch.

Open the fuel filler flap by pushing at
the point indicated by the arrow.

Turn the fuel cap to the left and hold on
to it until possible pressure is released.

Take off the cap and set it in the recess
on the fuel filler flap.

To prevent fuel vapors from escaping
into open air, fully insert filler nozzle
unit.

Only fill your tank until the filler nozzle
unit cuts out – do not top up or overfill.

Replace the fuel cap by turning it to the
right.
You should hear the fuel filler cap en-
gage.

Close the fuel filler flap.
Warning!
G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious inju-
ry. Whenever you are around gasoline, avoid
inhaling fumes and skin contact, extinguish
all smoking materials. Never allow sparks,
flame or smoking materials near gasoline!
Failure to remove the fuel cap slowly could
result in personal injury.
Warning!
G
Overfilling of the fuel tank may create pres-
sure in the system which could cause a gas
discharge. This could cause the gas to spray
back out when removing the fuel pump noz-
zle, which could cause personal injury.!The fuel filler cap is tethered to the fuel
f i l l e r n e c k . D o n o t d r o p t h e c a p . I t c o u l d
damage the vehicle paint finish.
When refueling the vehicle, make cer-
tain that no gasoline comes into con-
tact with plastic tail lamp to prevent
damaging the lens.

218 OperationEngine compartmentChecking engine oil level
When checking the oil level the vehicle
must

be parked on level ground


be at normal operating temperature


have been stationary for at least five
minutes with the engine turned off
With the operating system
You can check the engine oil level on the
multifunction display.

Turn the key in the starter switch to
position2.
The standard display (
page 111) should
appear in the multifunction display.

Press button
k
or
j
on the
steering wheel until the following mes-
sage is seen in the multifunction dis-
play:
ENGINE OIL LEVEL - MEASUREMENT IN
PROCESS! MEASUREMENT CORRECT ONLY
IF VEH. LEVEL
After about three seconds, this mes-
sage is displayed:
ENGINE OIL LEVEL –
MEASURING NOW!
One of the following messages will sub-
sequently appear in the indicator:

ENGINE OIL LEVEL – OK



ENGINE OIL LEVEL – ADD 1.0 QUART
(1.0 LITER)!


ENGINE OIL LEVEL – ADD 1.5 QUART
(1.5 LITER)!


ENGINE OIL LEVEL – ADD 2.0 QUART
(2.0 LITER)!
Other display messages
If there is excessive engine oil with the en-
gine at normal operating temperature, the
following message will appear: ENGINE OIL LEVEL – REDUCE OIL LEVEL!
Have excess oil siphoned.
If the key is not turned to position2 in the
starter switch:
ENGINE OIL LEVEL – SWITCH ON IGNITION!
Switch on the ignition.
iIf you want to cancel the measuring
process, press the
k
or
j
but-
tons on the multifunction steering
wheel.
!Excessive oil must be siphoned or
drained off. It could cause damage to
the engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.
The oil dipstick tube allows for draining
of oil by using a suction device
(page 219).

223 Operation
Battery
Battery
The battery is located in front of the rear
seat bench and below the cup holder. Jump
starting terminals are located in the left
side of the engine compartment
(page 298).
The battery should always be sufficiently
charged in order to achieve its rated ser-
vice life.
If you use your vehicle less than approxi-
mately 200 miles (300 km) per month,
mostly for short distance trips, or if it is not
used for long periods of time, you will need
to have the battery charge checked more
frequently and corrected if necessary.
When replacing batteries, always use bat-
teries approved by Mercedes-Benz.
If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Light Truck
Center about steps you need to observe.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
More information on battery can be found
in the “Practical hints” section
(
page 295).
G
Observe all safety instructions
and precautions when handling
automotive batteries.
A
Risk of explosion
D
Keep flames or sparks away
from battery. Do not smoke.
B
Battery acid is caustic. Do not
allow it to come into contact
with skin, eyes or clothing.
In case it does, immediately
flush affected area with clear
water and seek medical help if
necessary.
E
Wear eye protection.
C
Keep children away.
F
Follow the instructions in this
Operator's Manual.
iIf the battery is discharged

you will no longer be able to turn
the key in the starter switch


the selector lever will remain
locked in positionP

235 Operation
Vehicle care
Wiper blades
Fold the wiper blades away from the
window before cleaning.
Clean the wiper blade inserts with a clean
cloth and detergent solution.
Window cleaning

Fold the wiper blades away from the
window before cleaning the windshield
or rear window.
Use a window cleaning solution on all glass
surfaces. An automotive glass cleaner is
recommended.Light alloy wheels
Mercedes-Benz approved Wheel Care
should be used for regular cleaning of the
light alloy wheels.
If possible, clean wheels once a week with
Mercedes-Benz approved Wheel Care, us-
ing a soft bristle brush and a strong spray
of water.
Follow instructions on container.Instrument cluster
Use a gentle dishwashing detergent or
mild detergent for delicate fabrics as a
washing solution. Wipe with a cloth moist-
ened in lukewarm solution. Do not use
scouring agents.
Steering wheel and gear selector lever
Wipe with a damp cloth and dry thoroughly
or clean with Mercedes-Benz approved
Leather Care.
Cup holder
Use a gentle dishwashing detergent or
mild detergent for delicate fabrics as a
washing solution. Wipe with a cloth moist-
ened in lukewarm solution. Do not use
scouring agents.Warning!
G
For safety reasons, switch off wipers and re-
move key from starter switch before clean-
ing the wiper blades, otherwise the wiper
motor can suddenly turn on and cause inju-
ry.
Warning!
G
For safety reasons, switch off wipers and re-
move key from starter switch before clean-
ing the windshield, otherwise the wiper
motor can suddenly turn on and cause inju-
ry.iUse only acid-free cleaning materials.
The acid could lead to corrosion or may
damage the clear coat.

238 Practical hintsWhat to do if …
What to do if …Lamps in instrument clusterGeneral information:
If a bulb in the instrument cluster fails to
light up during the bulb self-check when turning the SmartKey in starter switch to
position2, have it checked and replaced if
necessary.Problem
Possible cause
Suggested solution
v
The yellow ESP warning lamp
lights up and remains on while
driving.
You engaged the differential locks. The ABS,
ESP, BAS, EBB and 4-ETS are switched off.

The driving systems will switch on
again after the differential locks have
been disengaged.

Also note the messages in the multi-
function display (
page 246).
The ESP is deactivated. Risk of accident!
Adapt your speed and driving to the prevail-
ing road conditions.

Turn the ESP back on (
page 78).
If the ESP cannot be turned back on, have
the system checked at an authorized
Mercedes-Benz Light Truck Center as
soon as possible.
The ESP is deactivated because of interrupt-
ed power supply. The ABS may still be opera-
tional. The ESP has to be synchronized.

Note the messages in the multifunc-
tion display (
page 246).
The ESP, ABS, BAS, EBB or 4-ETS has detect-
ed a malfunction. All driving systems are
switched off. Risk of accident! Adapt your
speed and driving to the prevailing road con-
ditions.

Note the messages in the multifunc-
tion display (
page 246).

247 Practical hints
What to do if …
On the pages that follow, you will find a
compilation of all the messages that may
appear in the display.
Warning!
G
No messages will be displayed if either the
instrument cluster or the multifunction dis-
play is inoperative. Systems that have a sig-
nificant influence on handling performance
may not be functioning.
Contact your nearest authorized
Mercedes-Benz Light Truck Center.
iTurning the key in starter switch to
position2 causes all lamps as well as
the multifunction display to come on.
Ensure that they are all in working or-
der before starting your journey.
Display
Possible cause
Suggested solution
Category
-
ABS SYSTEM
VISIT WORKSHOP!
The ABS has detected a malfunction
and has switched off. The ESP, BAS,
EBB and 4-ETS are also deactivated.
The brake system is still functioning
normally but without the ABS avail-
able. Wheels will lock during hard
braking, reducing steering capabili-
ty.

Continue driving with added
caution.

Have the system checked at
an authorized Mercedes-Benz
Light Truck Center as soon as
possible.
Failure to follow these instructions
increases the risk of accident.
2

259 Practical hints
What to do if …
Display
Possible cause
Suggested solution
Category
I
AUTOM. LIGHT ON
REMOVE KEY!
You have forgotten to remove the
key.

Remove the key from the
starter switch.
1
REPLACE KEY
VISIT WORKSHOP!
No additional code available for
SmartKey.

Visit an authorized
Mercedes-Benz Light Truck
Center.
2
.
3RD BRAKE LAMP
CHECK LAMP!

The high mounted brake lamp is mal-
functioning. This message will only
appear if all light emitting diodes
have stopped working.

Visit an authorized
Mercedes-Benz Center as
soon as possible.
2
ADD. TURN SIG LAMP, LH
CHECK LAMP!
The left turn signal in the side mirror
is malfunctioning. This message will
only appear if all light emitting
diodes have stopped working.

Have the LEDs replaced as
soon as possible.
2
ADD. TURN SIG LAMP, RH
CHECK LAMP!
The right turn signal in the side mir-
ror is malfunctioning. This message
will only appear if all light emitting
diodes have stopped working.

Have the LEDs replaced as
soon as possible.
2
AUTOM. LIGHT ON
REMOVE KEY!
You have left the key in the starter
switch.

Remove key from the starter
switch.
1
