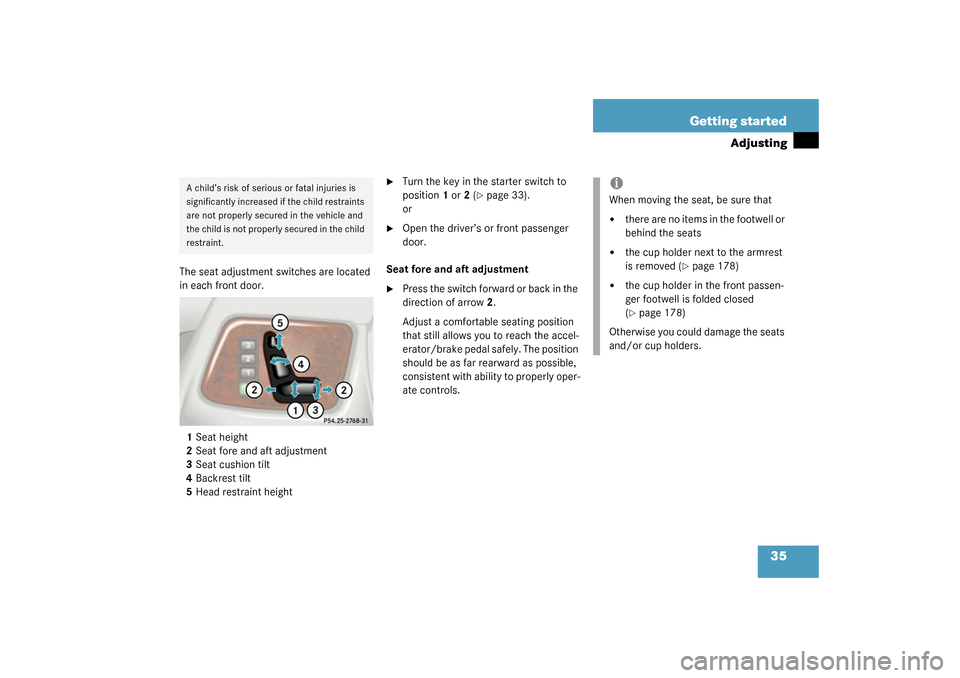

35 Getting started
Adjusting
The seat adjustment switches are located
in each front door.
1Seat height
2Seat fore and aft adjustment
3Seat cushion tilt
4Backrest tilt
5Head restraint height

Turn the key in the starter switch to
position1 or2 (
page 33).
or

Open the driver’s or front passenger
door.
Seat fore and aft adjustment

Press the switch forward or back in the
direction of arrow2.
Adjust a comfortable seating position
that still allows you to reach the accel-
erator/brake pedal safely. The position
should be as far rearward as possible,
consistent with ability to properly oper-
ate controls.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
iWhen moving the seat, be sure that

there are no items in the footwell or
behind the seats


the cup holder next to the armrest
is removed (
page 178)


the cup holder in the front passen-
ger footwell is folded closed
(page 178)
Otherwise you could damage the seats
and/or cup holders.

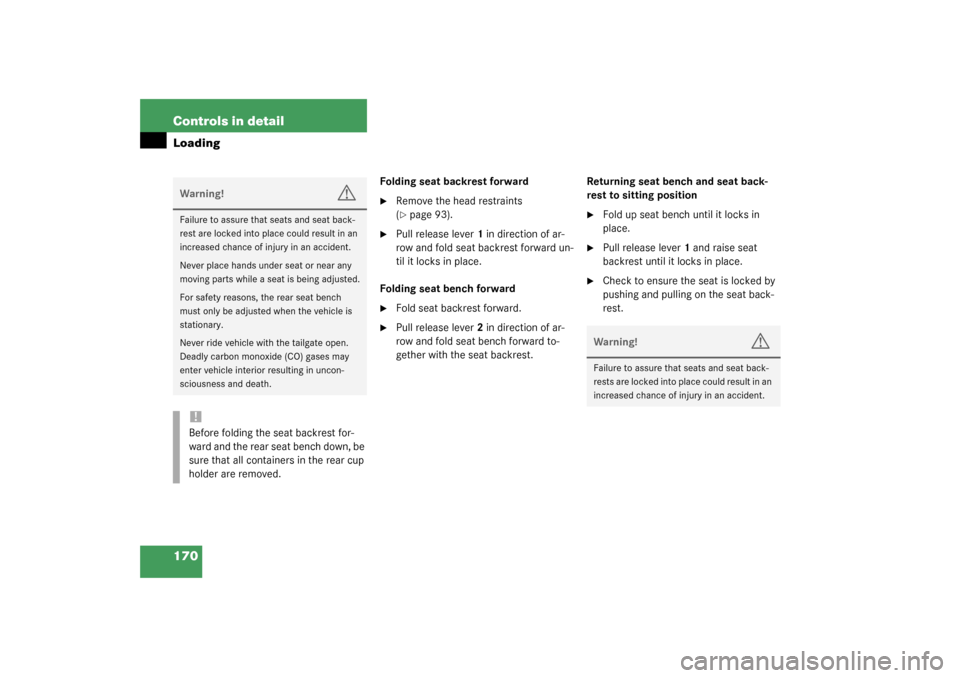

170 Controls in detailLoading
Folding seat backrest forward
Remove the head restraints
(page 93).

Pull release lever1 in direction of ar-
row and fold seat backrest forward un-
til it locks in place.
Folding seat bench forward

Fold seat backrest forward.

Pull release lever2 in direction of ar-
row and fold seat bench forward to-
gether with the seat backrest.Returning seat bench and seat back-
rest to sitting position

Fold up seat bench until it locks in
place.

Pull release lever1 and raise seat
backrest until it locks in place.

Check to ensure the seat is locked by
pushing and pulling on the seat back-
rest.
Warning!
G
Failure to assure that seats and seat back-
rest are locked into place could result in an
increased chance of injury in an accident.
Never place hands under seat or near any
moving parts while a seat is being adjusted.
For safety reasons, the rear seat bench
must only be adjusted when the vehicle is
stationary.
Never ride vehicle with the tailgate open.
Deadly carbon monoxide (CO) gases may
enter vehicle interior resulting in uncon-
sciousness and death.!Before folding the seat backrest for-
ward and the rear seat bench down, be
sure that all containers in the rear cup
holder are removed.
Warning!
G
Failure to assure that seats and seat back-
rests are locked into place could result in an
increased chance of injury in an accident.

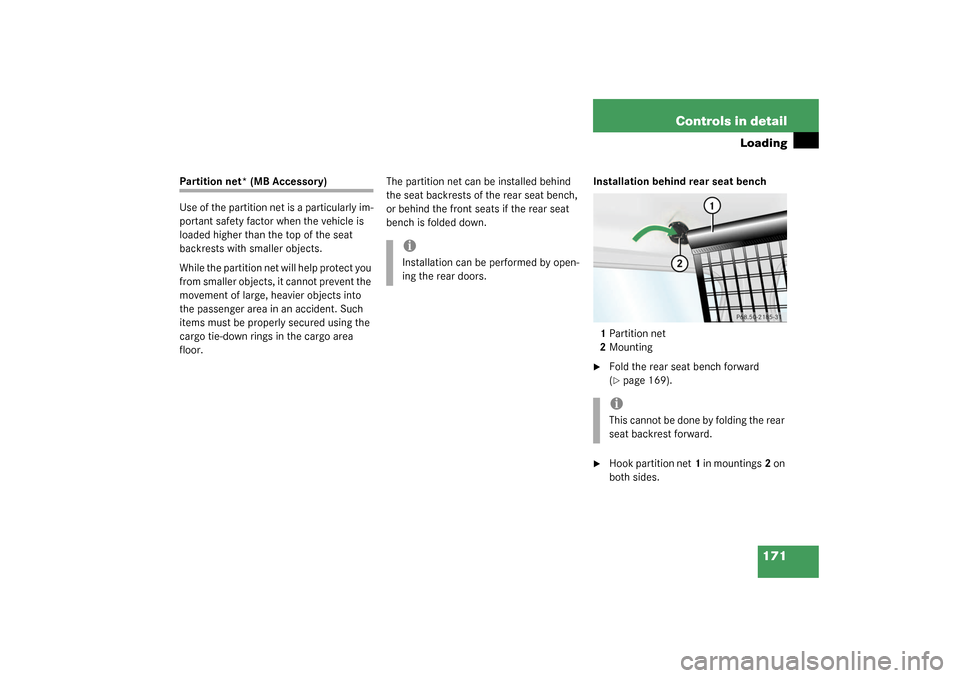

171 Controls in detail
Loading
Partition net* (MB Accessory)
Use of the partition net is a particularly im-
portant safety factor when the vehicle is
loaded higher than the top of the seat
backrests with smaller objects.
While the partition net will help protect you
from smaller objects, it cannot prevent the
movement of large, heavier objects into
the passenger area in an accident. Such
items must be properly secured using the
cargo tie-down rings in the cargo area
floor.The partition net can be installed behind
the seat backrests of the rear seat bench,
or behind the front seats if the rear seat
bench is folded down.Installation behind rear seat bench
1Partition net
2Mounting

Fold the rear seat bench forward
(page 169).

Hook partition net1 in mountings2 on
both sides.
iInstallation can be performed by open-
ing the rear doors.
iThis cannot be done by folding the rear
seat backrest forward.

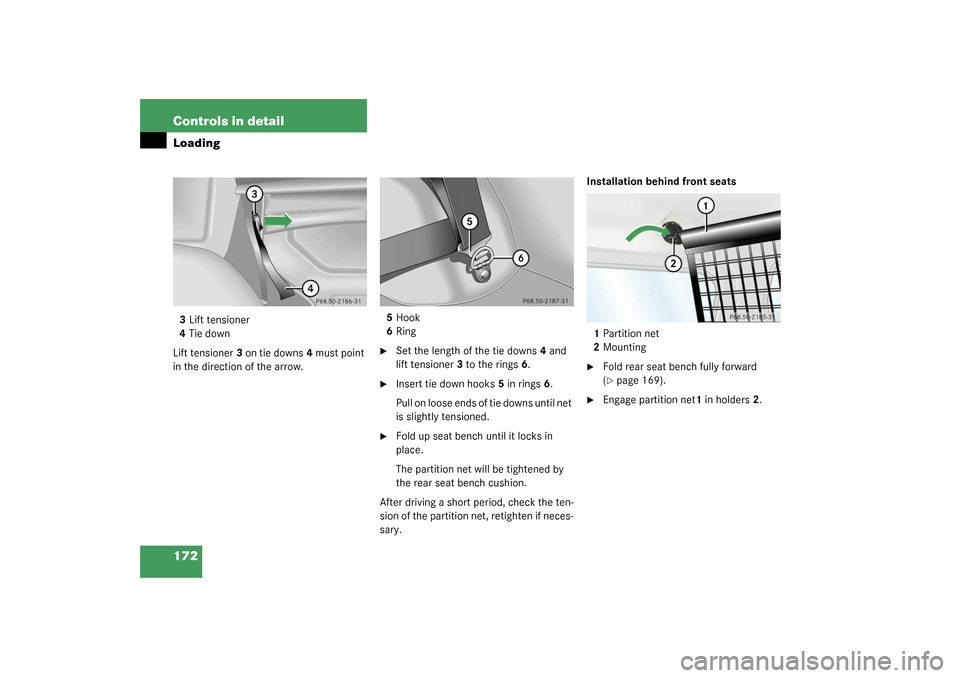

172 Controls in detailLoading3Lift tensioner
4Tie down
Lift tensioner3 on tie downs4 must point
in the direction of the arrow.5Hook
6Ring

Set the length of the tie downs4 and
lift tensioner3 to the rings6.

Insert tie down hooks5 in rings6.
Pull on loose ends of tie downs until net
is slightly tensioned.

Fold up seat bench until it locks in
place.
The partition net will be tightened by
the rear seat bench cushion.
After driving a short period, check the ten-
sion of the partition net, retighten if neces-
sary.Installation behind front seats
1Partition net
2Mounting

Fold rear seat bench fully forward
(page 169).

Engage partition net1 in holders2.

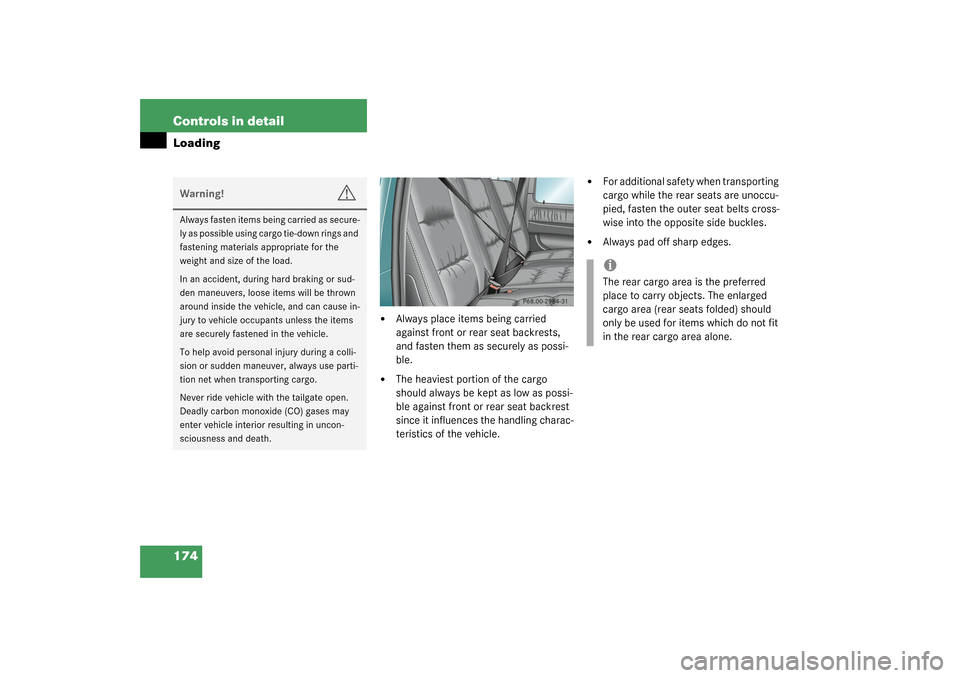

174 Controls in detailLoading


Always place items being carried
against front or rear seat backrests,
and fasten them as securely as possi-
ble.


The heaviest portion of the cargo
should always be kept as low as possi-
ble against front or rear seat backrest
since it influences the handling charac-
teristics of the vehicle.


For additional safety when transporting
cargo while the rear seats are unoccu-
pied, fasten the outer seat belts cross-
wise into the opposite side buckles.


Always pad off sharp edges.
Warning!
G
Always fasten items being carried as secure-
ly as possible using cargo tie-down rings and
fastening materials appropriate for the
weight and size of the load.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and can cause in-
jury to vehicle occupants unless the items
are securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, always use parti-
tion net when transporting cargo.
Never ride vehicle with the tailgate open.
Deadly carbon monoxide (CO) gases may
enter vehicle interior resulting in uncon-
sciousness and death.
iThe rear cargo area is the preferred
place to carry objects. The enlarged
cargo area (rear seats folded) should
only be used for items which do not fit
in the rear cargo area alone.

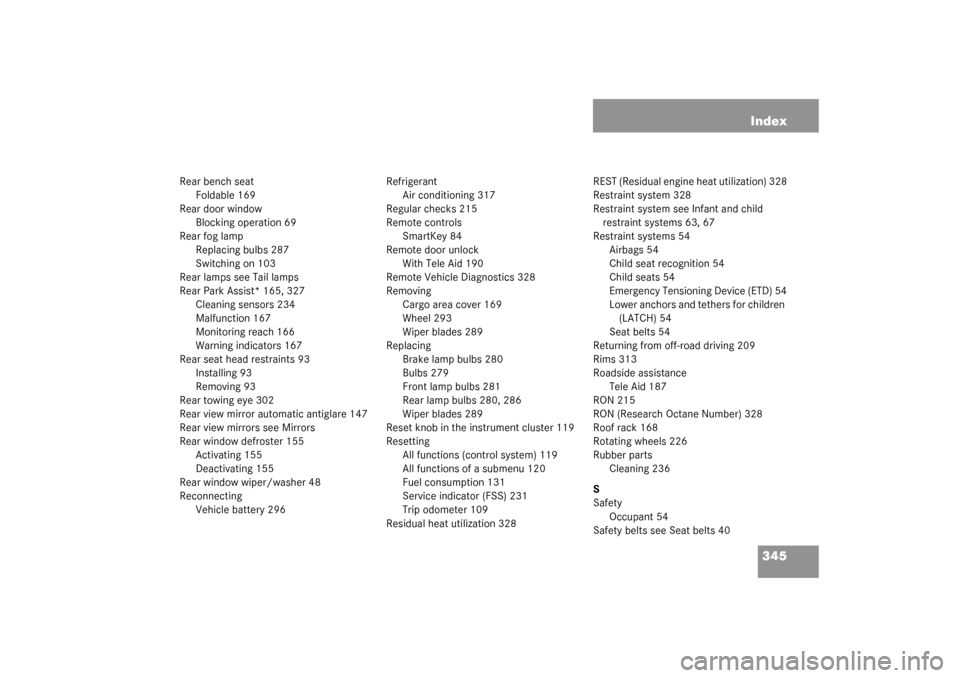

345 Index
Rear bench seat
Foldable 169
Rear door window
Blocking operation 69
Rear fog lamp
Replacing bulbs 287
Switching on 103
Rear lamps see Tail lamps
Rear Park Assist* 165, 327
Cleaning sensors 234
Malfunction 167
Monitoring reach 166
Warning indicators 167
Rear seat head restraints 93
Installing 93
Removing 93
Rear towing eye 302
Rear view mirror automatic antiglare 147
Rear view mirrors see Mirrors
Rear window defroster 155
Activating 155
Deactivating 155
Rear window wiper/washer 48
Reconnecting
Vehicle battery 296Refrigerant
Air conditioning 317
Regular checks 215
Remote controls
SmartKey 84
Remote door unlock
With Tele Aid 190
Remote Vehicle Diagnostics 328
Removing
Cargo area cover 169
Wheel 293
Wiper blades 289
Replacing
Brake lamp bulbs 280
Bulbs 279
Front lamp bulbs 281
Rear lamp bulbs 280, 286
Wiper blades 289
Reset knob in the instrument cluster 119
Resetting
All functions (control system) 119
All functions of a submenu 120
Fuel consumption 131
Service indicator (FSS) 231
Trip odometer 109
Residual heat utilization 328REST (Residual engine heat utilization) 328
Restraint system 328
Restraint system see Infant and child
restraint systems 63, 67
Restraint systems 54
Airbags 54
Child seat recognition 54
Child seats 54
Emergency Tensioning Device (ETD) 54
Lower anchors and tethers for children
(LATCH) 54
Seat belts 54
Returning from off-road driving 209
Rims 313
Roadside assistance
Tele Aid 187
RON 215
RON (Research Octane Number) 328
Roof rack 168
Rotating wheels 226
Rubber parts
Cleaning 236
S
Safety
Occupant 54
Safety belts see Seat belts 40

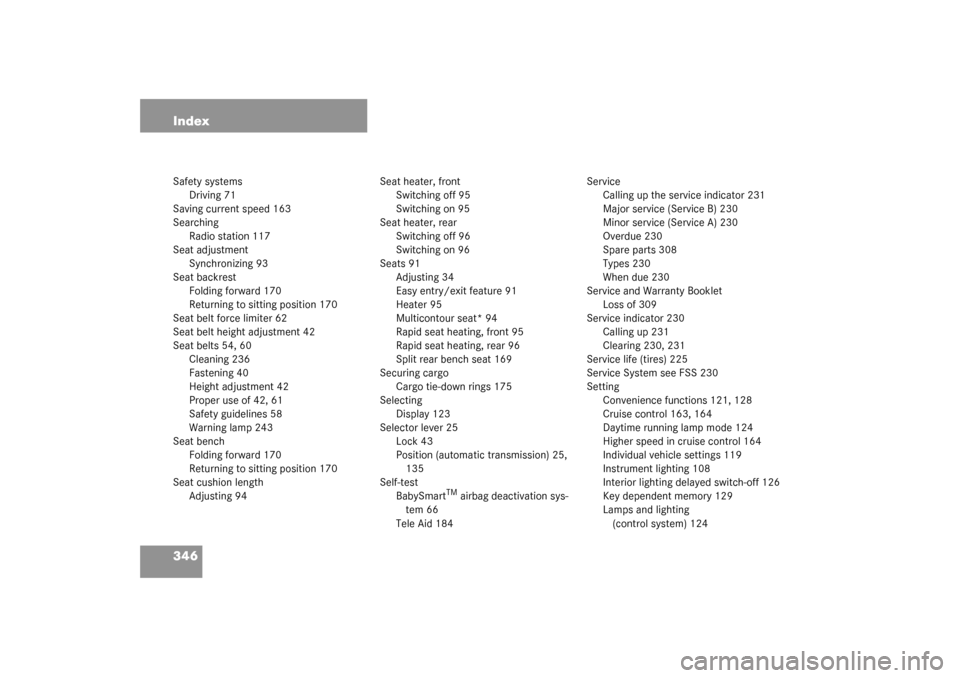

346 IndexSafety systems
Driving 71
Saving current speed 163
Searching
Radio station 117
Seat adjustment
Synchronizing 93
Seat backrest
Folding forward 170
Returning to sitting position 170
Seat belt force limiter 62
Seat belt height adjustment 42
Seat belts 54, 60
Cleaning 236
Fastening 40
Height adjustment 42
Proper use of 42, 61
Safety guidelines 58
Warning lamp 243
Seat bench
Folding forward 170
Returning to sitting position 170
Seat cushion length
Adjusting 94Seat heater, front
Switching off 95
Switching on 95
Seat heater, rear
Switching off 96
Switching on 96
Seats 91
Adjusting 34
Easy entry/exit feature 91
Heater 95
Multicontour seat* 94
Rapid seat heating, front 95
Rapid seat heating, rear 96
Split rear bench seat 169
Securing cargo
Cargo tie-down rings 175
Selecting
Display 123
Selector lever 25
Lock 43
Position (automatic transmission) 25,
135
Self-test
BabySmart
TM airbag deactivation sys-
tem 66
Tele Aid 184Service
Calling up the service indicator 231
Major service (Service B) 230
Minor service (Service A) 230
Overdue 230
Spare parts 308
Types 230
When due 230
Service and Warranty Booklet
Loss of 309
Service indicator 230
Calling up 231
Clearing 230, 231
Service life (tires) 225
Service System see FSS 230
Setting
Convenience functions 121, 128
Cruise control 163, 164
Daytime running lamp mode 124
Higher speed in cruise control 164
Individual vehicle settings 119
Instrument lighting 108
Interior lighting delayed switch-off 126
Key dependent memory 129
Lamps and lighting
(control system) 124
