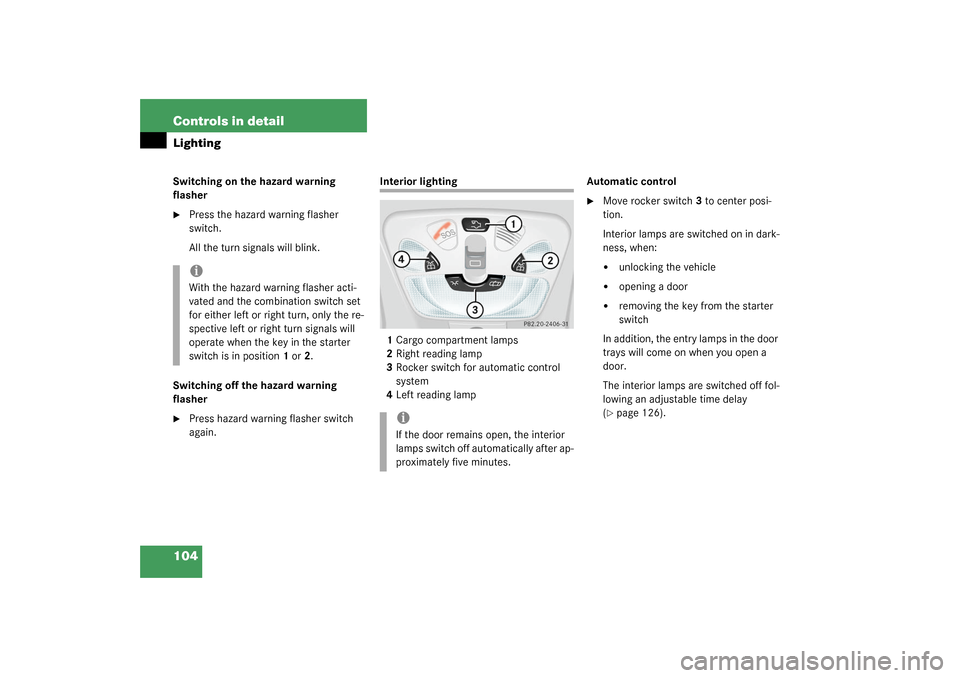

104 Controls in detailLightingSwitching on the hazard warning
flasher
Press the hazard warning flasher
switch.
All the turn signals will blink.
Switching off the hazard warning
flasher

Press hazard warning flasher switch
again.
Interior lighting
1Cargo compartment lamps
2Right reading lamp
3Rocker switch for automatic control
system
4Left reading lampAutomatic control

Move rocker switch 3 to center posi-
tion.
Interior lamps are switched on in dark-
ness, when:

unlocking the vehicle


opening a door


removing the key from the starter
switch
In addition, the entry lamps in the door
trays will come on when you open a
door.
The interior lamps are switched off fol-
lowing an adjustable time delay
(
page 126).
iWith the hazard warning flasher acti-
vated and the combination switch set
for either left or right turn, only the re-
spective left or right turn signals will
operate when the key in the starter
switch is in position1 or2.
iIf the door remains open, the interior
lamps switch off automatically after ap-
proximately five minutes.

105 Controls in detail
Lighting
Deactivating
Press the
ñ
symbol on rocker
switch 3.
The interior lighting and the entry
lamps remain switched off in darkness,
even when you


unlock the vehicle


open a door


remove the key from the starter
switchManual control
Switching lamps on

Press the
ð
symbol on rocker
switch 3.
The interior lighting remains on even
when the doors are closed.
Switching lamps off

Move rocker switch 3 to center posi-
tion to activate the automatic control.
Rear interior lamps
The rear interior lamps are located above
the rear seat bench on the left and right
side.
1The lamps are switched on
continuously
2The lamps are switched off
3Automatic function
!To prevent the vehicle battery from be-
ing discharged, all interior lamps
switch off automatically after approxi-
mately 30 minutes with the tailgate
open.
If an interior lamp is switched on man-
ually, it does not go out automatically.
Before leaving the vehicle, make sure
that the interior lamps are switched off.
The rear interior lamps can be switched
on with the SmartKey in starter switch
position0 or key removed from the
starter switch for up to 30 minutes.

109 Controls in detail
Instrument cluster

Turn the SmartKey in the starter switch
to position1 or2.

Call up the trip odometer and main
odometer by pressing button
è

or
ÿ
on the multifunction steering
wheel (page 112).

Press button
j
or
k
until the
coolant temperature display appears.During severe operating conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to 248°F (120°C).
The engine should not be operated with
the coolant temperature above 248°F
(120°C). Doing so may cause serious en-
gine damage which is not covered by the
Mercedes-Benz Limited Warranty.
Trip odometer
Make sure you are viewing the trip
odometer and main odometer
(page 111) in the multifunction dis-
play.

Press and hold the reset knob on the in-
strument cluster (
page 108) until the
trip odometer is reset.
Tachometer
The red marking on the tachometer de-
notes excessive engine speed.
To help protect the engine, the fuel supply
is interrupted if the engine is operated
within the red marking.
iExcessive coolant temperatures trigger
a warning in the multifunction display
(page 252).
!Avoid driving at excessive engine
speeds, as it may result in serious en-
gine damage that is not covered by the
Mercedes-Benz Limited Warranty.

111 Controls in detail
Control system
Control system
The control system is activated as soon as
the key in the starter switch is turned to
position1. The control system enables you
to

call up information about your vehicle


change vehicle settings
For example, you can use the control sys-
tem to find out when your vehicle is next
due for service, to set the language for
messages in the instrument cluster display
and much more.
The control system relays information to
the multifunction display.
Multifunction display
1Trip odometer
2Main odometer
3Outside temperature
4Clock
1
5Current gear selector lever position
6Transfer case program mode
Warning!
G
A driver’s attention to the road and traffic
conditions must always be his /her primary
focus when driving.
For your safety and the safety of others, se-
lecting features through the multifunction
steering wheel should only be done by the
driver when traffic and road conditions per-
mit it to be done safely.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 13.5 m) every second.
1See separate operating instructions for the
COMAND system for clock setting.

117 Controls in detail
Control system
Select radio station
Turn on the radio. Refer to separate op-
erating instructions.

Press button
è
or
ÿ
repeatedly
until you see the currently tuned sta-
tion in the display.
1Station
2Waveband setting
3Setting for station selection using
memory

Press button
k
or
j
repeatedly
until the desired station is found.
The type of search depends on the set-
ting for the station tuning:


The next stored station is selected
(SP)


Station searchOperate the CD player

Turn on the radio and select the CD
player. Refer to separate operating in-
structions.

Press button
è
or
ÿ
repeatedly
until the settings for the CD currently
being played are shown in the display.
1Current track
2Current CD (for CD changer)

Press button
k
or
j
repeatedly
until the desired track is selected.
iYou can only store new stations by us-
ing the corresponding feature on the
radio. Refer to separate operating in-
structions.
You can also operate the radio in the
usual manner.
iTo select a CD from the magazine,
press a number on the COMAND sys-
tem key pad located in the center dash-
board.

119 Controls in detail
Control system
Should any malfunctions occur while driv-
ing, the number of malfunctions will reap-
pear in the display when the key in the
starter switch is turned to position0 or re-
moved from the starter switch.
Settings menu
In the
SETTINGS
menu there are two func-
tions:


The function
RETURN TO FACTORY SET-
TINGS
, with which you can reset all the
settings to those set at the factory.


A collection of submenus with which
you can make individual settings for
your vehicle.

Press button
è
or
ÿ
repeatedly
until the
SETTINGS
menu is seen in the
display.Resetting all settings
You can reset all the functions of all sub-
menus to the factory settings.

Press the reset knob in the instrument
cluster (
page 24) for approximately
three seconds.
In the display you will see the request
to press the reset knob again to con-
firm.

Press the reset knob (
page 24)
again.
The functions of all the submenus will
reset to factory settings.
iThe message memory will be cleared
when you turn the key in the starter
switch to position1 or2. You will then
only see Priority 1 malfunctions
(page 246).
iThe settings you have changed will not
be reset unless you confirm the action
by pressing the reset knob a second
time.

121 Controls in detail
Control system
The table below shows what settings can
be changed within the various menus. De-
tailed instructions on making individual
settings can be found on the following pag-
es.INSTRUMENT CLUSTER
LIGHTING
VEHICLE
CONVENIENCE
Select temperature display
mode
Set daytime running lamp mode
(USA only)
Set station selection mode
(radio)
Activate easy-entry/exit feature
Select speedometer display
mode
Set locator lighting
Set automatic locking
Set key dependency
Select language
Exterior lamps delayed
switch-off
Set parking position for exterior
rear view mirror
Select display (speed display or
outside temperature)
Interior lighting delayed
switch-off

125 Controls in detail
Control system
Setting locator lighting
During darkness, the following lamps will
come on when the exterior lamp switch is
in position
U
, the locator lighting fea-
ture is activated, and the vehicle is un-
locked by remote control:


parking lamps


tail lamps


license plate lamps


front fog lamps
The locator lighting switches off when the
driver’s door is opened. It switches off au-
tomatically after a period of approximately
40 seconds.

Move the selection marker with
the
æ
or
ç
button to the
LIGHTING
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
LOCATOR LIGHTING
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the de-
sired setting.
The locator lighting will be switched on
or off.Setting night security illumination
(Exterior lamps delayed switch-off)
Use the
HEADLAMPS DELAYED SWITCH-OFF

function to set whether and for how long
you would like the exterior lamps to illumi-
nate during darkness after all doors are
closed. When the delayed shut-off feature
is activated and the exterior lamp switch is
in position
U
, the following lamps will
remain lit after you remove the key from
the starter switch:


parking lamps


tail lamps


license plate lamps


front fog lamps
