2003 MERCEDES-BENZ G55AMG key

37 Getting started
Adjusting
Steering wheelThe stalk is located on the steering column
(lower left).
1Steering column, lengthen or shorten
2Steering column, height

Turn the key in the starter switch to
position1 or2 (
page 33).
or

Open the driver’s door.Steering column, lengthen or shorten

Move stalk forward or back in the direc-
tion of arrow1 until a comfortable
steering wheel position is reached with
your arms slightly bent at the elbow.
Steering column, height

Move stalk up or down in the direction
of arrow2.
Make sure that your legs can move
freely and that all the displays (incl.
malfunction and indicator lamps) on
the instrument cluster are clearly visi-
ble.
Warning!
G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing, or driving without the adjustment
locked could cause the driver to lose control
of the vehicle.
When leaving the vehicle, always remove the
key from the starter switch, and lock your
vehicle.
The steering wheel adjustment feature can
also be operated with the driver’s door
open. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
iThe memory function (
page 97) can
be used to save the steering wheel set-
tings together with the seat and exteri-
or mirror settings.

44 Getting startedDriving
Make sure that the selector lever is set
toP.

Do not depress accelerator.

Turn key in the starter switch to
position3 and hold until the engine
starts (
page 33).

Depress the brake pedal.
The selector lever lock is released.
For information on turning off the engine,
see “Turning off engine” (
page 51).Starting difficulties
If the engine does not start as described,
carry out the following steps:

Turn key in starter switch to position0
and repeat starting procedure.

Remember that extended starting at-
tempts can drain the battery.

Get a jump start (
page 297).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.

Notify an authorized Mercedes-Benz
Light Truck Center.Parking brake
1Lever
2Button
iYou can also use the “touch-start”
function. Turn the key to position3 and
release it again immediately. The en-
gine then starts automatically.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, and lock the ve-
hicle.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could release the parking brake,
which could result in an accident and/or se-
rious personal injury.

48 Getting startedDriving
Rear window wiper/washer
The rear window wiper / washer switch is
located on the upper part of the center
console.
1Interval wiping on/off
2Indicator lamp
3Simultaneous operation of wiper and
washer

Make sure that the ignition is switched
on.
Interval wiping
Switching on

Press upper half1 of the switch.
The indicator lamp2 comes on.
Switching off

Press upper half1 of the switch again.
The indicator lamp2 goes out.
Wiping with windshield washer fluid

Press and hold lower half3 of the
switch.
The wiper operates with washer fluid.
The rear window will be wiped for ap-
proximately another five seconds after
the switch is released.
Information on filling up the washer reser-
voir can be found in the “Operation” sec-
tion (page 222).
!If leaves, snow, etc. block the wind-
shield wipers, switch off the wipers.

For safety reasons, withdraw key
from starter switch. Remove block-
age.


Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch positionI,


set the combination switch to the
next highest wiper speed.


have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Light Truck Center.
iThe rear window wiper will also auto-
matically engage if the windshield wip-
ers are engaged and the selector lever
is placed inR “Reverse”.

50 Getting startedParking and locking
Parking and lockingYou have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.
Parking brake
1Lever
2Button
Pull lever1 up as many notches as pos-
sible.
When the engine is running, the indica-
tor lamp
;
(USA only) or
3
(Can-
ada only) in the instrument cluster will
be illuminated.
Warning!
G
Wait until the vehicle is stationary before re-
moving the key from the starter switch. The
vehicle cannot be steered when the key is
removed.Warning!
G
With the engine not running, there is no
power assistance for the brake and the
steering system. In this case, it is important
to keep in mind that a considerably higher
degree of effort is necessary to stop or steer
the vehicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:

Keep right foot on brake pedal.


Pull the parking brake lever up as many
notches as possible.


Move the selector lever to positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheels towards the road curb.


Turn the key to starter switch position0
and remove.


Take the key and lock vehicle when leav-
ing.

51 Getting started
Parking and locking
Switching off headlamps
Turn the exterior lamp switch to
M

(
page 46).
More information can be found in the
“Controls in detail” section (
page 100).
Turning off engine
Place the selector lever in positionP.

Turn key in the starter switch to
position0 and remove it.
The immobilizer is activated.

Press the seat belt release button
(page 41).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, and lock the ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Children could release the parking
brake and/or move the selector lever from
positionP, either of which could result in an
accident and/or serious personal injury.Warning!
G
Getting out of your vehicle with the selector
lever not fully engaged in positionP is dan-
gerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP.
When parked on an incline, turn front wheels
towards the road curb.
iAlways set the parking brake in addi-
tion to shifting to position P.
On slopes, turn the front wheels to-
wards the curb.
iThe key can only be pulled out when:

it has been turned to position0 in
the starter switch


the gear selector lever for the auto-
matic transmission is in positionP


you are not braking with the service
brake
!With the key removed and the driver’s
door open, a warning sounds if the ve-
hicles exterior lamps are not switched
off.

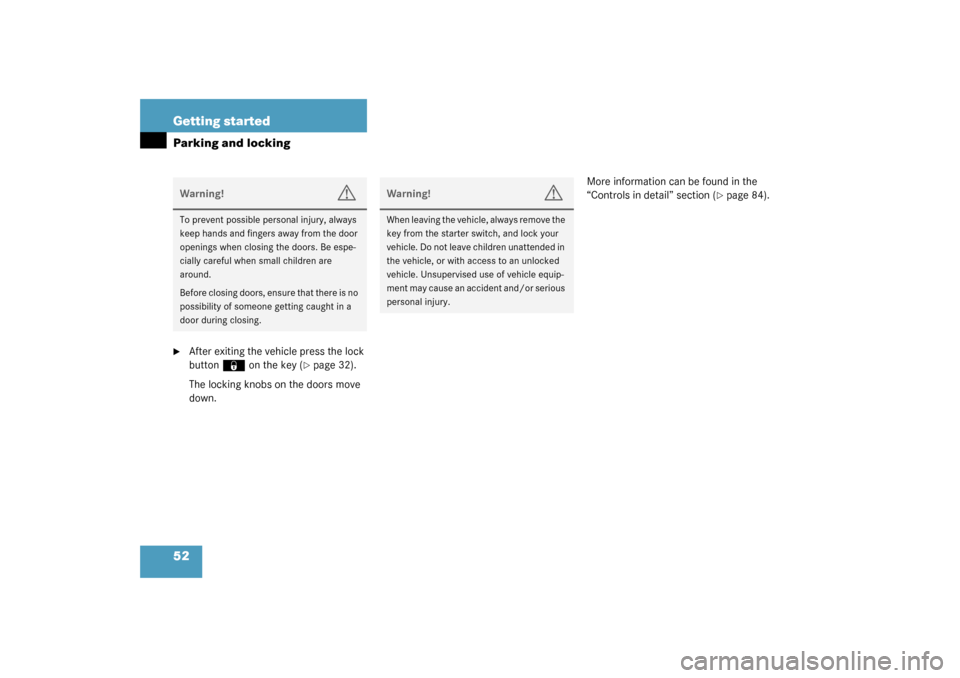

52 Getting startedParking and locking
After exiting the vehicle press the lock
button
‹
on the key (
page 32).
The locking knobs on the doors move
down.More information can be found in the
“Controls in detail” section (
page 84).
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, ensure that there is no
possibility of someone getting caught in a
door during closing.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, and lock your
vehicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.

54 Safety and SecurityOccupant safety
Occupant safetyIn this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are

Seat belts


Emergency tensioning device


Airbags


Child seats


Child seat recognition


Lower anchors and tethers for children
(LATCH)
As independent systems their protective
effects work in conjunction with each oth-
er.The
1
warning lamp in the instrument
cluster lights up:


for about 4 seconds when you turn the
key in the starter switch to position1.


for about 4 seconds when you start the
engine by turning the key.
The warning lamp goes out shortly after
you start the engine. This shows that the
restraint systems are operational.A malfunction in the system has been de-
tected, if the
1
warning lamp:


fails to extinguish after approximately
4seconds.


does not come on at all.


comes on after the engine was started
or while driving.
For safety reasons, we strongly recom-
mend that you visit an authorized
Mercedes-Benz Center immediately to
have the system checked.
More information can be found in the
“Practical hints” section (
page 242).
iFor information on infants and children
traveling with you in the vehicle and re-
straint systems for infants and chil-
dren, see Children in the vehicle
(page 63).
iThe warning lamp remains lit if the key
is turned to position2 and left there.
The warning lamp will go out when you
start the engine.

60 Safety and SecurityOccupant safetySeat belts
The seat belt nonusage warning lamp
<

in the instrument cluster lights up and a
warning sounds for a short time when you
turn the key in the starter switch to
position2 and the driver’s seat belt is not
fastened.
After starting the engine, the seat belt non-
usage warning lamp blinks for a brief peri-
od to remind the driver and passengers to
fasten their seat belts.
The use of seat belts and infant and child
restraint systems is required by law in all
50 states, the District of Columbia and all
Canadian provinces. Even where this is not
the case, all vehicle occupants should have
their seat belts fastened whenever the ve-
hicle is in motion.
Information on fastening seat belts is
found in the “Getting started” section
(
page 40).
iFor information on infants and children
traveling with you in the vehicle and re-
straint systems for infants and chil-
dren, see “Children in the vehicle”
(page 63)
Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are properly wearing
your seat belt. Airbags can only protect as
they are designed if the occupants are prop-
erly wearing their seat belts.
