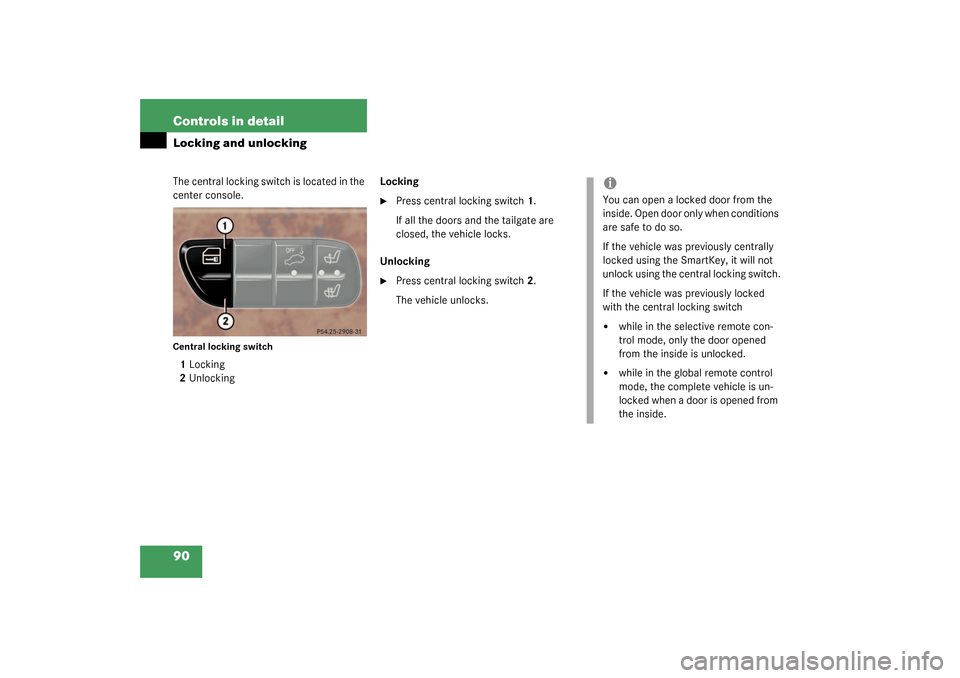

90 Controls in detailLocking and unlockingThe central locking switch is located in the
center console.Central locking switch1Locking
2UnlockingLocking

Press central locking switch 1.
If all the doors and the tailgate are
closed, the vehicle locks.
Unlocking

Press central locking switch 2.
The vehicle unlocks.
iYou can open a locked door from the
inside. Open door only when conditions
are safe to do so.
If the vehicle was previously centrally
locked using the SmartKey, it will not
unlock using the central locking switch.
If the vehicle was previously locked
with the central locking switch

while in the selective remote con-
trol mode, only the door opened
from the inside is unlocked.


while in the global remote control
mode, the complete vehicle is un-
locked when a door is opened from
the inside.

91 Controls in detail

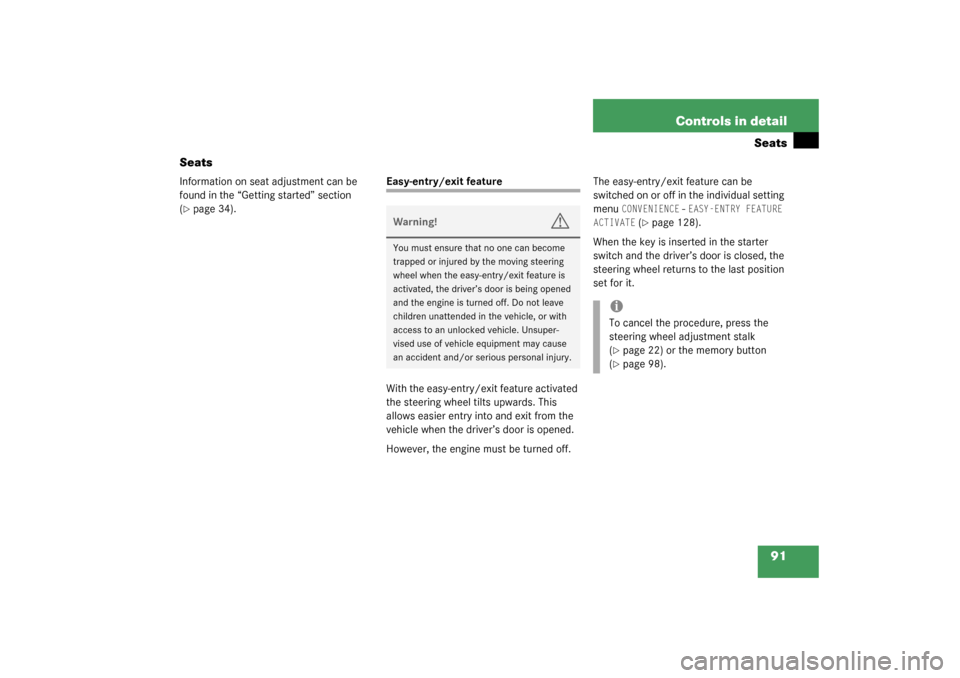

Seats
Seats
Information on seat adjustment can be
found in the “Getting started” section
(page 34).
Easy-entry/exit feature
With the easy-entry/exit feature activated
the steering wheel tilts upwards. This
allows easier entry into and exit from the
vehicle when the driver’s door is opened.
However, the engine must be turned off.The easy-entry/exit feature can be
switched on or off in the individual setting
menu
CONVENIENCE
- EASY-ENTRY FEATURE
ACTIVATE
(page 128).
When the key is inserted in the starter
switch and the driver’s door is closed, the
steering wheel returns to the last position
set for it.
Warning!
G
You must ensure that no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated, the driver’s door is being opened
and the engine is turned off. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
iTo cancel the procedure, press the
steering wheel adjustment stalk
(page 22) or the memory button
(page 98).

93 Controls in detail
Seats

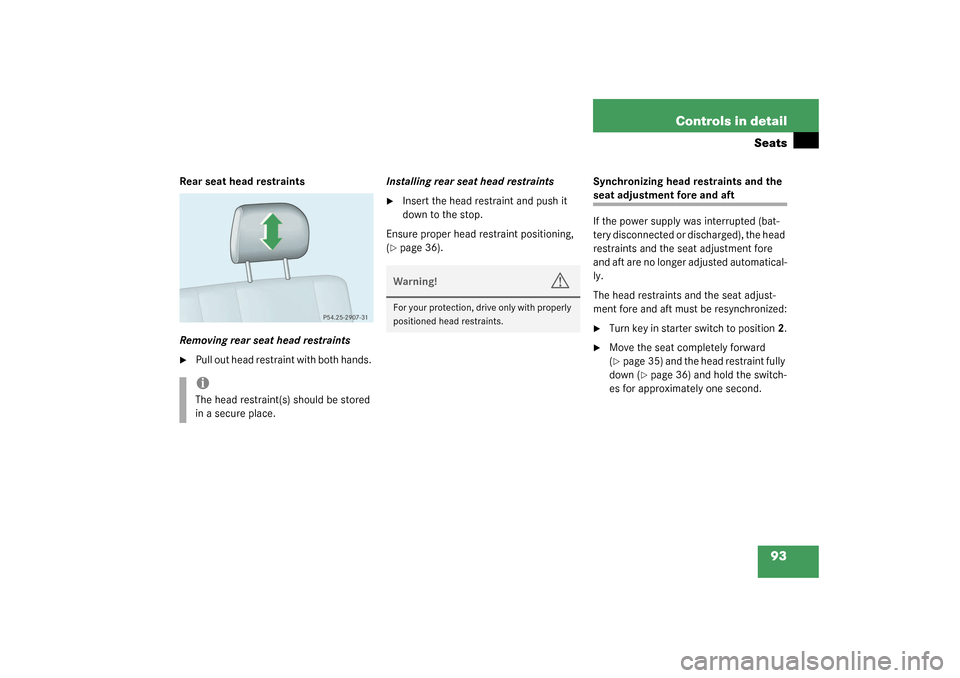

Rear seat head restraints
Removing rear seat head restraints
Pull out head restraint with both hands. Installing rear seat head restraints

Insert the head restraint and push it
down to the stop.
Ensure proper head restraint positioning,
(
page 36). Synchronizing head restraints and the
seat adjustment fore and aft
If the power supply was interrupted (bat-
tery disconnected or discharged), the head
restraints and the seat adjustment fore
and aft are no longer adjusted automatical-
ly.
The head restraints and the seat adjust-
ment fore and aft must be resynchronized:
Turn key in starter switch to position2.

Move the seat completely forward
(page 35) and the head restraint fully
down (
page 36) and hold the switch-
es for approximately one second.
iThe head restraint(s) should be stored
in a secure place.
Warning!
G
For your protection, drive only with properly
positioned head restraints.

94 Controls in detailSeatsMulticontour seat*
Some models may be equipped with driv-
er’s multicontour seat. This seat has a
movable seat cushion and inflatable air
cushions built into the seat backrest to
provide additional lumbar and side sup-
port.
The seat cushion movement and amount of
seat backrest cushion height and curva-
ture can be continuously varied with regu-
lators on the right side of the seat after
turning the SmartKey in the starter switch
to position2.1Seat cushion length
2Seat backrest contour in the lumbar
area
3Seat backrest contour in upper back
area
4Seat backrest side bolsters

Check that the ignition is switched on.
All the lamps in the instrument cluster
should light up.
Seat cushion length

Adjust the seat cushion to the length of
your upper leg using switch 1.Backrest contour in the lumbar area

Adjust the contour of the backrest in
the lumbar area to the desired position
using switch 2.
Backrest contour in the upper back
area

Adjust the contour of the backrest in
the upper back area to the desired po-
sition using switch 3.
Backrest side bolsters

Adjust the backrest side bolsters so
that they provide good lateral support
using switch 4.

97 Controls in detail
Memory function
Memory function
The memory button and stored position
switch are located on the door.
You can store up to three different settings
per key.
The following settings are saved for each
stored position:

Driver’s seat and seat backrest posi-
tion


Steering wheel position


Driver’s side exterior rear view mirror
position


Passenger side exterior rear view mir-
ror position


Front passenger seat position
These key-dependent memory settings
can be deactivated if desired
(
page 129).
!Prior to operating the vehicle, the driv-
er should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to en-
sure adequate control, reach and com-
fort. The head restraint should also be
adjusted for proper height. Also see air-
bag section (
page 55) for proper seat
positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the inside and
outside rear view mirrors should be ad-
justed for adequate rear vision.
Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and Canadian
Motor Vehicle Safety Standards 213
and 210.2.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

98 Controls in detailMemory function1Memory button
2Stored position buttons
Be sure that the ignition is switched on
or the relevant door is open and the
SmartKey is inserted in the starter
switch.
Storing positions into memory
Adjust the seats, steering wheel and
rear view mirrors to the desired posi-
tion (
page 34).

Press memory button1.

Release memory button and push posi-
tion button2 within three seconds.
All the settings are stored at the select-
ed position.
Recalling positions from memory
Press and hold position button2 until
the seat, steering wheel and rear view
mirrors have fully moved to the stored
positions.iReleasing the button immediately
stops movement to the stored posi-
tions.Warning!
G
Do not operate the power seats using the
memory button if the seat backrest is in an
excessively reclined position. Doing so
could cause damage to front or rear seats.
First move seat backrest to an upright posi-
tion.

99 Controls in detail
Memory function
Storing exterior rear view mirror park-ing position
For easier parking, you can adjust the pas-
senger-side exterior rear view mirror so
that you can see the right rear wheel as
soon as you engage reverse gearR.
You can store a parking position for the
passenger exterior rear view mirror for
each key using the memory switch.
For information about activating the park-
ing position see “Activating exterior rear
view mirror parking position”
(page 148).1Adjustment button
2Driver’s side mirror
3Passenger side mirror
4Memory button

Stop the vehicle.

Switch ignition on (if not already on).

Press button3 in center console.
The passenger side exterior rear view
mirror is selected.

Adjust the exterior rear view mirror
with button1 so that you see the rear
wheel and the curb.

Press memory button4 on the door.

Within three seconds, press bottom of
adjustment button1 above the exterior
lamp switch.
The parking position is stored if the
mirror does not move.iIf the mirror does move, repeat the
above steps. After the setting is stored
you can move the mirror again.

100 Controls in detailLighting
LightingFor notes on how to switch on the head-
lamps and use the turn signals, see the
“Getting started” section (
page 46).
Exterior lamp switch
The exterior lamp switch is located on the
dashboard to the left of the steering wheel
M
Off
U
Automatic headlamp mode
C
Parking lamps (also side marker
lamps, tail lamps, license plate
lamps, instrument panel lamps)
Canada only: When engine is run-
ning, the low beam is additionally
switched on.
B
Parking lamps plus low beam or
high beam headlamps (combination
switch pushed forward).
ˆ
Standing lamps, right (turn left one
stop)
‚
Standing lamps, left (turn left two
stops)
iIf you remove the key and open the
driver’s door while the parking lamps or
low beam headlamps are switched on,
then

a warning sounds


$
appears in the multifunction
display


the message
SWITCH OFF LIGHTS

appears in the multifunction display
iWith the daytime running lamp mode
activated and the engine running, the
low beam headlamps cannot be
switched off manually.
